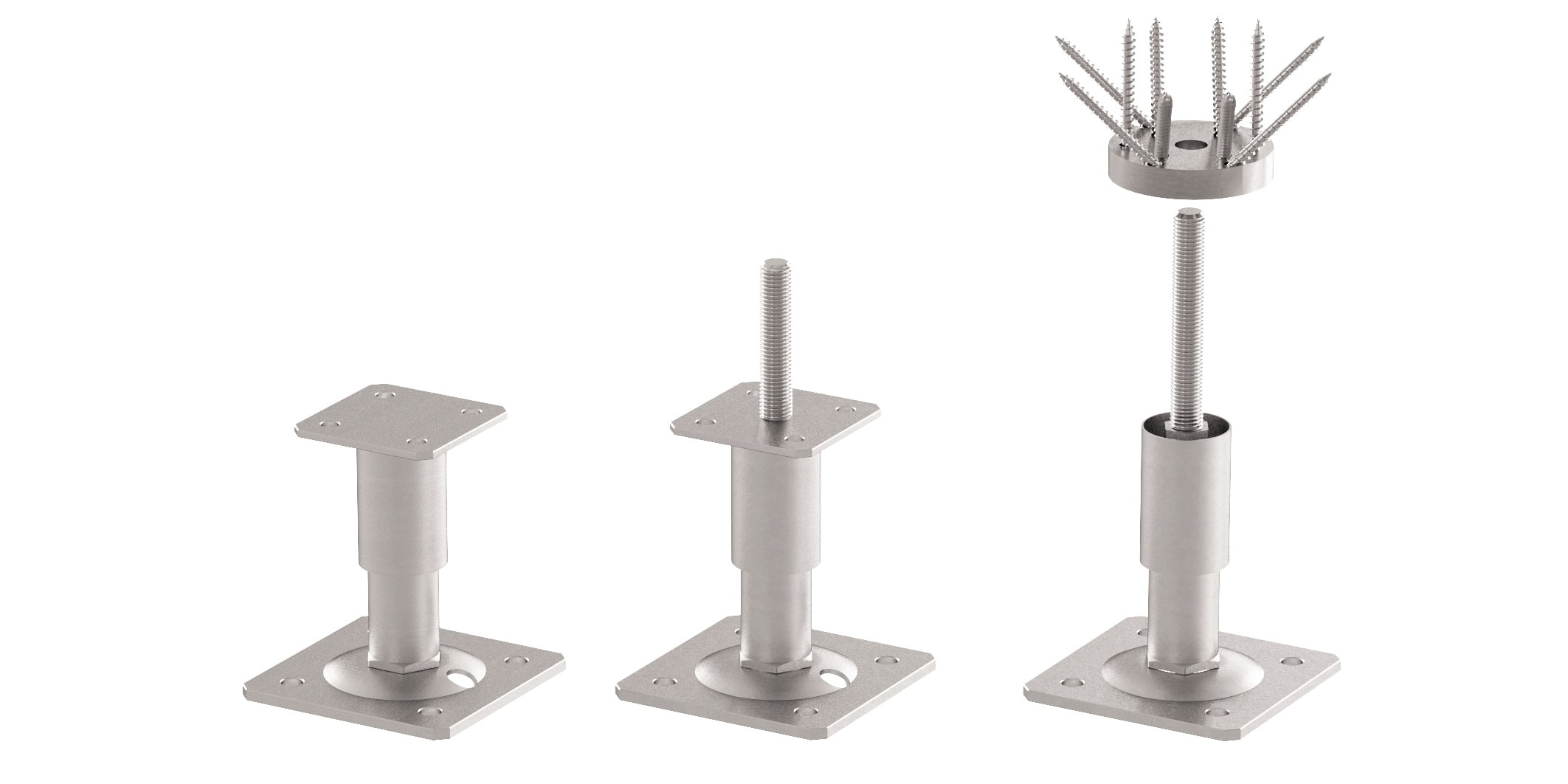

ADJUSTABLE POST BASE
R10-R20-R30

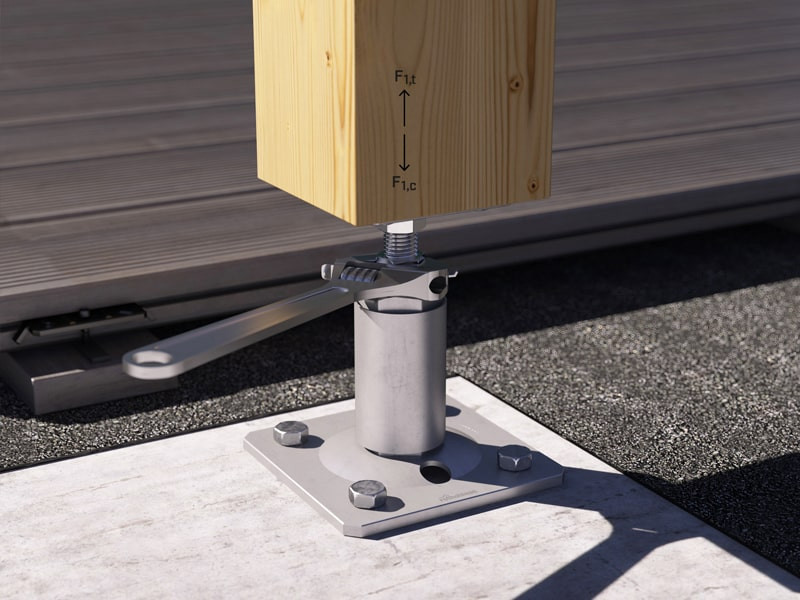

The R10, R20 and R30 adjustable post bases for outdoor joints can be adjusted in height after assembly, to correct any possible unevenness.
The regulation system is concealed in the sleeve, for pleasant aesthetic appearance. Raised from the ground to avoid water splash or stagnation, ensuring great durability.
Videos
R10, R20 AND R30 ADJUSTABLE POST BASE: AESTHETICS AND DURABILITY FOR YOUR EXTERNAL STRUCTURES

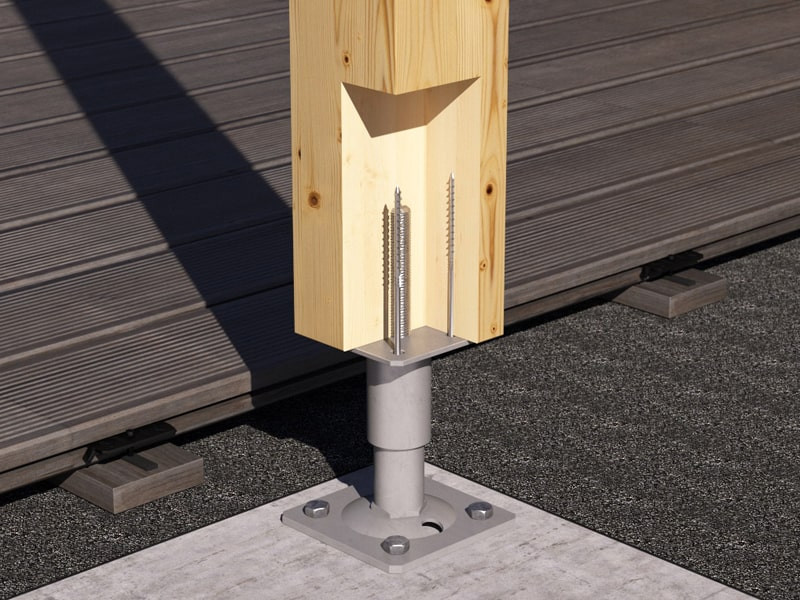

The fastening of these post bases are concealed on the timber element. Careful attention to detail, they are characterized by an auxiliary hole at the base allowing to insert HBS PLATE EVO screws. In terms of static resistance, the large models ensure high compression strengths; the models with pass-through rod guarantee high compressive and tensile strengths.
Made of bright zinc plated carbon steel Dac Coat, they are suitable for outdoor use in service classes 1, 2 and 3 and can be used with solid timber, glulam, CLT and LVL.
Documents
| Technical data sheets | |
|---|---|
| ETA Certificate | |
| Declaration of performance (DOP) | Download |
| Item specification | |
| File CAD | |
| File BIM.ifc | |
| File BIM.rfa |
R10 - SCREWS NOT INCLUDED
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| R1080 | 80 | 80 | 140 | 6 | 4 |
| R10100 | 100 | 100 | 170 | 6 | 4 |
| R10140 | 140 | 140 | 200 | 8 | 4 |
R20 - SCREWS NOT INCLUDED
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| R2080 | 80 | 80 | 140 | 6 | 4 |
| R20100 | 100 | 100 | 170 | 6 | 4 |
| R20140 | 140 | 140 | 200 | 8 | 4 |
R30 - SCREWS AND CONNECTOR DISC FLAT NOT INCLUDED
| CODE | Ø
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| R3080 | Ø80 | 150 | 15 | 4 |
| R30120 | Ø120 | 180 | 15 | 4 |
