ADJUSTABLE POST BASE

R70-R90

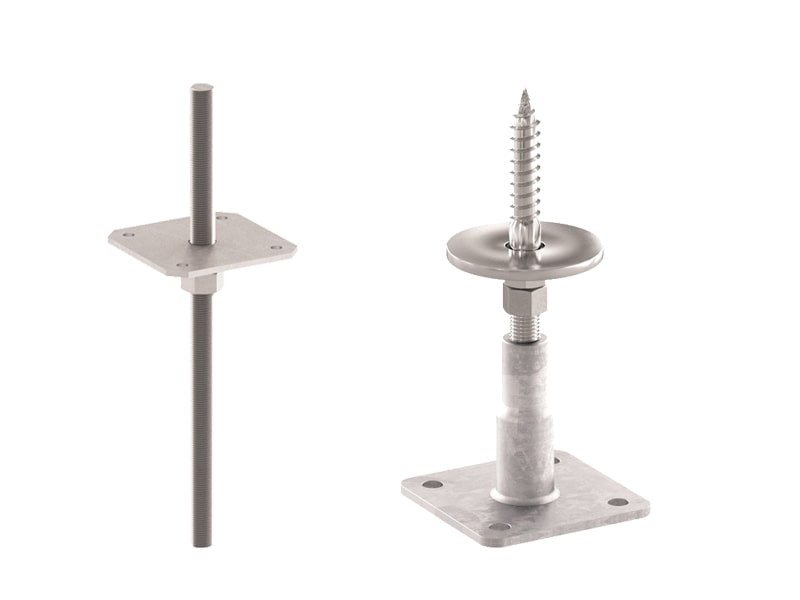

Concealed joints adjustable in height, allow the pillar to be raised to avoid rising damp, splashes and stagnation of water, ensuring great durability. The R70 version has a high quality surface coating (DAC COAT). Ideal for embedding in concrete.

Documents

Technical data sheets
ETA Certificate
Declaration of performance (DOP) Download
File BIM.ifc
File BIM.rfa

R70

CODE B
[mm]
P
[mm]
H
[mm]
s
[mm]
pcs.
R70100 100 100 350 8 1
R70140 140 140 450 8 1

R90

CODE Ø
[mm]
H
[mm]
pcs.
R90100 Ø80 130 1

Specifications

R70

Supply and installation of adjustable post base for timber structures, Type R70.
CE marking in accordance with ETA 10/0422

Field of use:

  • Joints for timber columns, classes 1, 2 and 3

Material:

Geometry:

Angle bracket: :

  • H (mm) = :

  • Bottom plate (mm) = :

  • Thickness s (mm) = :

Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.

R90

Supply and installation of adjustable post base for timber structures, Type R90.
CE marking in accordance with ETA 10/0422

Field of use:

  • Joints for timber columns, classes 1, 2 and 3

Material:

Geometry:

Angle bracket: :

  • H (mm) = :

  • Bottom plate (mm) = :

  • Thickness s (mm) = :

Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
