HIGHLY-RESISTANT POST BASE
S50

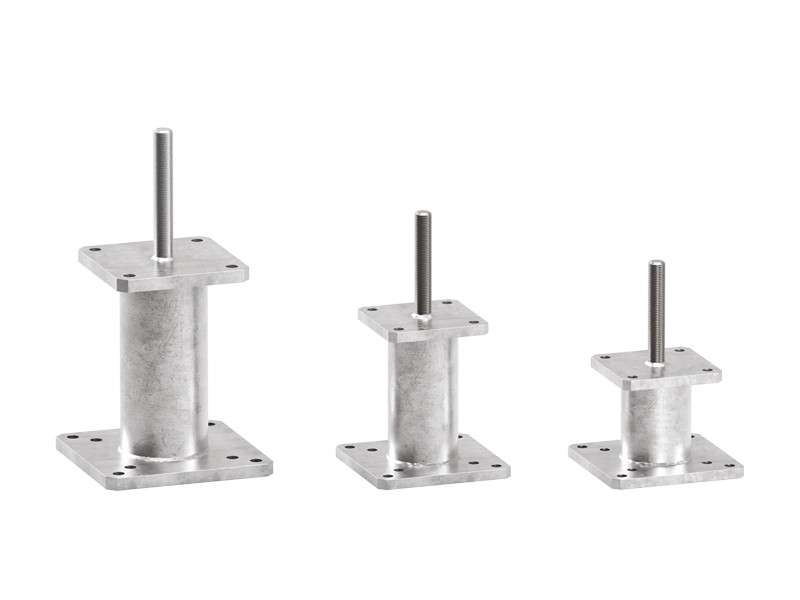

S50 is the powerful and certified concealed post base designed for the construction of large structures. Thanks to the compression strength above 300 kN, it is ideal for post and beam construction systems of large dimensions and large spans.
S50, HIGH STRENGTH CONCEALED POST BASE
The post base S50 are raised from the ground to avoid water splash and stagnation and guarantee high durability. The concealed fastening on the timber element ensures a pleasant aesthetic appearance. It is ideal for transferring high compression forces deriving from large columns.
Its exceptional compression strength values are calculated and certified according to ETA. Made of hot dip bright zinc plated carbon steel, it is suitable for service classes 1, 2 and 3 and use on solid timber, glulam, CLT and LVL.
Documents
| Technical data sheets | |
|---|---|
| ETA Certificate | |
| Declaration of performance (DOP) | Download |
| File CAD | |
| File BIM.ifc | |
| File BIM.rfa |
S50
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
Ø
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| S50120120 | 120 | 120 | 144 | Ø80 | 12 | 1 |
| S50120180 | 120 | 120 | 204 | Ø80 | 12 | 1 |
| S50160180 | 160 | 160 | 212 | Ø100 | 16 | 1 |
| S50160240 | 160 | 160 | 272 | Ø100 | 16 | 1 |
Specifications
Supply and installation of highly-resistant post base for timber structures, Type S50.
CE marking in accordance with ETA 10/0422
Field of use:
- Joints for timber columns, classes 1, 2 and 3
Material:
- Hot dip bright zinc plated carbon steel
Geometry:
Angle bracket: :
-
H (mm) = :
-
Bottom plate (mm) = :
-
Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
