CROSS-SHAPED POST BASE

X10

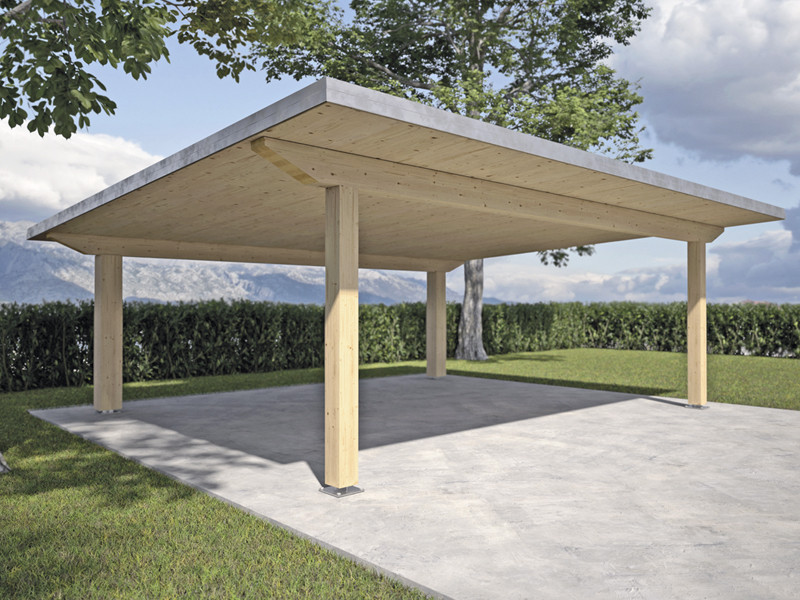

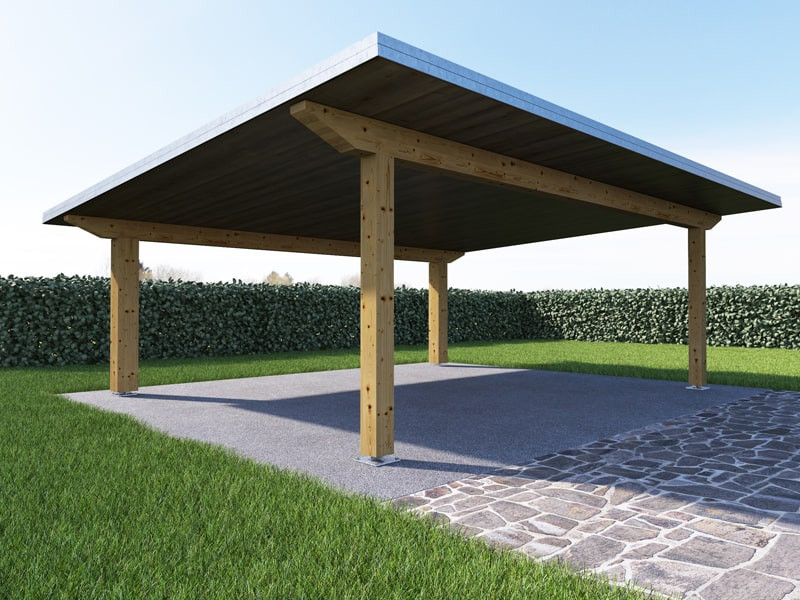

The X10 model is a totally concealed post base that offers different strength levels according to the fastening configuration used. Ideal for creating pergolas or gazebos which do not require bracings and are open on all sides.

  • cross-shaped post base
  • cross-shaped post base
  • cross-shaped post base
  • cross-shaped post base

Videos

cookies.consent_necessary

X10, THE CONCEALED POST BASE THAT ENSURES HIGH STRENGTH AND PLEASANT AESTHETIC APPEARANCE TO YOUR EXTERNAL STRUCTURES

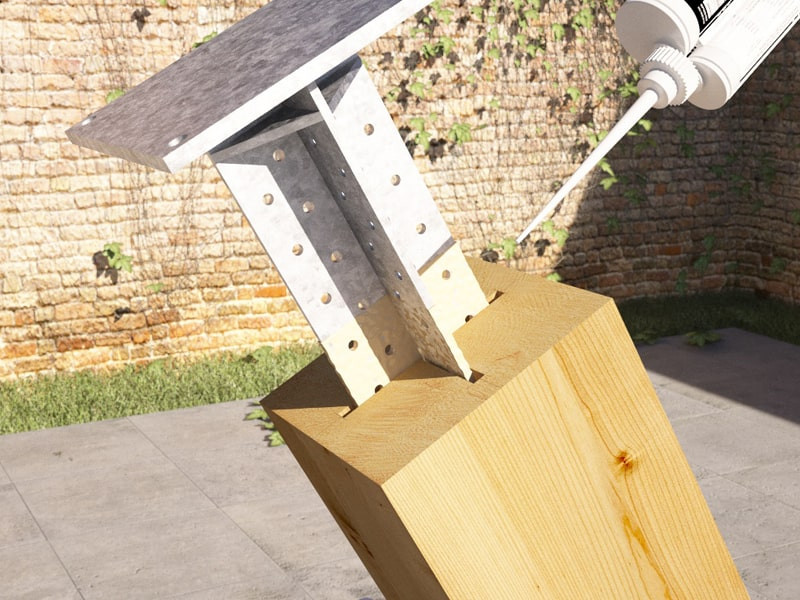

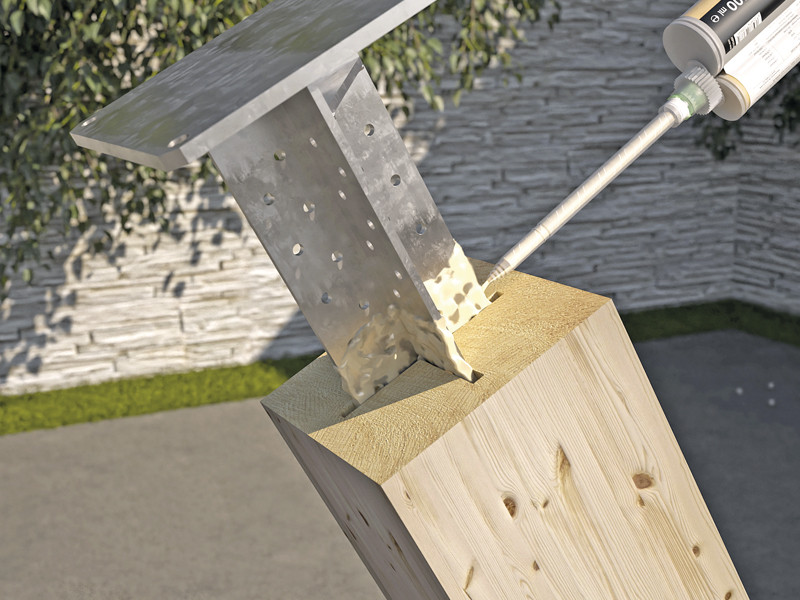

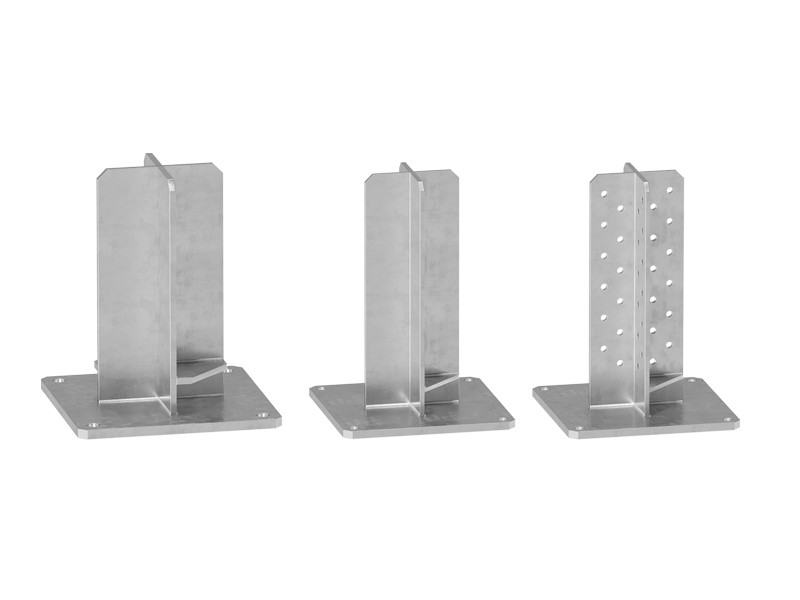

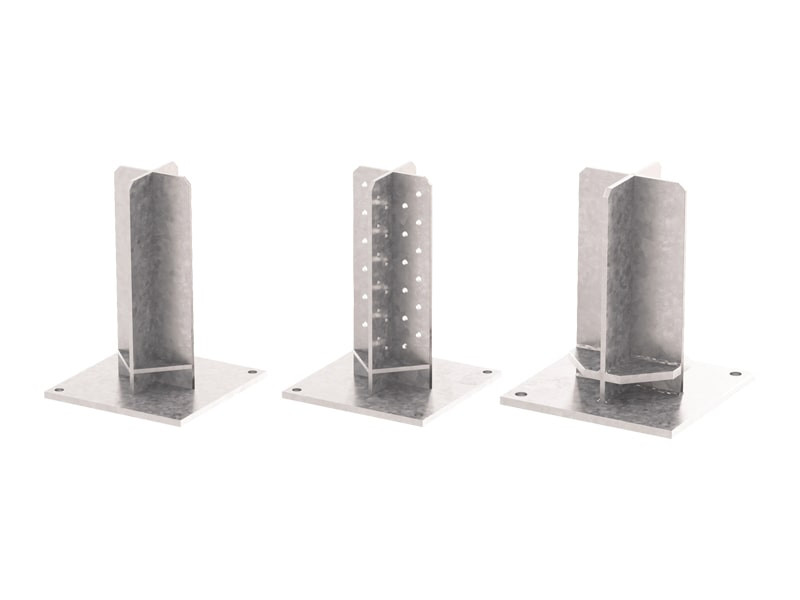

The X10 post base for timber is available in two versions: without holes, to be used with self-drilling SBD dowels, smooth dowels or bolts; with diffused drilling, it can be used with XEPOX epoxy adhesive.

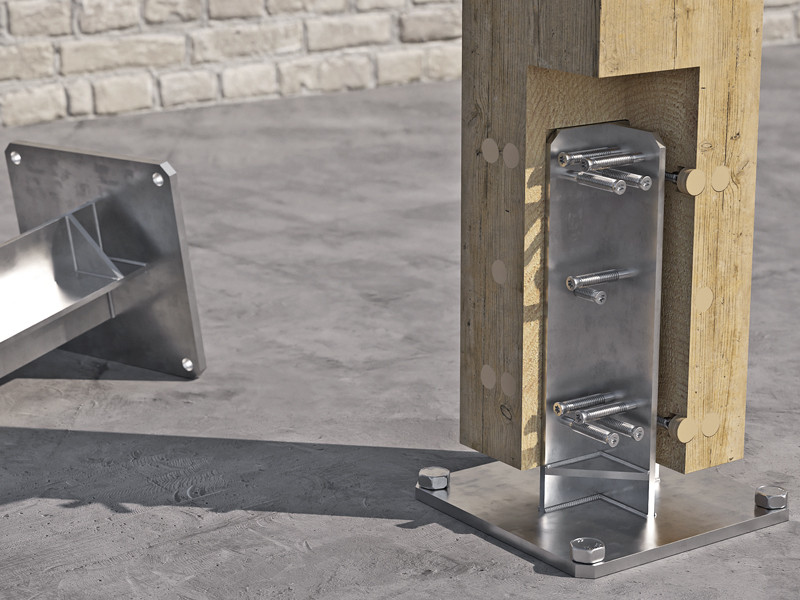

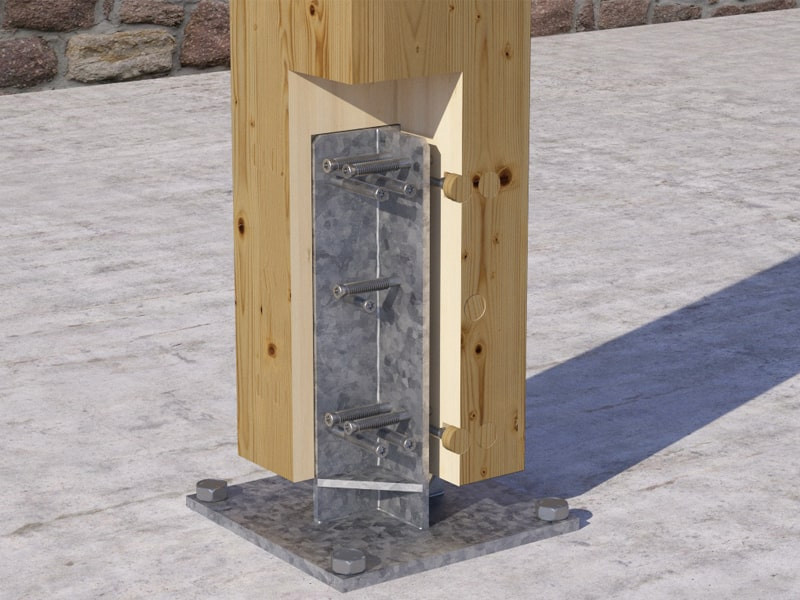

The base constraint can absorb vertical and horizontal loads allowing to build pergolas or gazebos, which do not require bracings, open on all sides. X10 is a moment-resisting post base for fixed-end semi-constraints; the characteristic moment values are certified in both directions. The cross configuration and the fasteners arrangement are designed to obtain different strength levels.

Made of hot dip bright zinc plated carbon steel, it is suitable for outdoor use in service classes 1, 2 and 3 with solid timber, glulam, CLT and LVL.

Find the nearest agent Download the catalogue

Documents

Technical data sheets
Technical data sheets USA
ETA Certificate
Declaration of performance (DOP) Download
Item specification
File CAD
File BIM.ifc
File BIM.rfa
Find the nearest agent Download the catalogue

XS10

CODE B
[mm]
 P
[mm]
 H
[mm]
 s
[mm]
 pcs.
XS10120 220 220 310 6 1
XS10160 260 260 312 8 1

XR10

CODE B
[mm]
 P
[mm]
 H
[mm]
 s
[mm]
 pcs.
XR10120 120 120 310 6 1

Specifications

Supply and installation of cross shaped post base for timber structures , Type X10.
CE marking in accordance with ETA 10/0422

Field of use:

  • Joints for timber columns, classes 1, 2 and 3

Material:

  • Hot dip bright zinc plated carbon steel

Geometry:

Angle bracket: :

  • H (mm) = :

  • Bottom plate (mm) = :

  • Thickness s (mm) = :

Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
