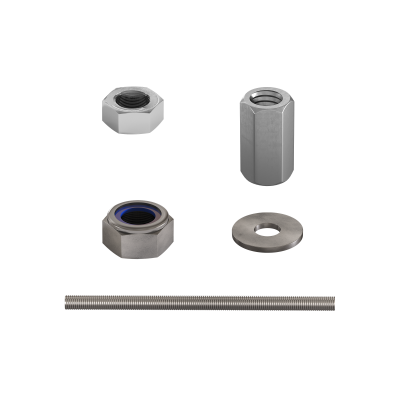

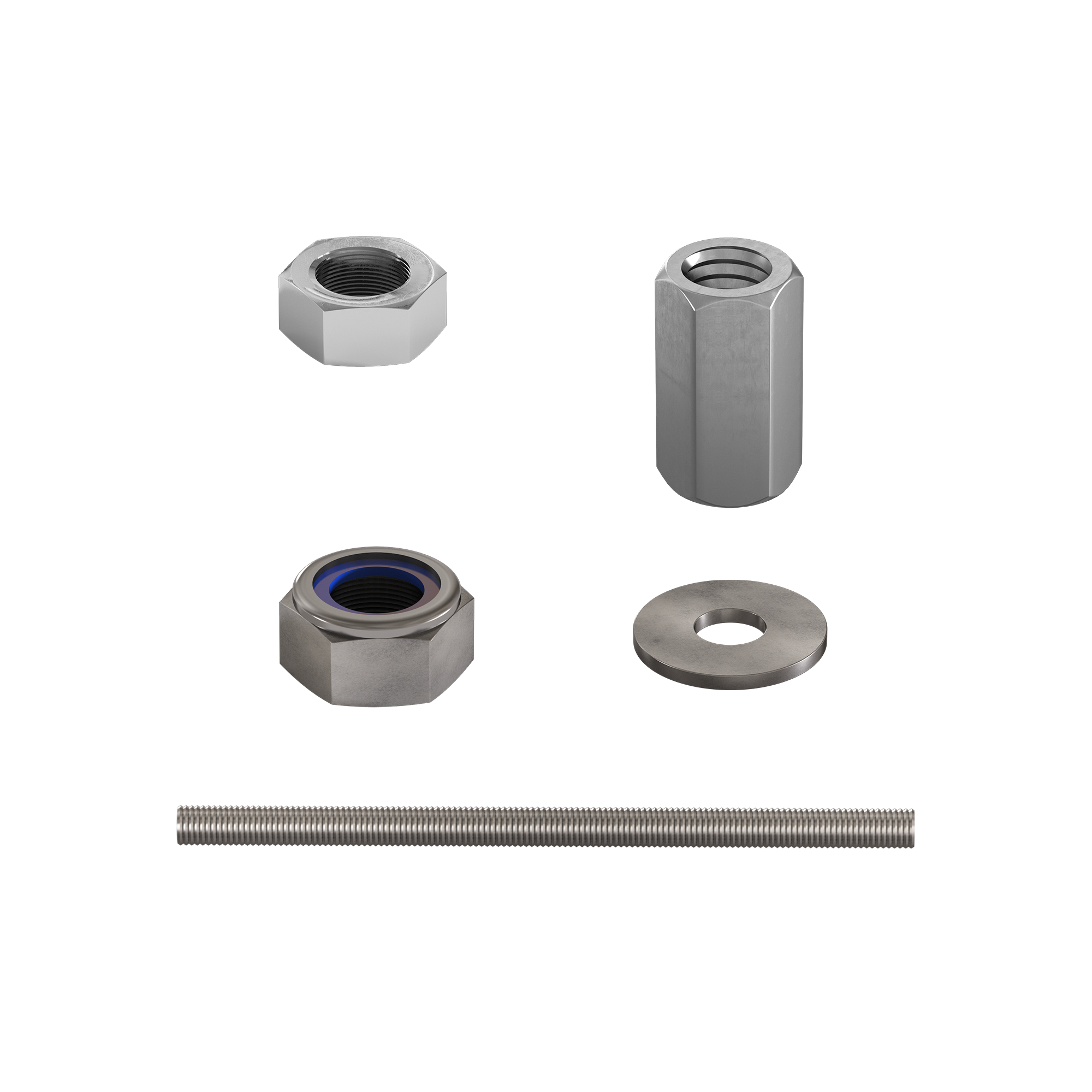

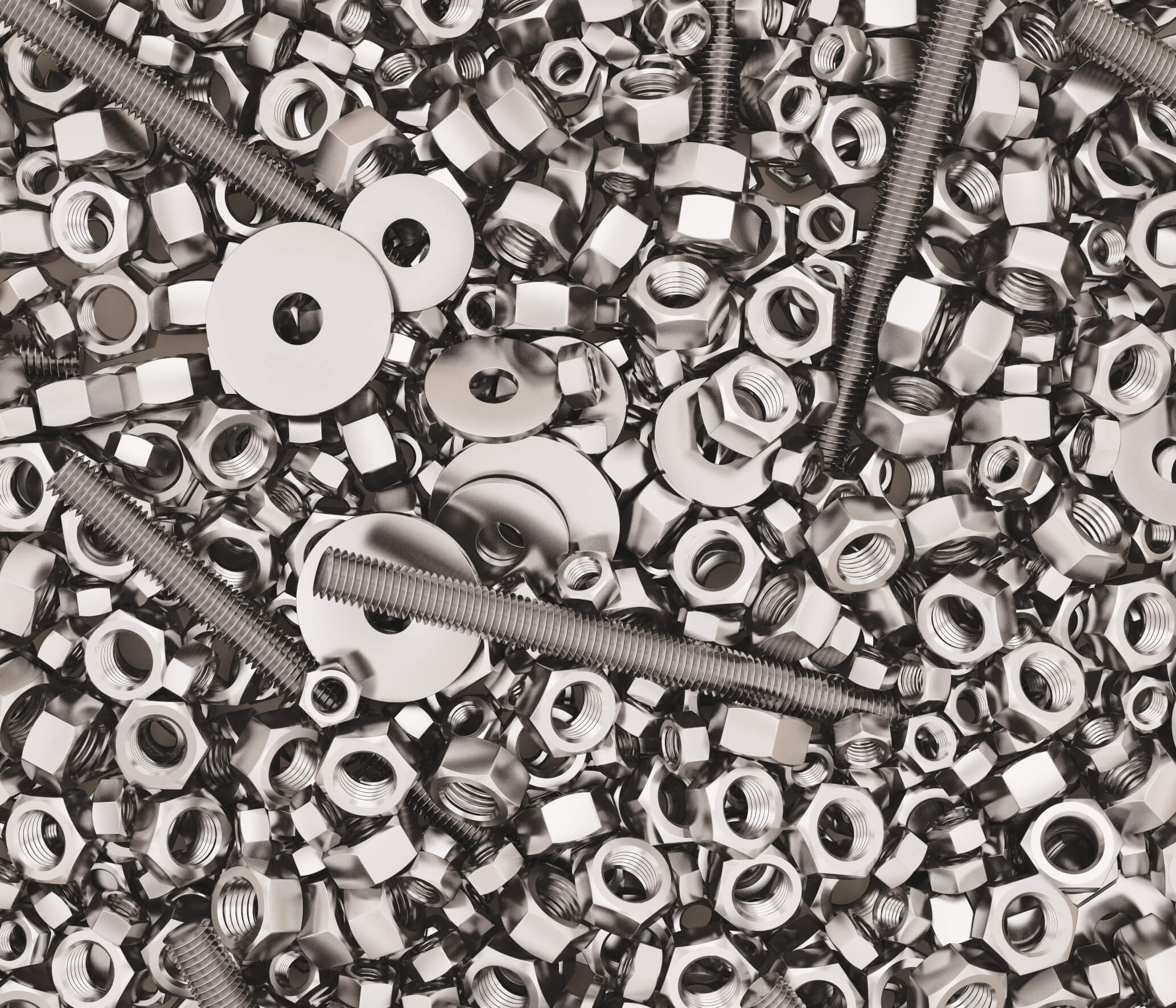

THREADED RODS, NUTS AND WASHERS
MET
Metric threaded products for creating connections and joints. Available in carbon steel and stainless steel for use in service classes 1, 2 and 3 (EN 1995-1-1).
Documents
Technical data sheets | |
---|---|
Technical data sheets USA 🇺🇸 | |
Item specification |
MGS 1000 4.8
CODE | d
[mm]
|
L
[mm]
|
pcs. |
---|---|---|---|
MGS10008 | M8 | 1000 | 10 |
MGS100010 | M10 | 1000 | 10 |
MGS100012 | M12 | 1000 | 10 |
MGS100014 | M14 | 1000 | 10 |
MGS100016 | M16 | 1000 | 10 |
MGS100018 | M18 | 1000 | 10 |
MGS100020 | M20 | 1000 | 10 |
MGS100022 | M22 | 1000 | 10 |
MGS100024 | M24 | 1000 | 10 |
MGS100027 | M27 | 1000 | 10 |
MGS100030 | M30 | 1000 | 10 |
MGS 1000 8.8
CODE | d
[mm]
|
L
[mm]
|
pcs. |
---|---|---|---|
MGS10888 | M8 | 1000 | 50 |
MGS11088 | M10 | 1000 | 50 |
MGS11288 | M12 | 1000 | 25 |
MGS11488 | M14 | 1000 | 1 |
MGS11688 | M16 | 1000 | 20 |
MGS11888 | M18 | 1000 | 10 |
MGS12088 | M20 | 1000 | 10 |
MGS12488 | M24 | 1000 | 5 |
MGS12788 | M27 | 1000 | 1 |
MGS 2200 4.8
CODE | d
[mm]
|
L
[mm]
|
pcs. |
---|---|---|---|
MGS220012 | M12 | 2200 | 10 |
MGS220016 | M16 | 2200 | 1 |
MGS220020 | M20 | 2200 | 10 |
MGS AI 975 | AISI304
CODE | d
[mm]
|
L
[mm]
|
pcs. |
---|---|---|---|
AI9758 | M8 | 1000 | 1 |
AI97510 | M10 | 1000 | 5 |
AI97512 | M12 | 1000 | 20 |
AI97516 | M16 | 1000 | 10 |
AI97520 | M20 | 1000 | 5 |
ULS 9021
CODE | version | d
[mm]
|
s
[mm]
|
pcs. |
---|---|---|---|---|
ULS8242 | 0.32 in | 24 | 2 | 500 |
ULS10302 | 0.40 in | 30 | 2.5 | 200 |
ULS13373 | 0.48 in | 37 | 3 | 200 |
ULS15443 | 0.56 in | 44 | 3 | 100 |
ULS17503 | 0.63 in | 50 | 3 | 100 |
ULS20564 | 0.71 in | 56 | 4 | 100 |
ULS22604 | 0.79 in | 60 | 4 | 50 |
ULS 440
CODE | version | d
[mm]
|
s
[mm]
|
pcs. |
---|---|---|---|---|
ULS11343 | 0.40 in | 34 | 3 | 200 |
ULS13444 | 0.48 in | 44 | 4 | 100 |
ULS17565 | 0.63 in | 56 | 5 | 50 |
ULS22726 | 0.79 in | 72 | 6 | 50 |
ULS24806 | 0.87 in | 80 | 6 | 50 |
ULS 1052
CODE | version | d
[mm]
|
s
[mm]
|
pcs. |
---|---|---|---|---|
ULS14586 | 0.48 in | 58 | 6 | 50 |
ULS18686 | 0.63 in | 68 | 6 | 50 |
ULS22808 | 0.79 in | 80 | 8 | 25 |
ULS25928 | 0.87 in | 92 | 8 | 20 |
ULS271058 | 0.95 in | 105 | 8 | 20 |
ULS 125
CODE | version | d
[mm]
|
s
[mm]
|
pcs. |
---|---|---|---|---|
ULS81616 | 0.32 in | 16 | 1.6 | 2000 |
ULS10202 | 0.40 in | 20 | 2 | 1000 |
ULS13242 | 0.48 in | 24 | 2.5 | 500 |
ULS17303 | 0.63 in | 30 | 3 | 200 |
ULS21373 | 0.79 in | 37 | 3 | 100 |
ULS25444 | 0.95 in | 44 | 4 | 100 |
ULS28504 | 1.07 in | 56 | 4 | 50 |
ULS31564 | 1.19 in | 50 | 4 | 50 |
ULS AI 9021
CODE | version | d
[mm]
|
s
[mm]
|
pcs. |
---|---|---|---|---|
AI90218 | 0.32 in | 24 | 2 | 500 |
AI902110 | 0.40 in | 30 | 2.5 | 500 |
AI902112 | 0.48 in | 37 | 3 | 200 |
AI902116 | 0.63 in | 50 | 3 | 100 |
AI902120 | 0.79 in | 60 | 4 | 50 |
MUT 934
CODE | d
[mm]
|
H
[mm]
|
SW | pcs. |
---|---|---|---|---|
MUT9348 | M8 | 6.5 | SW13 | 400 |
MUT93410 | M10 | 8 | SW17 | 500 |
MUT93412 | M12 | 10 | SW19 | 500 |
MUT93414 | M14 | 11 | SW22 | 200 |
MUT93416 | M16 | 13 | SW24 | 200 |
MUT93418 | M18 | 15 | SW27 | 100 |
MUT93420 | M20 | 16 | SW30 | 100 |
MUT93422 | M22 | 18 | SW32 | 50 |
MUT93424 | M24 | 19 | SW36 | 50 |
MUT93427 | M27 | 22 | SW41 | 25 |
MUT93430 | M30 | 24 | SW46 | 25 |
MUT 6334
CODE | d
[mm]
|
H
[mm]
|
SW | pcs. |
---|---|---|---|---|
MUT633410 | M10 | 30 | SW17 | 200 |
MUT633412 | M12 | 36 | SW19 | 10 |
MUT633416 | M16 | 48 | SW24 | 25 |
MUT633420 | M20 | 60 | SW30 | 10 |
MUT 1587
CODE | d
[mm]
|
H
[mm]
|
SW | pcs. |
---|---|---|---|---|
MUT15878S | M8 | 15 | SW13 | 200 |
MUT158710S | M10 | 18 | SW17 | 50 |
MUT158712S | M12 | 22 | SW19 | 50 |
MUT158714S | M14 | 25 | SW22 | 50 |
MUT158716S | M16 | 28 | SW24 | 50 |
MUT158718S | M18 | 32 | SW27 | 50 |
MUT158720S | M20 | 34 | SW30 | 25 |
MUT158722S | M22 | 39 | SW32 | 25 |
MUT158724S | M24 | 42 | SW36 | 25 |
MUT AI 934
CODE | d
[mm]
|
H
[mm]
|
SW | pcs. |
---|---|---|---|---|
AI9348 | M8 | 6.5 | SW13 | 500 |
AI93410 | M10 | 8 | SW16 | 200 |
AI93412 | M12 | 10 | SW18 | 200 |
AI93416 | M16 | 13 | SW24 | 100 |
AI93420 | M20 | 16 | SW30 | 50 |
MUT AI 985
CODE | d
[mm]
|
H
[mm]
|
SW | pcs. |
---|---|---|---|---|
AI9858 | M8 | 8 | SW13 | 500 |
AI98510 | M10 | 10 | SW17 | 200 |
AI98512 | M12 | 12 | SW19 | 200 |
AI98516 | M16 | 16 | SW24 | 100 |
MUT AI 1587
CODE | d
[mm]
|
H
[mm]
|
SW | pcs. |
---|---|---|---|---|
AI158710 | M10 | 18 | SW17 | 100 |
AI158712 | M12 | 22 | SW19 | 100 |
AI158716 | M16 | 28 | SW24 | 50 |
AI158720 | M20 | 34 | SW30 | 25 |
