F70

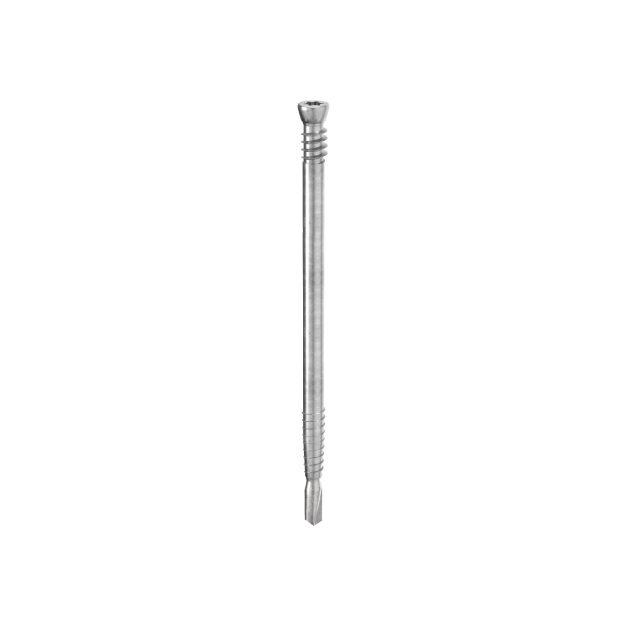

F70 is a concealed post base designed to accommodate post bases of all sizes. It is available in two versions: without holes, to be used with SBD self-drilling dowels; with holes, to be used with smooth dowels or bolts.
Description

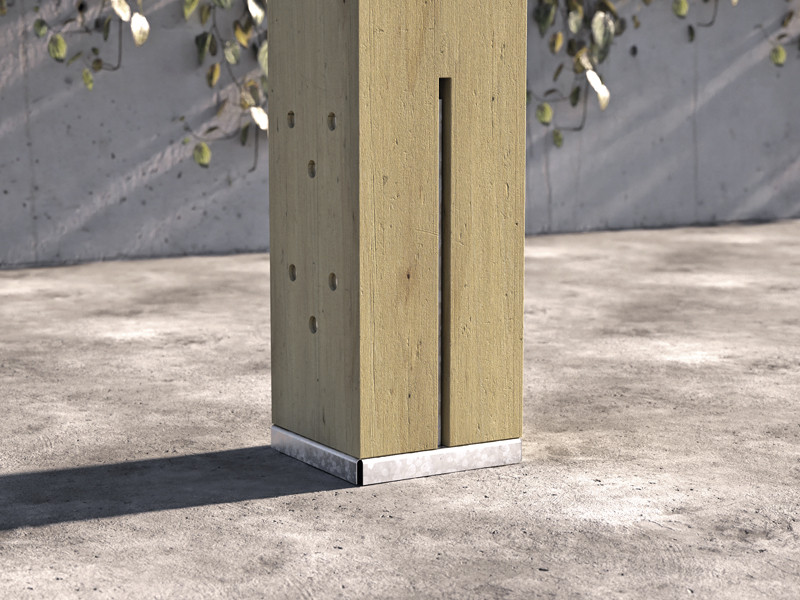

F70 concealed post base: pleasant aesthetic appearance and adaptability to columns of all sizes

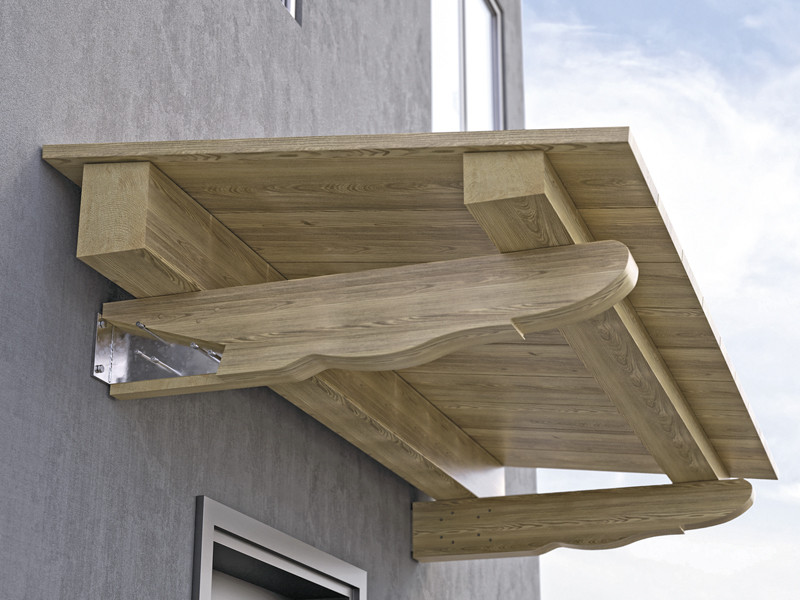

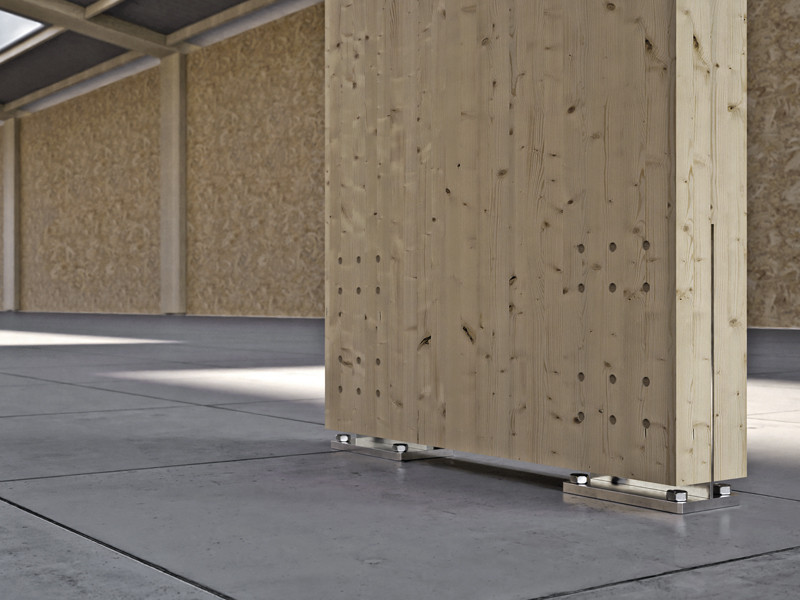

The internal knife plate of the F70 post base is used to create a totally concealed joint, for a superior aesthetic appearance. F70 is a moment-resisting post base for the creation of fixed-end semi-constraints.
Depending on the fastening configuration used, different strength levels are obtained. The different fastening configurations are all calculated and certified according to ETA. F70 is resistant to compression, tension, shearing and moment.
For excellent durability, it can be integrated with F70 LIFT plate to generate a riser from the ground and protect the anchors from moisture. Made of hot dip bright zinc plated carbon steel, it is suitable for service classes 1, 2 and 3 and can be used on solid timber, glulam and LVL.
Documents
-
Technical data sheets
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets English Eurocode 5
- Technical data sheets English Canada CSA-086
- Technical data sheets English USA NDS
- Technical data sheets French
- Technical data sheets French Canada CSA-086
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
-
ETA Certificate
-
File CAD
-
File BIM.ifc
-
File BIM.rfa
F70
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
B
[in]
|
P
[in]
|
H
[in]
|
s
[in]
|
pcs. |
DOP
|
|---|---|---|---|---|---|---|---|---|---|---|
| F7080 | 80 | 80 | 156 | 4 | 3 1/8'' | 3 1/8'' | 6 1/8'' | 0.157 | 1 | |
| F70100 | 100 | 100 | 206 | 6 | 4'' | 4'' | 8 1/8'' | 0.236 | 1 | |
| F70140 | 140 | 140 | 308 | 8 | 5 1/2'' | 5 1/2'' | 12 1/8'' | 0.315 | 1 | |
| F70180 | 180 | 120 | 400 | 6 | 7 1/8'' | 4 3/4'' | 15 3/4'' | 0.236 | 1 | |
| F70220 | 220 | 140 | 400 | 6 | 8 5/8'' | 5 1/2'' | 15 3/4'' | 0.236 | 1 |
F70 L - with holes

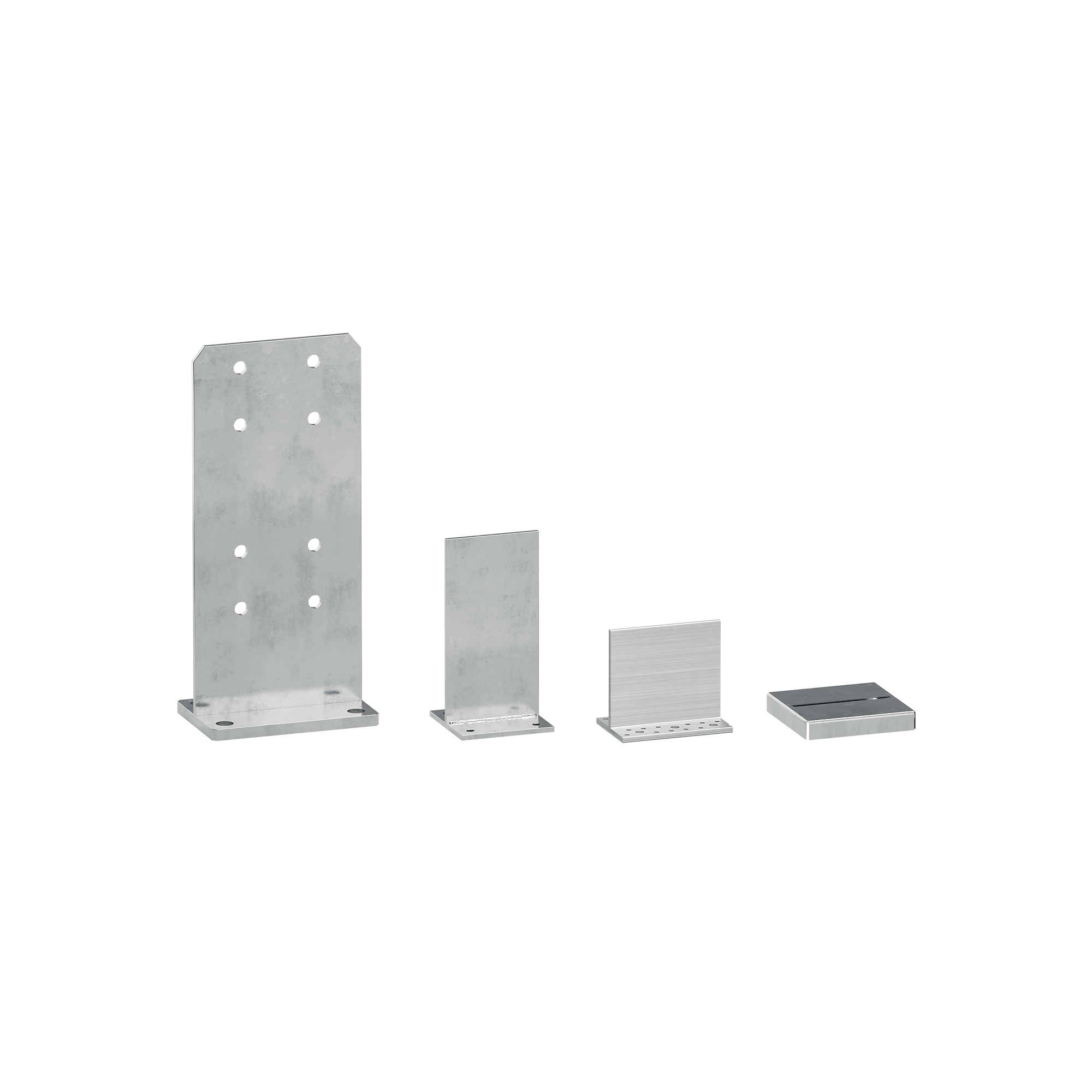

F70 LIFT
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
B
[in]
|
P
[in]
|
H
[in]
|
s
[in]
|
pcs. |
|---|---|---|---|---|---|---|---|---|---|
| LIFT44 | 89 | 89 | 25 | 3 | 3 1/2'' | 3 1/2'' | 1'' | 0.118 | 1 |
| F70100LIFT | 120 | 120 | 20 | 2 | 4 3/4'' | 4 3/4'' | 13/16'' | 0.079 | 1 |
| LIFT66 | 136 | 136 | 25 | 3 | 5 3/8'' | 5 3/8'' | 1'' | 0.118 | 1 |
| F70140LIFT | 160 | 160 | 22 | 2 | 6 1/4'' | 6 1/4'' | 7/8'' | 0.079 | 1 |
| LIFT88 | 184 | 184 | 25 | 3 | 7 1/4'' | 7 1/4'' | 1'' | 0.118 | 1 |
