P10 - P20
EMBEDDED TUBULAR POST BASE
The P10 and P20 post bases can be embedded in concrete, allowing the column to be spaced more than 300 mm from the ground, in accordance with DIN 68800, ensuring high durability of the timber.

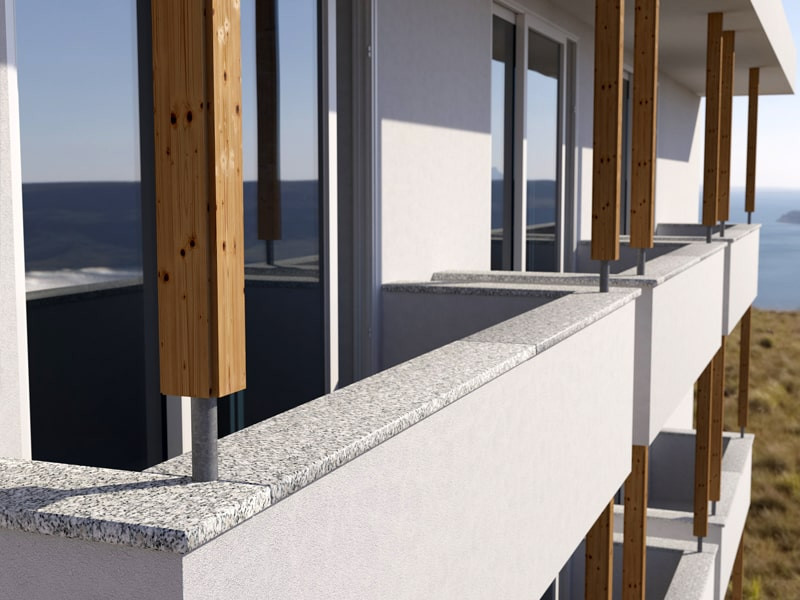

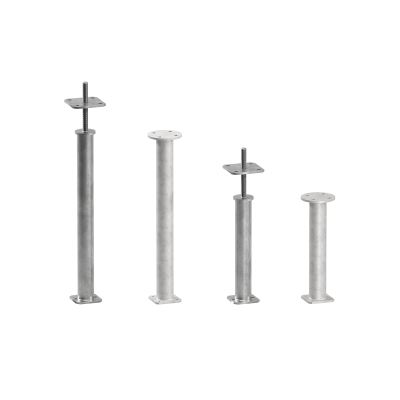

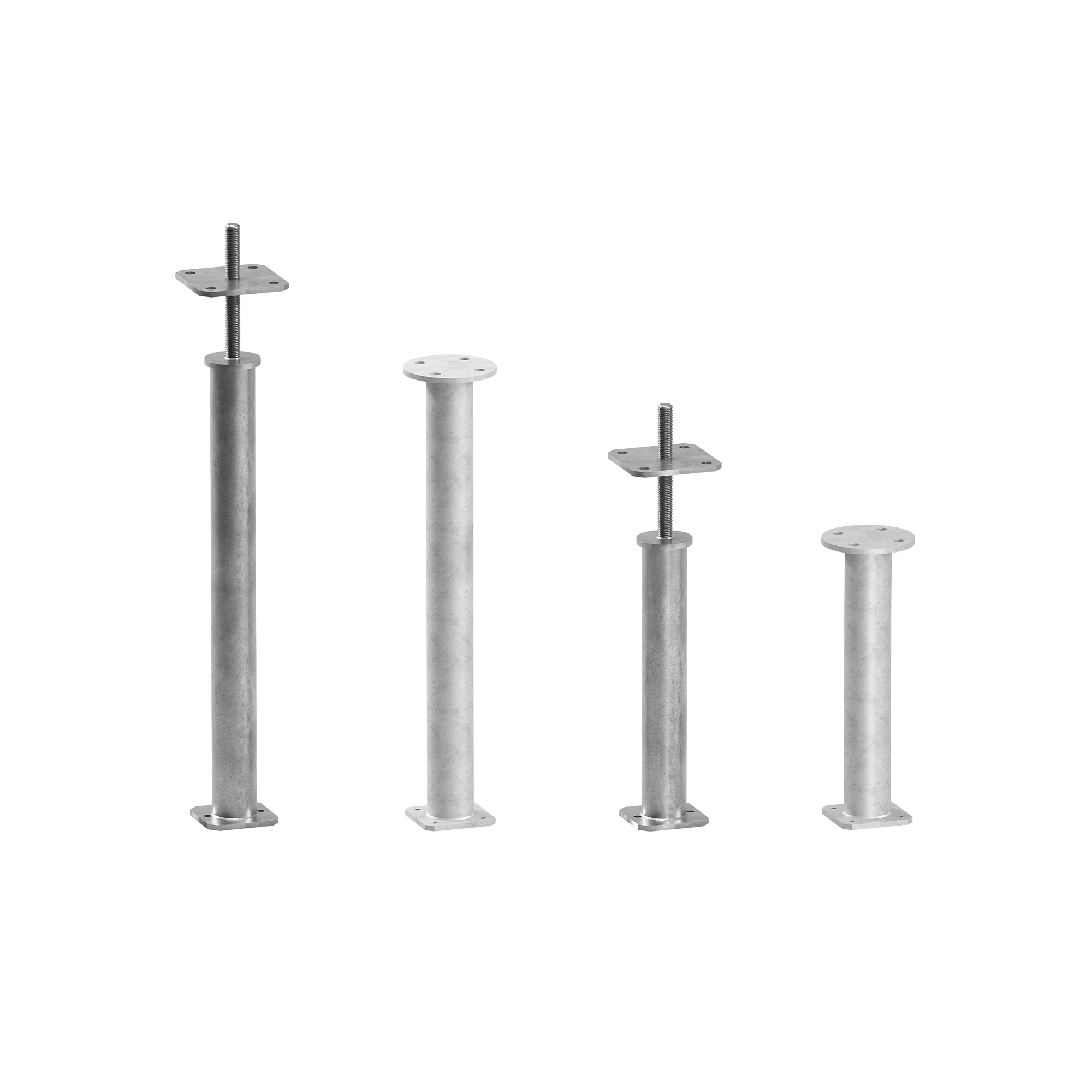

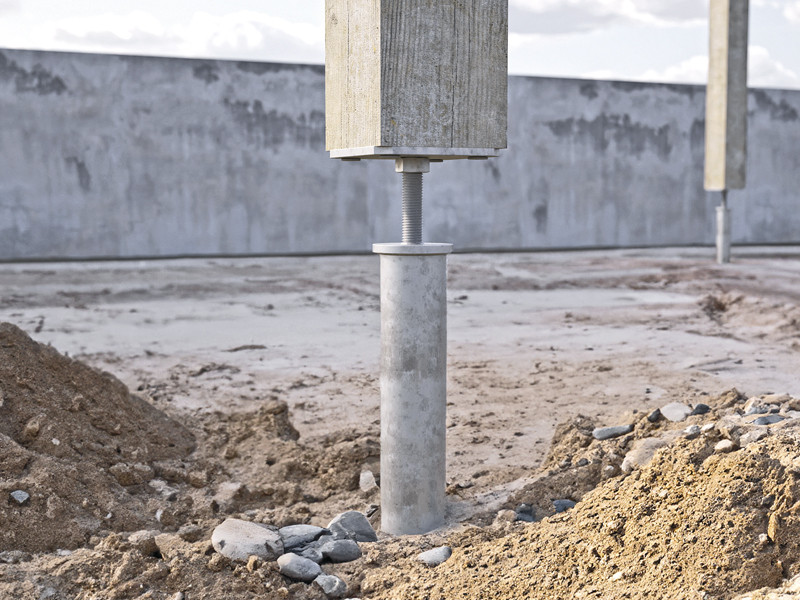

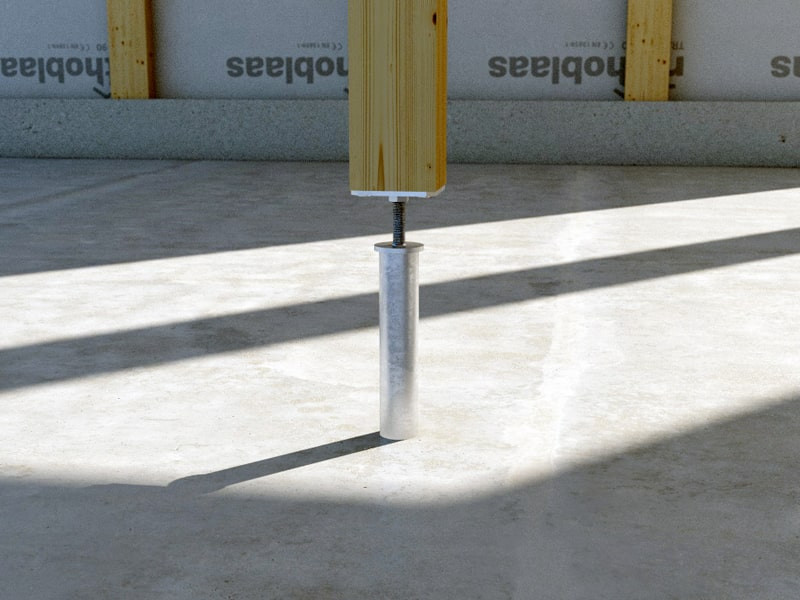

P10 and P20 concealed post bases for embedding in concrete.
Description
P10 and P20 post bases are ideal for creating high durability concealed joints for outdoor wooden columns.
In the P20 model, the height can be adjusted as required. In the 500 mm height versions it guarantees a distance between the ground and the column head greater than 300 mm. Made of hot dip bright zinc plated carbon steel (P10) and Dac Coat coating (P20) they are ideal for creating outdoor joints with solid timber, glulam,
CLT and LVL. Suitable for service classes 1, 2 and 3.
P10
| CODE | Ø
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| P10300 | Ø100 | 312 | 6 | 1 |
| P10500 | Ø100 | 512 | 6 | 1 |
P20
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| P20300 | 100 | 100 | 312 | 8 | 1 |
| P20500 | 100 | 100 | 512 | 8 | 1 |
Specifications
P10
Supply and installation of hot dip galvanized embedded tubular post base, Type P10.
CE marking in accordance with ETA 10/0422
Field of use:
- Joints for timber columns, classes 1, 2 and 3
Material:
- Hot dip bright zinc plated carbon steel
Geometry:
Angle bracket:
-
H (mm) = :
-
Bottom plate (mm) = :
-
Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
P20
Supply and installation of Dac Coat coated embedded tubular post base, Type P20.
CE marking in accordance with ETA 10/0422
Field of use:
- Joints for timber columns, classes 1, 2 and 3
Material:
- Dac Coat coated carbon steel
Geometry:
Angle bracket: :
- H (mm) = :
- Bottom plate (mm) = :
- Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
