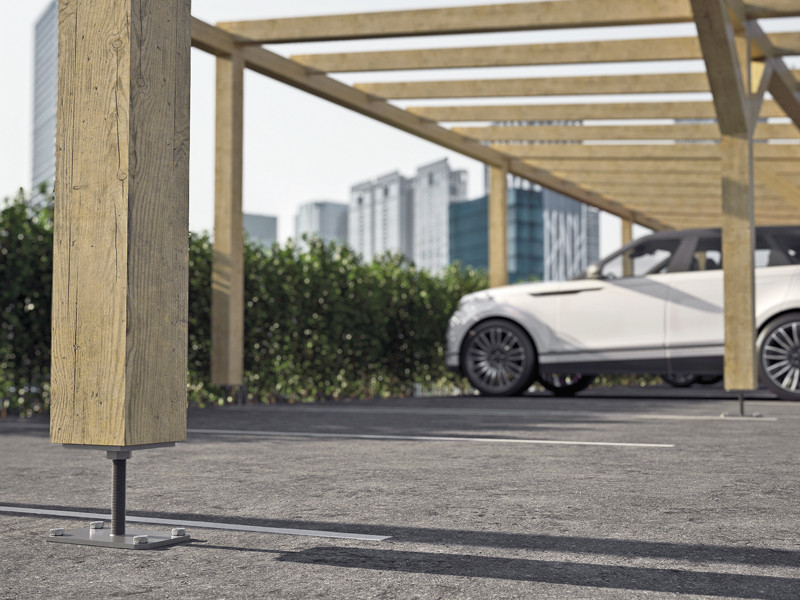

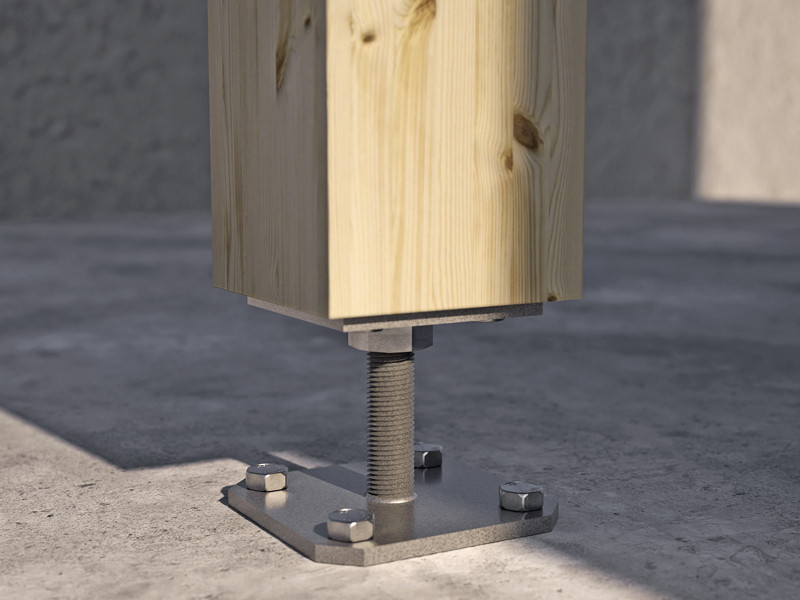

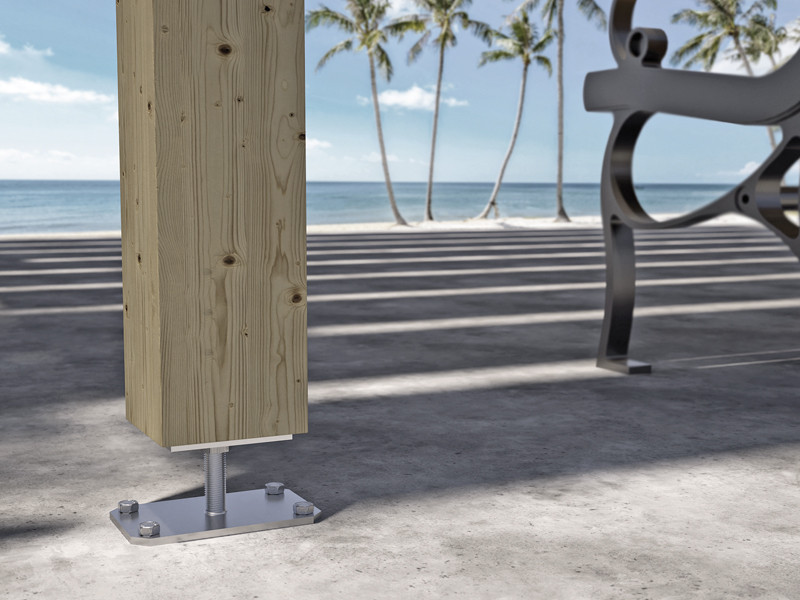

R40
ADJUSTABLE POST BASE
The height can also be adjusted after assembly is completed, according to functional or aesthetic requirements.
Outdistanced from the ground to avoid water splash and stagnation and guarantee high durability. Concealed fastening on the timber element.
Available in both DAC COAT and AISI304 stainless steel to ensure durability in all situation.

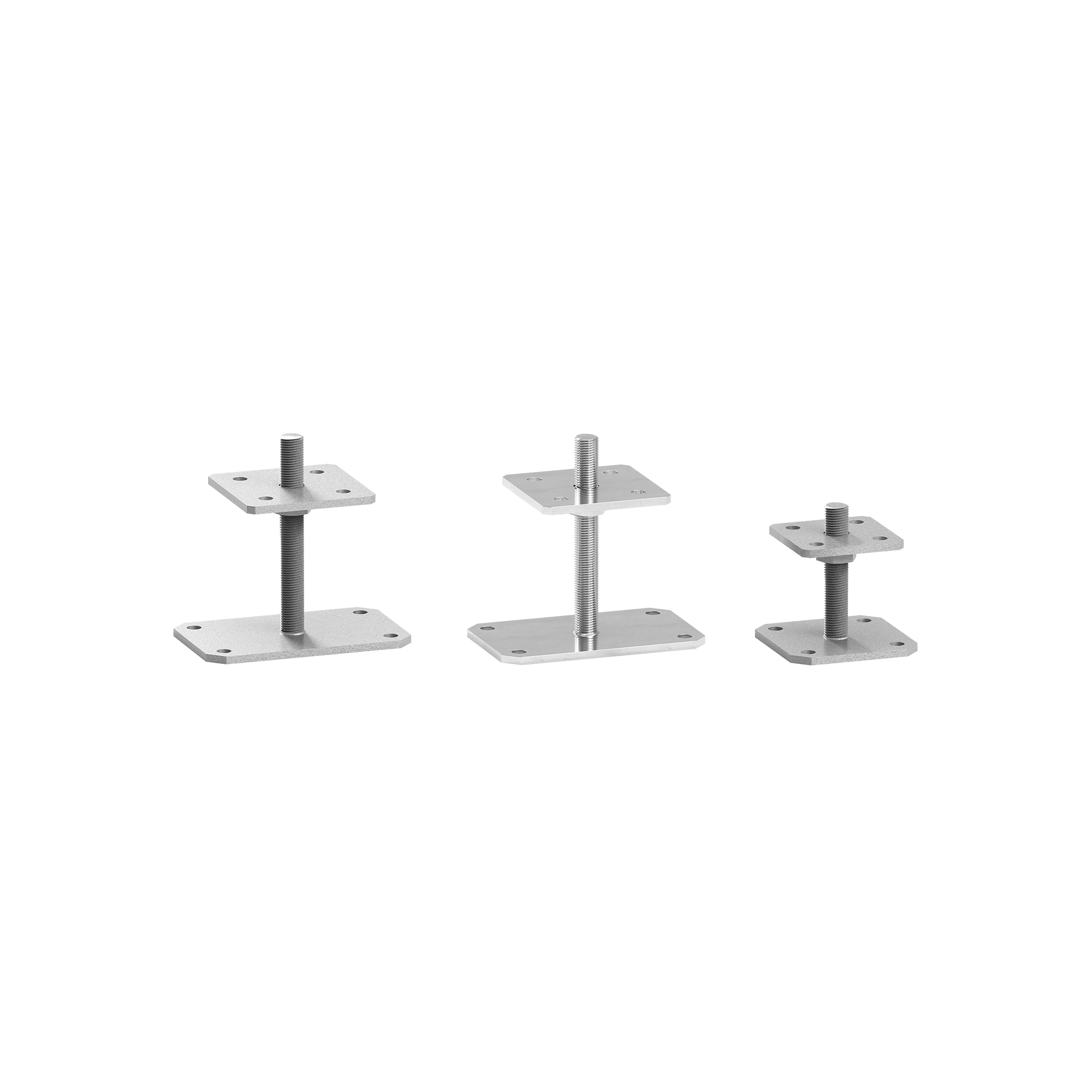

R40 S - SQUARE
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| R40S70 | 70 | 70 | 100 | 6 | 1 |
| R40S80 | 80 | 80 | 100 | 6 | 1 |
R40 L - LONG
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| R40L150 | 100 | 100 | 150 | 6 | 1 |
| R40L250 | 100 | 100 | 250 | 6 | 1 |
RI40 L A2 | AISI304 - LONG
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| RI40L150 | 100 | 100 | 150 | 6 | 1 |
| RI40L250 | 100 | 100 | 250 | 6 | 1 |
