HOME FASTENING BRACKETS AND PLATES POST BASES R80

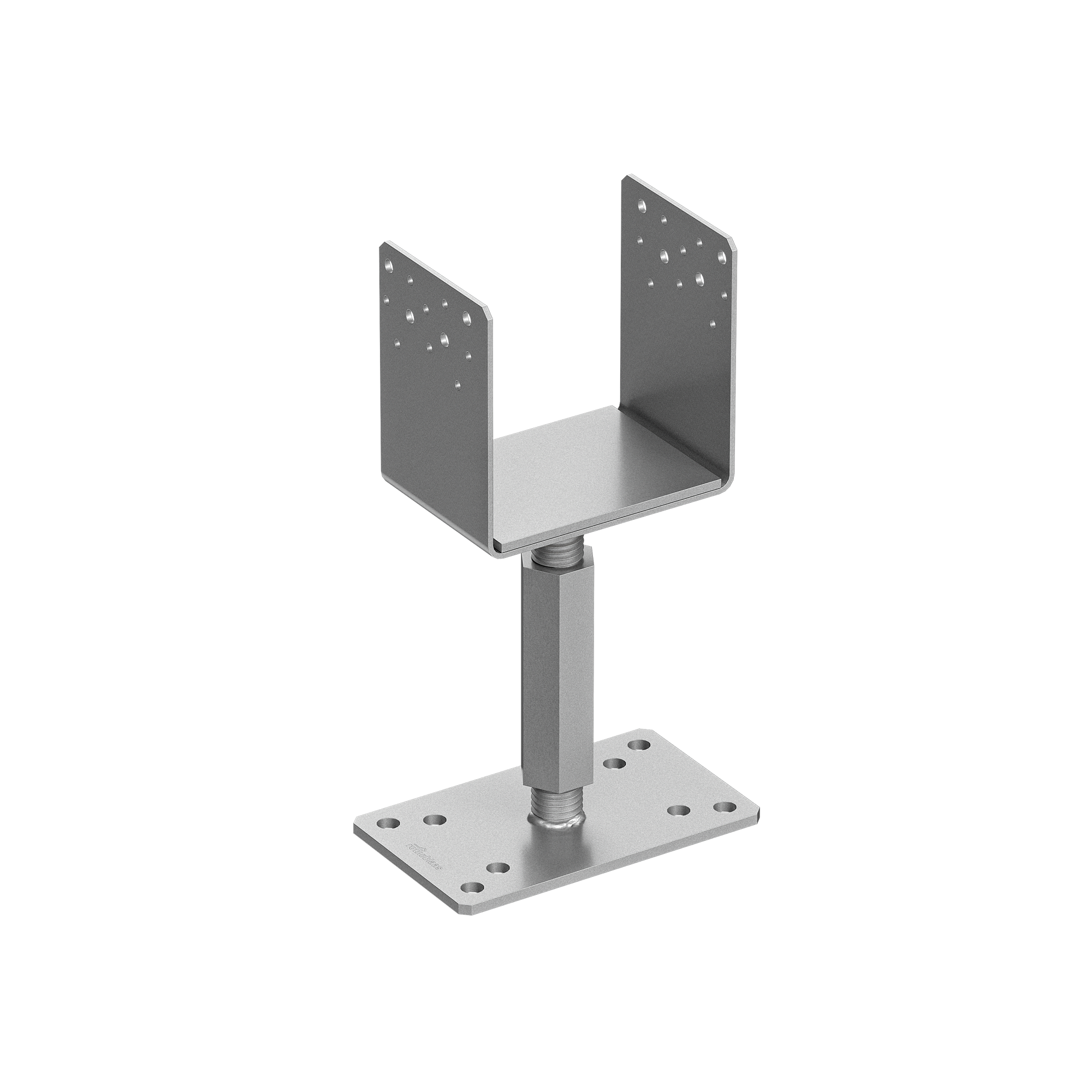

R80

ADJUSTABLE POST BASE

The double-threaded system with hexagonal tensioner allows height adjustment even after assembly.
The “U” shaped plate can be easily fixed to the side of the column using nails or small-diameter screws.
The spacing between the post base and the ground prevents water splashes and stagnation, ensuring greater durability. The DAC COAT coating enhances corrosion resistance and improves aesthetics in outdoor environments.
The base plate, with dual anchor holes, allows post base installation even close to the edge of the concrete support.

Get in touch with sales

Documents

R80

CODE B
[mm]
 P
[mm]
 H
[mm]
 s
[mm]
 B
[in]
 P
[in]
 H
[in]
 s
[in]
 pcs.
R80100L 142 100 170 3 5 9/16'' 4'' 6 3/4'' 0.118 4
