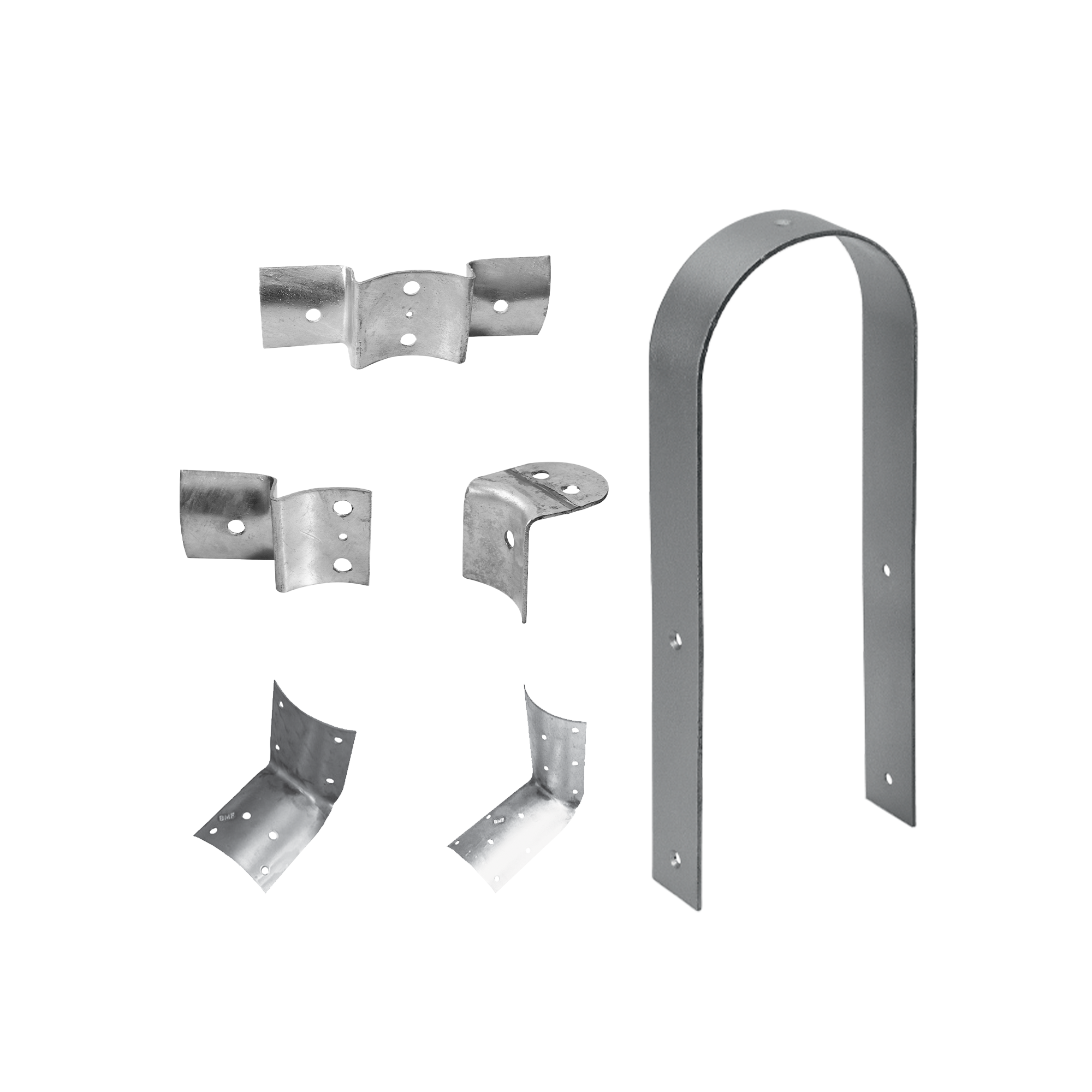

ROUND
JOINTS FOR ROUND POSTS
Hot dip galvanizing for outdoor use in service classes 1, 2 and 3.

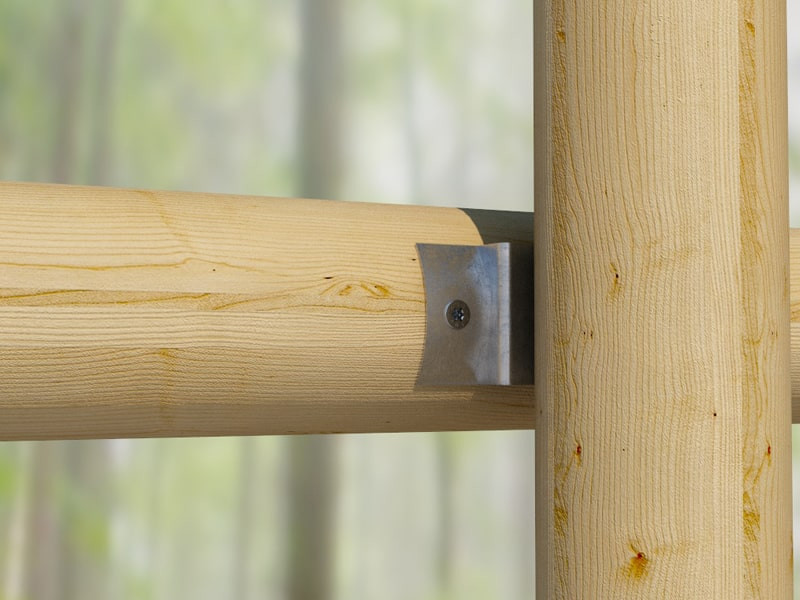

Ideal for fences with circular section wooden elements.
Documents
-
Technical data sheets
ROUND
| CODE | measures
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|
| ROUND100 | 205 x 65 | 2.5 | 10 |
| ROUNDE100 | 117 x 70 | 2.5 | 10 |
| ROUNDH100 | 70 x 65 x 70 | 2.5 | 10 |

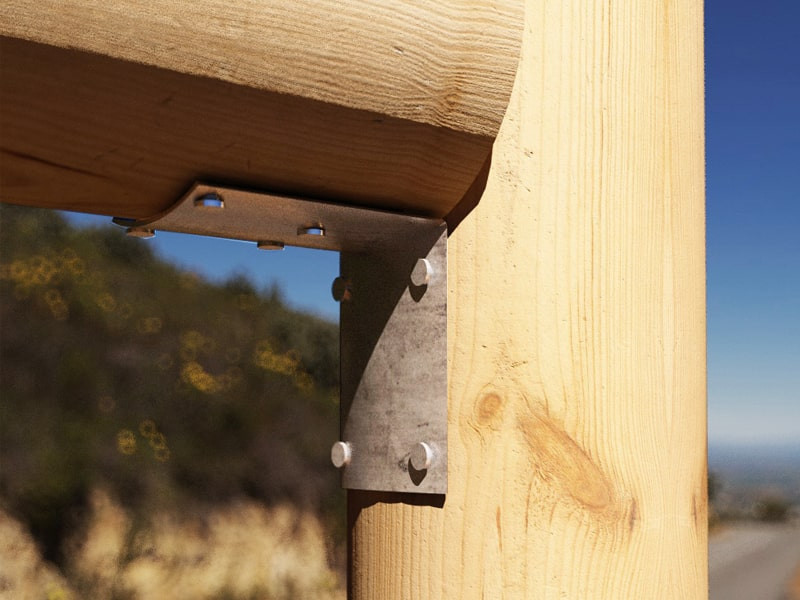

ROUND L
| CODE | measures
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|
| ROUNDL80 | 80 x 57 x 80 | 1.5 | 100 |
| ROUNDL120 | 123 x 74 x 123 | 1.5 | 100 |

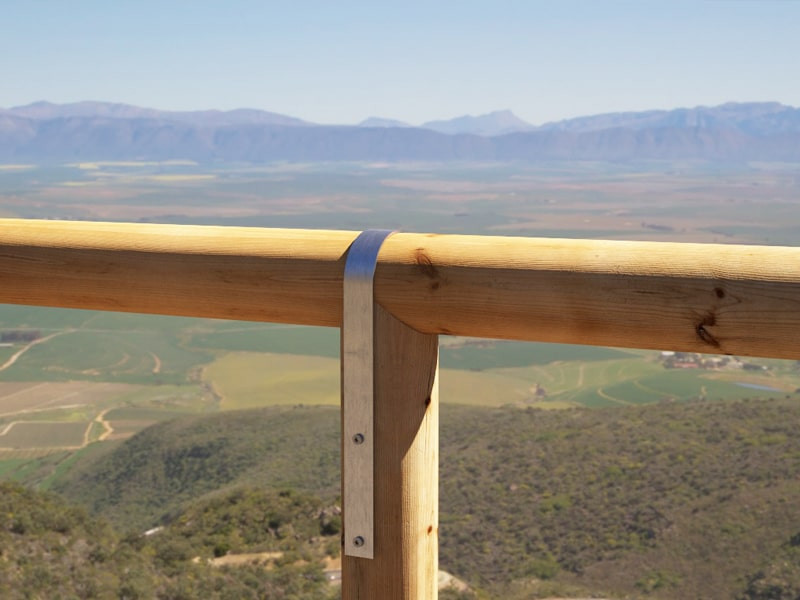

ROUND U
| CODE | measures
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|
| ROUNDU80 | 80 x 345 x 40 | 3 | 1 |
| ROUNDU100 | 100 x 345 x 40 | 3 | 1 |
| ROUNDU120 | 120 x 345 x 40 | 3 | 1 |
Specifications
Supply and installation of joints for round posts, Type ROUND.
Field of use:
- Joints for timber columns, classes 1, 2 and 3
Material:
- Hot dip bright zinc plated carbon steel
Geometry:
Angle bracket: :
-
H (mm) = :
-
Bottom plate (mm) = :
-
Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
