S50

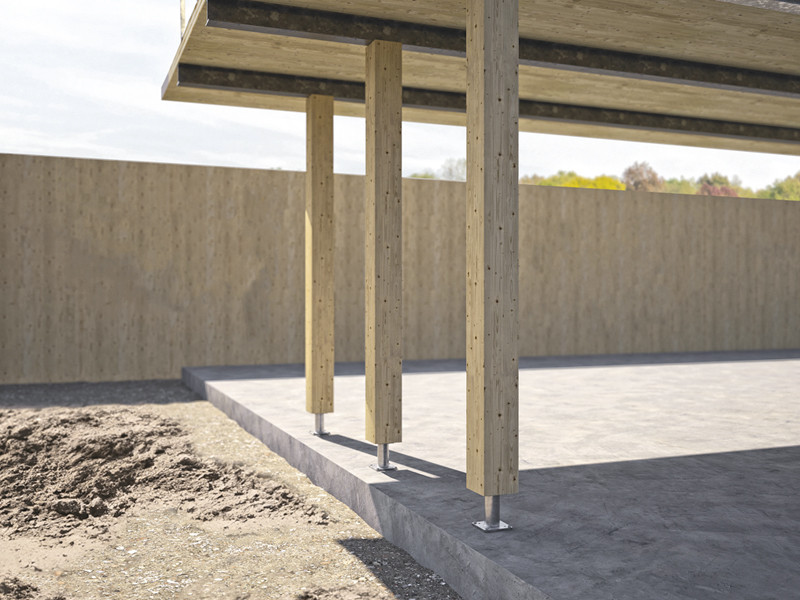

S50 is the powerful and certified concealed post base designed for the construction of large structures. Thanks to the compression strength above 300 kN, it is ideal for post and beam construction systems of large dimensions and large spans.
Description

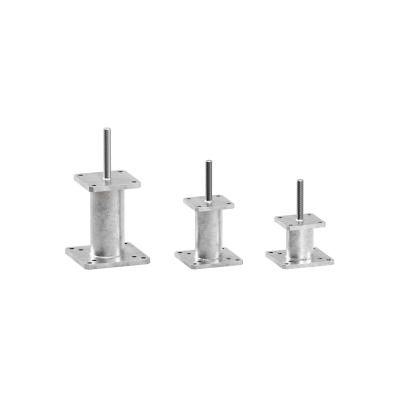

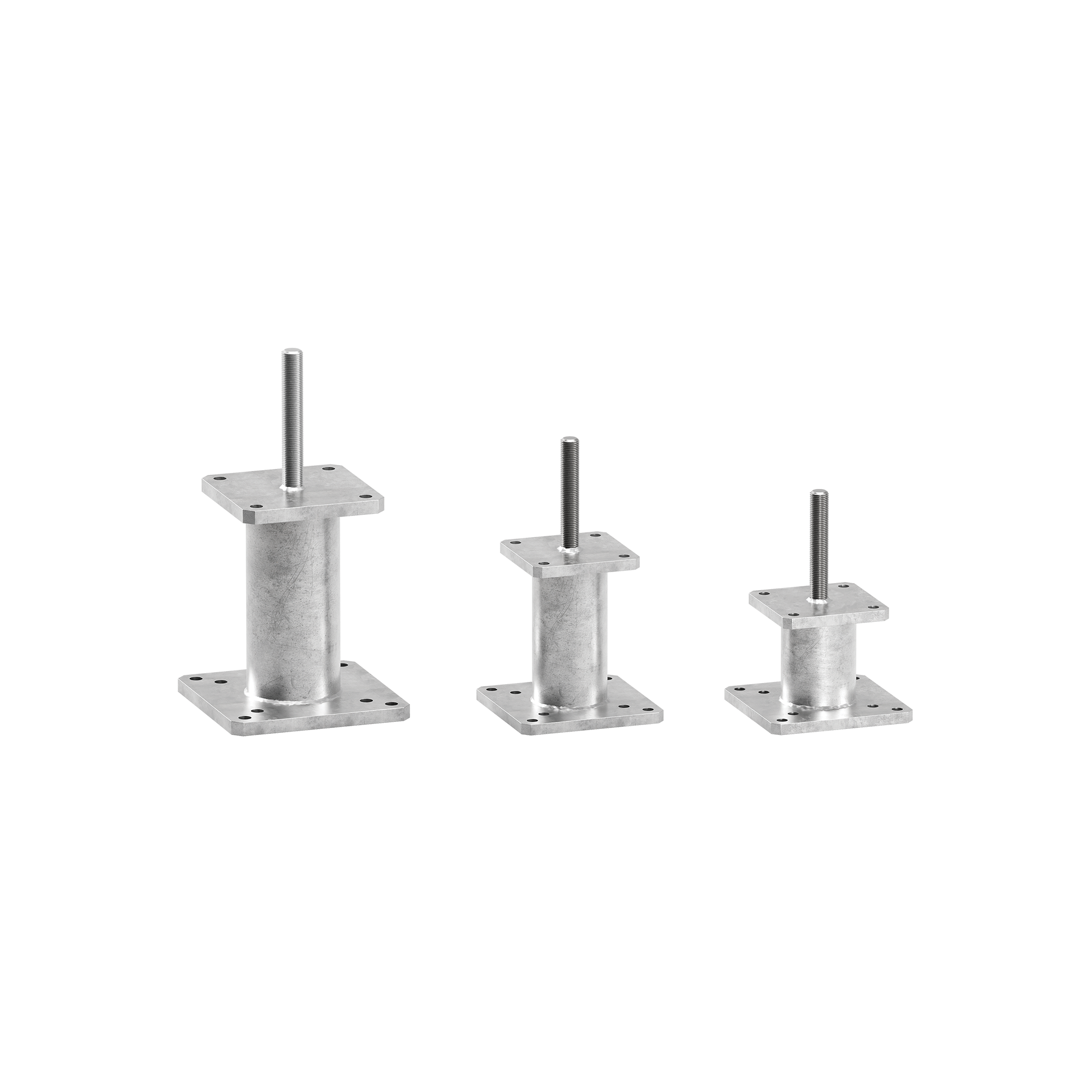

S50, HIGH STRENGTH CONCEALED POST BASE

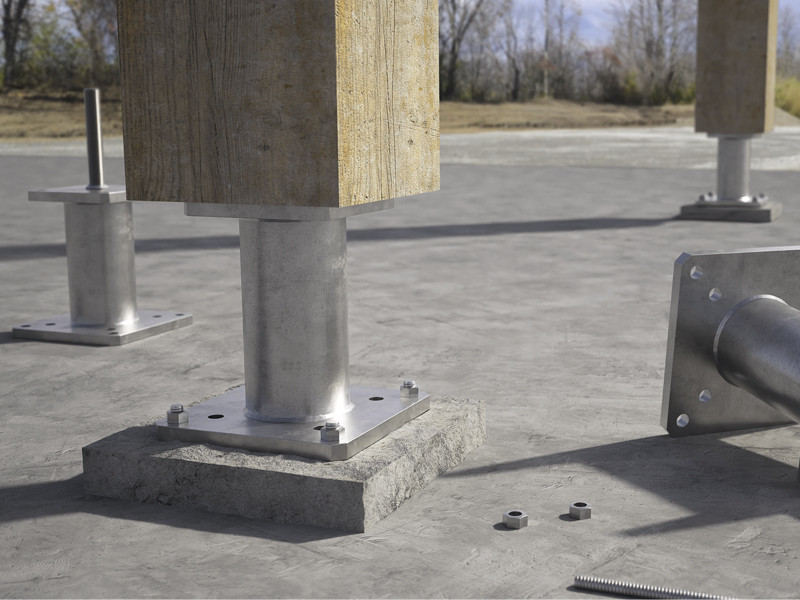

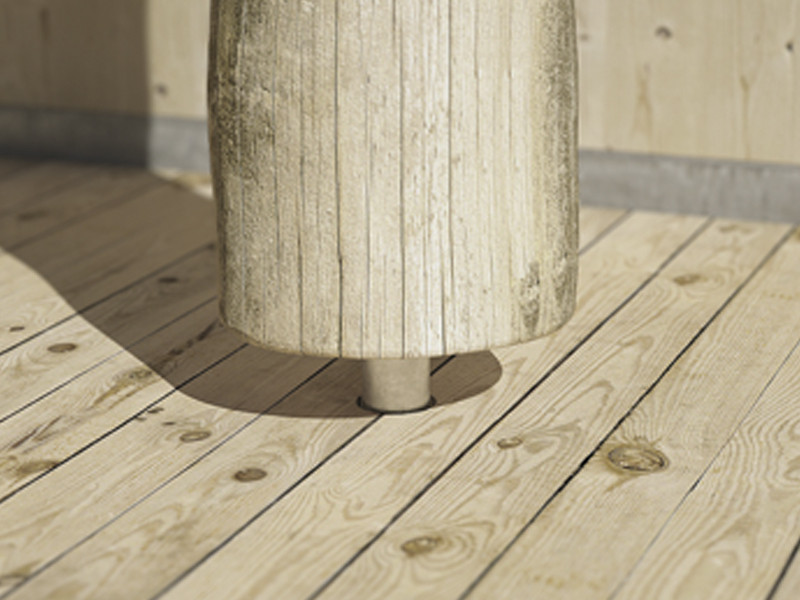

The post base S50 are raised from the ground to avoid water splash and stagnation and guarantee high durability. The concealed fastening on the timber element ensures a pleasant aesthetic appearance. It is ideal for transferring high compression forces deriving from large columns.
Its exceptional compression strength values are calculated and certified according to ETA. Made of hot dip bright zinc plated carbon steel, it is suitable for service classes 1, 2 and 3 and use on solid timber, glulam, CLT and LVL.
