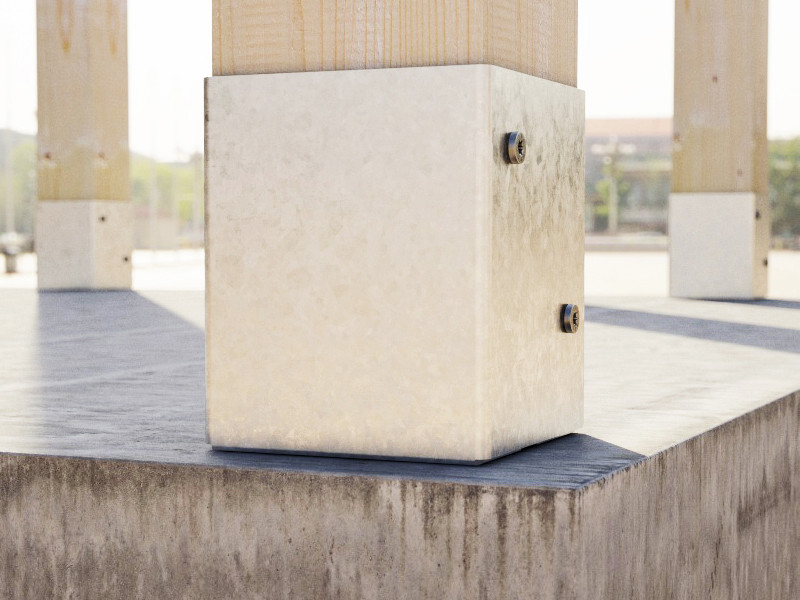

application-post-base-with-concealed-base-f11

TYP F-FD-M

MIXED POST BASES

Complete range of solutions for columns, fences or enclosures, able to meet all needs in terms of column size or geometry (rectangular, square and circular).

All versions are suitable for use in service classes 1, 2 and 3, some with hot dip galvanisation, others in stainless steel A2 | AISI304 or with brown or graphite black paint. Some versions can be fastened to concrete, others are equipped with a rod to be embedded in the concrete casting, and others can be driven into the ground.

All of them are suitable to meet the needs of both the carpenter and the hobbyist.

Get in touch with sales

Documents
Codes and dimensions

Documents

Technical data sheets

Choose a Language
ETA Certificate

Choose a Language

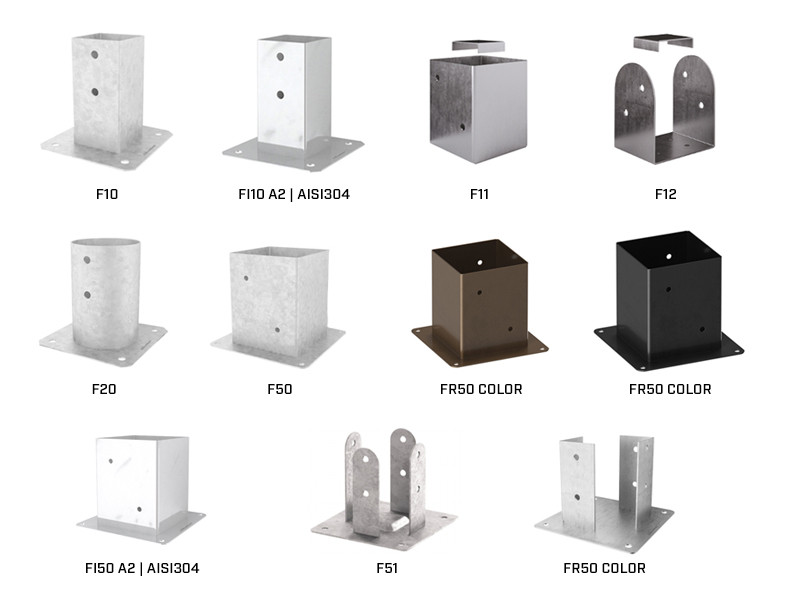

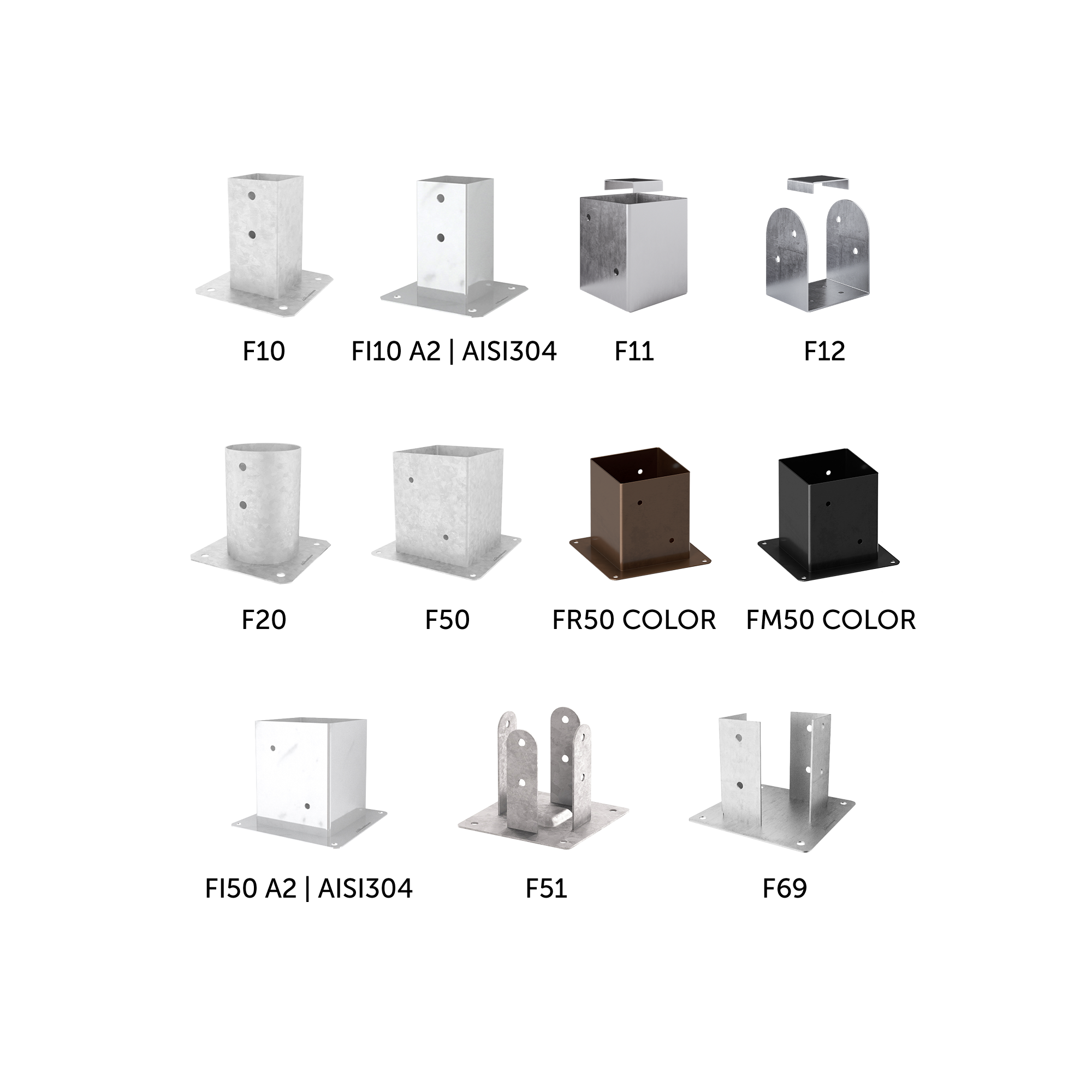

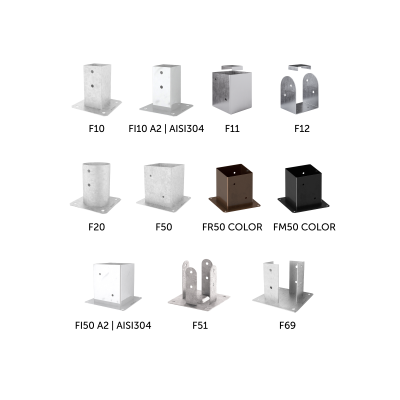

F10

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
F1070	71	71	150	2	1
F1080	81	81	150	2	1
F1090	91	91	150	2	1

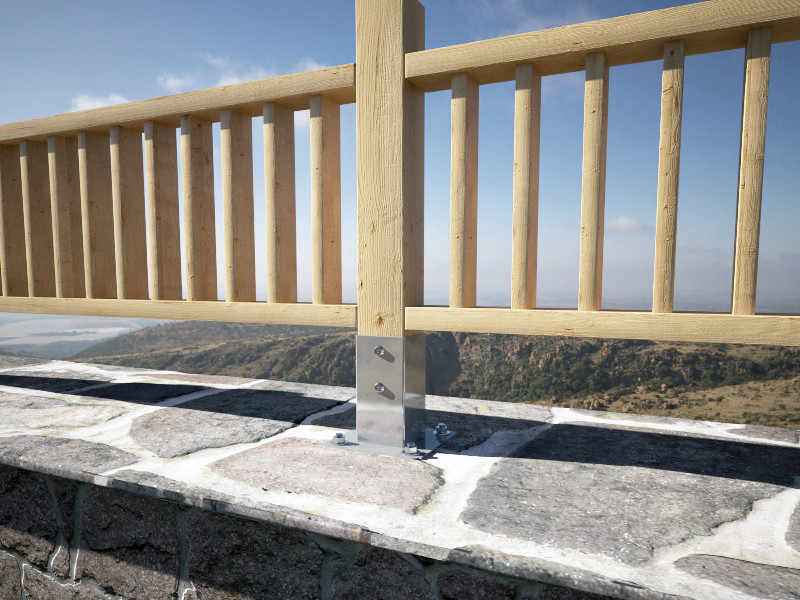

FI10 A2 | AISI304

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
FI1070	71	71	150	2	1
FI1090	91	91	150	2	1

F11

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
F1190	91	91	150	2.5	1
F11100	101	101	150	2.5	1
F11120	121	121	150	2.5	1
F11140	141	141	200	3	1
F11160	161	161	200	3	1

F12

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
F1270	72	60	100	2.5	1
F1280	82	60	100	2.5	1
F1290	92	70	120	2.5	1
F12100	102	80	120	2.5	1
F12120	122	100	140	2.5	1
F12140	142	120	160	3	1
F12160	162	140	180	3	1

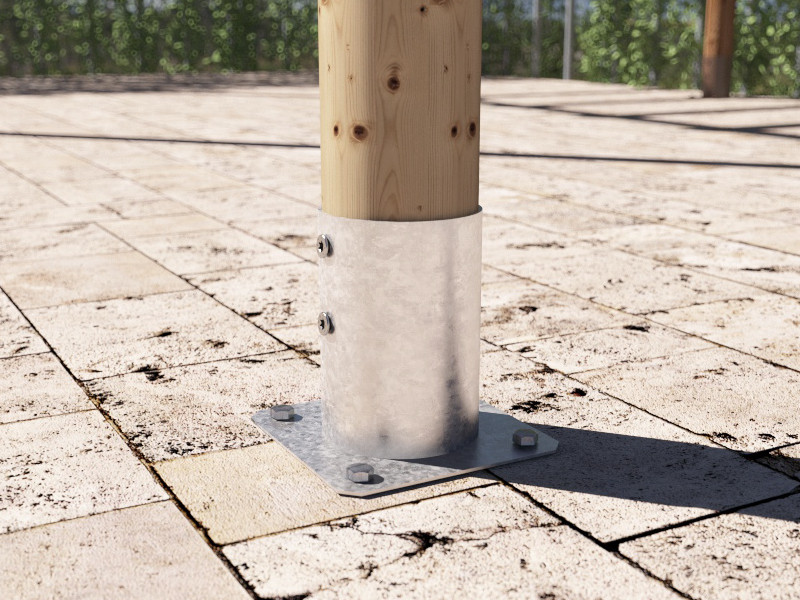

F20

CODE	Ø [mm]	H [mm]	s [mm]	pcs.
F2080	Ø81	150	2	1
F20100	Ø101	150	2	1
F20120	Ø121	150	2	1
F20140	Ø141	150	2	1

F50

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
F50100	101	101	150	2.5	1
F50120	121	121	150	2.5	1
F50140	141	141	150	2.5	1
F50160	161	161	200	2.5	1
F50180	181	181	200	2.5	1
F50200	201	201	200	2.5	1

FR50 COLOR

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
FR50100	101	101	150	2.5	1
FR50120	121	121	150	2.5	1

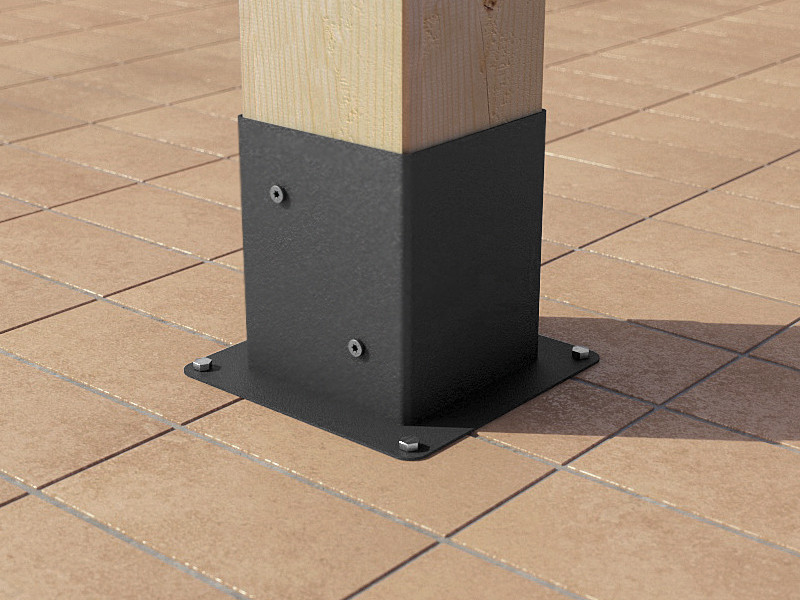

FM50 COLOR

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
FM50100	101	101	150	2.5	1
FM50120	121	121	150	2.5	1
FM50160	161	161	200	2.5	1
FM50200	201	201	200	2.5	1

FI50 A2 | AISI304

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
FI50100	101	101	150	2.5	1
FI50120	121	121	150	2.5	1
FI50140	141	141	150	2.5	1
FI50160	161	161	200	2.5	1
FI50200	201	201	200	2.5	1

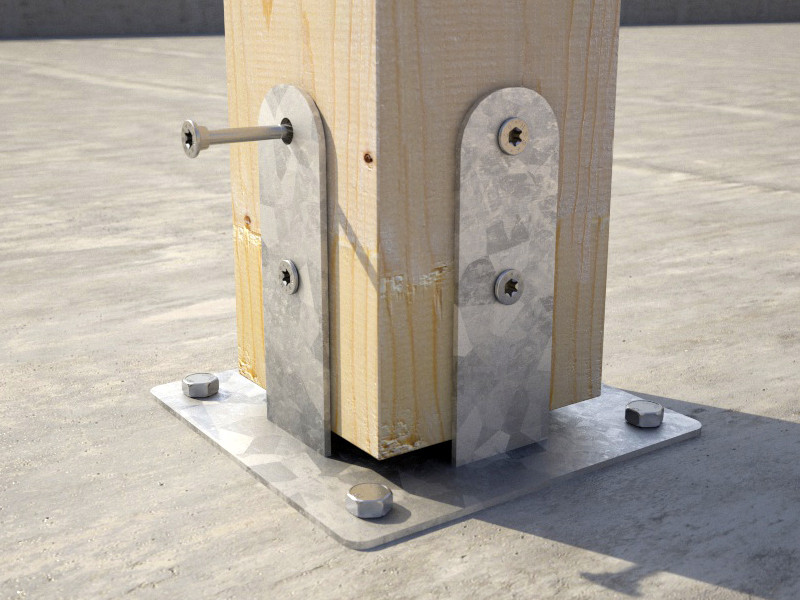

F51

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
F51120	121	121	150	3	1
F51140	141	141	200	3	1
F51160	161	161	200	4	1
F51200	201	201	225	4	1

F69

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
F69100	101	101	150	2.5	1
F69120	121	121	150	2.5	1
F69160	161	161	200	3	1
F69200	201	201	220	3	1

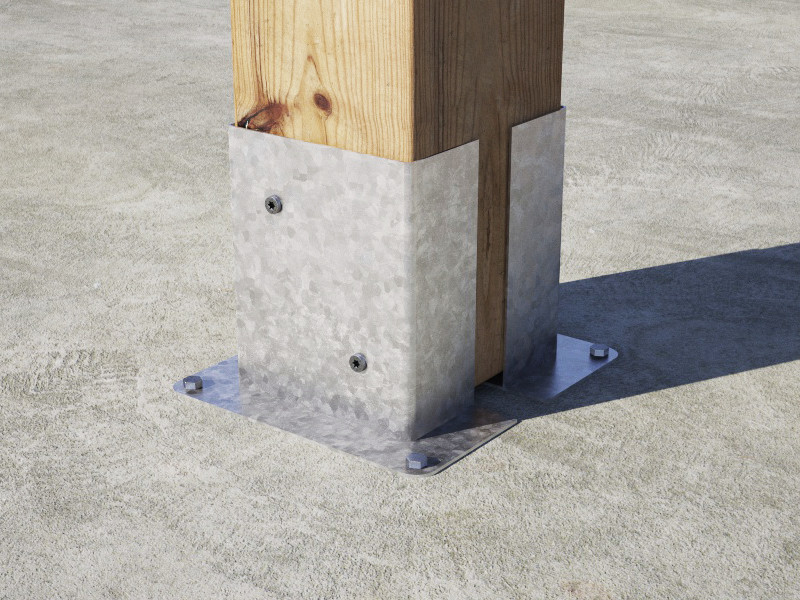

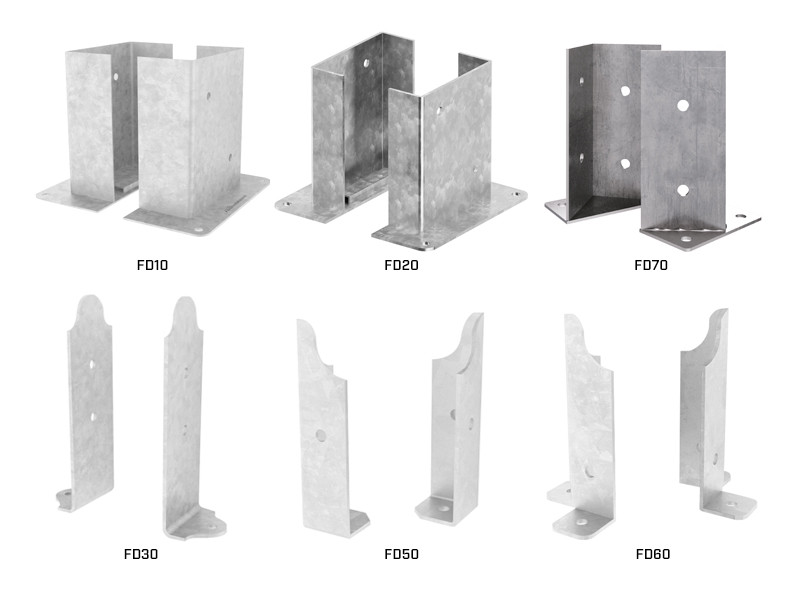

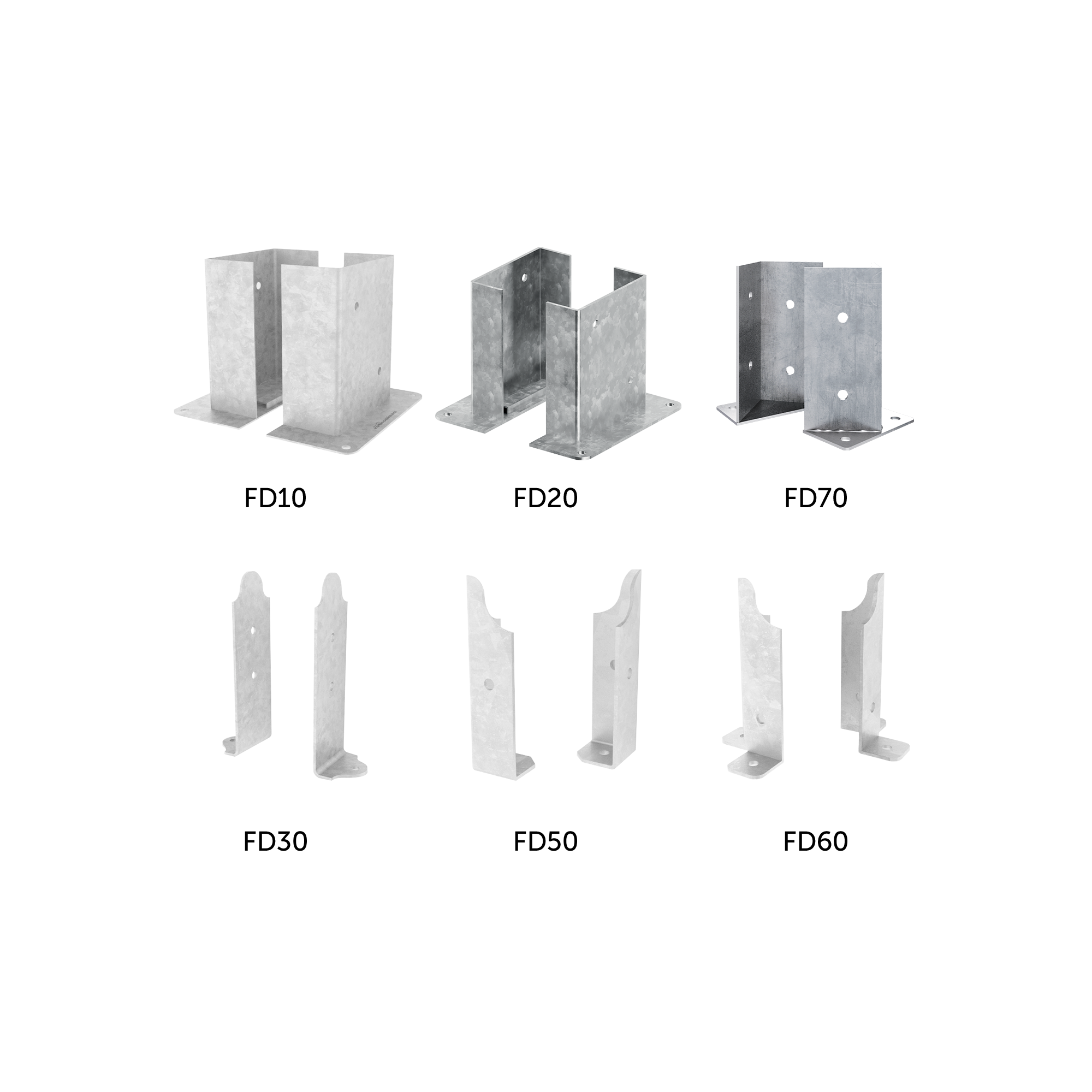

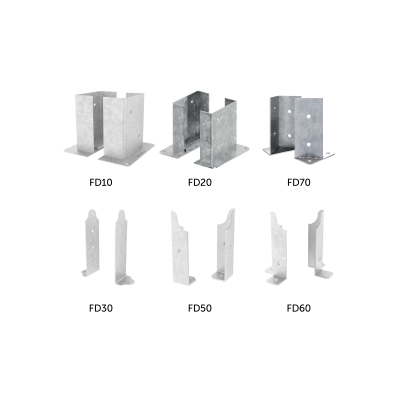

FD10

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
FD10120	121	56	200	2.5	1
FD10140	141	66	200	2.5	1
FD10160	161	76	200	2.5	1
FD10180	181	86	200	2.5	1
FD10200	201	96	200	2.5	1

FD20

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
FD20120	121	38	200	4	1
FD20140	141	46	200	4	1
FD20160	161	54	200	4	1
FD20200	201	66	200	4	1

FD30

CODE	B [mm]	H [mm]	s [mm]	pcs.
FD3060	60	180	4	1
FD3080	80	240	4	1

FD50

CODE	B [mm]	H [mm]	s [mm]	pcs.
FD5050	46	185	4	1
FD5080	76	220	4	1

FD60

CODE	B [mm]	H [mm]	s [mm]	pcs.
FD6050	46	185	4	1
FD6080	76	220	4	1

FD70

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
FD7080	81	81	180	3	1
FD70100	101	101	220	3	1

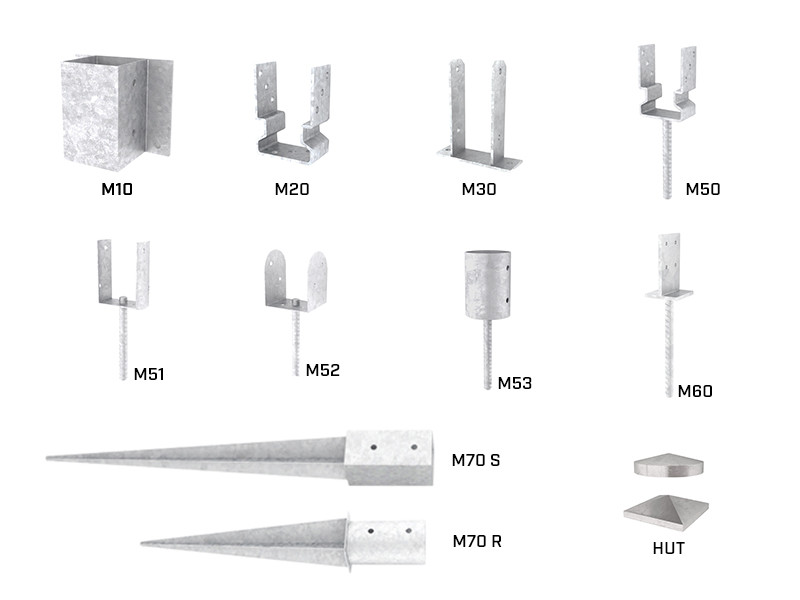

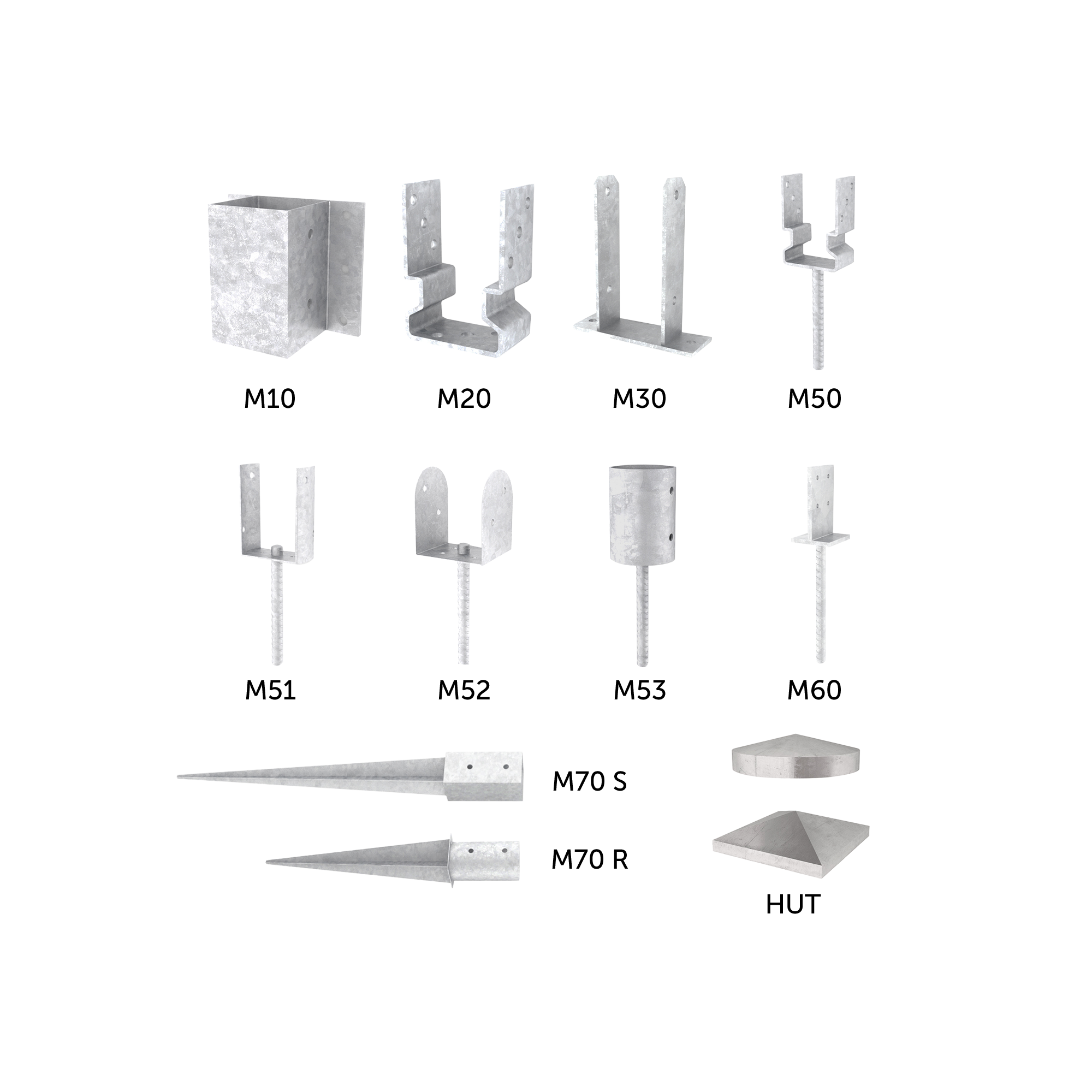

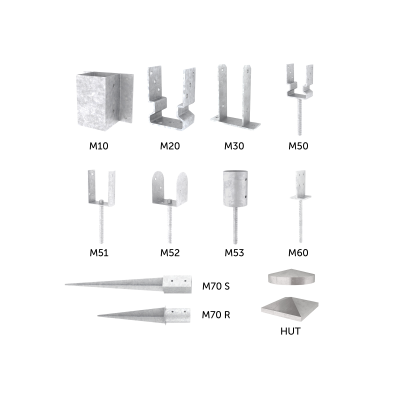

M10

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
M1070	71	71	150	2	1
M1090	91	91	150	2	1

M20

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
M2070	71	60	150	5	1
M2090	91	60	150	5	1
M20100	101	60	150	5	1
M20120	121	60	150	5	1

M30

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
M3070	71	50	200	5	1
M3080	81	50	200	5	1
M3090	91	50	200	5	1
M30100	101	50	200	5	1
M30120	121	50	200	5	1

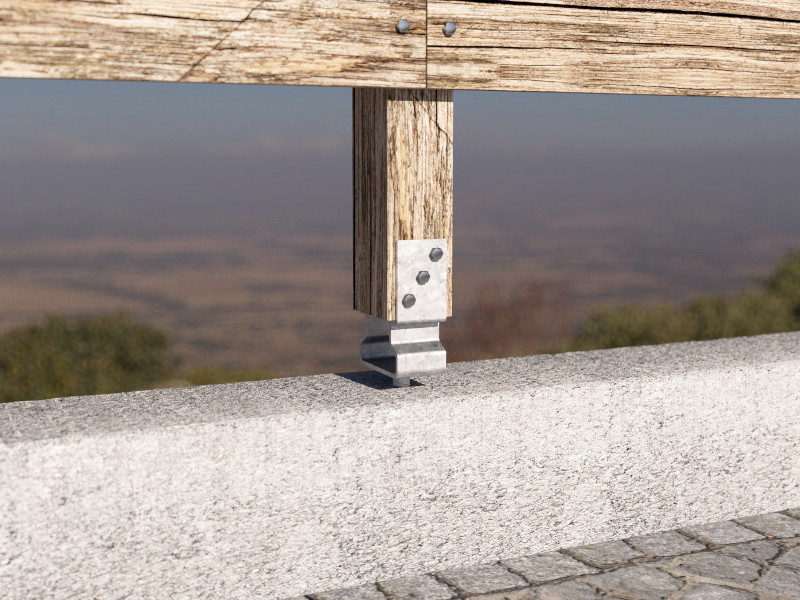

M50

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
M5070	71	60	150	5	1
M5090	91	60	150	5	1
M50100	101	60	150	5	1
M50120	121	60	150	5	1

M51

CODE	Ø [mm]	H [mm]	s [mm]	pcs.
M51100	Ø101	150	3	1
M51120	Ø121	150	3	1

M52

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
M5290	91	70	120	2.5	1
M52100	101	80	120	2.5	1
M52120	121	100	140	2.5	1

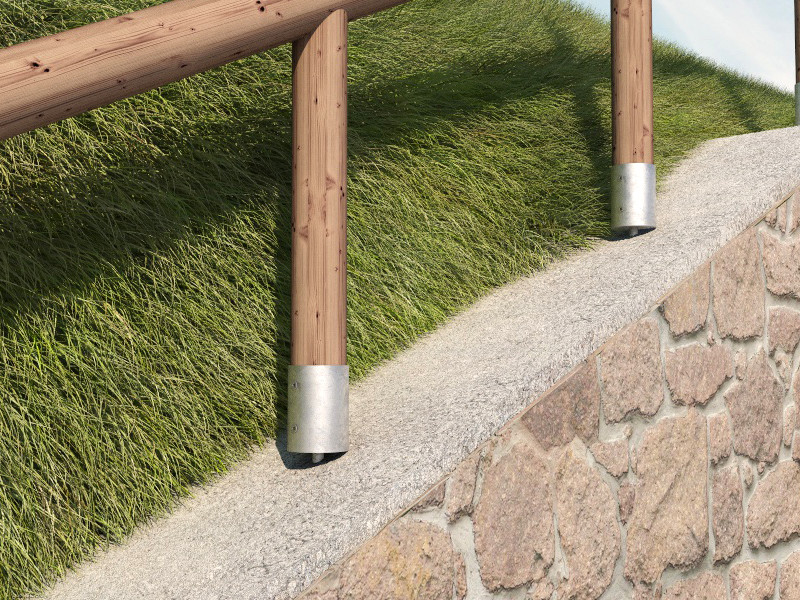

M53

CODE	Ø [mm]	H [mm]	s [mm]	pcs.
M5380	Ø81	150	3	1
M53100	Ø101	150	3	1
M53120	Ø121	150	3	1

M60

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
M6080	80	80	130	8	1

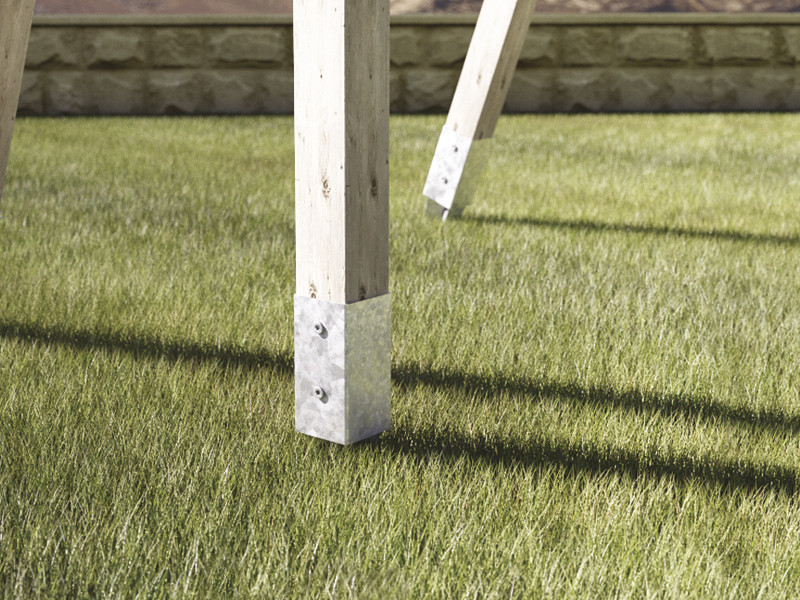

M70 S

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
M70S70	71	71	150	2	1
M70S90	91	91	150	2	1
M70S100	101	101	150	2	1
M70S120	121	121	150	2	1

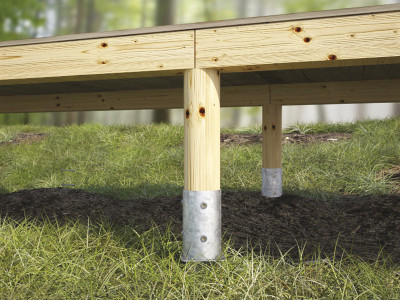

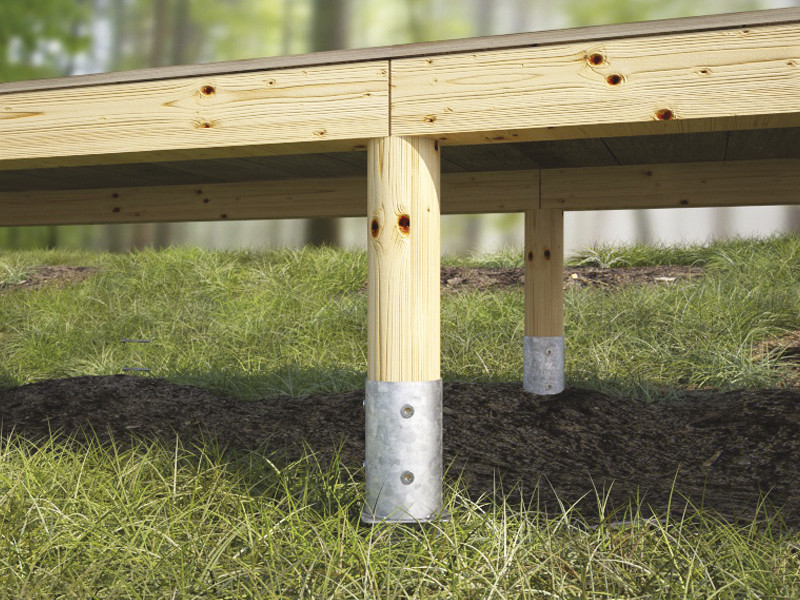

M70 R

CODE	Ø [mm]	H [mm]	s [mm]	pcs.
M70R80	Ø81	150	2	1
M70R100	Ø101	150	2	1
M70R120	Ø121	150	2	1

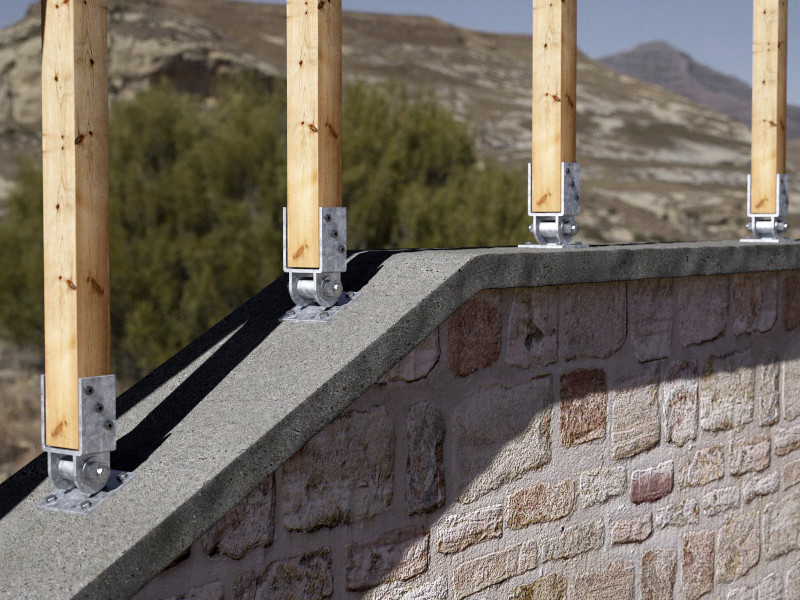

S40

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
S4070	71	60	100	5	1
S4090	91	60	100	5	1
