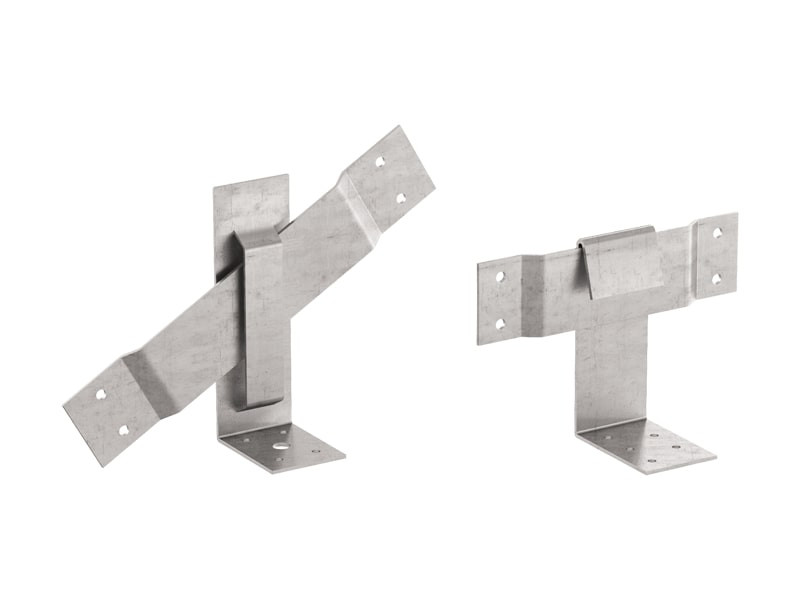

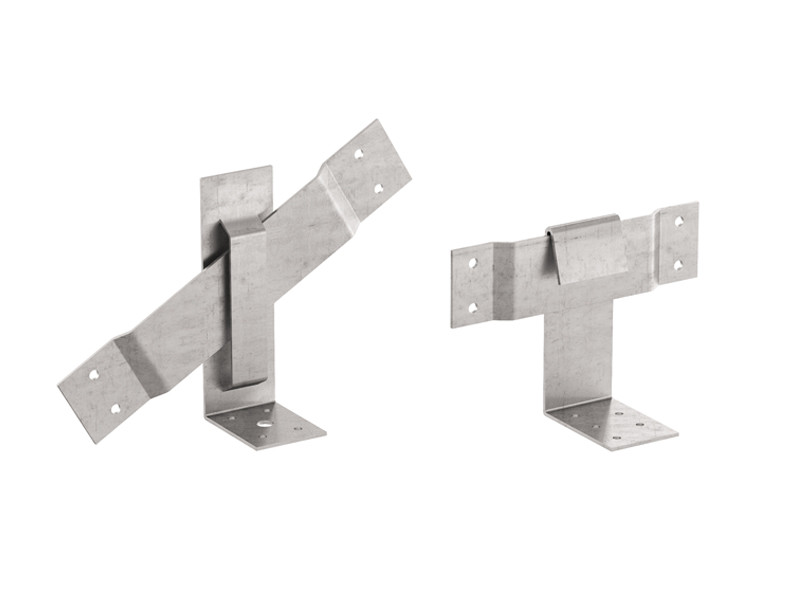

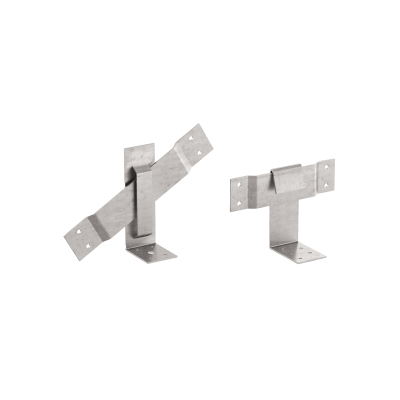

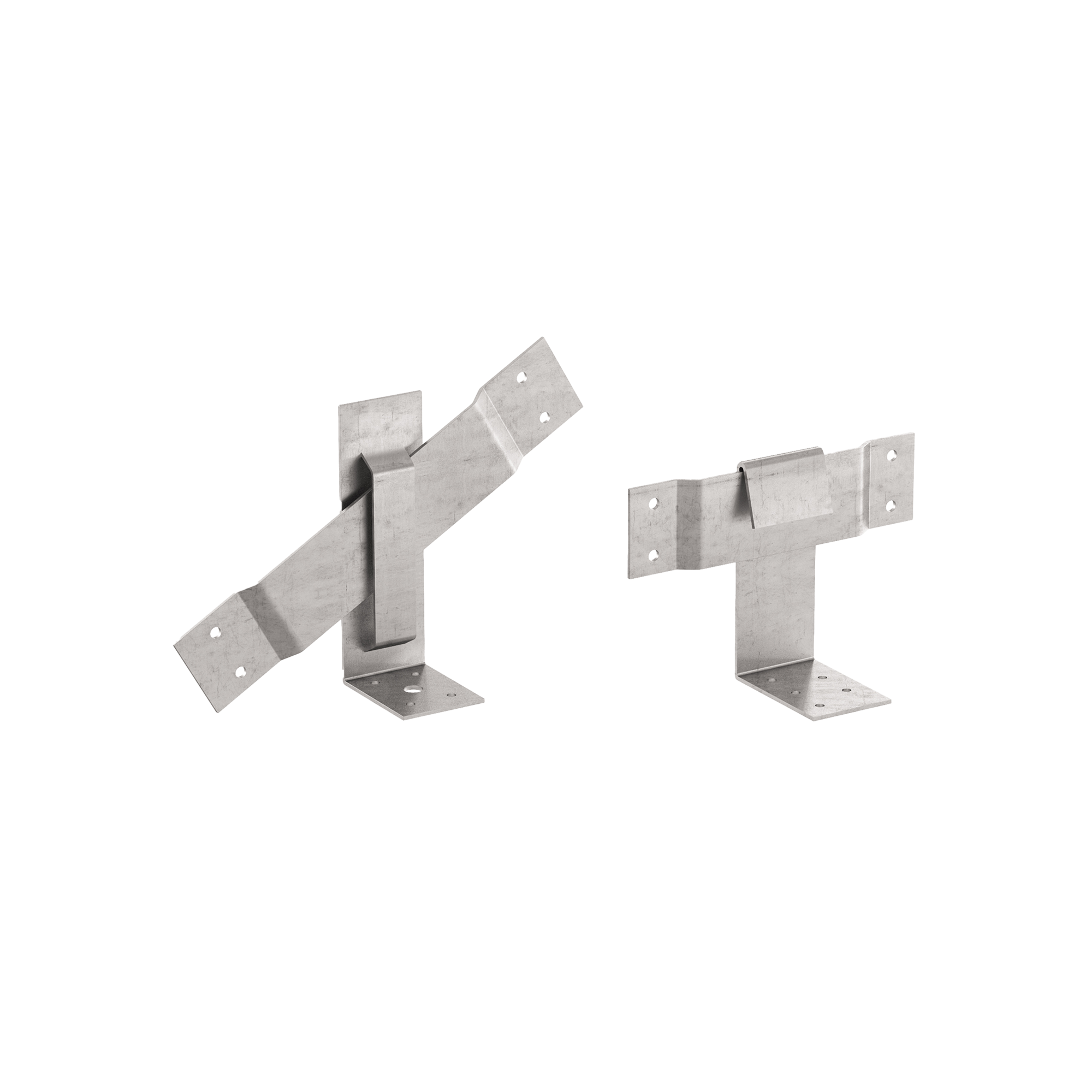

ANGLE BRACKETS FOR LOG HOUSE

LOG

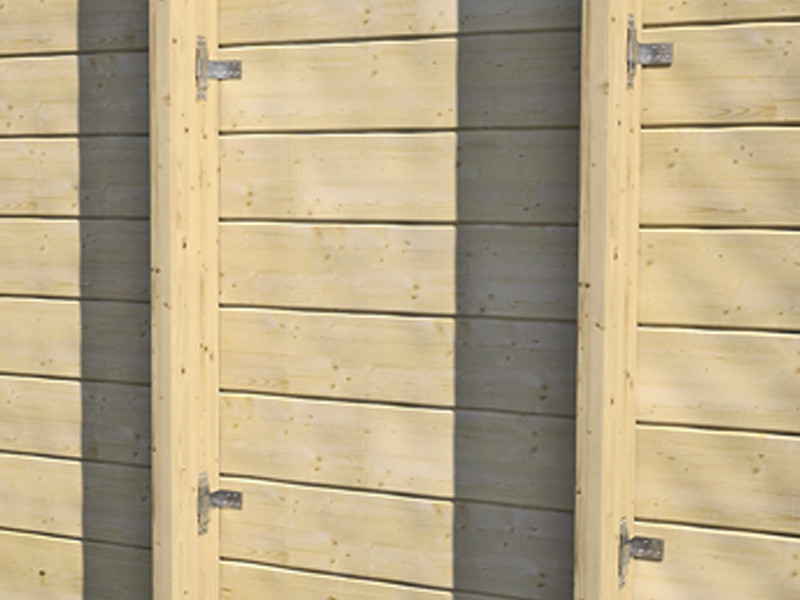

The unique geometry and design of the bracket, supports the hygrometric deformation of wooden elements.

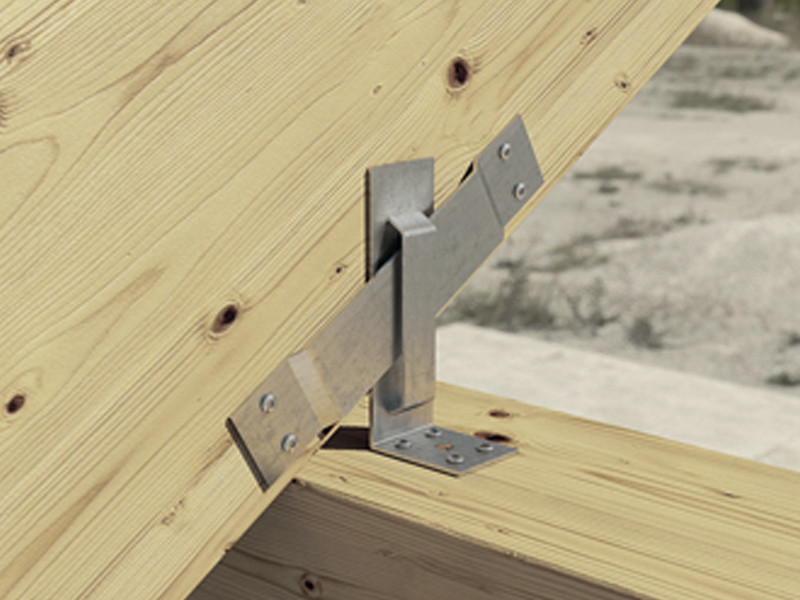

Two versions: LOG210 is ideal for the fastening of wooden struts to horizontal wooden blocks, LOG250 is ideal for the fastening of wooden joists to horizontal wooden blocks.

Documents

Technical data sheets

LOG

CODE B
[mm]
P
[mm]
H
[mm]
s
[mm]
pcs.
LOG210 40 65 78 2 1
LOG250 40 52 125 2 1

Specifications

Supply and installation of angle brackets for log house , Type LOG.

Field of use:

  • Timber-to-timber joint

Material:

  • Bright zinc plated carbon steel, three dimensional perforated plate

Geometry:
Angle bracket: :

  • H (mm) = :
  • Bottom plate (mm) = :
  • Thickness s (mm) = :

Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
