HOME FASTENING BRACKETS AND PLATES STANDARD ANGLE UNITS WKF

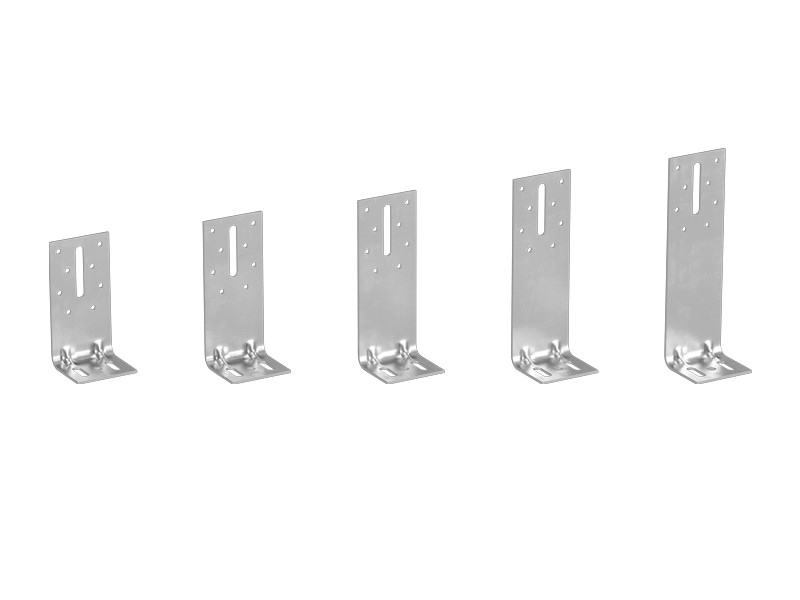

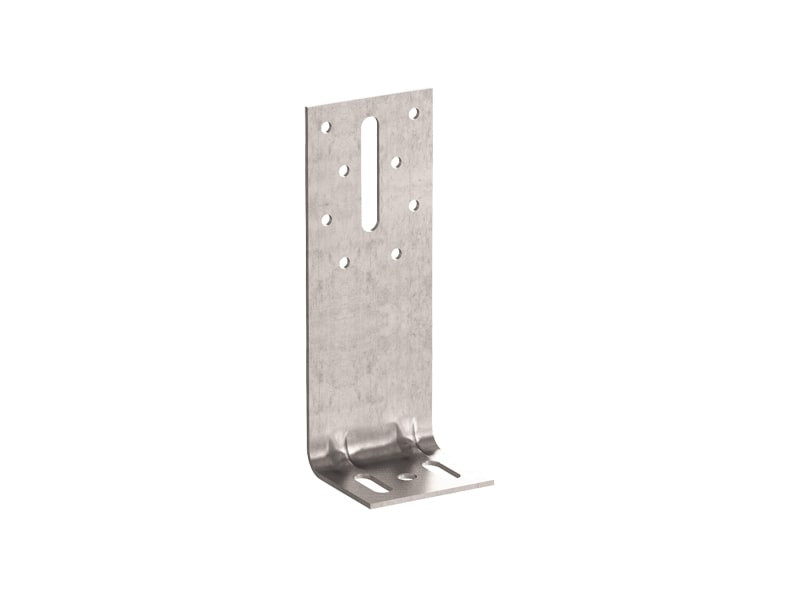

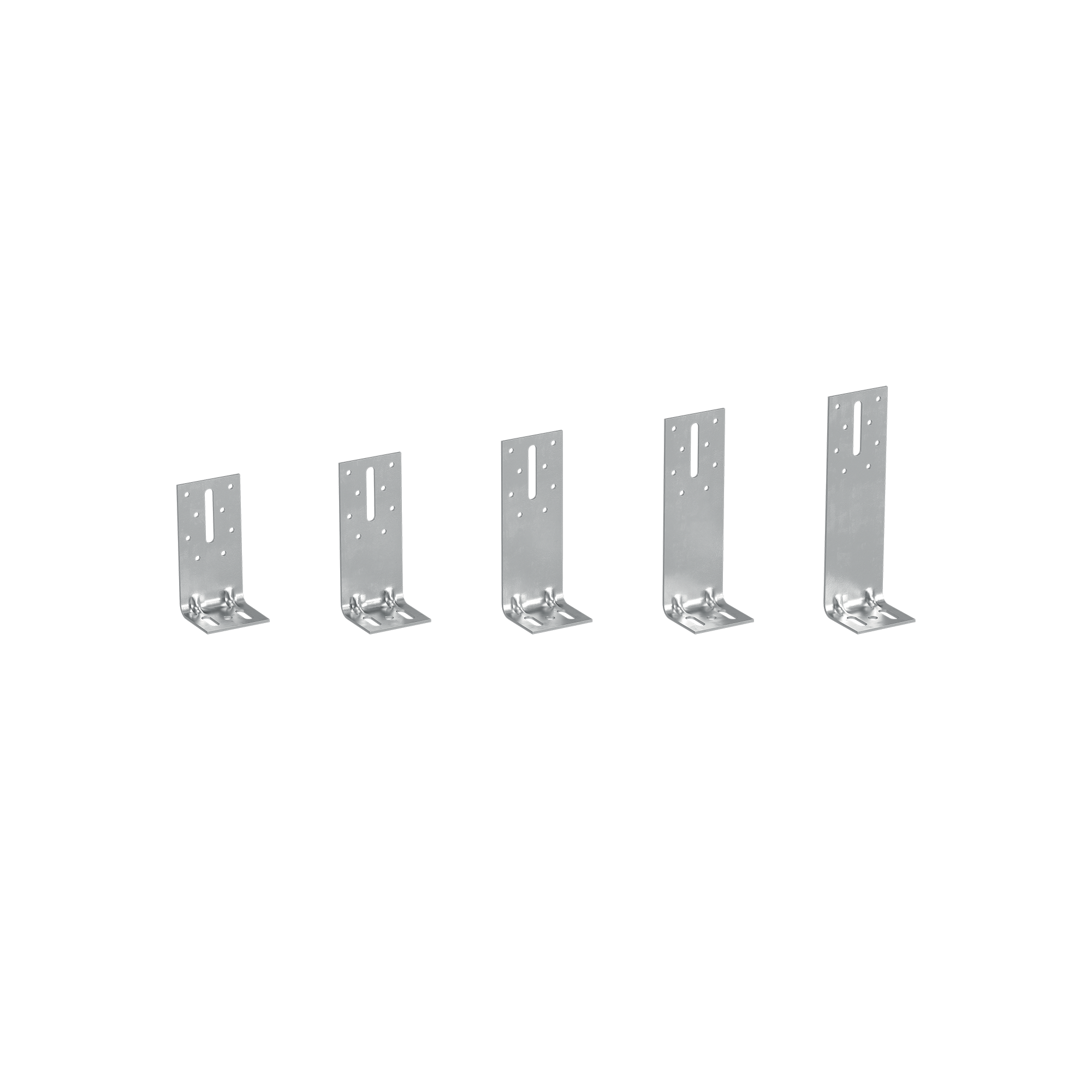

WKF

ANGLE BRACKET FOR FACADES

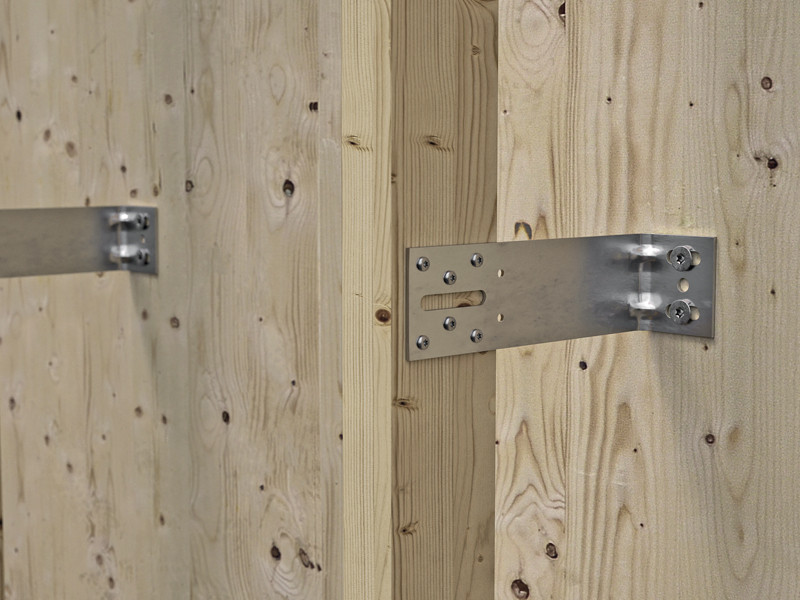

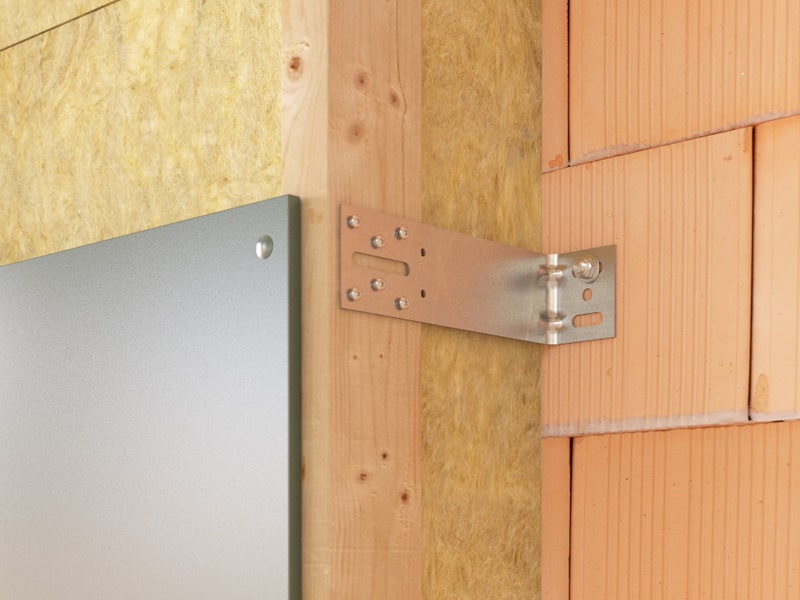

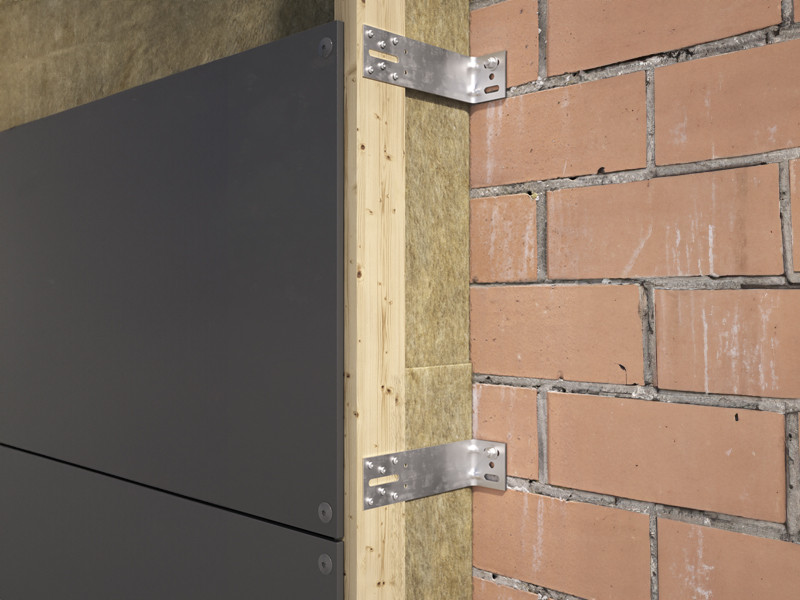

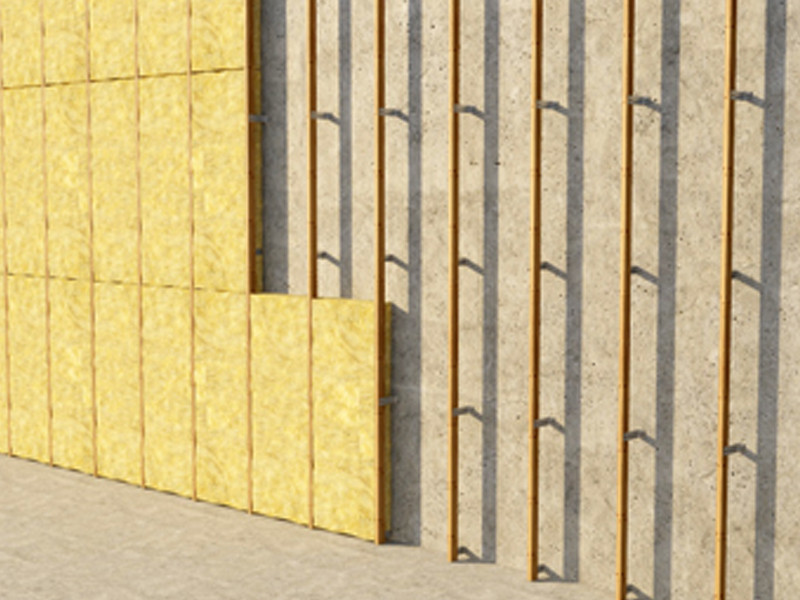

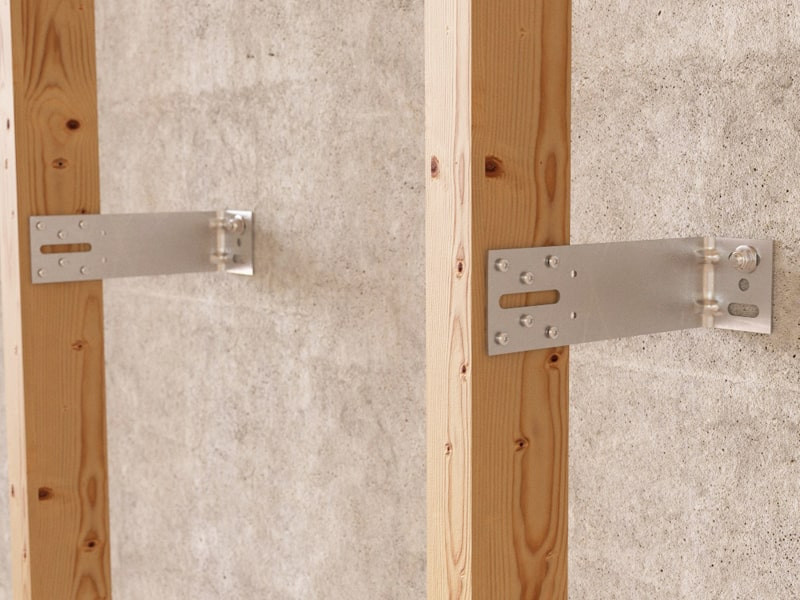

It is ideal for installing façade insulation on new and existing structures. Values are certified by CE marking according to ETA. S350 high strength steel provides high flexural capacity. Reinforcements designed to guarantee high stiffness. Fast and easy installation.

Get in touch with sales

Documents

WKF

CODE B
[mm]
 P
[mm]
 H
[mm]
 B
[in]
 P
[in]
 H
[in]
 pcs.
DOP
WKF120 60 54 120 2 3/8'' 2 1/8'' 4 3/4'' 100
WKF140 60 54 140 2 3/8'' 2 1/8'' 5 1/2'' 100
WKF160 60 54 160 2 3/8'' 2 1/8'' 6 1/4'' 100
WKF180 60 54 180 2 3/8'' 2 1/8'' 7 1/8'' 100
WKF200 60 54 200 2 3/8'' 2 1/8'' 8'' 100
