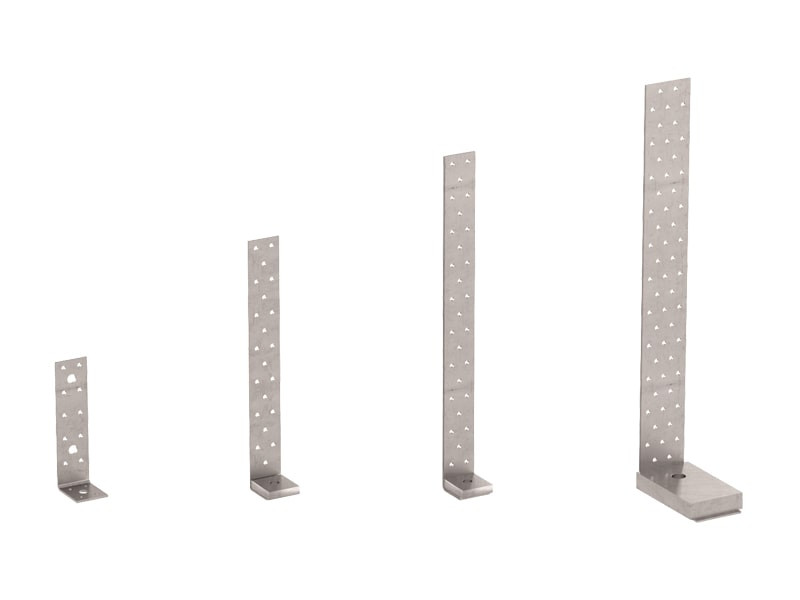

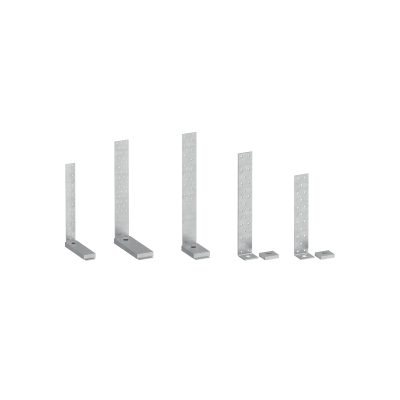

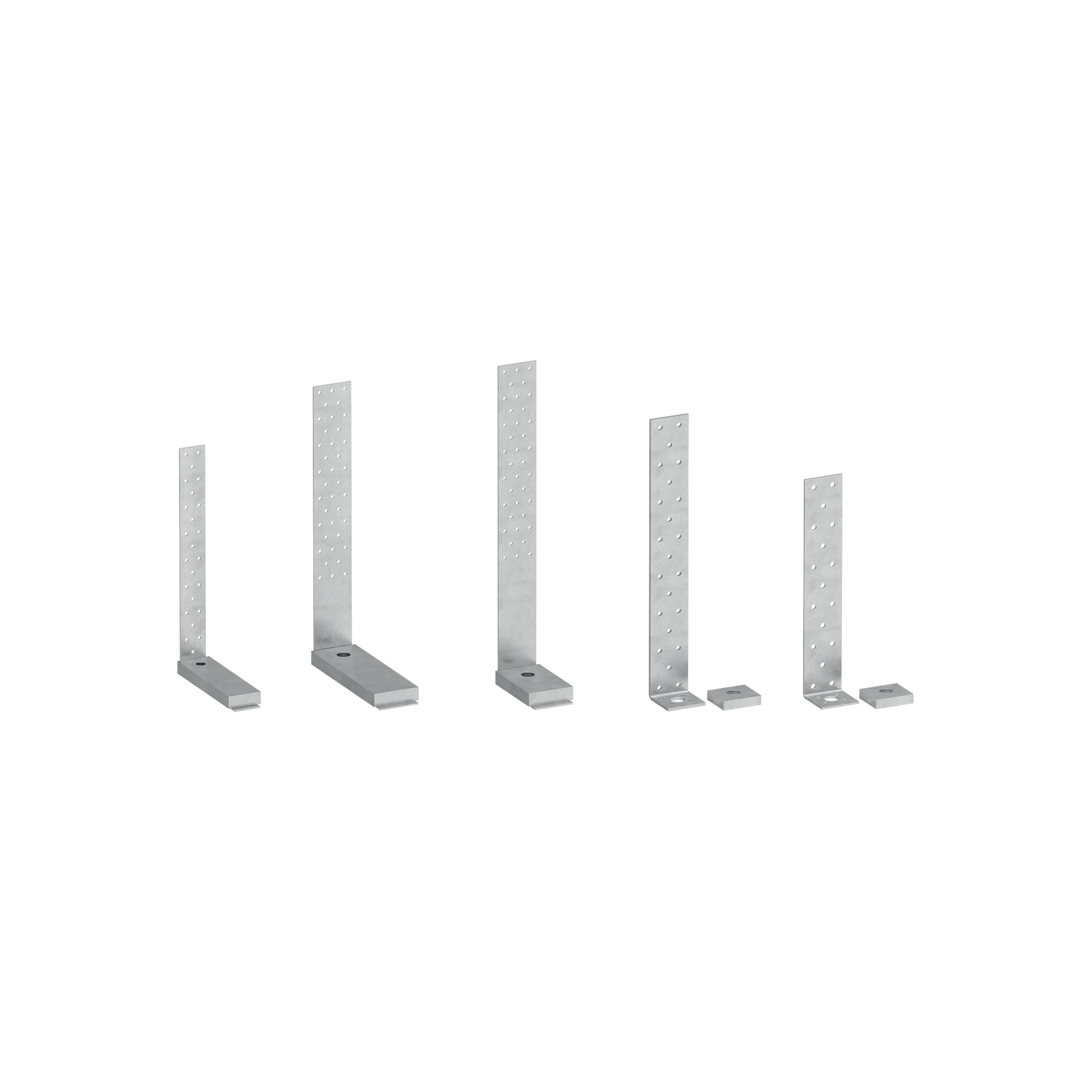

ANGLE BRACKET FOR TENSILE LOADS

WZU

Available in different thicknesses. The capacity can also be increased with the inclusion of the washer, according to the loads.

Tensile strength values are certified by the CE marking in accordance with the ETA.

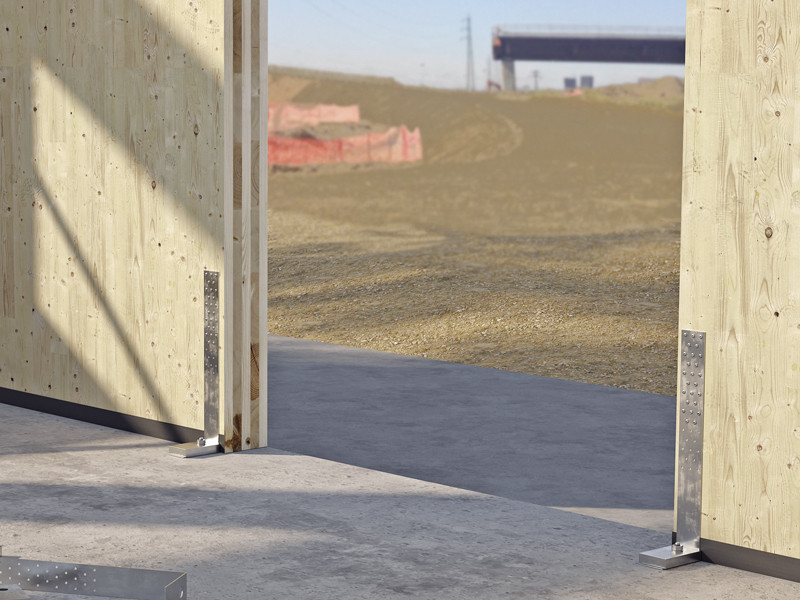

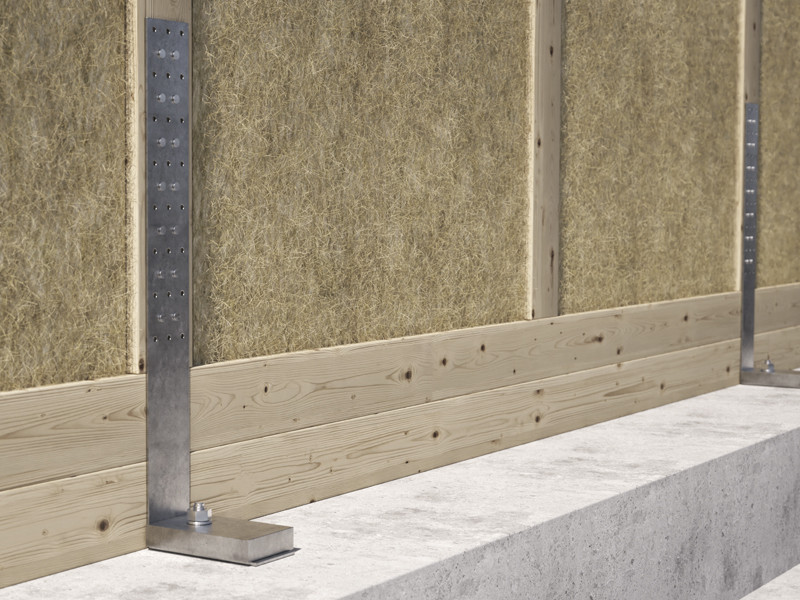

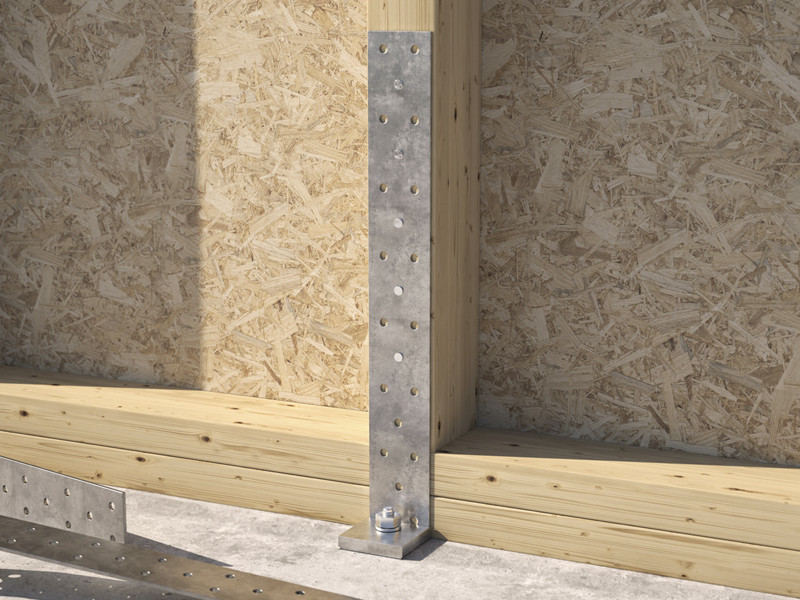

Ideal for the fastening of timber struts in frame structures to concrete.

Documents

Technical data sheets
ETA Certificate
Declaration of performance (DOP) Download
File CAD
Find the nearest agent Download the catalogue

WZU 90/155

CODE B
[mm]
 P
[mm]
 H
[mm]
 pcs.
WZU090 40 35 90 100
WZU155 40 50 155 100

WZU 200/300/400

CODE B
[mm]
 P
[mm]
 H
[mm]
 pcs.
WZU2002 40 40 200 100
WZU3002 40 40 300 50
WZU4002 40 40 400 50
WZU2004 40 40 200 50
WZU3004 40 40 300 50
WZU4004 40 40 400 25
WZUW 40 43 - 50

WZU STRONG

CODE B
[mm]
 P
[mm]
 H
[mm]
 pcs.
WZU342 40 182 340 10
WZU422 60 222 420 10
WZU482 60 123 480 10

Specifications

Supply and installation of angle bracket for tensile loads with holes, Type WZU.
CE marking in accordance with ETA

Field of use:

  • Joints for timber-to-concrete and timber-to-timber for panels and timber beams

Material:

  • Bright zinc plated carbon steel, three dimensional perforated plate

Geometry:
Angle bracket:

  • H (mm) = : ………………
    -Bottom plate (mm) = : ………………

  • Thickness s (mm) = : ………………

Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
