X-PLATE
X-ONE makes the CLT panel a module with specific connections for fastening; X-PLATE allows modules to become buildings.
Panels with thickness between 100 and 200 mm can be connected.** X-PLATE plates are the ideal solution** for every construction site situation, developed for all geometric configurations.
They are identified according to their positioning on the building level (X-BASE, X-MID, X-TOP) and according to the geometric configuration of the node and the thickness of the connected panels.
Description

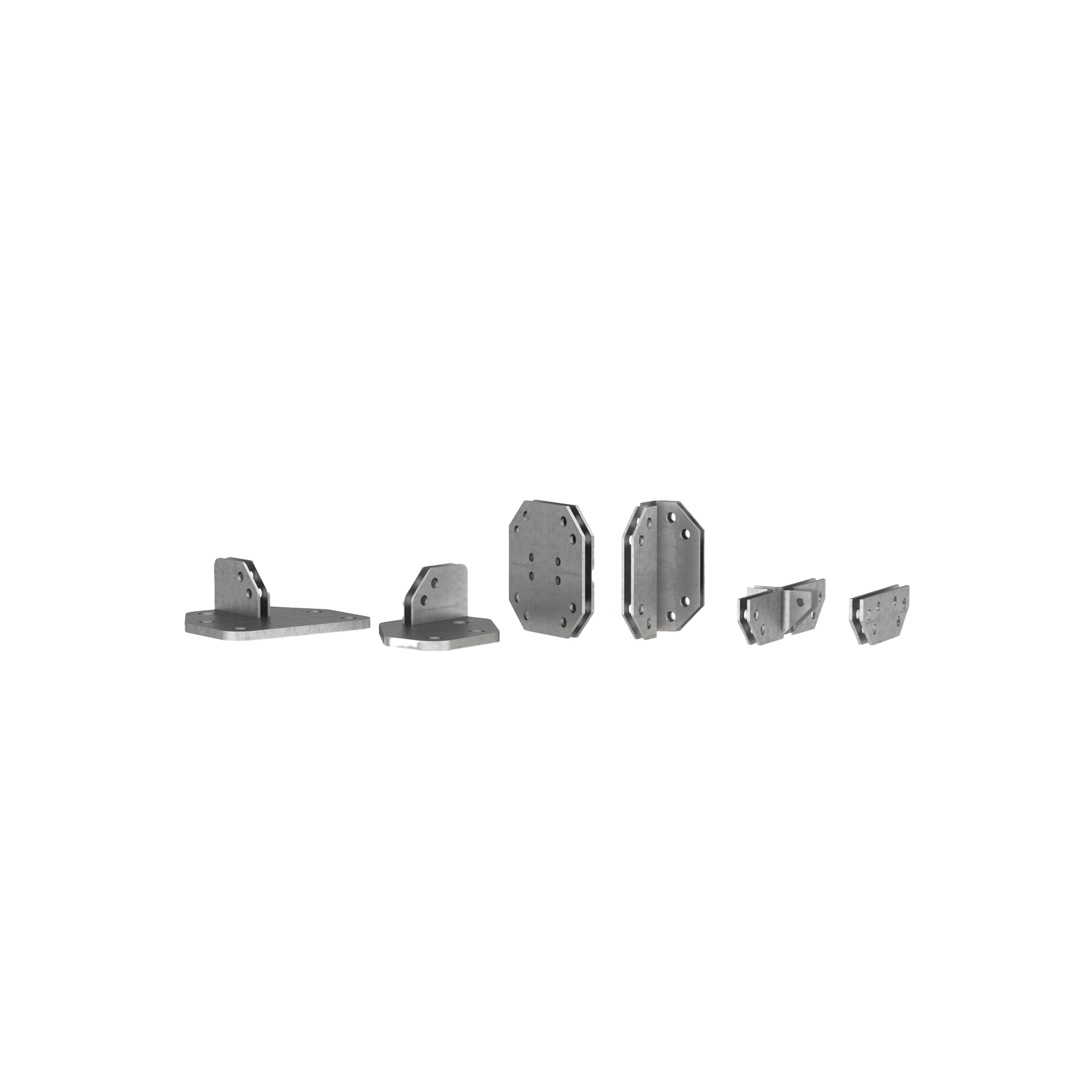

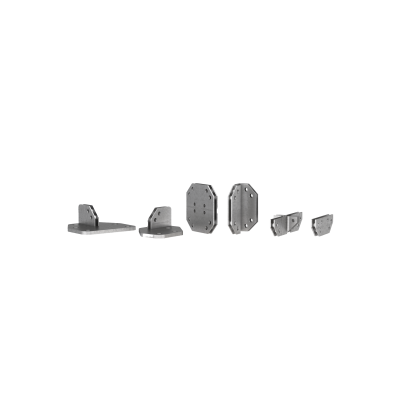

X-PLATE, metal plates for any X-RAD configuration.

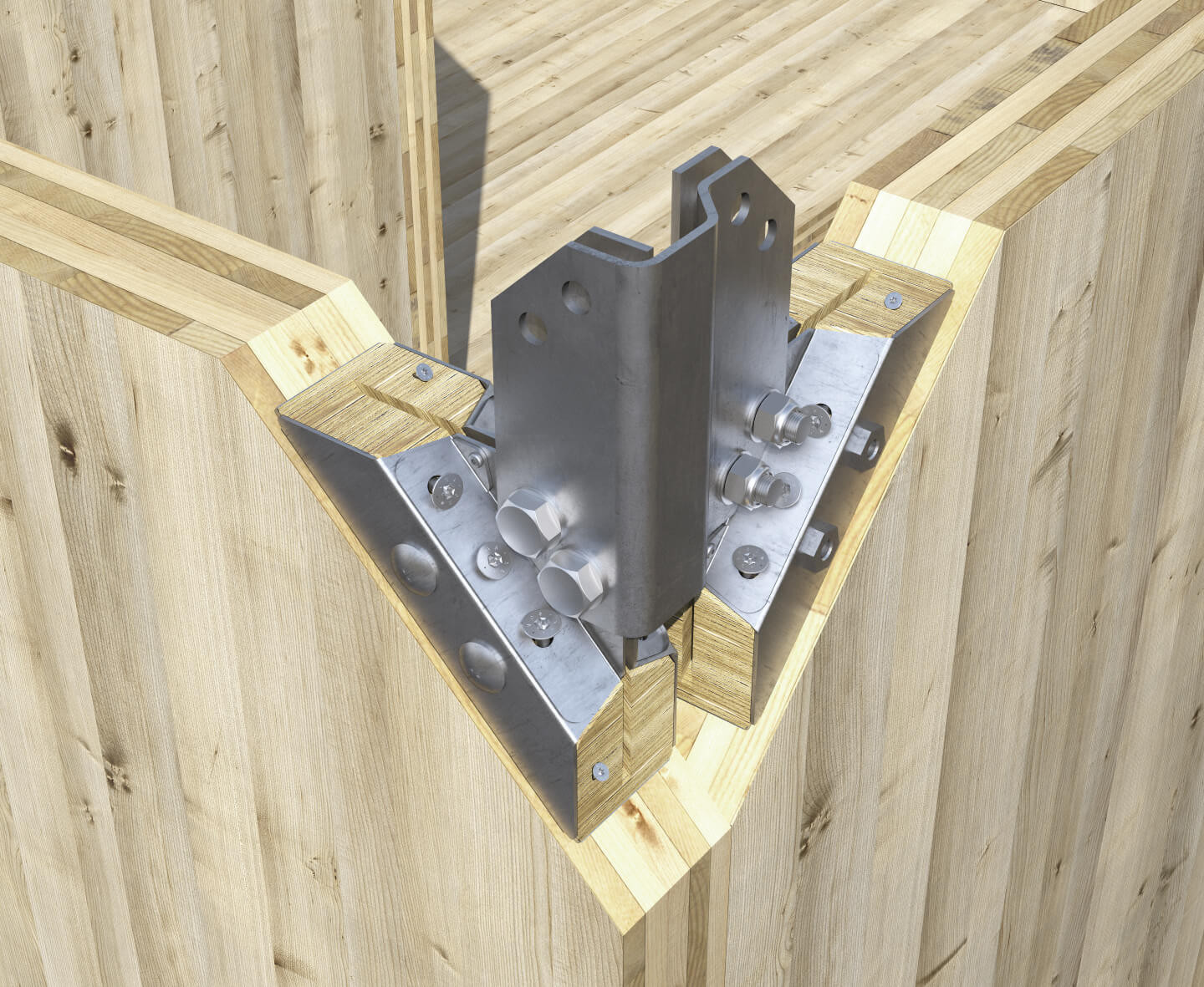

Thanks to X-PLATE, the panels are assembled at the construction site through the simple tightening of steel bolts.

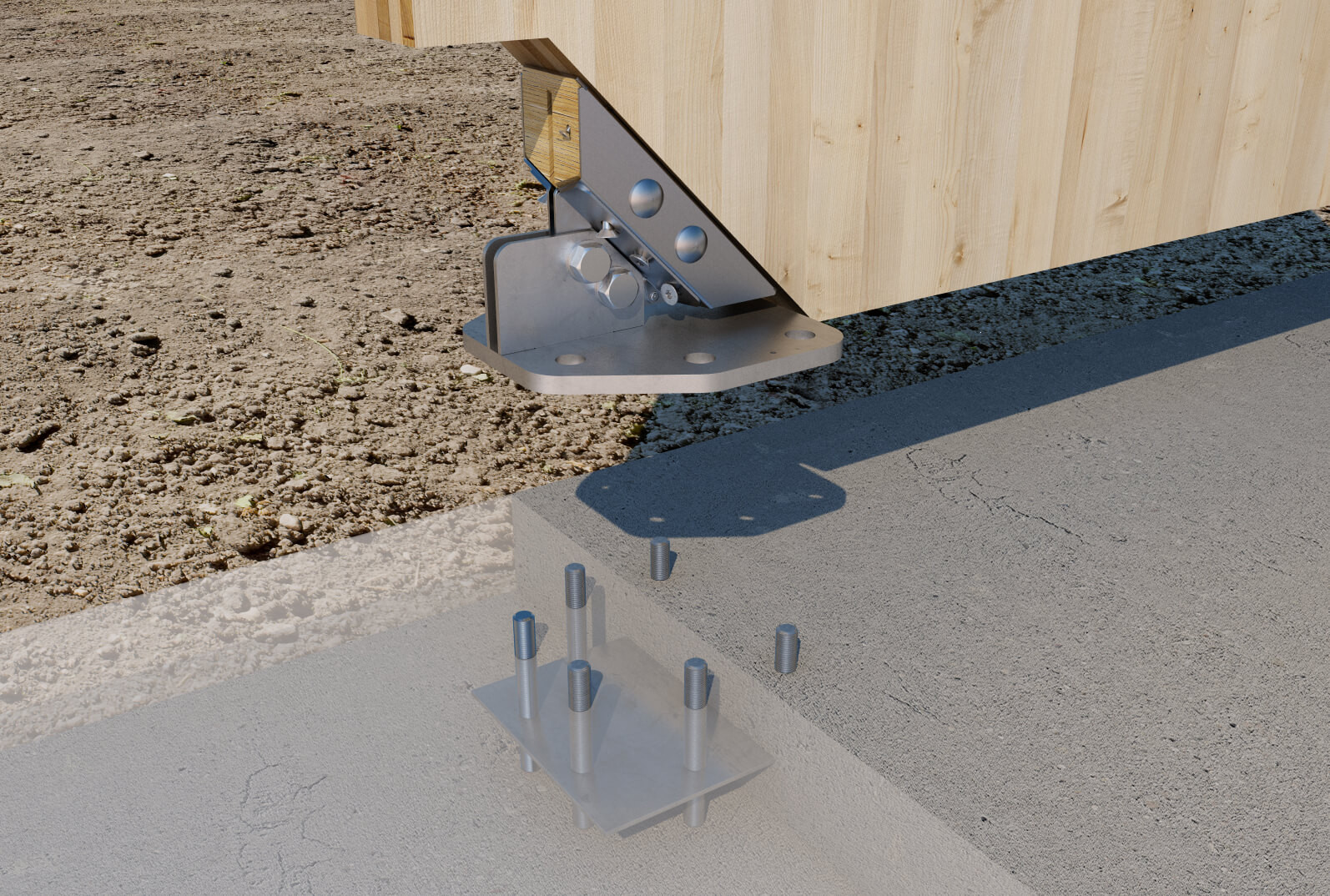

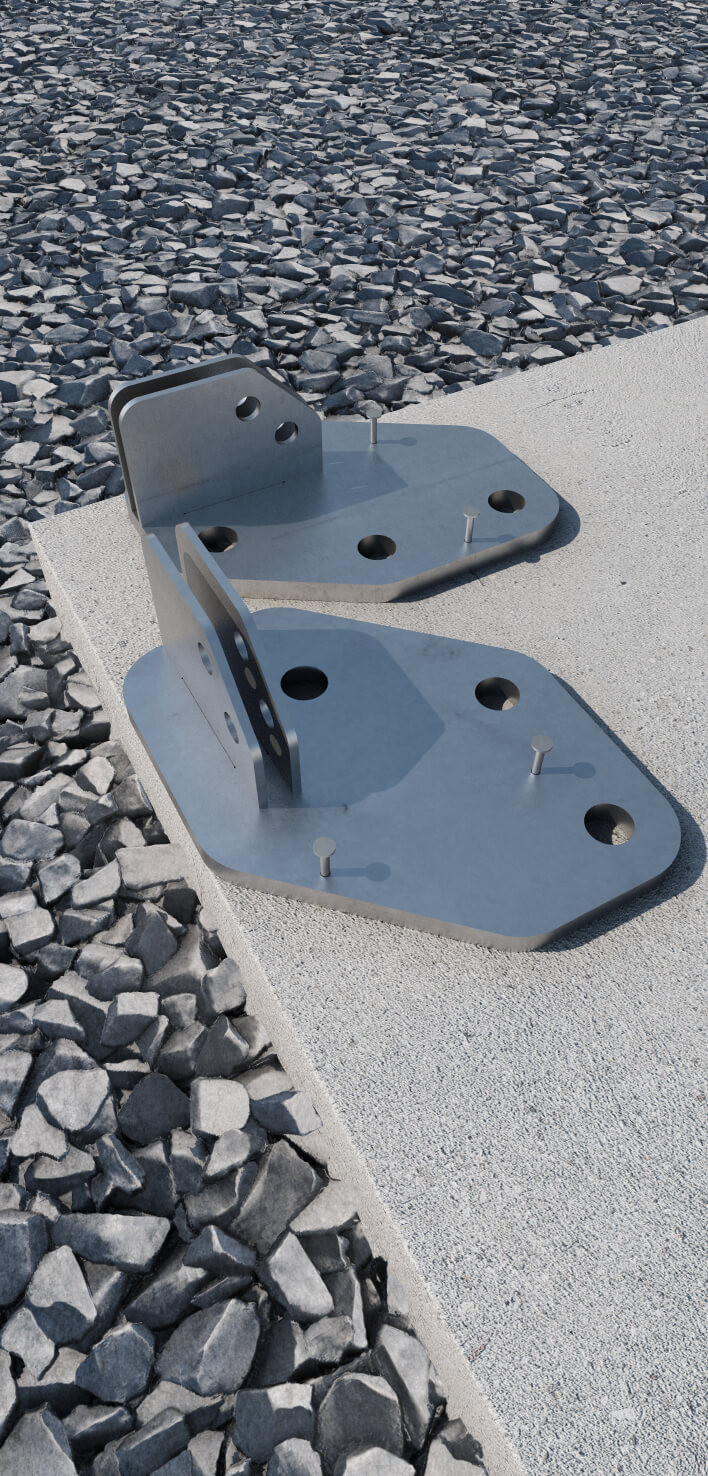

The range meets all construction site requirements, from ground connection, to connection between walls on different levels and with different thickness, to walls fastening to the roof.
