GAP
GAP is the connector for decking that enables you to create floors with narrow gaps between the boards, starting from 3 mm.
It is the ideal system for symmetrically grooved boards such as WPC or high-density wood.
Description
GAP, the connector for creating decks and façades with narrow gaps.

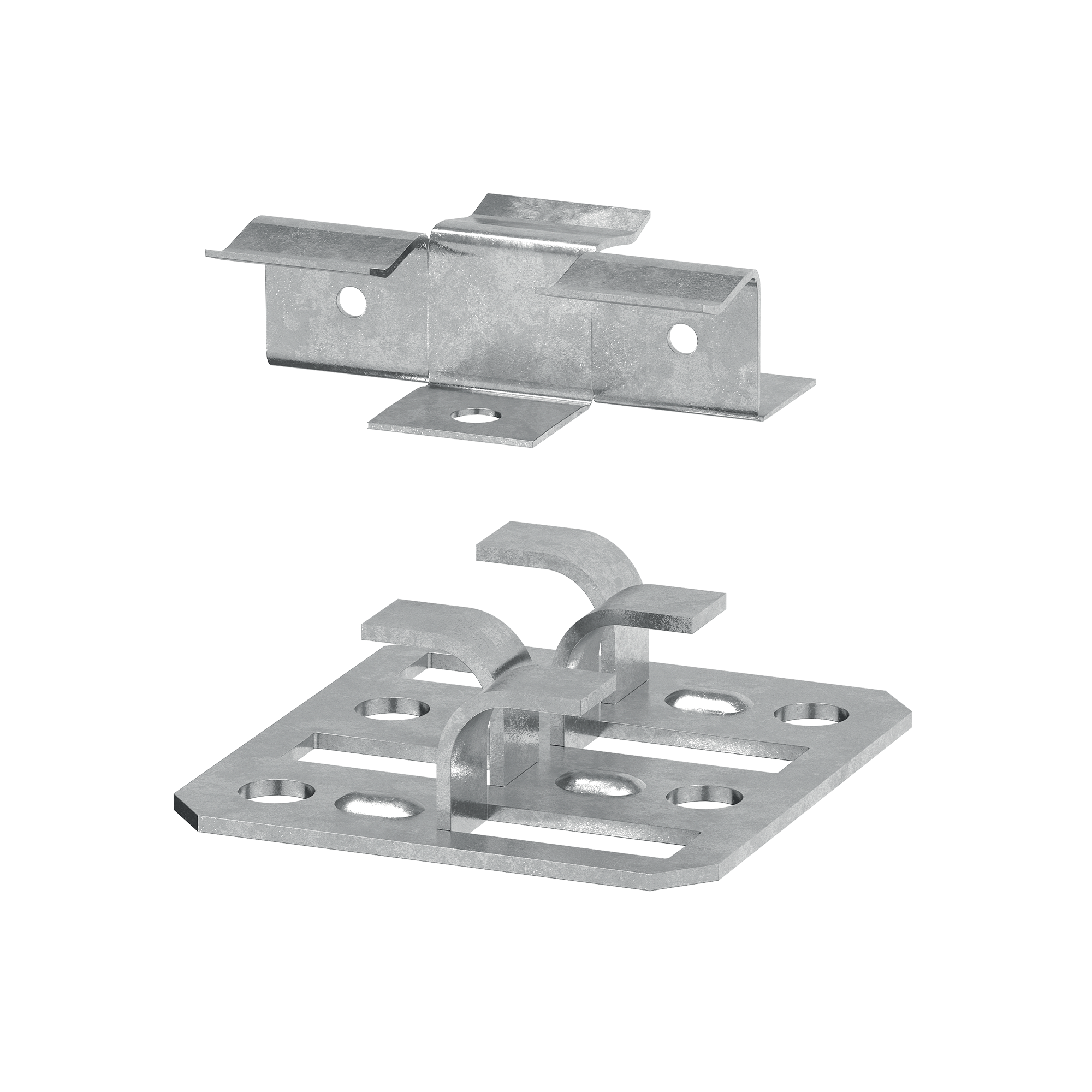

The GAP connector is available in two versions: in A2 | AISI304 stainless steel for excellent resistance to corrosion (GAP3) or in galvanized carbon steel (GAP4) for good performance at a low cost.

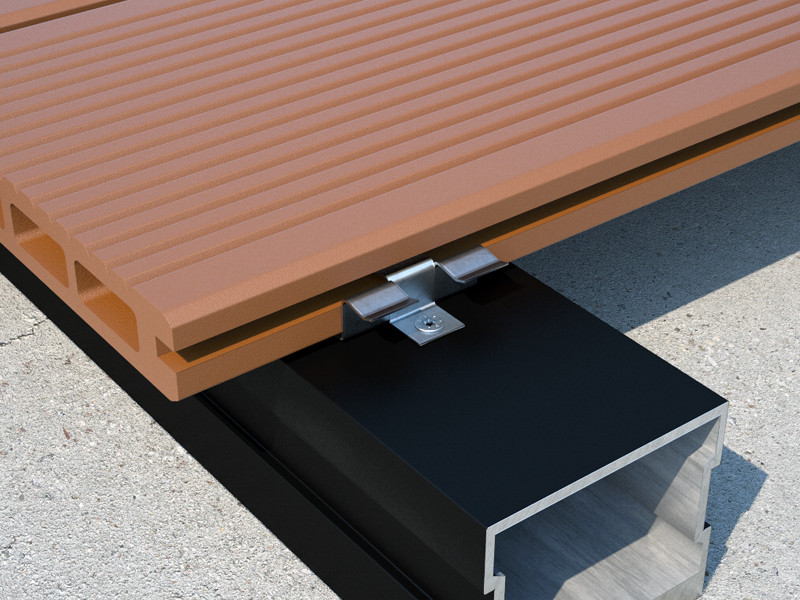

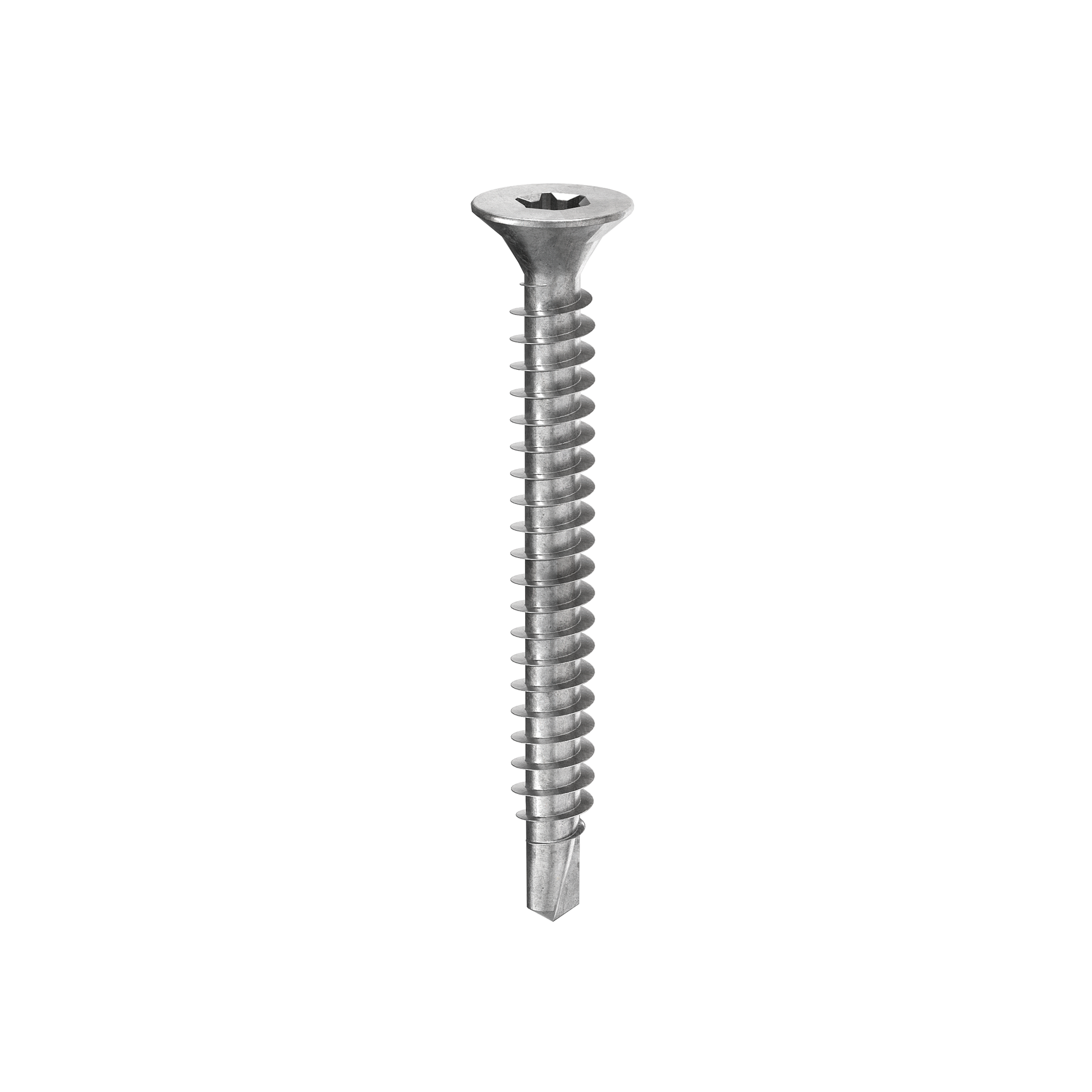

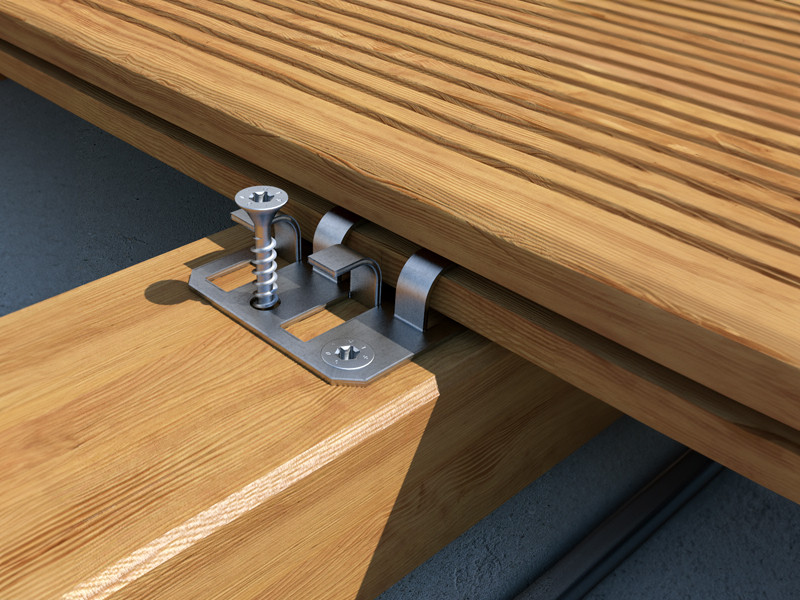

It is ideal for fastening wooden or WPC boards. Can also be used for fastening on aluminium using SBN A2 | AISI304 screws.

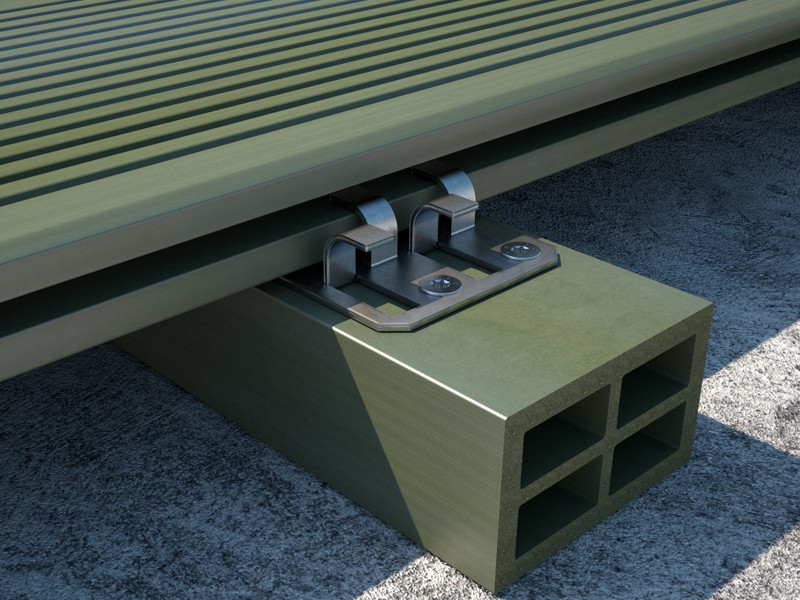

GAP is designed to resist the corrosion typical of outdoor environments and is ideal for fastening wooden or WPC boards on wood, WPC or aluminium substructures. Suitable for service classes 1-2-3.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Japanese CBL TS001-21
- Technical data sheets Korean
- Technical data sheets Latvia
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
-
Calculator Spreadsheet_DeckDesigner
GAP 3 A2 | AISI304
| CODE | material | B
[mm]
|
P
[mm]
|
H
[mm]
|
B
[in]
|
P
[in]
|
H
[in]
|
pcs. |
|---|---|---|---|---|---|---|---|---|
| GAP3 | A2 | AISI 304 | 30 | 40 | 11 | 1.2 | 1.6 | 0.4 | 500 |
GAP 4
| CODE | material | B
[mm]
|
P
[mm]
|
H
[mm]
|
B
[in]
|
P
[in]
|
H
[in]
|
pcs. |
|---|---|---|---|---|---|---|---|---|
| GAP4 | zinc-plated steel | 42.5 | 41.5 | 12 | 1.7 | 1.6 | 0.5 | 500 |
