GRANULO

GRANULAR RUBBER SUBSTRATE

GRANULO is the extremely versatile granular rubber substrate thanks to the variety of formats available.

The thermal-bonded rubber granules dampen vibrations, thus insulating the noise produced by footsteps.

Ideal also as a wall barrier.

Description

GRANULO, the versatile and effective substrate for substructures.

Made of granules of recycled rubber thermal-bonded with polyurethane.

Resistant to chemical interactions, maintains its characteristics in time and is 100% recyclable.

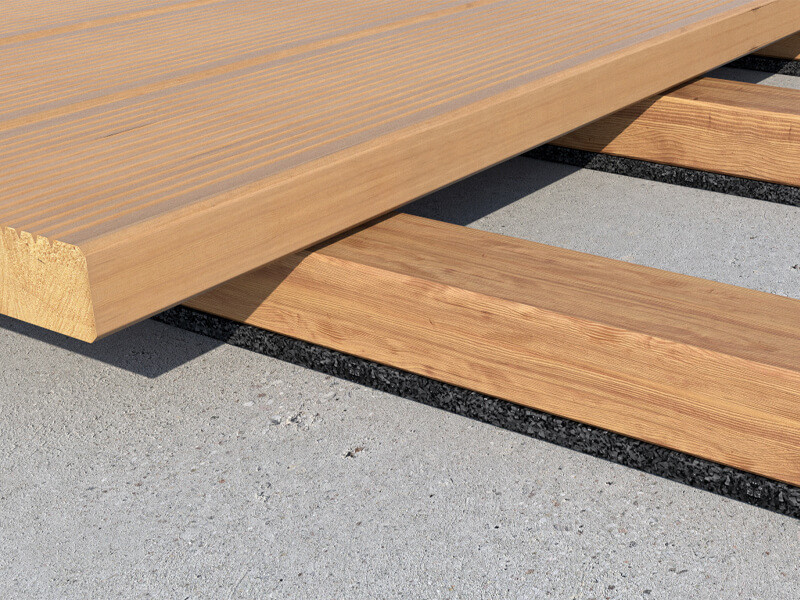

Ideal as a substrate for patio substructures, it is permeable to water and ideal for outdoor use.

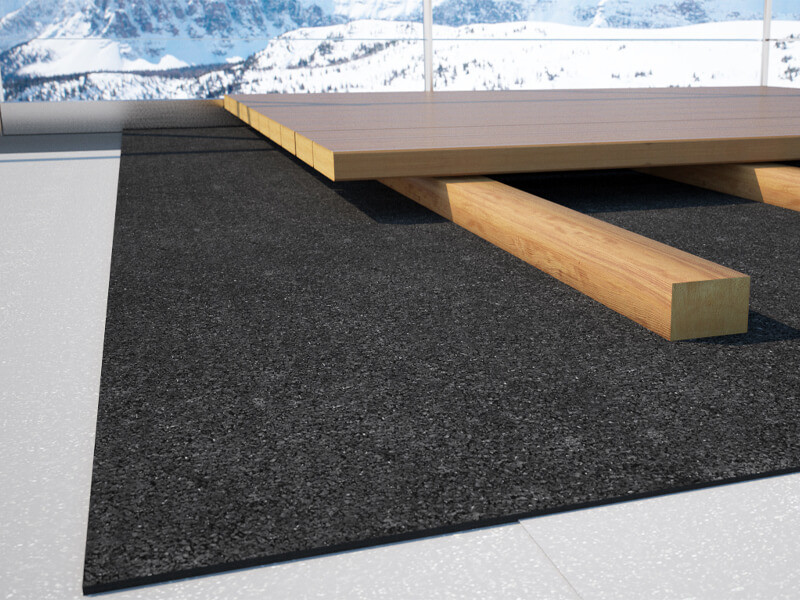

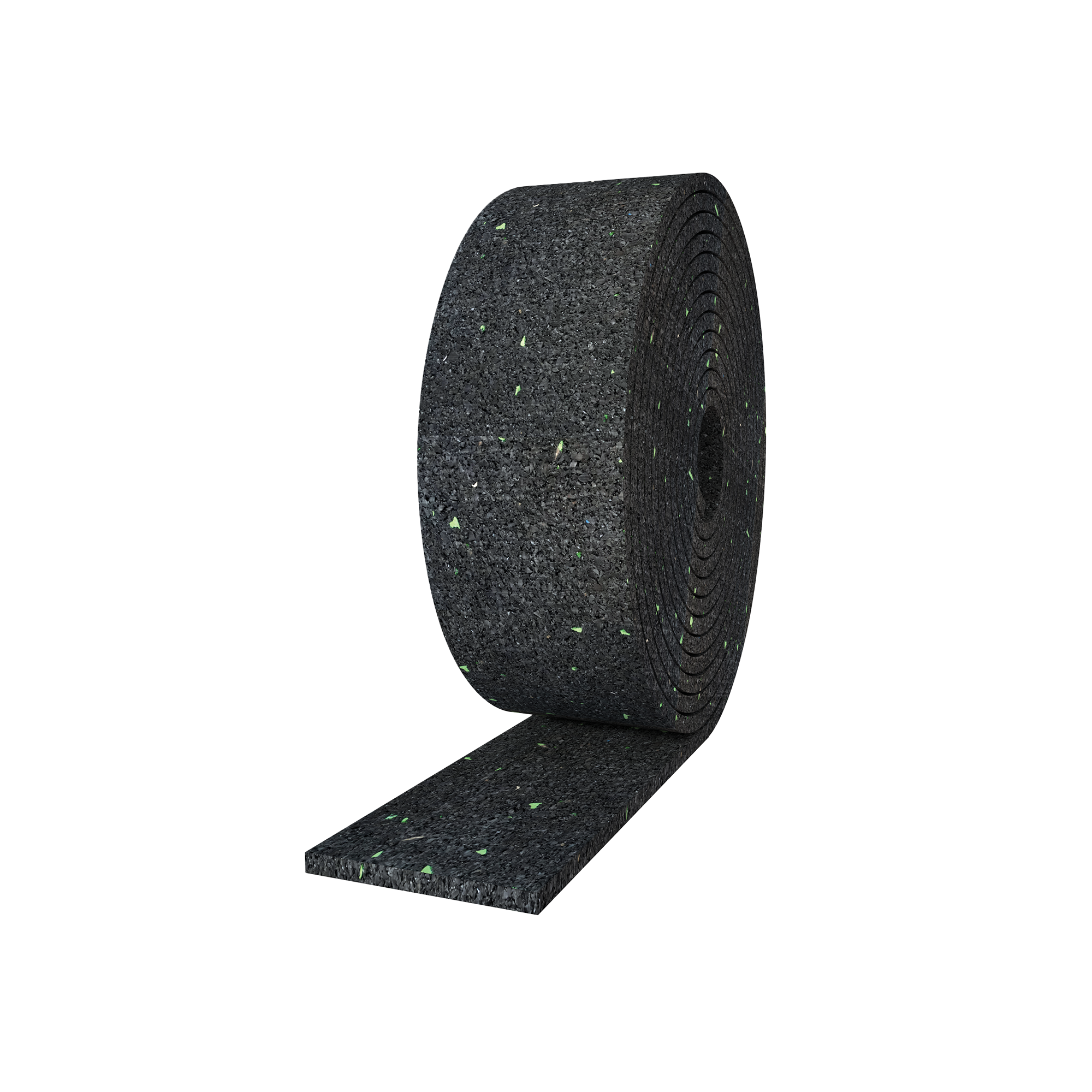

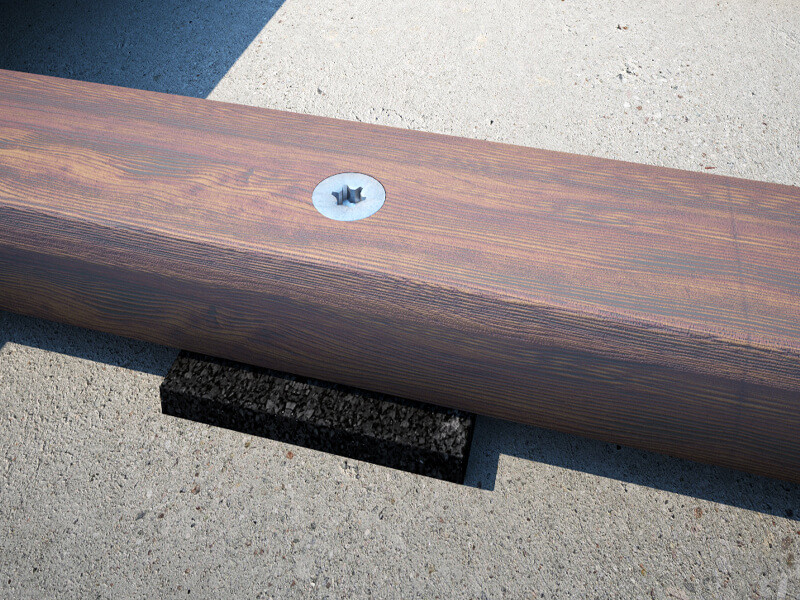

Available in sheet (GRANULOMAT 1.25 m x 10 m), roll (GRANULOROLL and GRANULO100) or pad (GRANULOPAD 8 x 8 cm).

Ideal as a substrate for wood, aluminium, WPC and PVC substructures. Suitable for service classes 1, 2 and 3.

Documents

  • Technical data sheets

GRANULO

CODE B
[mm]
L
[m]
s
[mm]
pcs.
GRANULO100 100 15 4 1
GRANULOPAD 80 0.08 10 20
GRANULOROLL 80 6 8 1
GRANULOMAT110 - 10 6 1

Specifications

Supply and installation of resilient soundproofing profile, type GRANULO

Composition:

  • Mix of natural and synthetic elastomers bound by polymerised polyurethane

Properties:

  • Dynamic stiffness s’ [MN/m³] : 66
  • Theoretical estimate of the degree of impact sound attenuation ∆L [dB] : 22,6
  • System resonance frequency f0 [Hz] : 116,3
  • Compression deformation stress [kPa] : 10% def, 21 35% def, 145

Install the profile on the upper section of the wall and fix it mechanically with staples every 40/60 cm. Then install the horizontal panel of the floor and repeat the operation.
