JFA
ADJUSTABLE SUPPORT FOR TERRACES

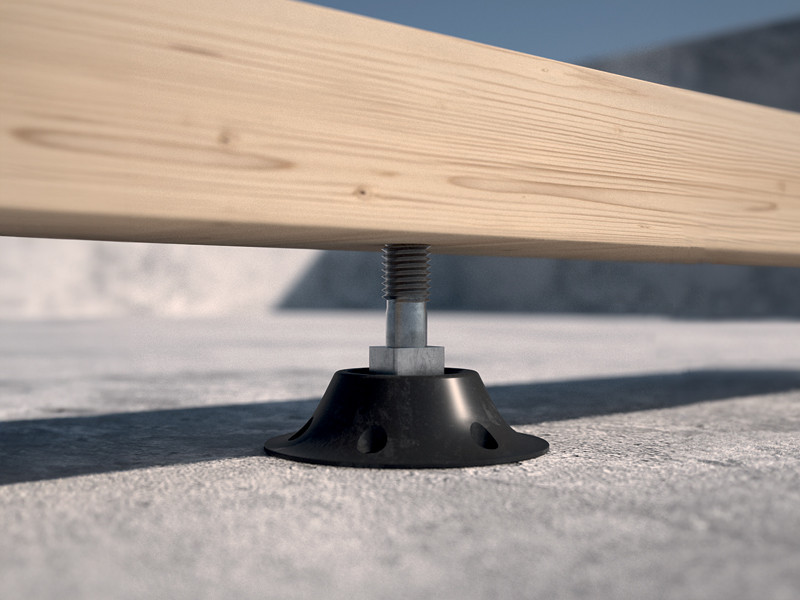

The height-adjustable support can easily adapt to variations in substrate level.
The raised section also allows for ventilation under the joists, which favours durability.
Description

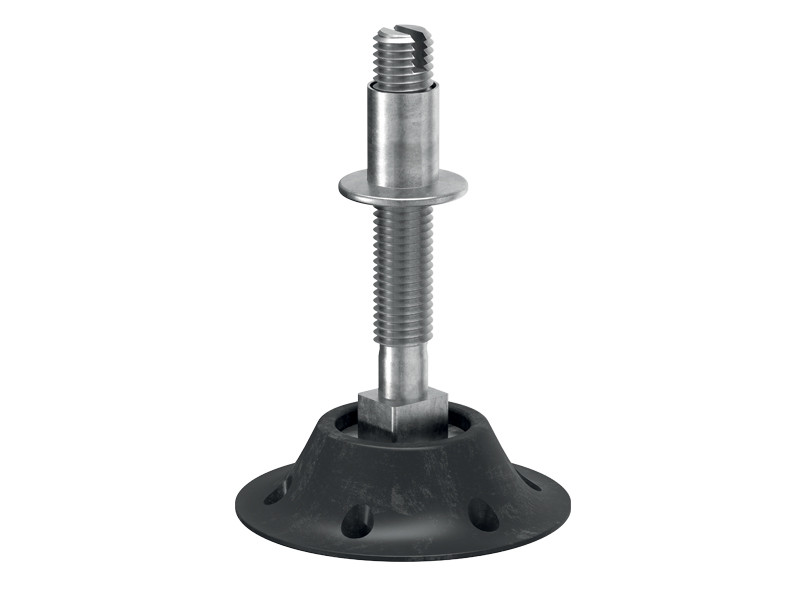

JFA, the adjustable support for terraces, for raising and levelling the structure.
The TPE plastic support base helps reduce footstep noises. Ball-jointed, it is capable of also adapting to inclined surfaces.

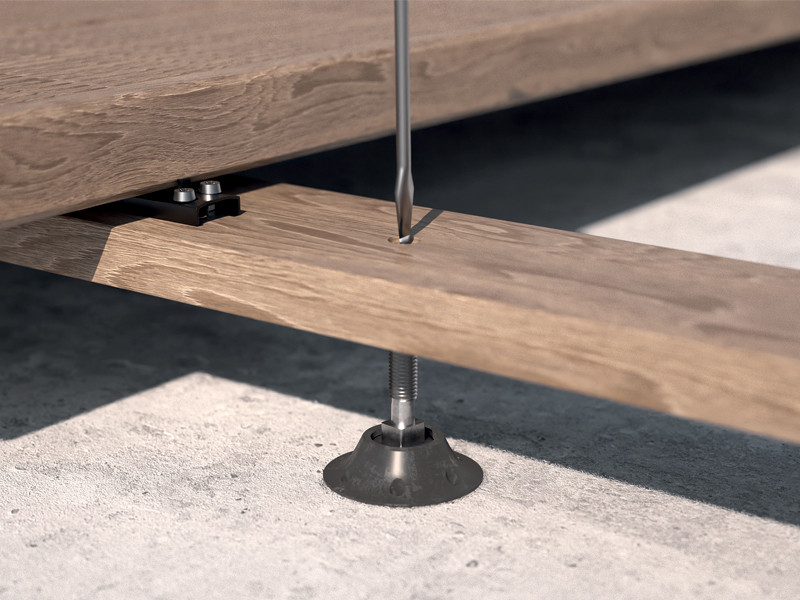

JFA offers the possibility of adjustment both from below, with a SW 10 wrench, or from above, using a flat-tip screwdriver.
Fast, convenient, versatile system.
In carbon steel with bright zinc plated.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Japanese CBL TS001-21
- Technical data sheets Korean
- Technical data sheets Latvia
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
-
File CAD
-
Calculator Spreadsheet_DeckDesigner

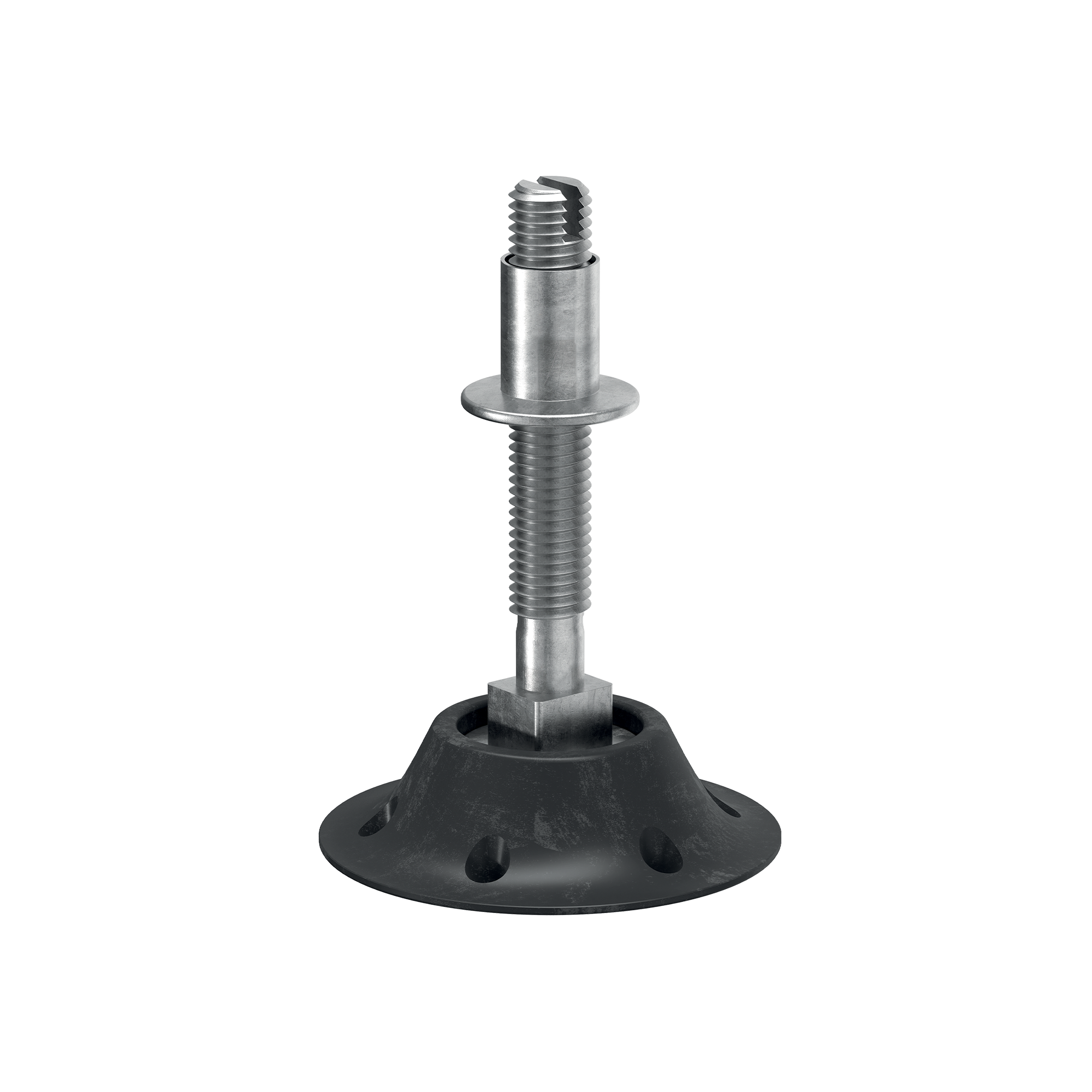

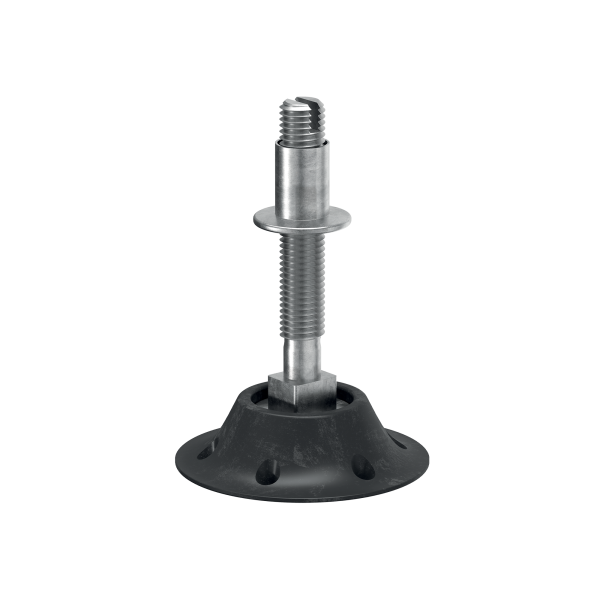

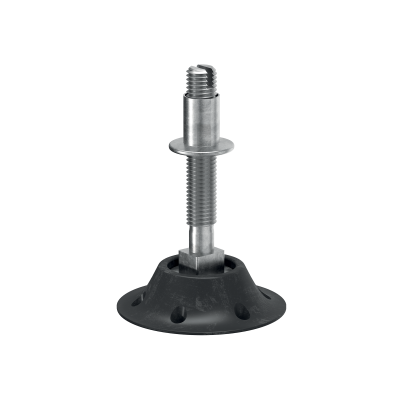

JFA
| CODE | Ø
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|
| JFA840 | Ø8 | 40 | 100 |
| JFA860 | Ø8 | 60 | 100 |
| JFA880 | Ø8 | 80 | 100 |
