New
SNAP

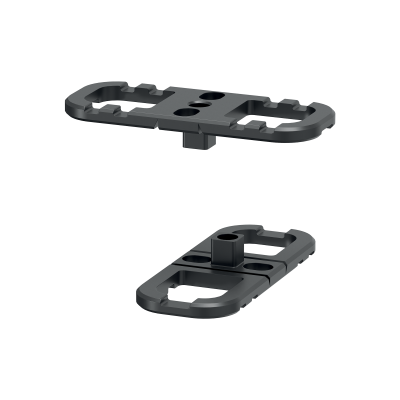

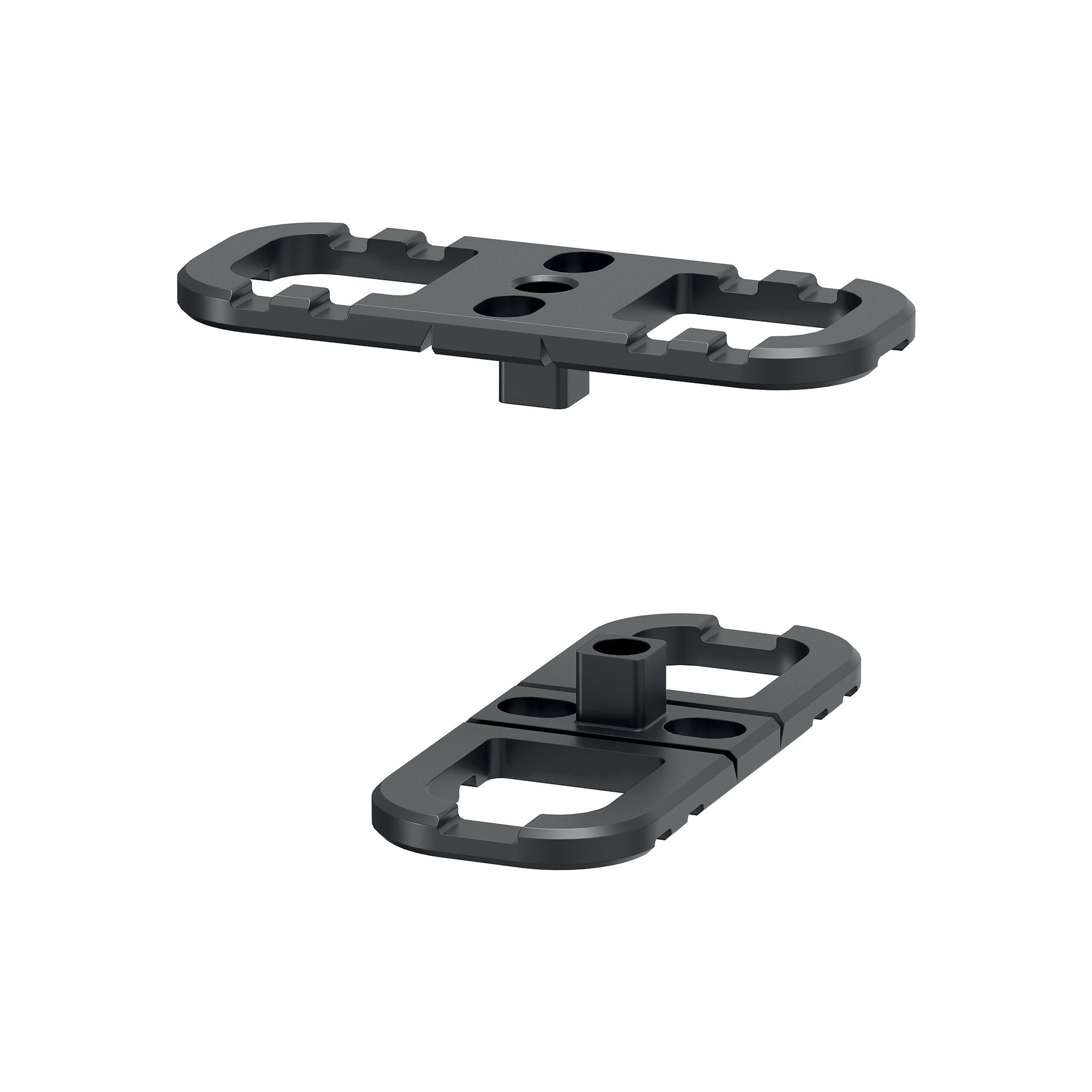

CONNECTOR AND SPACER FOR DECKS

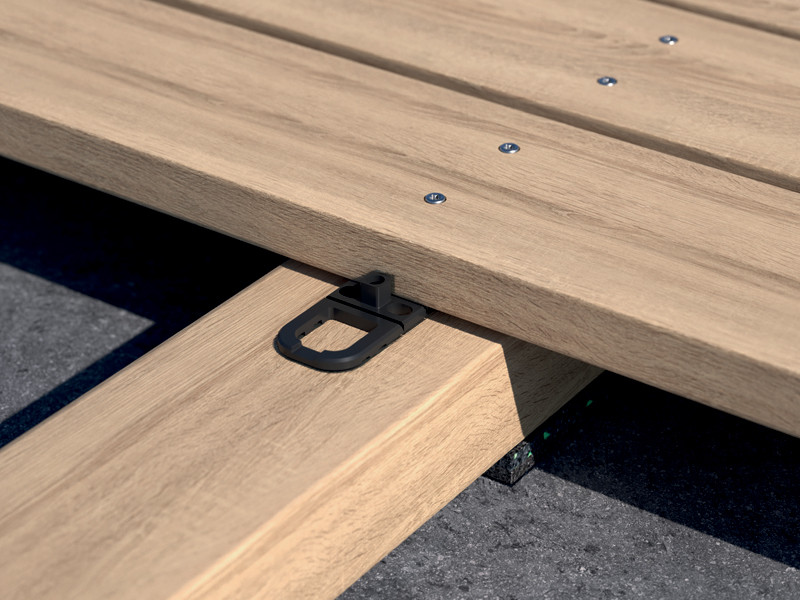

It can be used both as a concealed connector for boards and as a spacer between boards and battens. SNAP is developed to be used individually but also in combination. In this case, SNAPs have dual functionality as connector and spacer, for maximum efficiency and convenience.

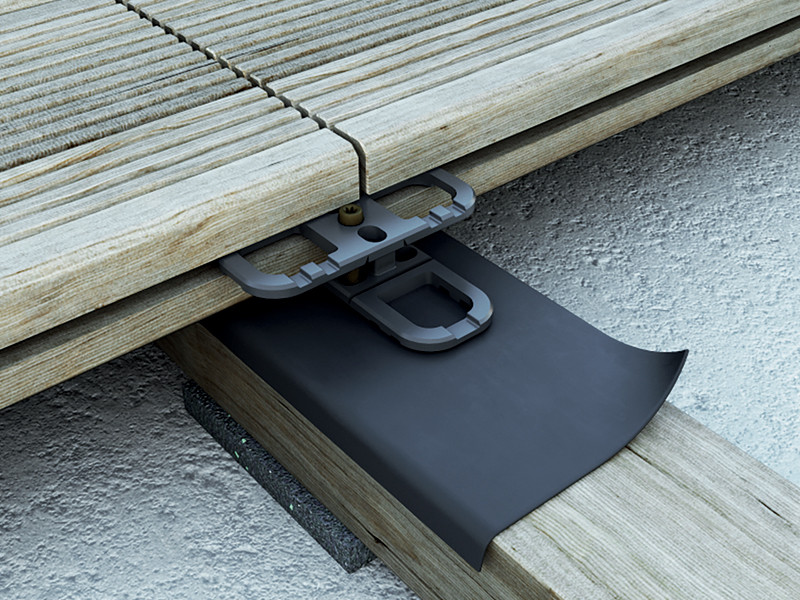

When used as a spacer, SNAP prevents water stagnation thanks to the micro-ventilation created under the decking boards.
PP (glass fiber reinforced polypropylene) material provides excellent durability at an affordable price.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Korean
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
SNAP
| CODE | material | B
[mm]
|
P
[mm]
|
s
[mm]
|
B
[in]
|
P
[in]
|
s
[in]
|
pcs. |
|---|---|---|---|---|---|---|---|---|
| SNAP | Polipropilene rinforzato | 28 | 70 | 4 | 1.1 | 2.8 | 0.157 | 100 |
