ADJUSTABLE SUPPORT FOR TERRACES

SUPPORT

The SUPPORT support for terraces is available in three versions, for raised sections of different heights. Adjustable in height, it enables levelling of the substructure in the creation of terraces in outdoor environments.

SUPPORT, extreme versatility for levelling your terraces.

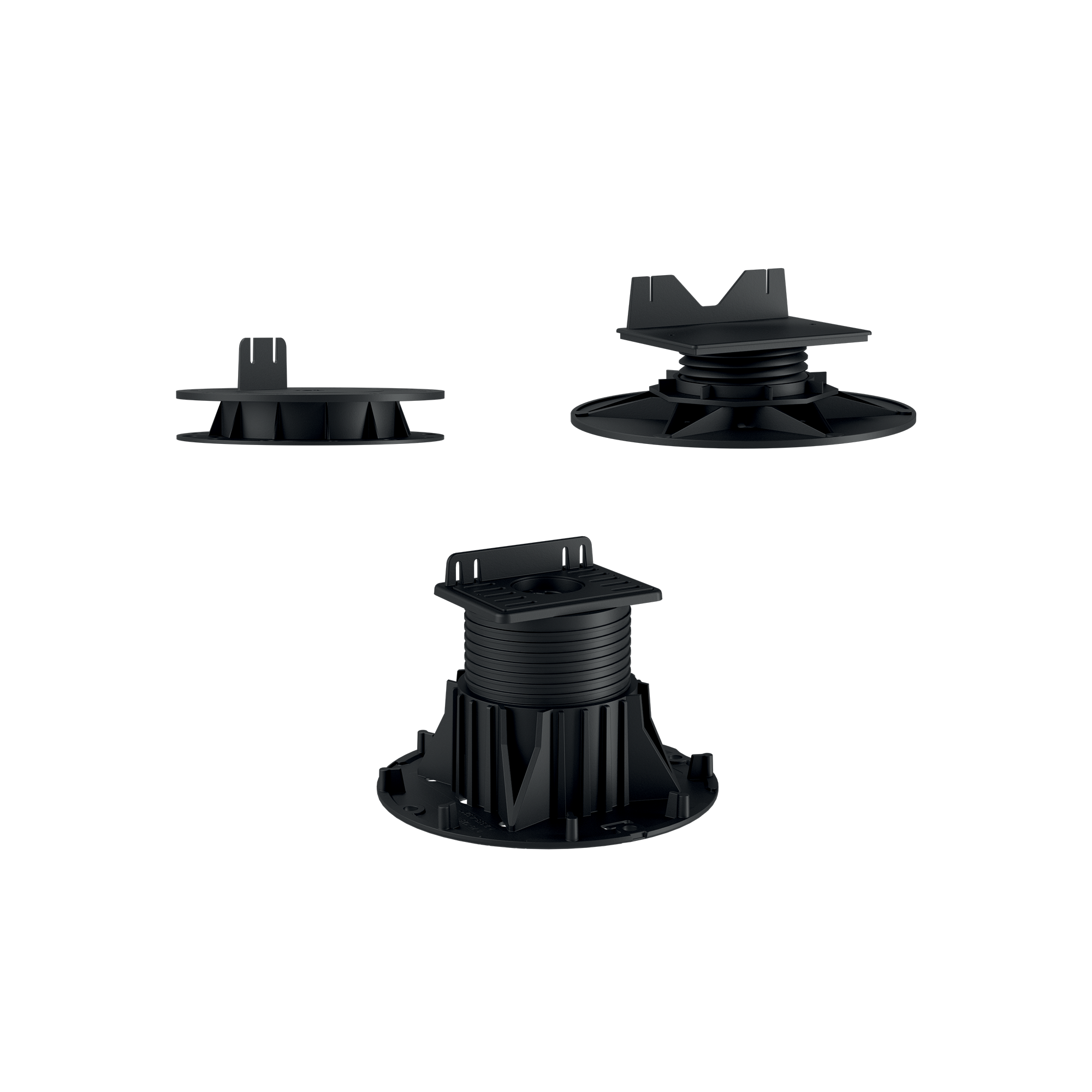

The Small version (SUP-S) can be raised by up to 37 mm, the Medium version (SUP-M) by up to 220 mm and the Large version (SUP-L) by up to 1025 mm.

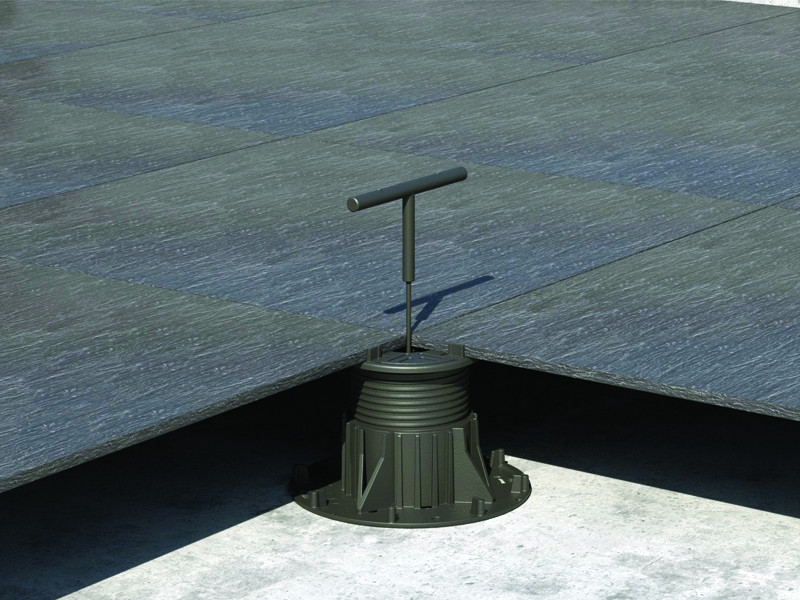

The new “all in one” SUP-L, features not only excellent adjustability and load-bearing capacity, but also versatile, self-levelling heads that can automatically correct the slope of uneven installation surfaces by up to 5%; thanks to the SUPLKEY key, it can be adjusted from above for maximum stability in tile flooring systems.

All versions are height adjustable. The system is sturdy and suitable for heavy loads. The Small (SUP-S) and Medium (SUP-M) versions can handle up to 400 kg; the Large (SUP-L) version handles up to 1000 kg.

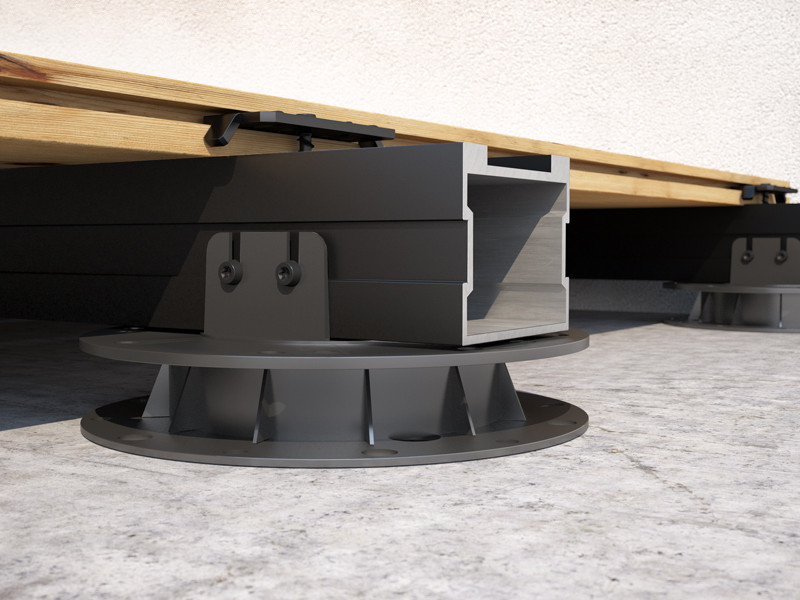

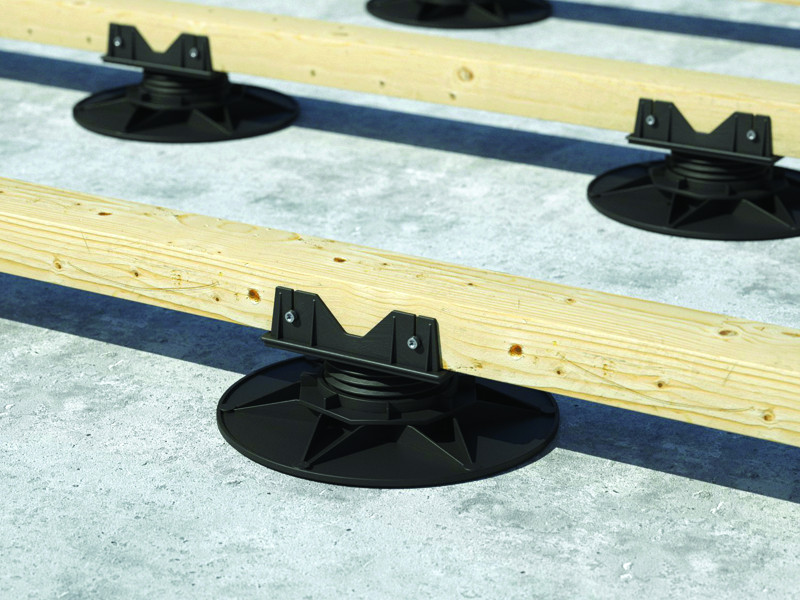

All versions can be combined with a special head to facilitate lateral fastening to the joist, which may be made of either wood or aluminium. A tile adapter is also available on request. Made of UV-resistant polypropylene and suitable also for aggressive environments. Ideal for use in combination with ALU TERRACE, fixed laterally with KKA wood screws. A system with excellent durability, it is suitable for service classes 1, 2 and 3.

Documents

Technical data sheets
Calculator Spreadsheet_DeckDesigner

SUP-S

CODE Ø
[mm]
description pcs.
SUPS2230 Ø150 - 20
SUPS2840 Ø150 - 20

SUP-M

CODE Ø
[mm]
description pcs.
SUPM3550 Ø200 - 25
SUPM5070 Ø200 - 25
SUPM65100 Ø200 - 25
SUPM95130 Ø200 - 25
SUPM125160 Ø200 - 25
SUPM155190 Ø200 - 25
SUPM185220 Ø200 - 25

SUP-L

CODE Ø
[mm]
description pcs.
SUPL3750 Ø200 - 20
SUPL5075 Ø200 - 20
SUPL75125 Ø200 - 20
SUPL125225 Ø200 - 20
SUPL225325 Ø200 - 1
SUPL325425 Ø200 - 1
SUPL425525 Ø200 - 1
SUPL525625 Ø200 - 1
SUPL625725 Ø200 - 1
SUPL725825 Ø200 - 1
SUPL825925 Ø200 - 1
SUPL9251025 Ø200 - 1
