TVM
TVM is the connector for decking available in different versions and materials, for applications with boards of different thickness and gaps of varying width. In stainless steel, it ensures high resistance to corrosion typical of aggressive environments.
Description
TVM, the connector for decking that ensures good looks and durability.

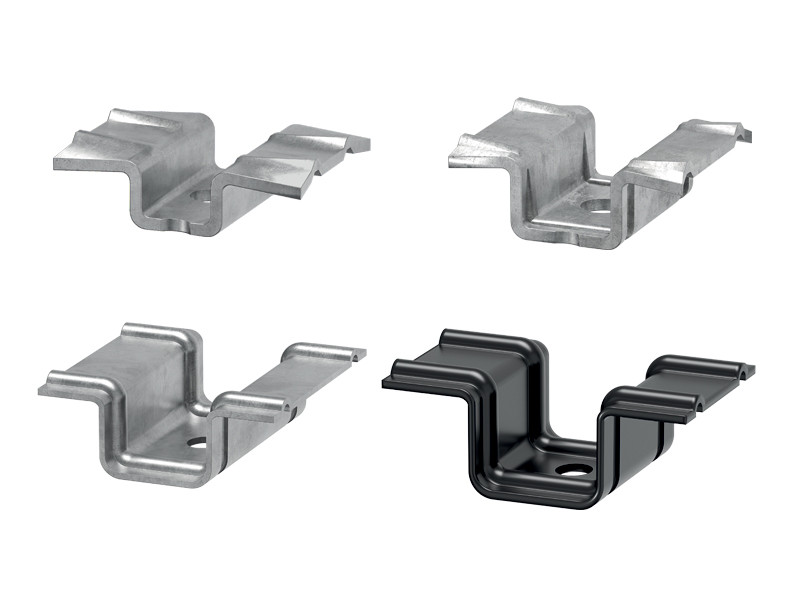

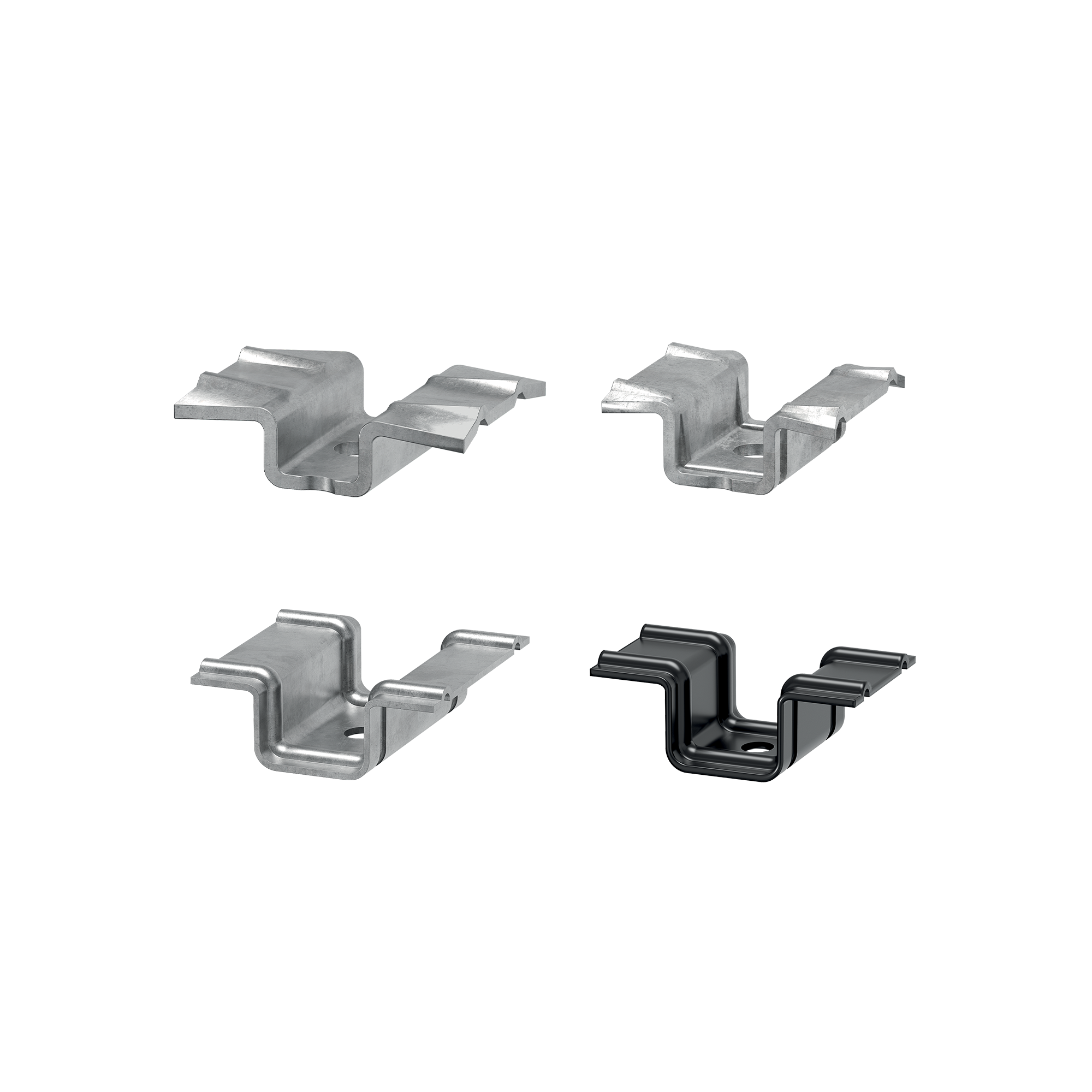

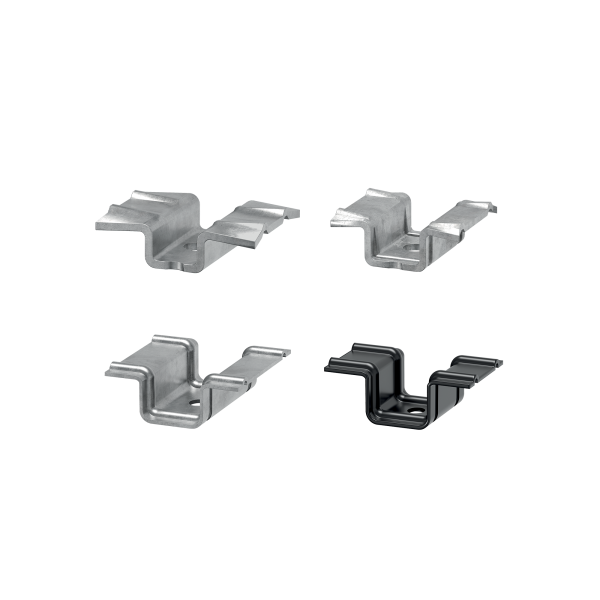

The TVM connector for decking is available in four versions, including the black version for a completely hidden effect.
The stainless steel ensures high corrosion-resistance. The micro-ventilation between the boards helps the durability of the wooden elements.

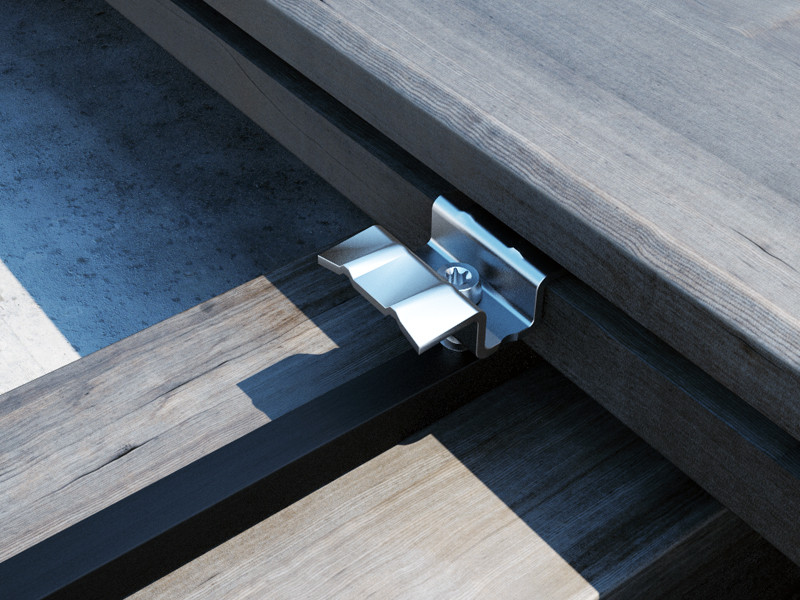

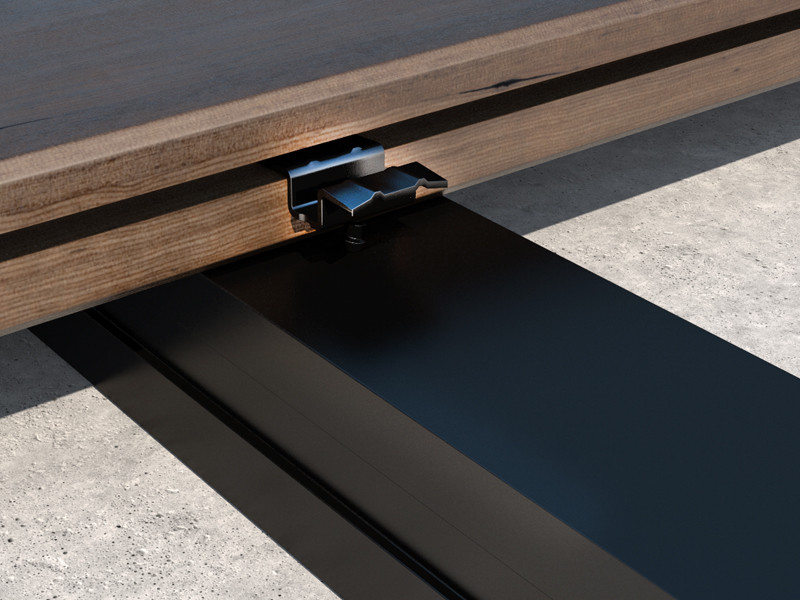

Ideal for boards with asymmetrical “female-female” groove cuts. Ribbing on the surface of the connector ensures excellent stability. TVM offers also the possibility of fastening on aluminium profiles, using KKA AISI410 or KKA COLOR wood screws.

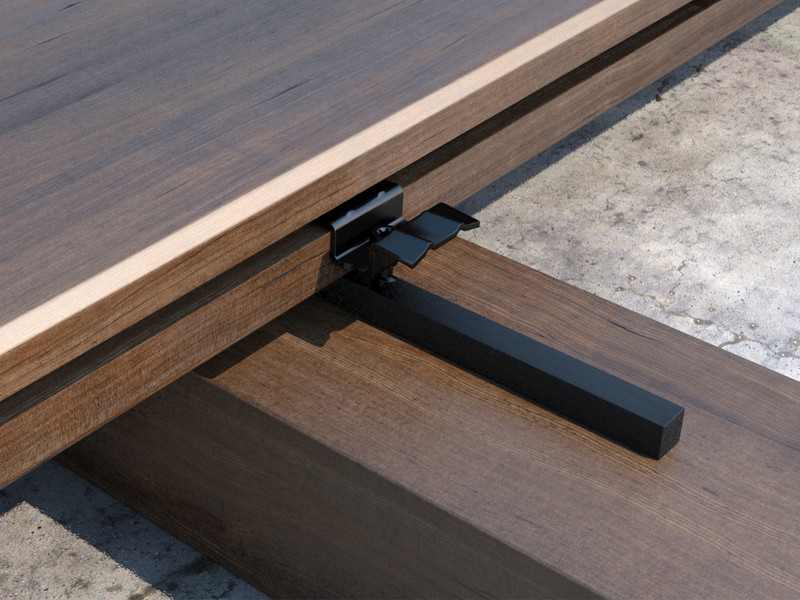

Available in A2 | AISI304 austenitic stainless steel and in aluminium with coloured, organic coating, it is designed for outdoor use in aggressive environments. Suitable for fastening timber or WPC boards on substructures in wood, WPC or aluminium. Service classes 1, 2 and 3.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Japanese CBL TS001-21
- Technical data sheets Korean
- Technical data sheets Latvia
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
-
Calculator Spreadsheet_DeckDesigner
TVM A2 | AISI304
| CODE | material | B
[mm]
|
P
[mm]
|
s
[mm]
|
B
[in]
|
P
[in]
|
s
[in]
|
pcs. |
|---|---|---|---|---|---|---|---|---|
| TVM1 | A2 | AISI 304 | 31 | 22.5 | 2.4 | 1.2 | 0.9 | 0.094 | 500 |
| TVM2 | A2 | AISI 304 | 28 | 22.5 | 2.4 | 1.1 | 0.9 | 0.094 | 500 |
| TVM3 | A2 | AISI 304 | 30 | 29.4 | 2.4 | 1.2 | 1.2 | 0.094 | 500 |
TVM COLOR
| CODE | material | B
[mm]
|
P
[mm]
|
s
[mm]
|
B
[in]
|
P
[in]
|
s
[in]
|
pcs. |
|---|---|---|---|---|---|---|---|---|
| TVMN4 | A2 | AISI 304 black | 36 | 23 | 2.4 | 1.4 | 0.9 | 0.094 | 500 |
