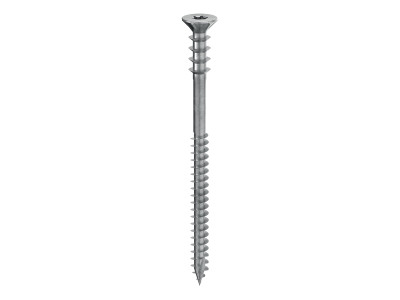

DRS
The DRS wood screw features an under-head thread designed to generate and regulate a space between the fixable thicknesses.
It is ideal for levelling panelling, battens, false ceilings, and flooring, and enables many other similar applications.
Description
DRS, the screw that maintains the right space between wooden profiles.

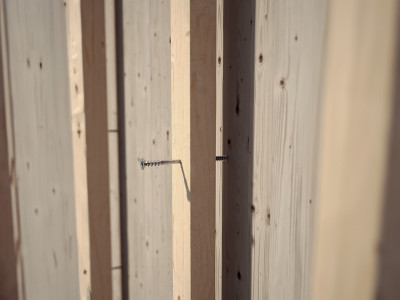

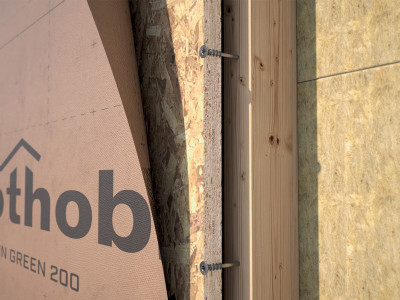

The differentiated double thread of the DRS wood screw is excellent for adjusting the position of the joists on the façade and creating proper verticality.
The under-head thread with specially designed geometry makes it possible to create and regulate a space between the fastenable thicknesses.
The DRS wood screw makes it possible to make versatile fastenings quickly and precisely with no need for any interposed elements.
In carbon steel with bright zinc plated.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Korean
- Technical data sheets Latvia
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
DRS
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| DRS680 | - | 6 | 80 | 60 | 0.24 | 3 1/8'' | 2 3/8'' | TX30 | 100 |
| DRS6100 | - | 6 | 100 | 60 | 0.24 | 4'' | 2 3/8'' | TX30 | 100 |
| DRS6120 | - | 6 | 120 | 60 | 0.24 | 4 3/4'' | 2 3/8'' | TX30 | 100 |
| DRS6145 | - | 6 | 145 | 60 | 0.24 | 5 11/16'' | 2 3/8'' | TX30 | 100 |
