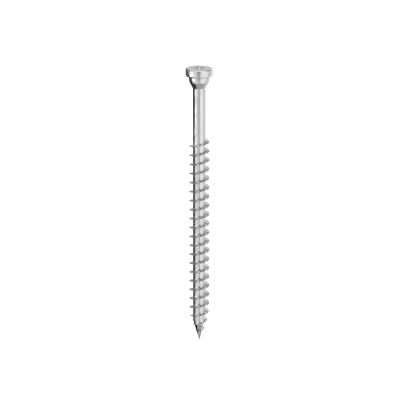

HBS PLATE A4
PAN HEAD SCREW FOR PLATES

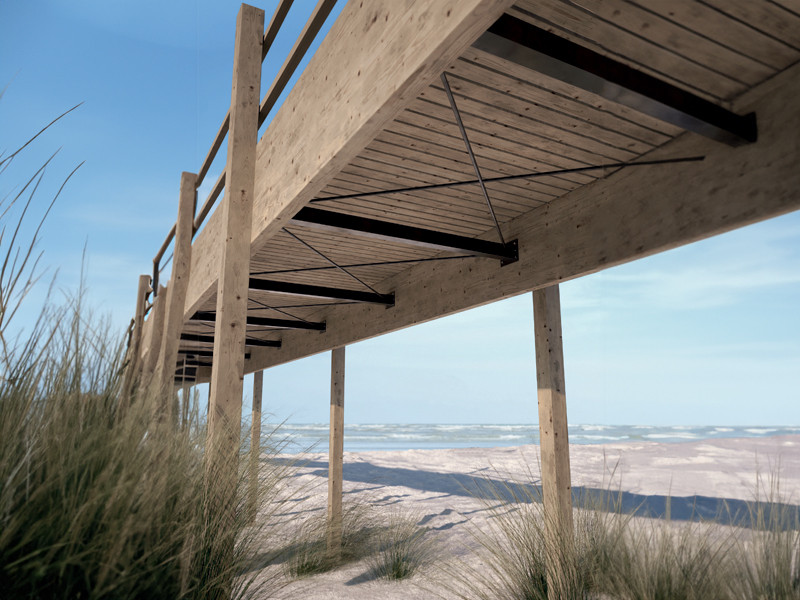

HBS PLATE version in A4 | AISI316 austenitic stainless steel for high corrosion resistance. Ideal for environments adjacent to the sea in corrosivity class C5 and for insertion on the most aggressive timbers in class T5.
The under-head shoulder achieves an interlocking effect with the circular hole in the plate, thus guaranteeing excellent static performance. The edgeless geometry of the head reduces stress concentration points and gives the screw strength.
Suitable for use in applications on agressive woods with an acidity (pH) level below 4 such as oak, Douglas fir and chestnut, and in wood moisture conditions above 20%.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Korean
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
-
ICC-ES Evaluation report USA
-
ETA Certificate
-
File CAD
-
File BIM.ifc
-
File BIM.rfa
-
Installation Instructions
HBS PLATE A4
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| HBSPL860A4 | - | 8 | 60 | 52 | 0.32 | 2 3/8'' | 2 1/16'' | TX40 | 100 |
| HBSPL880A4 | - | 8 | 80 | 55 | 0.32 | 3 1/8'' | 2 3/16'' | TX40 | 100 |
| HBSPL8100A4 | - | 8 | 100 | 75 | 0.32 | 4'' | 2 15/16'' | TX40 | 100 |
| HBSPL8120A4 | - | 8 | 120 | 95 | 0.32 | 4 3/4'' | 3 3/4'' | TX40 | 100 |
| HBSPL8140A4 | - | 8 | 140 | 110 | 0.32 | 5 1/2'' | 4 3/8'' | TX40 | 100 |
| HBSPL8160A4 | - | 8 | 160 | 130 | 0.32 | 6 1/4'' | 5 1/8'' | TX40 | 100 |
| HBSPL1080A4 | - | 10 | 80 | 60 | 0.4 | 3 1/8'' | 2 3/8'' | TX40 | 50 |
| HBSPL10100A4 | - | 10 | 100 | 75 | 0.4 | 4'' | 2 15/16'' | TX40 | 50 |
| HBSPL10120A4 | - | 10 | 120 | 95 | 0.4 | 4 3/4'' | 3 3/4'' | TX40 | 50 |
| HBSPL10140A4 | - | 10 | 140 | 110 | 0.4 | 5 1/2'' | 4 3/8'' | TX40 | 50 |
| HBSPL10160A4 | - | 10 | 160 | 130 | 0.4 | 6 1/4'' | 5 1/8'' | TX40 | 50 |
| HBSPL10180A4 | - | 10 | 180 | 150 | 0.4 | 7 1/8'' | 6'' | TX40 | 50 |
| HBSPL12100A4 | - | 12 | 100 | 75 | 0.48 | 4'' | 2 15/16'' | TX50 | 25 |
| HBSPL12120A4 | - | 12 | 120 | 90 | 0.48 | 4 3/4'' | 3 1/2'' | TX50 | 25 |
| HBSPL12140A4 | - | 12 | 140 | 110 | 0.48 | 5 1/2'' | 4 3/8'' | TX50 | 25 |
| HBSPL12160A4 | - | 12 | 160 | 120 | 0.48 | 6 1/4'' | 4 3/4'' | TX50 | 25 |
| HBSPL12180A4 | - | 12 | 180 | 140 | 0.48 | 7 1/8'' | 5 1/2'' | TX50 | 25 |
| HBSPL12200A4 | - | 12 | 200 | 160 | 0.48 | 8'' | 6 1/4'' | TX50 | 25 |
