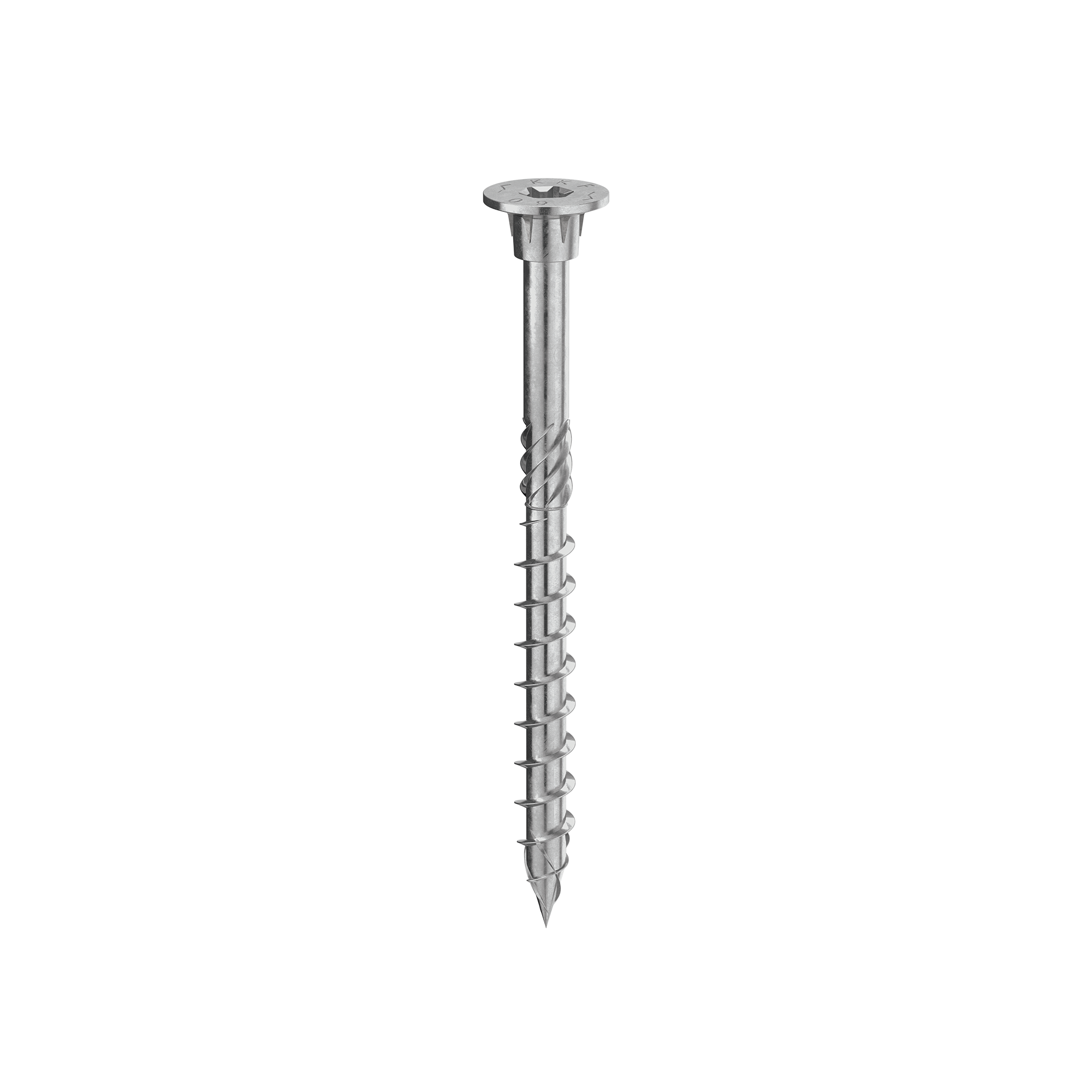

KKF AISI410

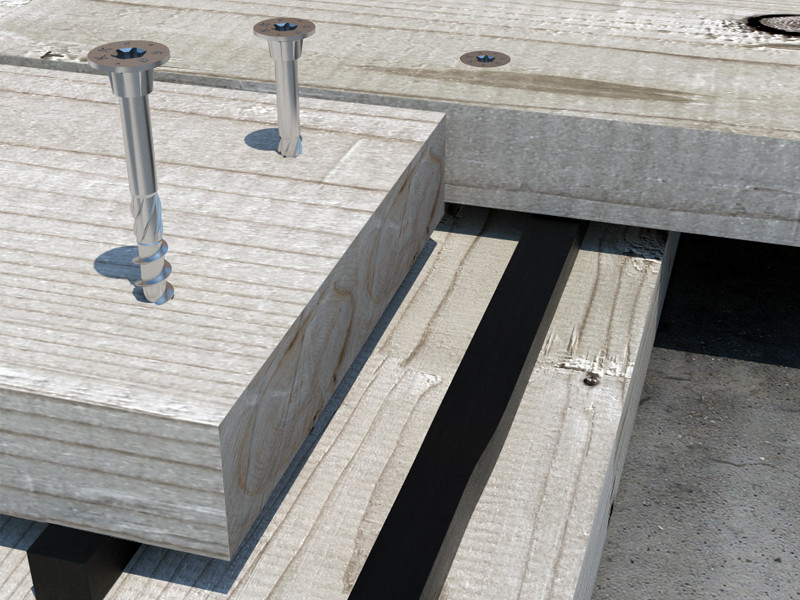

The KKF AISI410 wood screw in stainless steel is designed for fastening wooden or WPC boards in aggressive environments.
It has a pan head, which ensures excellent surface finish after installation.
Description
KKF AISI410 wood screws: durability and attractive finishing for your outdoor environments.
The flat under-head of the KKF AISI410 wood screws accompanies absorption of the shavings, preventing the wood from cracking during screwing, ensuring excellent surface finish.
The special asymmetric “umbrella” thread, with an increased length of 60%, ensures great grip.

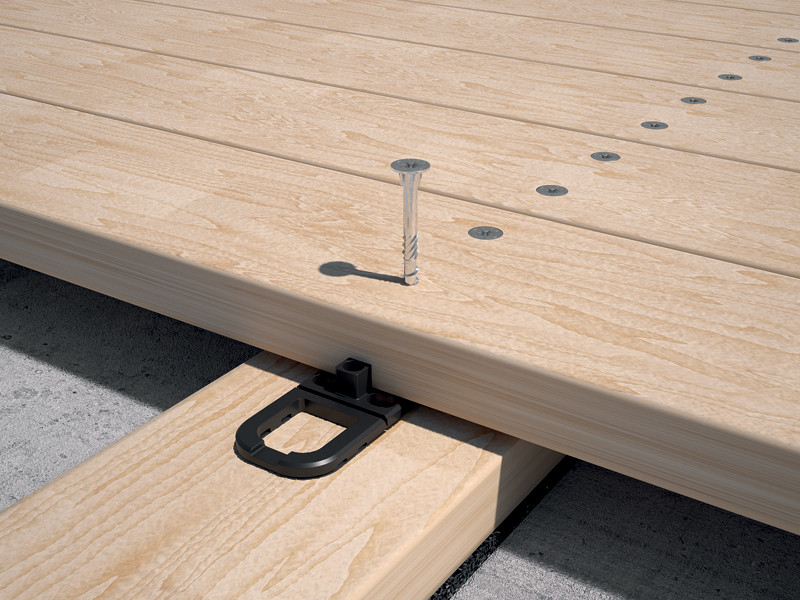

Fine thread for the utmost precision when tightening is complete. KKF AISI410 is also ideal for fastening standard Rothoblaas TERRALOCK PP clips in outdoor environments.
In AISI410 martensitic stainless steel with an excellent balance between mechanical resistance and corrosion resistance, it can be used without pre-drilling on wooden boards with a maximum density of 780 kg/m3 and with pre-drilling on WPC boards. Suitable for service classes 1, 2 and 3.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Korean
- Technical data sheets Latvia
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
-
Minimum Distances Guide
-
ICC-ES Evaluation report USA
-
ICC-ES Listing report CANADA
-
ETA Certificate
-
File CAD
KKF AISI410
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
DOP
|
|---|---|---|---|---|---|---|---|---|---|---|
| KKF430 | - | 4 | 30 | 18 | 0.16 | 1 3/16'' | 11/16'' | TX20 | 500 | |
| KKF435 | - | 4 | 35 | 20 | 0.16 | 1 3/8'' | 13/16'' | TX20 | 500 | |
| KKF440 | - | 4 | 40 | 24 | 0.16 | 1 9/16'' | 15/16'' | TX20 | 500 | |
| KKF445 | - | 4 | 45 | 30 | 0.16 | 1 3/4'' | 1 3/16'' | TX20 | 200 | |
| KKF450 | - | 4 | 50 | 30 | 0.16 | 1 15/16'' | 1 3/16'' | TX20 | 200 | |
| KKF4520 | - | 4.5 | 20 | 15 | 0.18 | 13/16'' | 9/16'' | TX20 | 200 | - |
| KKF4540 | - | 4.5 | 40 | 24 | 0.18 | 1 9/16'' | 15/16'' | TX20 | 200 | |
| KKF4545 | - | 4.5 | 45 | 30 | 0.18 | 1 3/4'' | 1 3/16'' | TX20 | 200 | |
| KKF4550 | - | 4.5 | 50 | 30 | 0.18 | 1 15/16'' | 1 3/16'' | TX20 | 200 | |
| KKF4560 | - | 4.5 | 60 | 35 | 0.18 | 2 3/8'' | 1 3/8'' | TX20 | 200 | |
| KKF4570 | - | 4.5 | 70 | 40 | 0.18 | 2 3/4'' | 1 9/16'' | TX20 | 200 | |
| KKF540 | - | 5 | 40 | 24 | 0.2 | 1 9/16'' | 15/16'' | TX25 | 200 | |
| KKF550 | - | 5 | 50 | 30 | 0.2 | 1 15/16'' | 1 3/16'' | TX25 | 200 | |
| KKF560 | - | 5 | 60 | 35 | 0.2 | 2 3/8'' | 1 3/8'' | TX25 | 200 | |
| KKF570 | - | 5 | 70 | 40 | 0.2 | 2 3/4'' | 1 9/16'' | TX25 | 100 | |
| KKF580 | - | 5 | 80 | 50 | 0.2 | 3 1/8'' | 1 15/16'' | TX25 | 100 | |
| KKF590 | - | 5 | 90 | 55 | 0.2 | 3 1/2'' | 2 3/16'' | TX25 | 100 | |
| KKF5100 | - | 5 | 100 | 60 | 0.2 | 4'' | 2 3/8'' | TX25 | 100 | |
| KKF680 | - | 6 | 80 | 50 | 0.24 | 3 1/8'' | 1 15/16'' | TX30 | 100 | |
| KKF6100 | - | 6 | 100 | 60 | 0.24 | 4'' | 2 3/8'' | TX30 | 100 | |
| KKF6120 | - | 6 | 120 | 75 | 0.24 | 4 3/4'' | 2 15/16'' | TX30 | 100 |
