WOOD-BRICKWORK SPACER SCREW
DRT

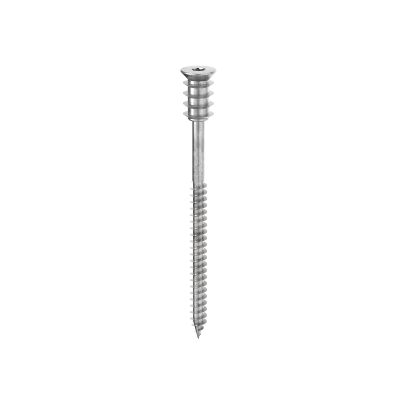

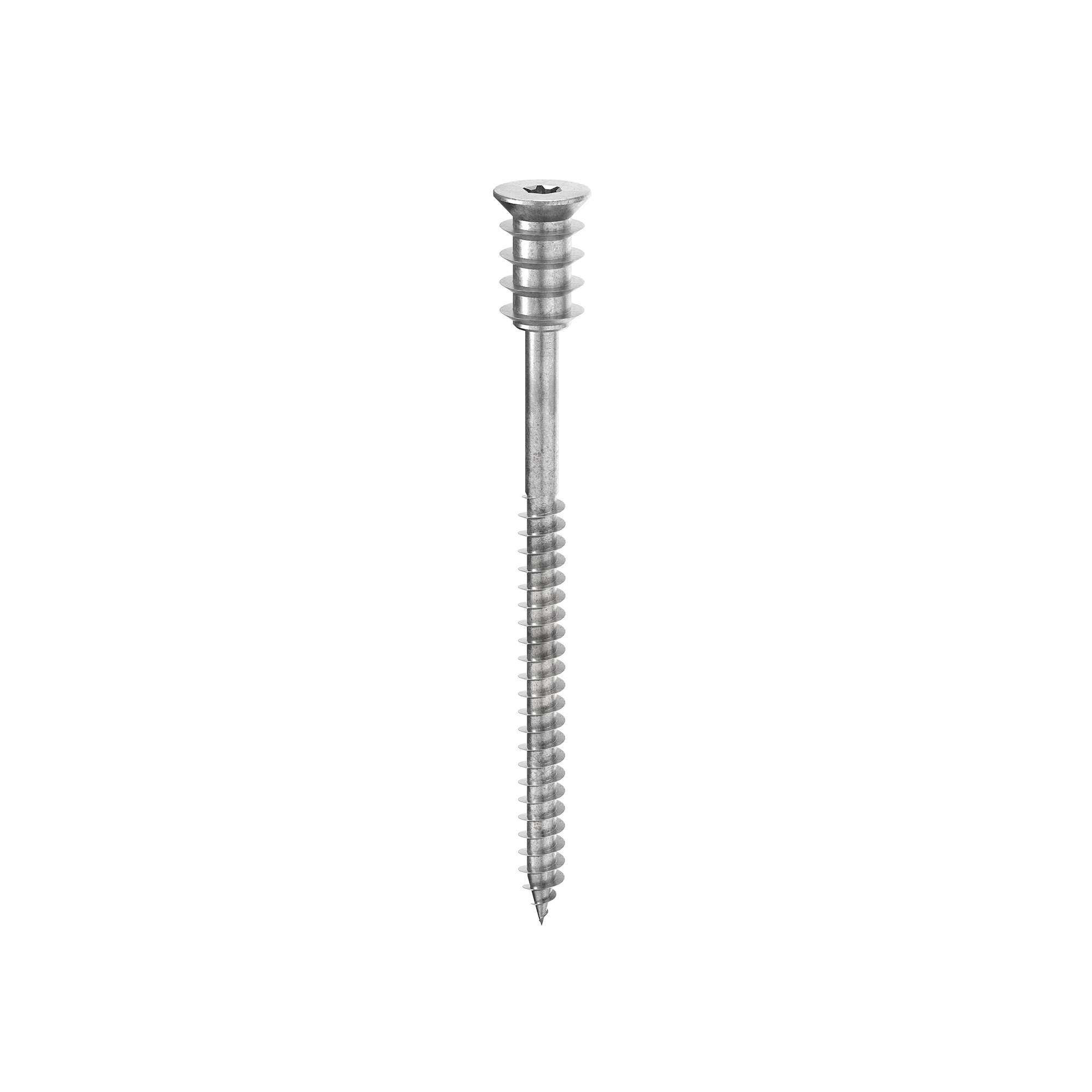

DRT is the wood screw with differentiated double thread and under-head geometry specially designed to generate and regulate a space between the fastenable thicknesses.
Designed to allow fastening to brickwork through the addition of a plastic screw anchor.

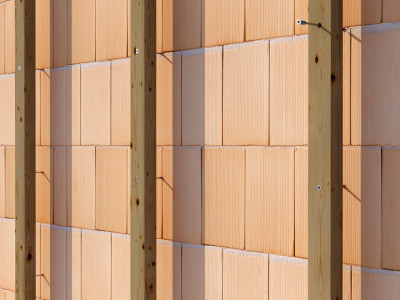

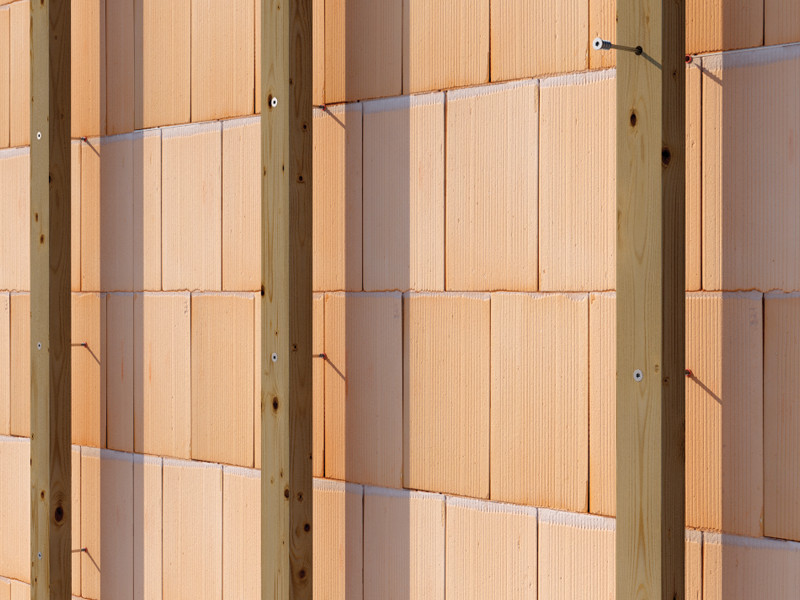

With DRT, it is easy to regulate the position of wooden elements on brick supports.

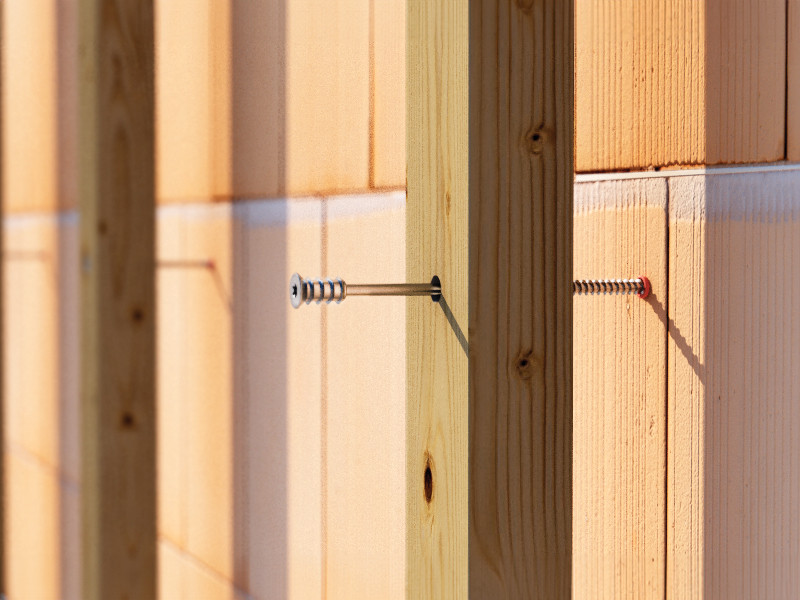

The differentiated double thread of the DRT screw is ideal for adjusting the position of wood elements on brickwork supports (using a plastic screw anchor) and to create the proper verticality.
Also ideal for levelling panels on walls, paving and false ceilings.
In carbon steel with bright zinc plated.
Documents
Technical data sheets | |
---|---|
Technical data sheets USA 🇺🇸 |
DRT
CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
---|---|---|---|---|---|---|---|---|---|
DRT680 | - | 6 | 80 | 50 | 0.24 | 3 1/8'' | 1 15/16'' | TX30 | 100 |
DRT6100 | - | 6 | 100 | 60 | 0.24 | 4'' | 2 3/8'' | TX30 | 100 |
DRT6120 | - | 6 | 120 | 70 | 0.24 | 4 3/4'' | 2 3/4'' | TX30 | 100 |
