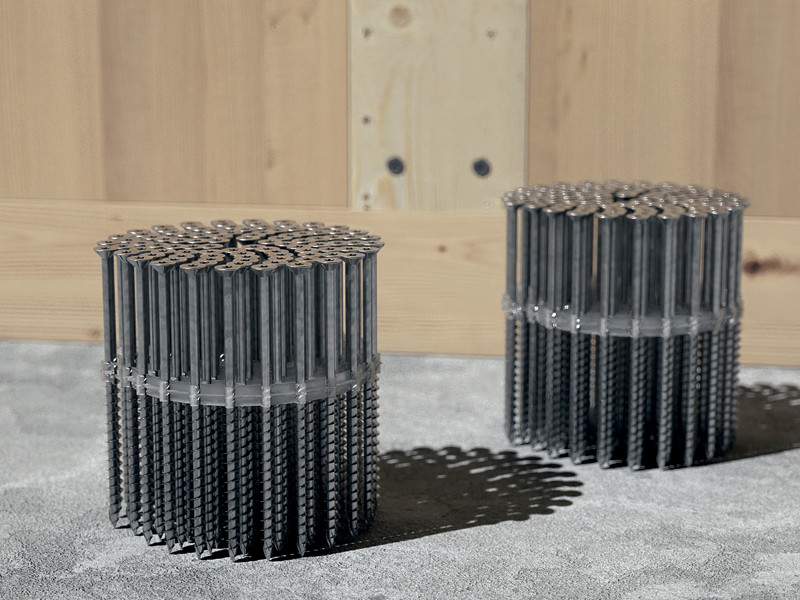

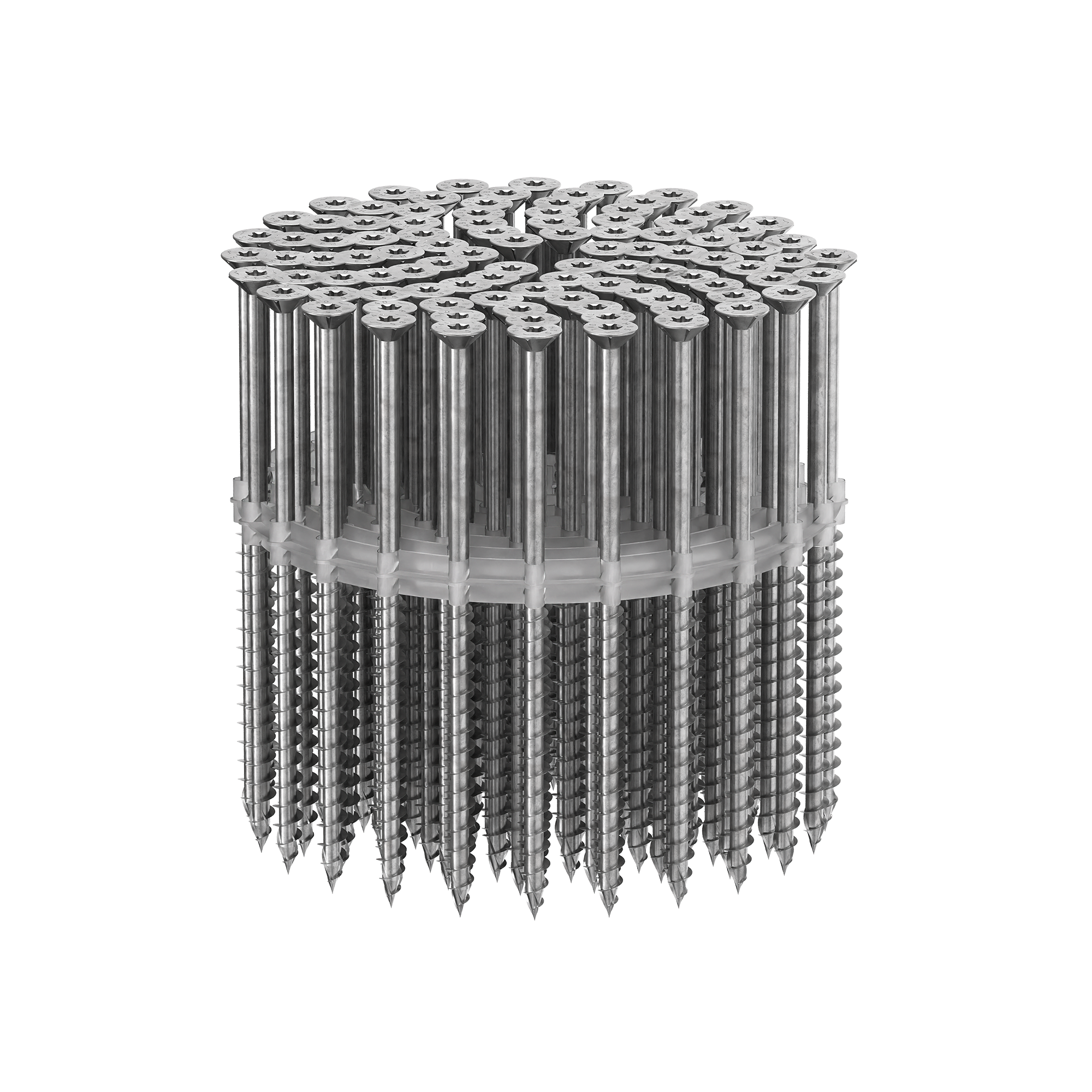

HBS COIL
Our celebrated HBS bound wood screws, for practical and precise installation.
Fast and safe execution thanks to the special binding. The excellent mechanical and geometric performance of HBS wood screws is ideal for use in series in the bound version.
Description
HBS COIL wood screws: the HBS quality, as always, in the new bound format, for practical and precise processing.
Wood screws available also in a diameter of 6.0 mm, perfect for quick wall-to-wall fastening in CLT structures.
Dedicated accessories are available for the 6 mm diameter: automatic loader HH3372 in combination with special plate HZB6PLATE and bit TX30.
The excellent mechanical and geometric performance of the HBS wood screw is ideal for fast, serial assembly in the bound version.
In carbon steel with bright zinc plated, they are excellent for use with wood-based panels, solid timber, glulam, CLT, LVL and with high-density woods. Service classes 1 and 2.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Korean
- Technical data sheets Latvia
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
-
ETA Certificate
HBS COIL
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
DOP
|
|---|---|---|---|---|---|---|---|---|---|---|
| HH10600459 | - | 4 | 25 | 18 | 0.16 | 1'' | 11/16'' | TX20 | 1200 | - |
| HZB440 | - | 4 | 40 | 24 | 0.16 | 1 9/16'' | 15/16'' | TX20 | 2000 | |
| HZB450 | - | 4 | 50 | 30 | 0.16 | 1 15/16'' | 1 3/16'' | TX20 | 1500 | |
| HZB4550 | - | 4.5 | 50 | 30 | 0.18 | 1 15/16'' | 1 3/16'' | TX20 | 1500 | |
| HZB560 | - | 5 | 60 | 30 | 0.2 | 2 3/8'' | 1 3/16'' | TX25 | 1250 | |
| HZB570 | - | 5 | 70 | 35 | 0.2 | 2 3/4'' | 1 3/8'' | TX25 | 625 | |
| HZB580 | - | 5 | 80 | 40 | 0.2 | 3 1/8'' | 1 9/16'' | TX25 | 625 | |
| HZB670 | - | 6 | 70 | 40 | 0.24 | 2 3/4'' | 1 9/16'' | TX30 | 625 | |
| HZB680 | - | 6 | 80 | 40 | 0.24 | 3 1/8'' | 1 9/16'' | TX30 | 625 |
