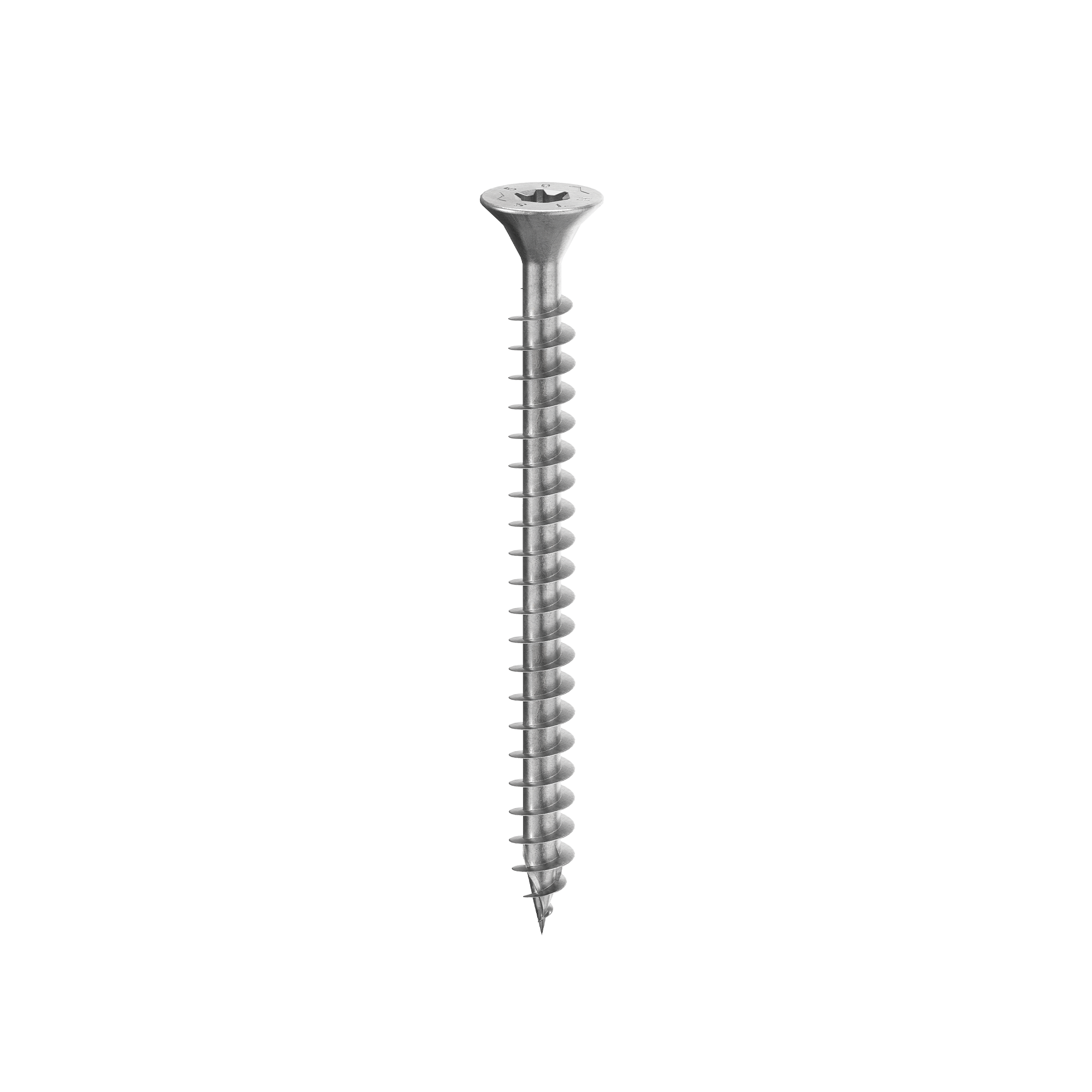

FULLY THREADED COUNTERSUNK SCREW
HTS

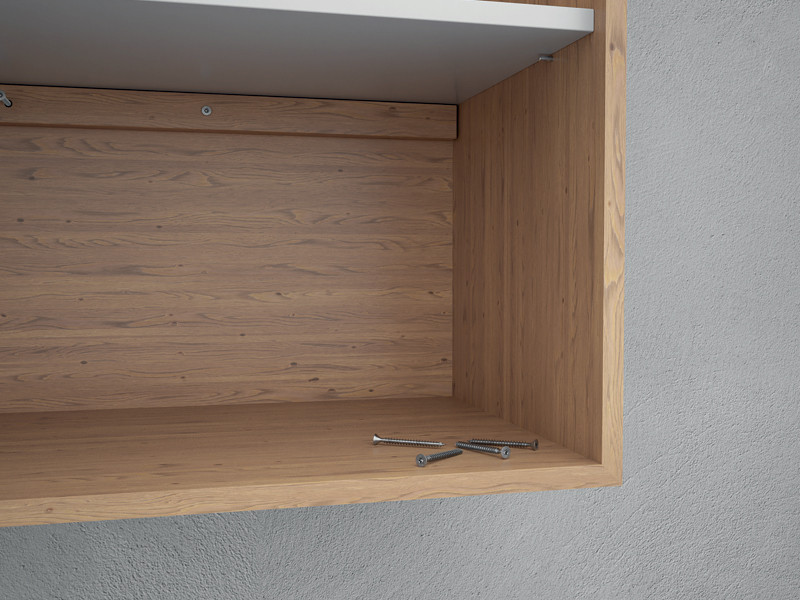

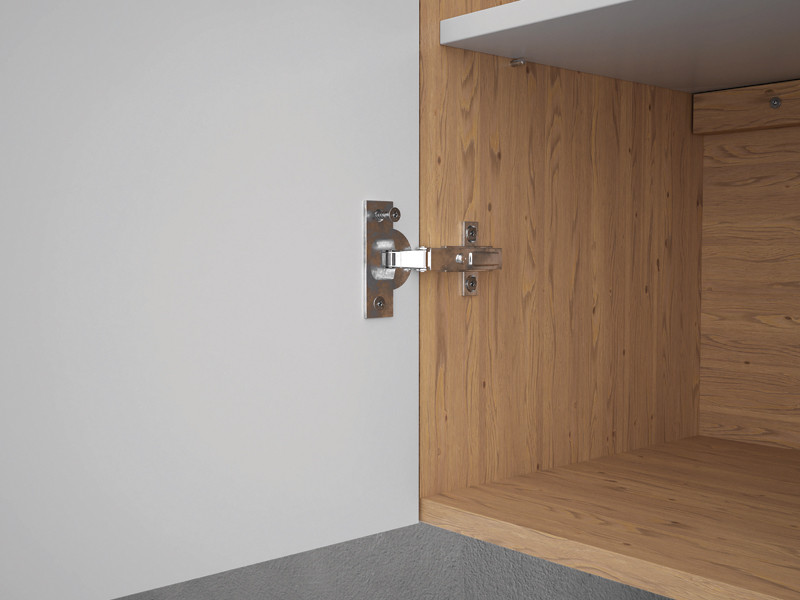

HTS is the wood screw made for fibre board and MDF panels. The smooth part under the head and the total thread equal to 80% of the length of the screw guarantees maximum coupling efficiency with wood-based panels.

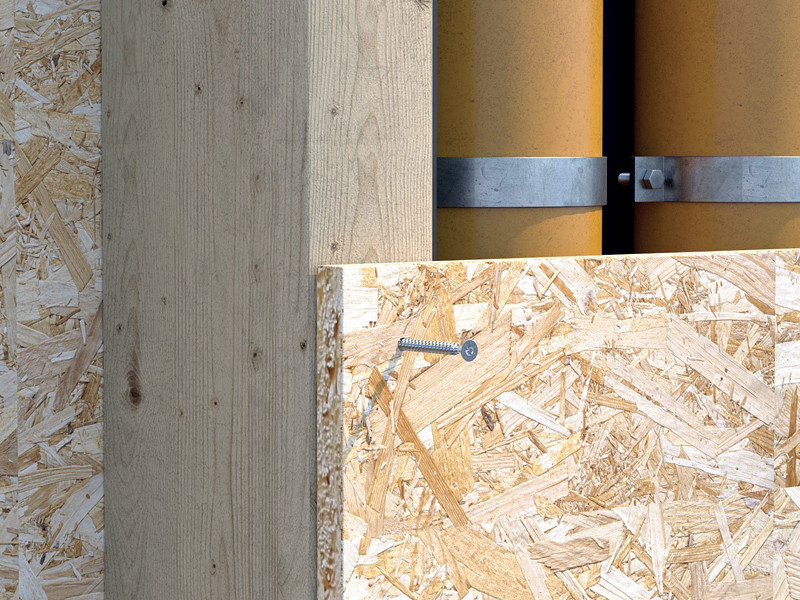

HTS, the fibre board screw that ensures maximum stability for wood or MDF panel fastening HTS stands out among screws for glued laminated timber and wood based-panels.
A fine thread guarantees the utmost screwing precision, even on MDF panels. In carbon steel with bright zinc plated, it is ideal for applications in service classes 1 and 2.
It is hexavalent chromium free and complies with the strictest standards governing chemical substances (SVHC).
Features
| FOCUS | fibre board screw |
|---|---|
| HEAD | countersunk without under-head ribs |
| DIAMETER | from 3,0 mm to 5,0 mm |
| LENGTH | from 12 mm to 80 mm |
Documents
| Technical data sheets | |
|---|---|
| Technical data sheets USA 🇺🇸 | |
| Declaration of performance (DOP) | Download |
| File CAD |
HTS
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| HTS312 | - | 3 | 12 | 6 | 0.12 | 1/2'' | 1/4'' | TX10 | 1000 |
| HTS316 | - | 3 | 16 | 10 | 0.12 | 5/8'' | 3/8'' | TX10 | 1000 |
| HTS320 | - | 3 | 20 | 14 | 0.12 | 13/16'' | 9/16'' | TX10 | 1000 |
| HTS325 | - | 3 | 25 | 19 | 0.12 | 1'' | 3/4'' | TX10 | 1000 |
| HTS330 | - | 3 | 30 | 24 | 0.12 | 1 3/16'' | 15/16'' | TX10 | 1000 |
| HTS3516 | - | 3.5 | 16 | 10 | 0.14 | 5/8'' | 3/8'' | TX15 | 1000 |
| HTS3520 | - | 3.5 | 20 | 14 | 0.14 | 13/16'' | 9/16'' | TX15 | 1000 |
| HTS3525 | - | 3.5 | 25 | 19 | 0.14 | 1'' | 3/4'' | TX15 | 1000 |
| HTS3530 | - | 3.5 | 30 | 24 | 0.14 | 1 3/16'' | 15/16'' | TX15 | 500 |
| HTS3535 | - | 3.5 | 35 | 27 | 0.14 | 1 3/8'' | 1 1/16'' | TX15 | 500 |
| HTS3540 | - | 3.5 | 40 | 32 | 0.14 | 1 9/16'' | 1 1/4'' | TX15 | 500 |
| HTS3550 | - | 3.5 | 50 | 42 | 0.14 | 1 15/16'' | 1 5/8'' | TX15 | 400 |
| HTS420 | - | 4 | 20 | 14 | 0.16 | 13/16'' | 9/16'' | TX20 | 1000 |
| HTS425 | - | 4 | 25 | 19 | 0.16 | 1'' | 3/4'' | TX20 | 1000 |
| HTS430 | - | 4 | 30 | 24 | 0.16 | 1 3/16'' | 15/16'' | TX20 | 500 |
| HTS435 | - | 4 | 35 | 27 | 0.16 | 1 3/8'' | 1 1/16'' | TX20 | 500 |
| HTS440 | - | 4 | 40 | 32 | 0.16 | 1 9/16'' | 1 1/4'' | TX20 | 500 |
| HTS445 | - | 4 | 45 | 37 | 0.16 | 1 3/4'' | 1 7/16'' | TX20 | 400 |
| HTS450 | - | 4 | 50 | 42 | 0.16 | 1 15/16'' | 1 5/8'' | TX20 | 400 |
| HTS4530 | - | 4.5 | 30 | 24 | 0.18 | 1 3/16'' | 15/16'' | TX20 | 500 |
| HTS4535 | - | 4.5 | 35 | 27 | 0.18 | 1 3/8'' | 1 1/16'' | TX20 | 500 |
| HTS4540 | - | 4.5 | 40 | 32 | 0.18 | 1 9/16'' | 1 1/4'' | TX20 | 400 |
| HTS4545 | - | 4.5 | 45 | 37 | 0.18 | 1 3/4'' | 1 7/16'' | TX20 | 400 |
| HTS4550 | - | 4.5 | 50 | 42 | 0.18 | 1 15/16'' | 1 5/8'' | TX20 | 200 |
| HTS530 | - | 5 | 30 | 24 | 0.2 | 1 3/16'' | 15/16'' | TX25 | 500 |
| HTS535 | - | 5 | 35 | 27 | 0.2 | 1 3/8'' | 1 1/16'' | TX25 | 400 |
| HTS540 | - | 5 | 40 | 32 | 0.2 | 1 9/16'' | 1 1/4'' | TX25 | 200 |
| HTS545 | - | 5 | 45 | 37 | 0.2 | 1 3/4'' | 1 7/16'' | TX25 | 200 |
| HTS550 | - | 5 | 50 | 42 | 0.2 | 1 15/16'' | 1 5/8'' | TX25 | 200 |
| HTS560 | - | 5 | 60 | 50 | 0.2 | 2 3/8'' | 1 15/16'' | TX25 | 200 |
| HTS570 | - | 5 | 70 | 60 | 0.2 | 2 3/4'' | 2 3/8'' | TX25 | 100 |
| HTS580 | - | 5 | 80 | 70 | 0.2 | 3 1/8'' | 2 3/4'' | TX25 | 100 |
