LBS EVO
ROUND HEAD SCREW FOR PLATES

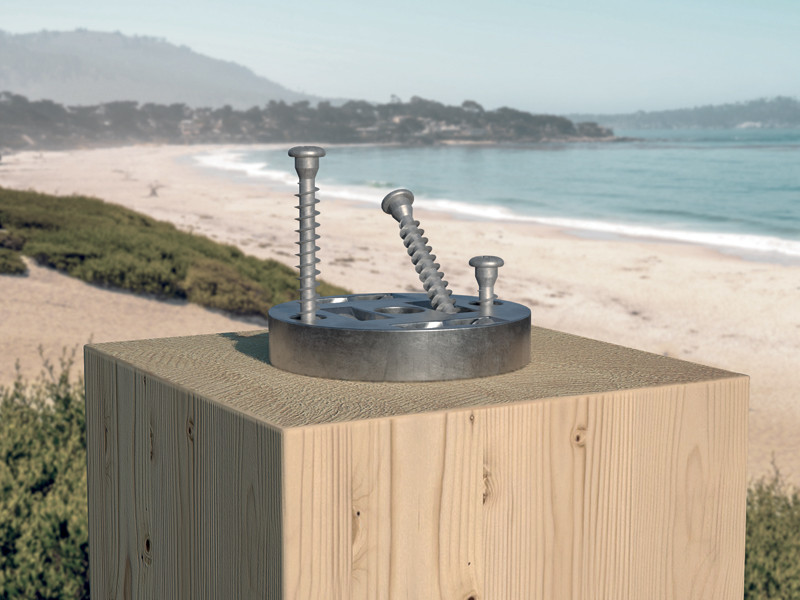

LBS EVO version designed for steel-timber joints for outdoor use. Achieves an interlocking effect with the hole in the plate, thus guaranteeing excellent static performance.
The atmospheric corrosion strength class (C4) of the C4 EVO coating was tested by the Research Institutes of Sweden - RISE. Coating suitable for use in applications on wood with an acidity level (pH) greater than 4, such as spruce, larch and pine (see page 314).

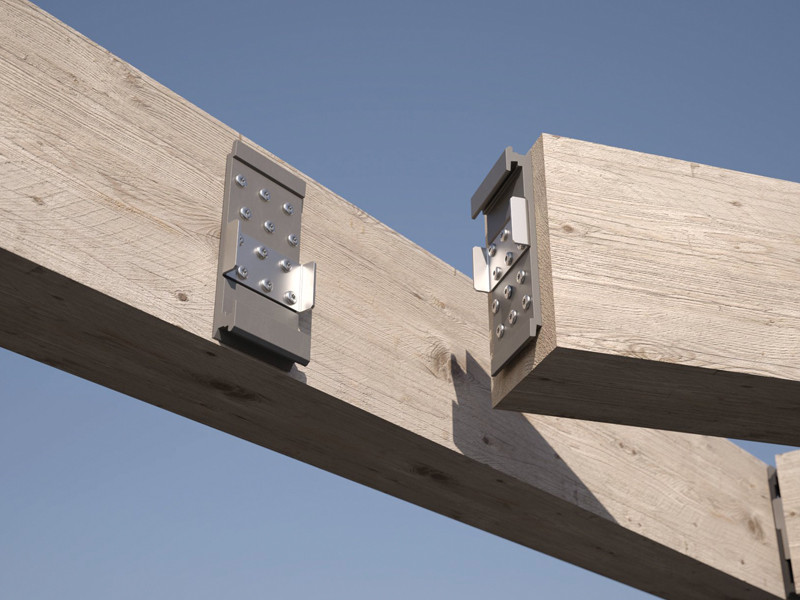

These can be calculated according to Eurocode 5 under thick steel-timber plate connections, even with thin metal elements. Excellent shear strength values.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets English Canada CSA-086
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets French Canada CSA-086
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Korean
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Spanish
- Technical data sheets Swedish
-
ICC-ES Evaluation report USA
-
ICC-ES Listing report CANADA
-
ETA Certificate
-
File CAD
-
File BIM.ifc
-
File BIM.rfa

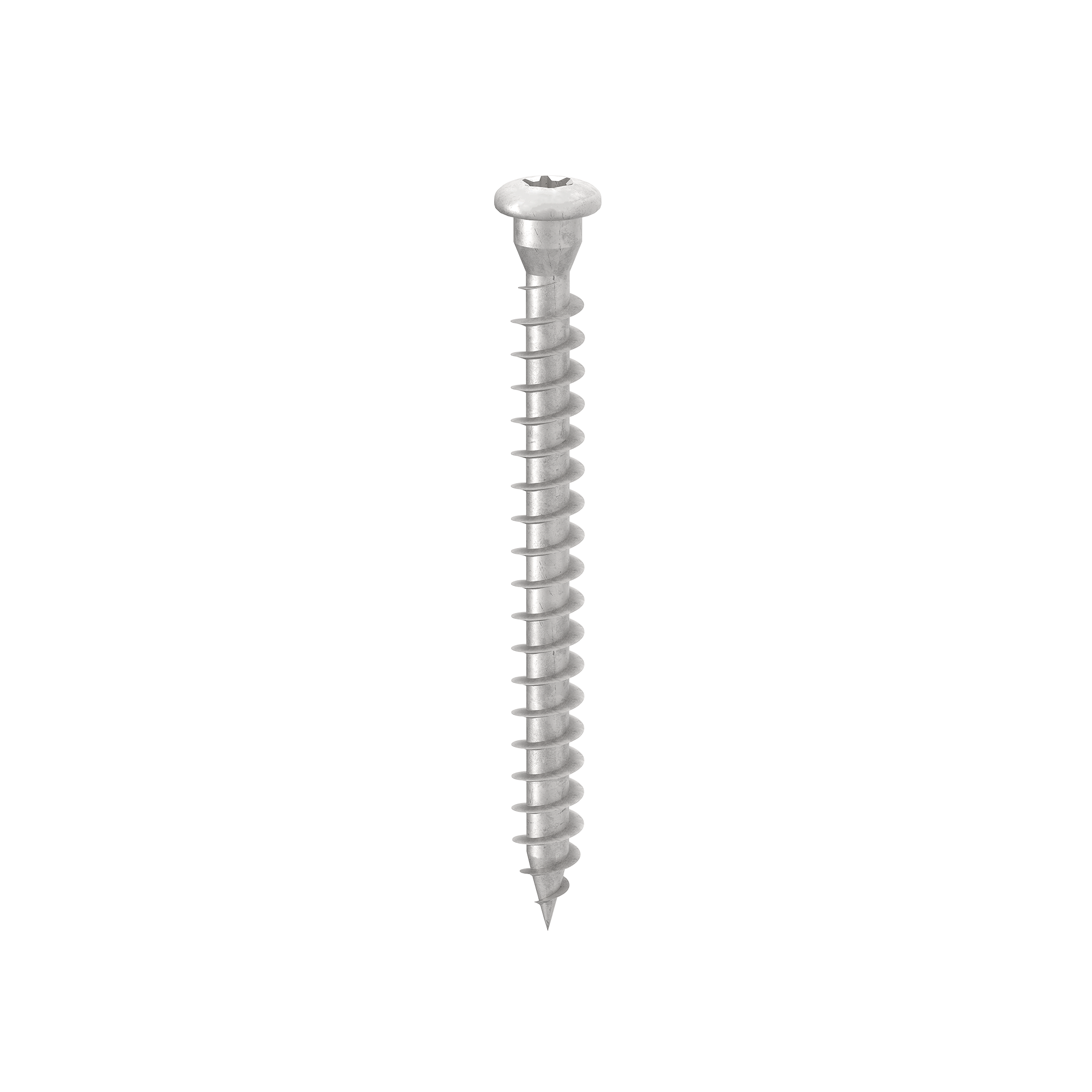

LBS EVO
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
DOP
|
|---|---|---|---|---|---|---|---|---|---|---|
| LBSEVO540 | - | 5 | 40 | 36 | 0.2 | 1 9/16'' | 1 7/16'' | TX20 | 500 | |
| LBSEVO550 | - | 5 | 50 | 46 | 0.2 | 1 15/16'' | 1 13/16'' | TX20 | 200 | |
| LBSEVO560 | - | 5 | 60 | 56 | 0.2 | 2 3/8'' | 2 3/16'' | TX20 | 200 | |
| LBSEVO570 | - | 5 | 70 | 66 | 0.2 | 2 3/4'' | 2 5/8'' | TX20 | 200 | |
| LBSEVO780 | - | 7 | 80 | 75 | 0.28 | 3 1/8'' | 2 15/16'' | TX30 | 100 | |
| LBSEVO7100 | - | 7 | 100 | 95 | 0.28 | 4'' | 3 3/4'' | TX30 | 100 |
