SMALL HEAD SCREW
SHS AISI410

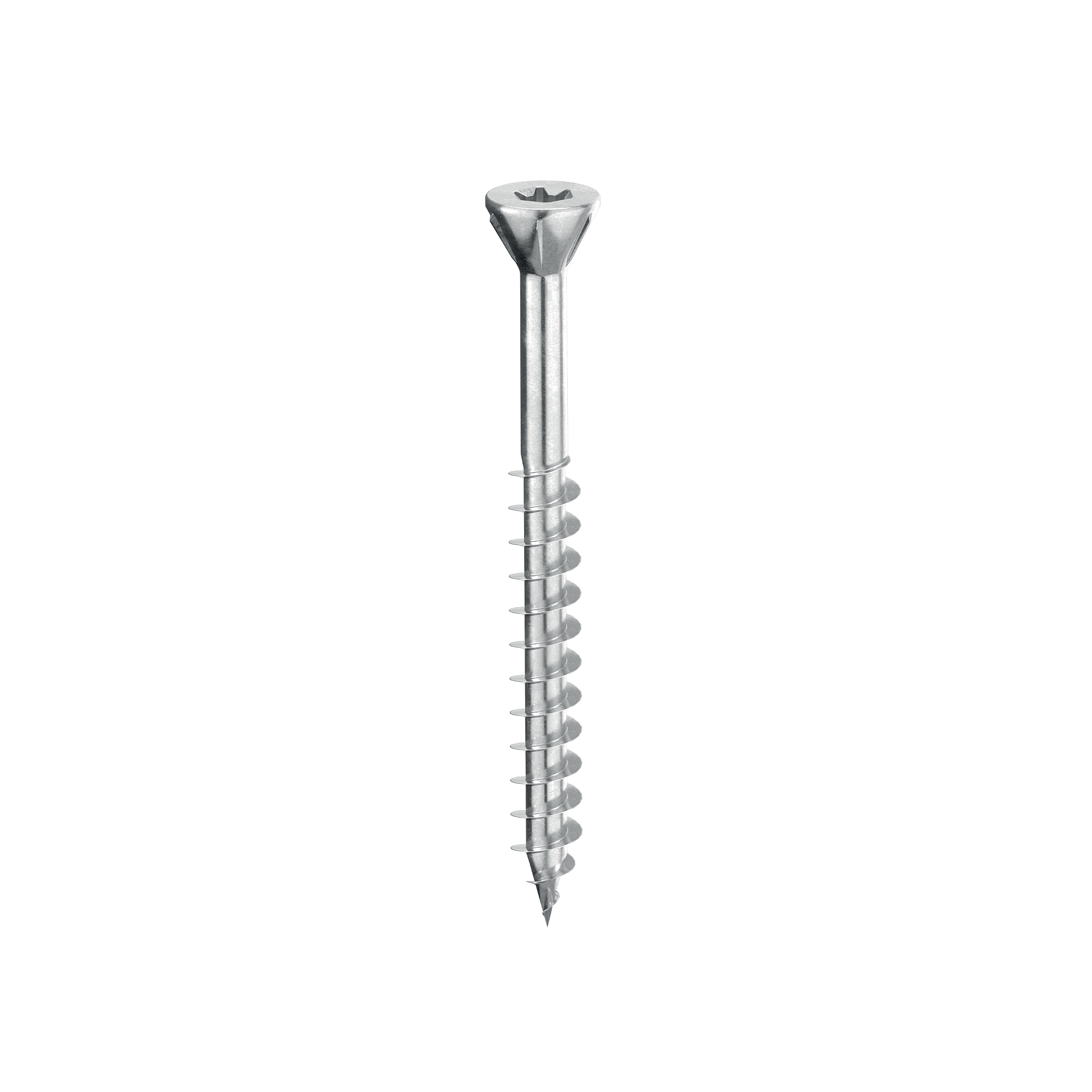

SHS AISI410 is the small-headed wood screw designed for use on low-profile wood elements.
The properties of AISI410 martensitic stainless steel make it ideal for outdoor applications.
SHS AISI410: among wood screws, the ideal fastener for small outdoor structures.
The small head and high-performing thread guarantees perfect insertion of the screw in wooden elements of small thicknesses.
The excellent balance between mechanical resistance and corrosion resistance make it the perfect fastener among wood screws for application in aggressive environments, such as outdoors.
Documents
Technical data sheets
|
|
|---|---|
Minimum Distances Guide
|
|
ICC-ES Evaluation report USA
|
|
ICC-ES Listing report CANADA
|
|
ETA Certificate
|
|
| Declaration of performance (DOP) | Download |
File CAD
|
SHS XS AISI410 - Ø3.5
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| SHS3540AS | - | 3.5 | 40 | 26 | 0.14 | 1 9/16'' | 1 1/32'' | TX10 | 500 |
| SHS3550AS | - | 3.5 | 50 | 34 | 0.14 | 1 15/16'' | 1 5/16'' | TX10 | 500 |
| SHS3560AS | - | 3.5 | 60 | 40 | 0.14 | 2 3/8'' | 1 9/16'' | TX10 | 500 |
SHS XS AISI410 - Ø4,5 - Ø5
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| SHS4550AS | - | 4.5 | 50 | 30 | 0.18 | 1 15/16'' | 1 3/16'' | TX20 | 200 |
| SHS4560AS | - | 4.5 | 60 | 35 | 0.18 | 2 3/8'' | 1 3/8'' | TX20 | 200 |
| SHS4570AS | - | 4.5 | 70 | 40 | 0.18 | 2 3/4'' | 1 9/16'' | TX20 | 200 |
| SHS550AS | - | 5 | 50 | 24 | 0.2 | 1 15/16'' | 15/16'' | TX25 | 200 |
| SHS560AS | - | 5 | 60 | 30 | 0.2 | 2 3/8'' | 1 3/16'' | TX25 | 200 |
| SHS570AS | - | 5 | 70 | 35 | 0.2 | 2 3/4'' | 1 3/8'' | TX25 | 100 |
| SHS580AS | - | 5 | 80 | 40 | 0.2 | 3 1/8'' | 1 9/16'' | TX25 | 100 |
| SHS5100AS | - | 5 | 100 | 50 | 0.2 | 4'' | 1 15/16'' | TX25 | 100 |
SHS AISI410 - Ø6 - Ø8
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| SHS680AS | - | 6 | 80 | 40 | 0.24 | 3 1/8'' | 1 9/16'' | TX30 | 100 |
| SHS6100AS | - | 6 | 100 | 50 | 0.24 | 4'' | 1 15/16'' | TX30 | 100 |
| SHS6120AS | - | 6 | 120 | 60 | 0.24 | 4 3/4'' | 2 3/8'' | TX30 | 100 |
| SHS6140AS | - | 6 | 140 | 75 | 0.24 | 5 1/2'' | 2 15/16'' | TX30 | 100 |
| SHS6160AS | - | 6 | 160 | 75 | 0.24 | 6 1/4'' | 2 15/16'' | TX30 | 100 |
| SHS6180AS | - | 6 | 180 | 75 | 0.24 | 7 1/8'' | 2 15/16'' | TX30 | 100 |
| SHS6200AS | - | 6 | 200 | 75 | 0.24 | 8'' | 2 15/16'' | TX30 | 100 |
| SHS8120AS | - | 8 | 120 | 60 | 0.32 | 4 3/4'' | 2 3/8'' | TX40 | 100 |
| SHS8140AS | - | 8 | 140 | 60 | 0.32 | 5 1/2'' | 2 3/8'' | TX40 | 100 |
| SHS8160AS | - | 8 | 160 | 80 | 0.32 | 6 1/4'' | 3 1/8'' | TX40 | 100 |
| SHS8180AS | - | 8 | 180 | 80 | 0.32 | 7 1/8'' | 3 1/8'' | TX40 | 100 |
| SHS8200AS | - | 8 | 200 | 80 | 0.32 | 8'' | 3 1/8'' | TX40 | 100 |
| SHS8220AS | - | 8 | 220 | 80 | 0.32 | 8 5/8'' | 3 1/8'' | TX40 | 100 |
| SHS8240AS | - | 8 | 240 | 80 | 0.32 | 9 1/2'' | 3 1/8'' | TX40 | 100 |
| SHS8260AS | - | 8 | 260 | 80 | 0.32 | 10 1/4'' | 3 1/8'' | TX40 | 100 |
| SHS8280AS | - | 8 | 280 | 80 | 0.32 | 11'' | 3 1/8'' | TX40 | 100 |

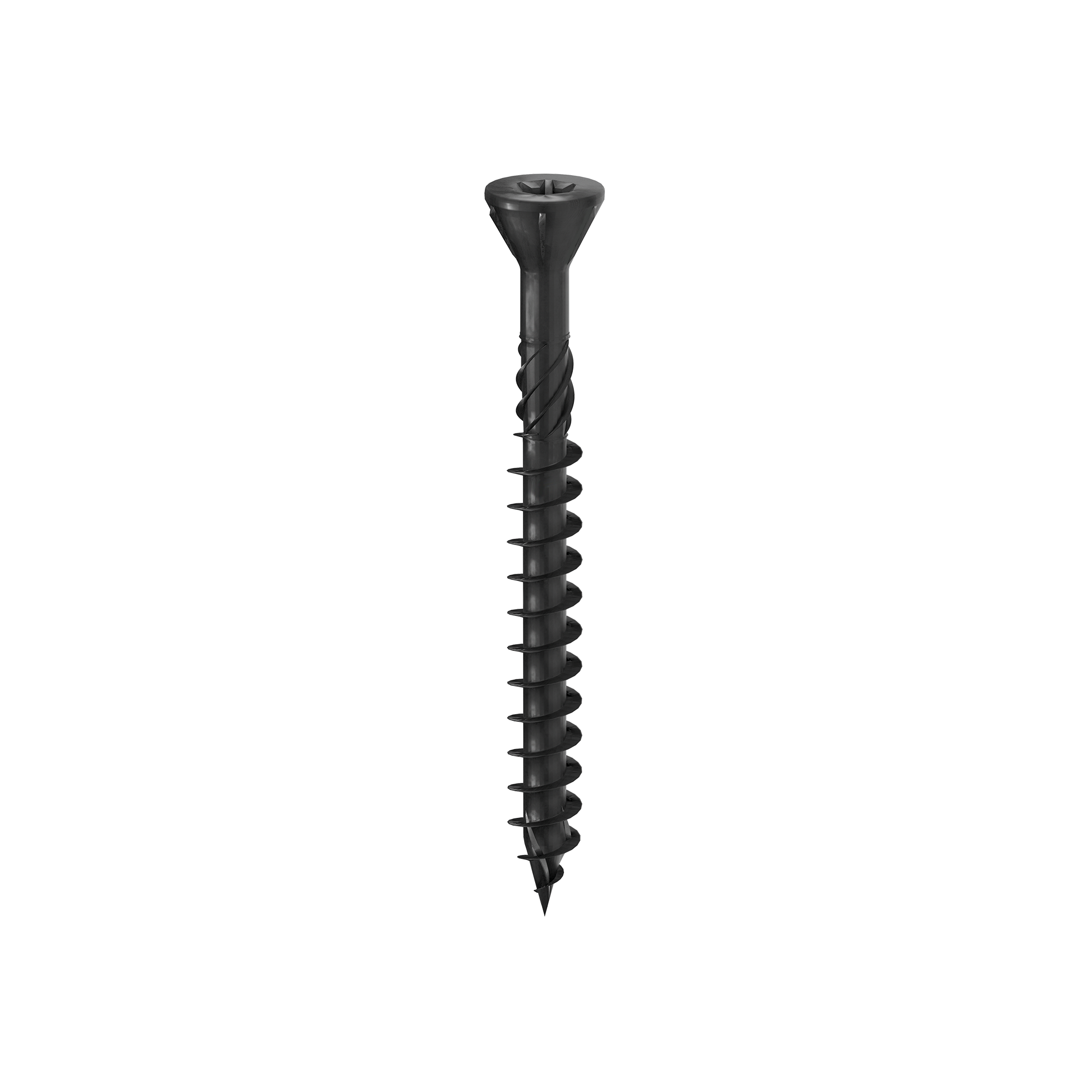

SHS N AISI410
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| SHS4550ASN | - | 4.5 | 50 | 30 | 0.18 | 1 15/16'' | 1 3/16'' | TX20 | 100 |
| SHS4560ASN | - | 4.5 | 60 | 35 | 0.18 | 2 3/8'' | 1 3/8'' | TX20 | 100 |
| SHS550ASN | - | 5 | 50 | 24 | 0.2 | 1 15/16'' | 15/16'' | TX25 | 100 |
| SHS560ASN | - | 5 | 60 | 30 | 0.2 | 2 3/8'' | 1 3/16'' | TX25 | 200 |
