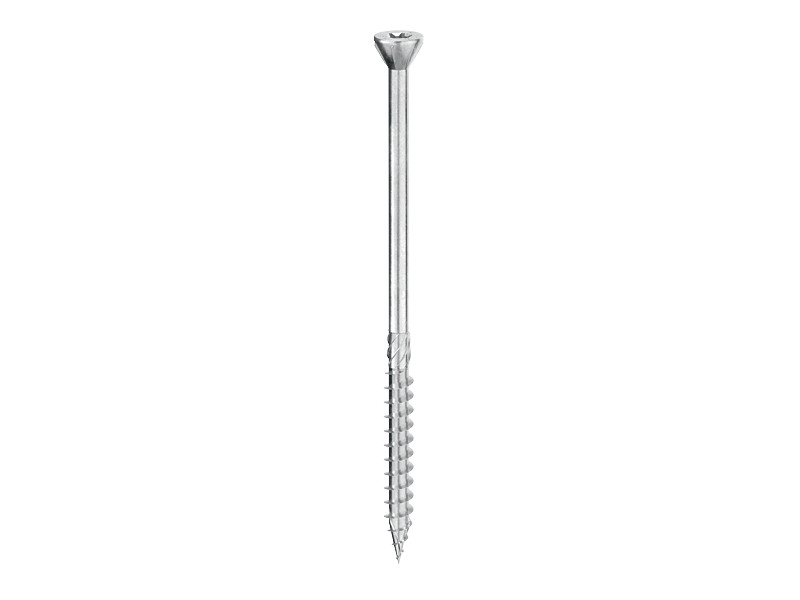

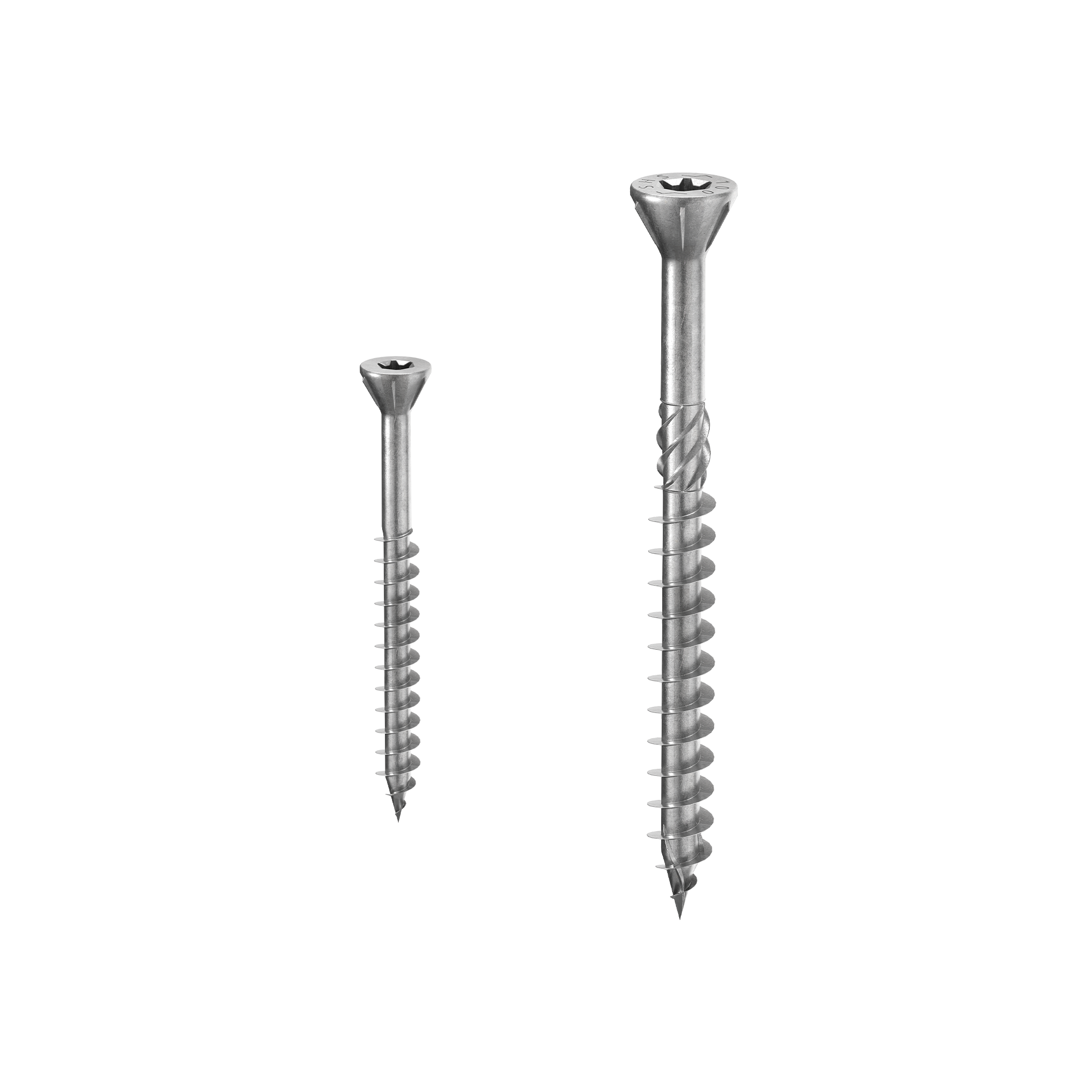

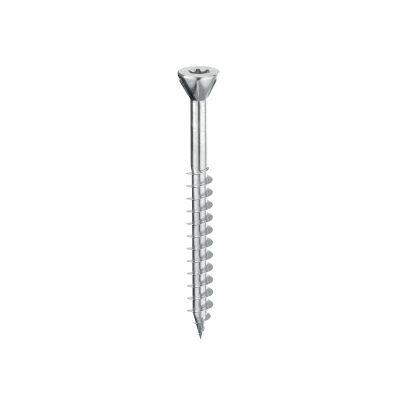

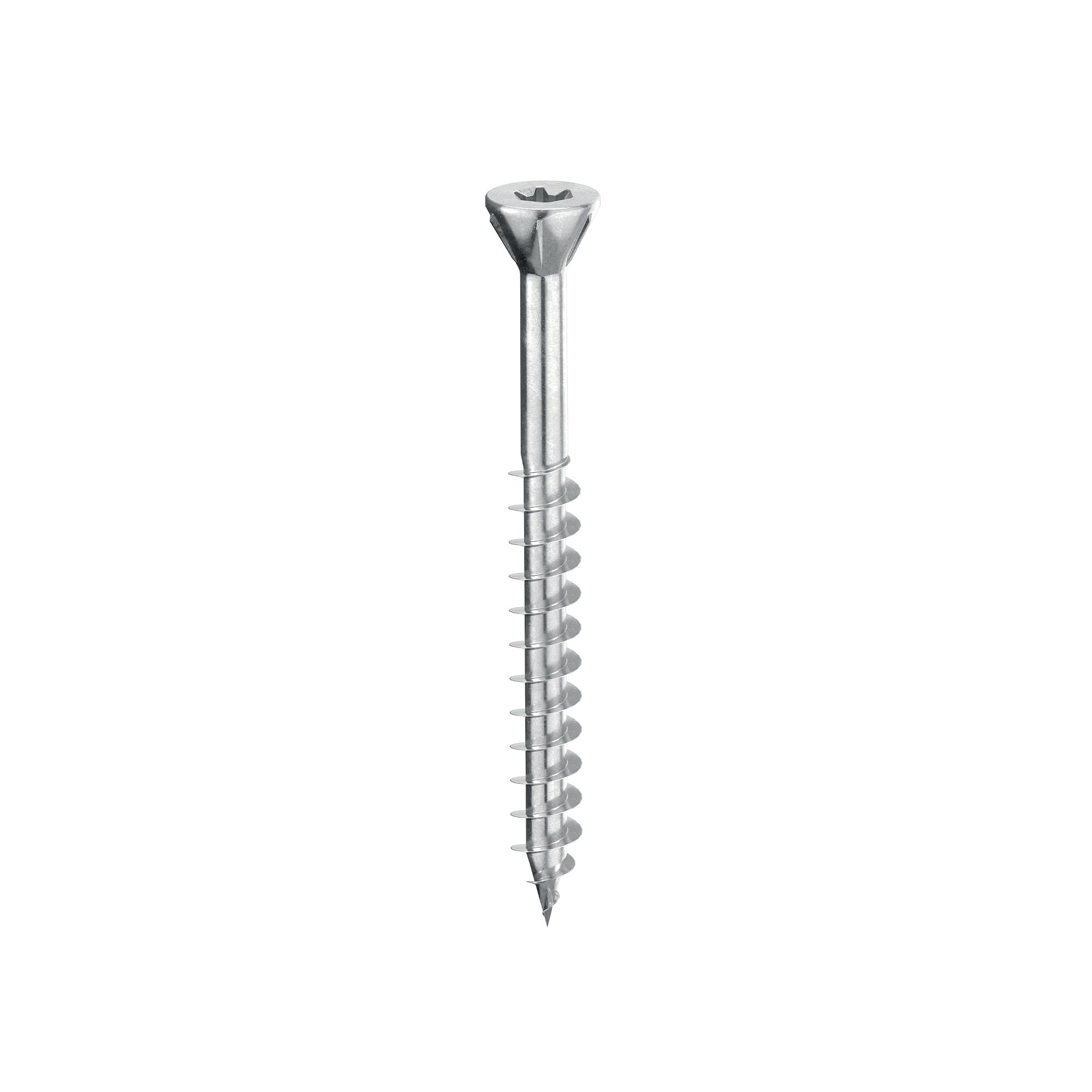

SHS AISI410
SMALL HEAD SCREW
SHS AISI410 is the small-headed wood screw designed for use on low-profile wood elements.
The properties of AISI410 martensitic stainless steel make it ideal for outdoor applications.
Description
SHS AISI410: among wood screws, the ideal fastener for small outdoor structures.
The small head and high-performing thread guarantees perfect insertion of the screw in wooden elements of small thicknesses.
The excellent balance between mechanical resistance and corrosion resistance make it the perfect fastener among wood screws for application in aggressive environments, such as outdoors.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Korean
- Technical data sheets Latvia
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
-
Minimum Distances Guide
-
ICC-ES Evaluation report USA
-
ICC-ES Listing report CANADA
-
ETA Certificate
-
File CAD
SHS XS AISI410 - Ø3.5
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| SHS3540AS | - | 3.5 | 40 | 26 | 0.14 | 1 9/16'' | 1 1/32'' | TX10 | 500 |
| SHS3550AS | - | 3.5 | 50 | 34 | 0.14 | 1 15/16'' | 1 5/16'' | TX10 | 500 |
| SHS3560AS | - | 3.5 | 60 | 40 | 0.14 | 2 3/8'' | 1 9/16'' | TX10 | 500 |
SHS XS AISI410 - Ø4,5 - Ø5
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
DOP
|
|---|---|---|---|---|---|---|---|---|---|---|
| SHS4550AS | - | 4.5 | 50 | 30 | 0.18 | 1 15/16'' | 1 3/16'' | TX20 | 200 | |
| SHS4560AS | - | 4.5 | 60 | 35 | 0.18 | 2 3/8'' | 1 3/8'' | TX20 | 200 | |
| SHS4570AS | - | 4.5 | 70 | 40 | 0.18 | 2 3/4'' | 1 9/16'' | TX20 | 200 | |
| SHS550AS | - | 5 | 50 | 24 | 0.2 | 1 15/16'' | 15/16'' | TX25 | 200 | |
| SHS560AS | - | 5 | 60 | 30 | 0.2 | 2 3/8'' | 1 3/16'' | TX25 | 200 | |
| SHS570AS | - | 5 | 70 | 35 | 0.2 | 2 3/4'' | 1 3/8'' | TX25 | 100 | |
| SHS580AS | - | 5 | 80 | 40 | 0.2 | 3 1/8'' | 1 9/16'' | TX25 | 100 | |
| SHS5100AS | - | 5 | 100 | 50 | 0.2 | 4'' | 1 15/16'' | TX25 | 100 |
SHS AISI410 - Ø6 - Ø8
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
DOP
|
|---|---|---|---|---|---|---|---|---|---|---|
| SHS680AS | - | 6 | 80 | 40 | 0.24 | 3 1/8'' | 1 9/16'' | TX30 | 100 | |
| SHS6100AS | - | 6 | 100 | 50 | 0.24 | 4'' | 1 15/16'' | TX30 | 100 | |
| SHS6120AS | - | 6 | 120 | 60 | 0.24 | 4 3/4'' | 2 3/8'' | TX30 | 100 | |
| SHS6140AS | - | 6 | 140 | 75 | 0.24 | 5 1/2'' | 2 15/16'' | TX30 | 100 | |
| SHS6160AS | - | 6 | 160 | 75 | 0.24 | 6 1/4'' | 2 15/16'' | TX30 | 100 | |
| SHS6180AS | - | 6 | 180 | 75 | 0.24 | 7 1/8'' | 2 15/16'' | TX30 | 100 | |
| SHS6200AS | - | 6 | 200 | 75 | 0.24 | 8'' | 2 15/16'' | TX30 | 100 | |
| SHS8120AS | - | 8 | 120 | 60 | 0.32 | 4 3/4'' | 2 3/8'' | TX40 | 100 | |
| SHS8140AS | - | 8 | 140 | 60 | 0.32 | 5 1/2'' | 2 3/8'' | TX40 | 100 | |
| SHS8160AS | - | 8 | 160 | 80 | 0.32 | 6 1/4'' | 3 1/8'' | TX40 | 100 | |
| SHS8180AS | - | 8 | 180 | 80 | 0.32 | 7 1/8'' | 3 1/8'' | TX40 | 100 | |
| SHS8200AS | - | 8 | 200 | 80 | 0.32 | 8'' | 3 1/8'' | TX40 | 100 | |
| SHS8220AS | - | 8 | 220 | 80 | 0.32 | 8 5/8'' | 3 1/8'' | TX40 | 100 | |
| SHS8240AS | - | 8 | 240 | 80 | 0.32 | 9 1/2'' | 3 1/8'' | TX40 | 100 | |
| SHS8260AS | - | 8 | 260 | 80 | 0.32 | 10 1/4'' | 3 1/8'' | TX40 | 100 | |
| SHS8280AS | - | 8 | 280 | 80 | 0.32 | 11'' | 3 1/8'' | TX40 | 100 |
