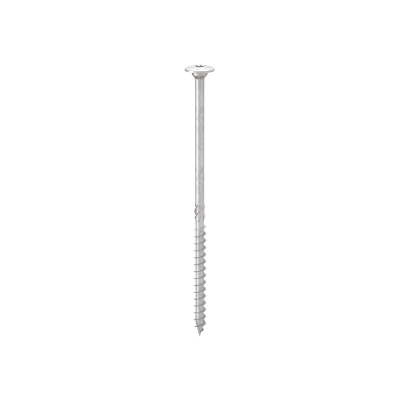

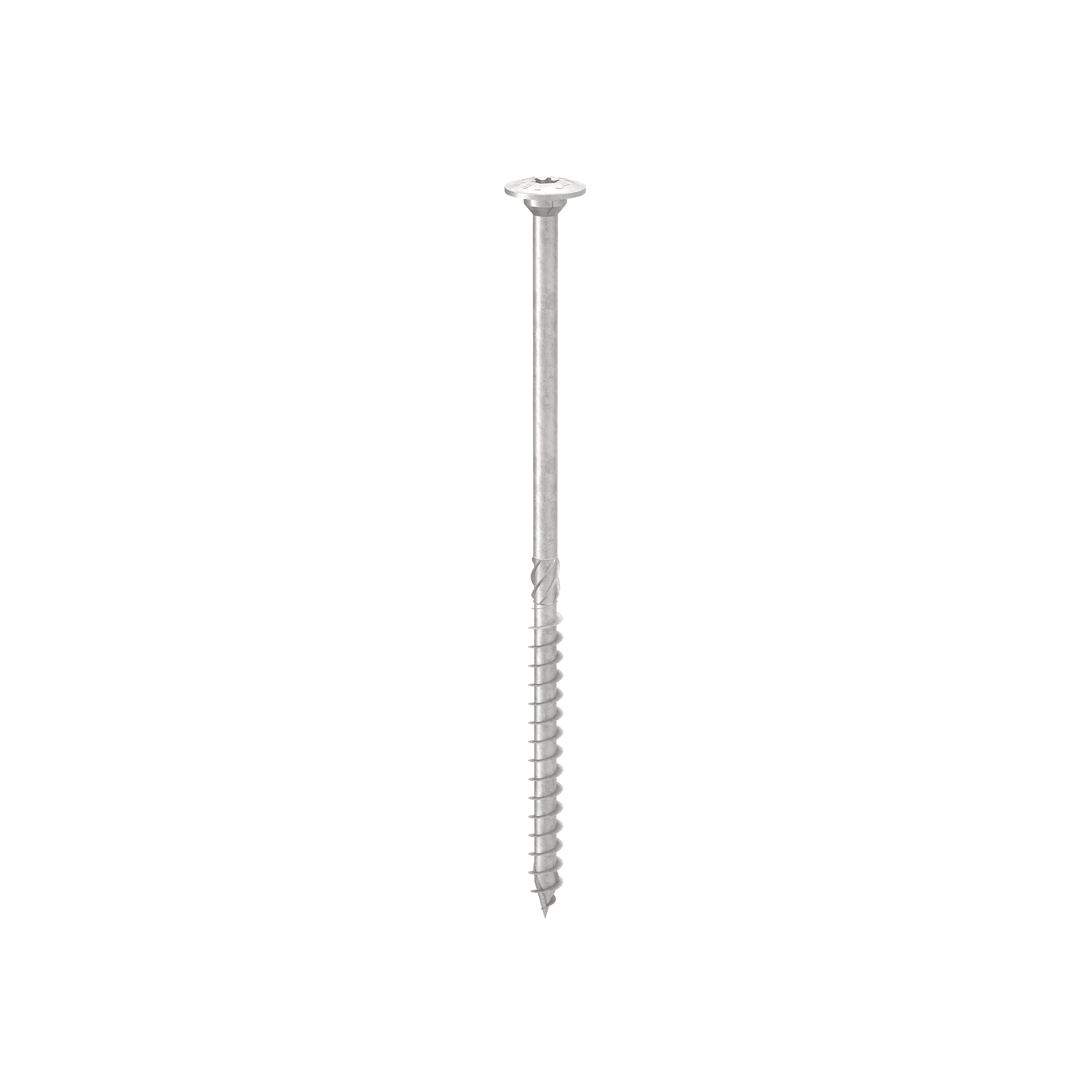

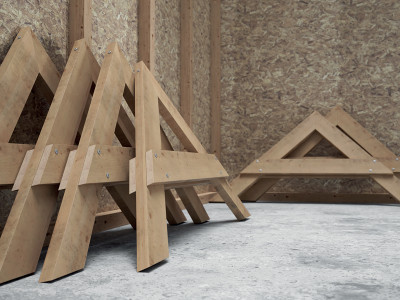

TBS EVO
The TBS EVO wood screw is the structural screw for use outdoors in service class 3 and in class C4 atmospheric corrosion conditions.
The flange head serves as washer and ensures high tensile strength.
Description
Structural screws for outdoors: discover TBS EVO, the flange-head wood screw.
TBS EVO is approved for structural applications subject to stresses in any direction vs. the grain (α = 0° - 90°).

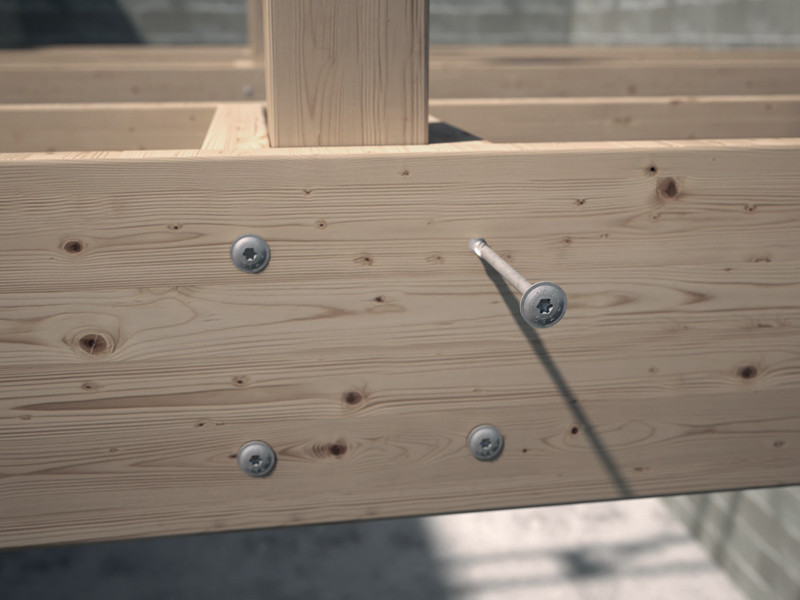

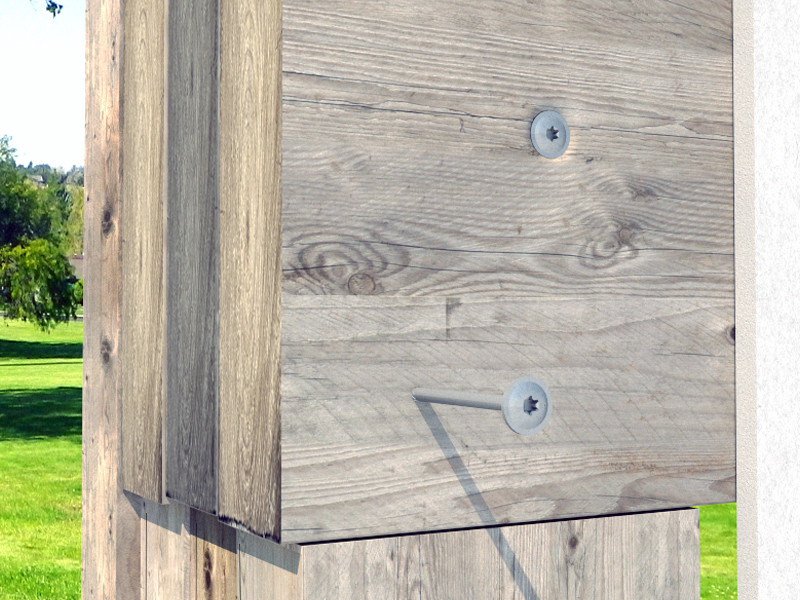

Its flange head makes it ideal in the presence of wind or variations in timber dimensions. The asymmetric “umbrella” threading ensures better wood pull-through.

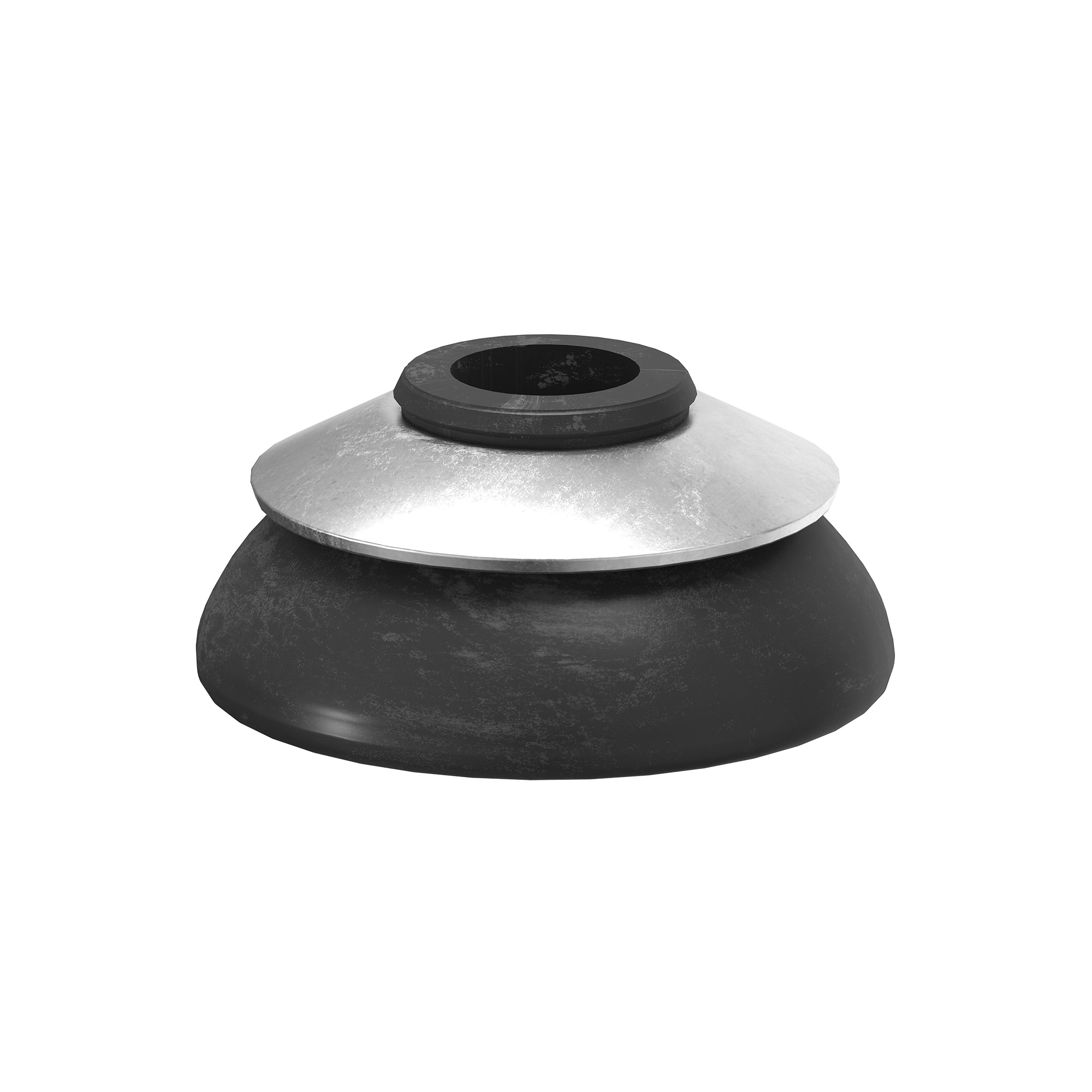

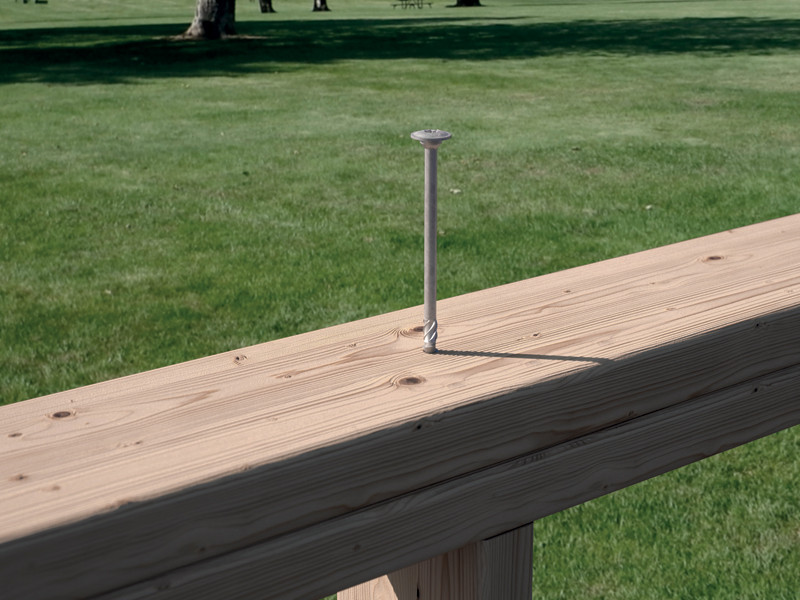

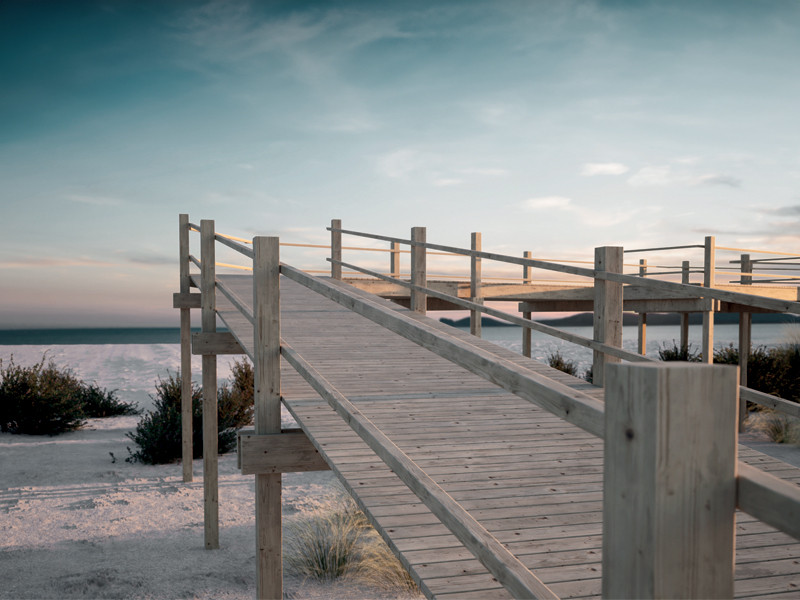

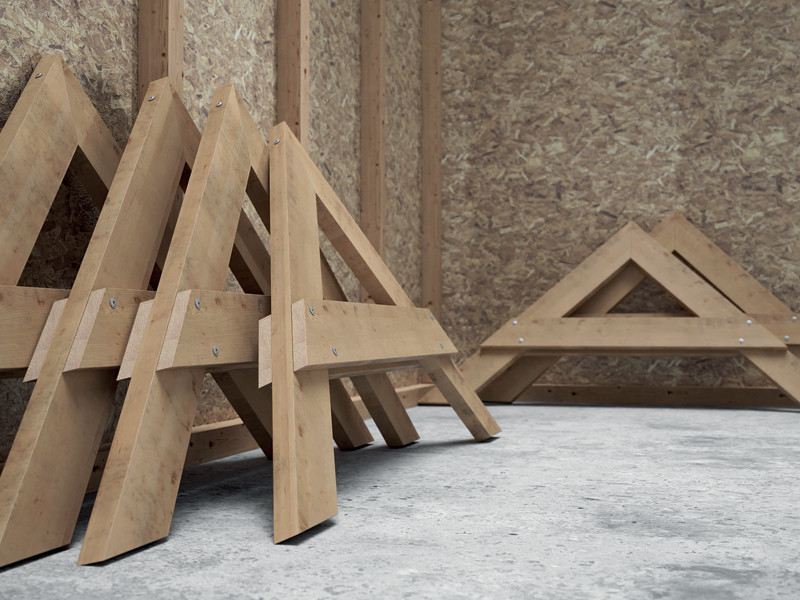

Excellent for the construction of outdoor structures such as walkways and arcades and for fastening SIP and sandwich panels. In combination with the WBAZ gasket washer, it is suitable also for fastening on sheet metal up to 0.7 mm thick, with no need for pre-drilling.
TBS EVO wood screws are usable with wood-based panels, solid timber and glulam, CLT LVL and high-density woods.
Made of carbon steel and 20 μm multilayer coating with surface treatment of epoxy resin and aluminium flakes.
Tests have shown no rust after 1440 hours of salt spray exposure, according to ISO 9227.
Can be used in service class 3 outdoor applications and under class C4 atmospheric corrosion conditions.
Values are also certified for inserting the screw parallel to the grain.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Japanese CBL TS001-21
- Technical data sheets Korean
- Technical data sheets Latvia
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
-
Minimum Distances Guide
-
ICC-ES Evaluation report USA
-
ICC-ES Listing report CANADA
-
ETA Certificate
-
File CAD
-
File BIM.ifc
-
File BIM.rfa
TBS EVO
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
DOP
|
|---|---|---|---|---|---|---|---|---|---|---|
| TBSEVO660 | - | 6 | 60 | 40 | 0.24 | 2 3/8'' | 1 9/16'' | TX30 | 100 | |
| TBSEVO680 | - | 6 | 80 | 50 | 0.24 | 3 1/8'' | 1 15/16'' | TX30 | 100 | |
| TBSEVO6100 | - | 6 | 100 | 60 | 0.24 | 4'' | 2 3/8'' | TX30 | 100 | |
| TBSEVO6120 | - | 6 | 120 | 75 | 0.24 | 4 3/4'' | 2 15/16'' | TX30 | 100 | |
| TBSEVO6140 | - | 6 | 140 | 75 | 0.24 | 5 1/2'' | 2 15/16'' | TX30 | 100 | |
| TBSEVO6160 | - | 6 | 160 | 75 | 0.24 | 6 1/4'' | 2 15/16'' | TX30 | 100 | |
| TBSEVO6180 | - | 6 | 180 | 75 | 0.24 | 7 1/8'' | 2 15/16'' | TX30 | 100 | |
| TBSEVO6200 | - | 6 | 200 | 75 | 0.24 | 8'' | 2 15/16'' | TX30 | 100 | |
| TBSEVO8100 | - | 8 | 100 | 52 | 0.32 | 4'' | 2 1/16'' | TX40 | 50 | |
| TBSEVO8120 | - | 8 | 120 | 80 | 0.32 | 4 3/4'' | 3 1/8'' | TX40 | 50 | |
| TBSEVO8140 | - | 8 | 140 | 80 | 0.32 | 5 1/2'' | 3 1/8'' | TX40 | 50 | |
| TBSEVO8160 | - | 8 | 160 | 100 | 0.32 | 6 1/4'' | 4'' | TX40 | 50 | |
| TBSEVO8180 | - | 8 | 180 | 100 | 0.32 | 7 1/8'' | 4'' | TX40 | 50 | |
| TBSEVO8200 | - | 8 | 200 | 100 | 0.32 | 8'' | 4'' | TX40 | 50 | |
| TBSEVO8220 | - | 8 | 220 | 100 | 0.32 | 8 5/8'' | 4'' | TX40 | 50 | |
| TBSEVO8240 | - | 8 | 240 | 100 | 0.32 | 9 1/2'' | 4'' | TX40 | 50 | |
| TBSEVO8280 | - | 8 | 280 | 100 | 0.32 | 11'' | 4'' | TX40 | 50 | |
| TBSEVO8320 | - | 8 | 320 | 100 | 0.32 | 12 5/8'' | 4'' | TX40 | 50 | |
| TBSEVO8360 | - | 8 | 360 | 100 | 0.32 | 14 1/4'' | 4'' | TX40 | 50 | |
| TBSEVO8400 | - | 8 | 400 | 100 | 0.32 | 15 3/4'' | 4'' | TX40 | 50 | |
| TBSEVO10120 | - | 10 | 120 | 60 | 0.4 | 4 3/4'' | 2 3/8'' | TX50 | 50 | |
| TBSEVO10140 | - | 10 | 140 | 60 | 0.4 | 5 1/2'' | 2 3/8'' | TX50 | 50 | |
| TBSEVO10160 | - | 10 | 160 | 80 | 0.4 | 6 1/4'' | 3 1/8'' | TX50 | 50 | |
| TBSEVO10180 | - | 10 | 180 | 80 | 0.4 | 7 1/8'' | 3 1/8'' | TX50 | 50 | |
| TBSEVO10200 | - | 10 | 200 | 100 | 0.4 | 8'' | 4'' | TX50 | 50 | |
| TBSEVO10220 | - | 10 | 220 | 100 | 0.4 | 8 5/8'' | 4'' | TX50 | 50 | |
| TBSEVO10240 | - | 10 | 240 | 100 | 0.4 | 9 1/2'' | 4'' | TX50 | 50 | |
| TBSEVO10280 | - | 10 | 280 | 100 | 0.4 | 11'' | 4'' | TX50 | 50 |
