New
TBS MAX

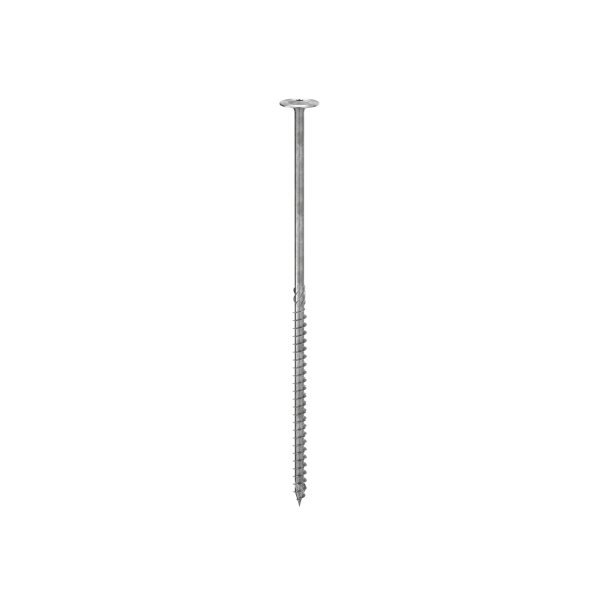

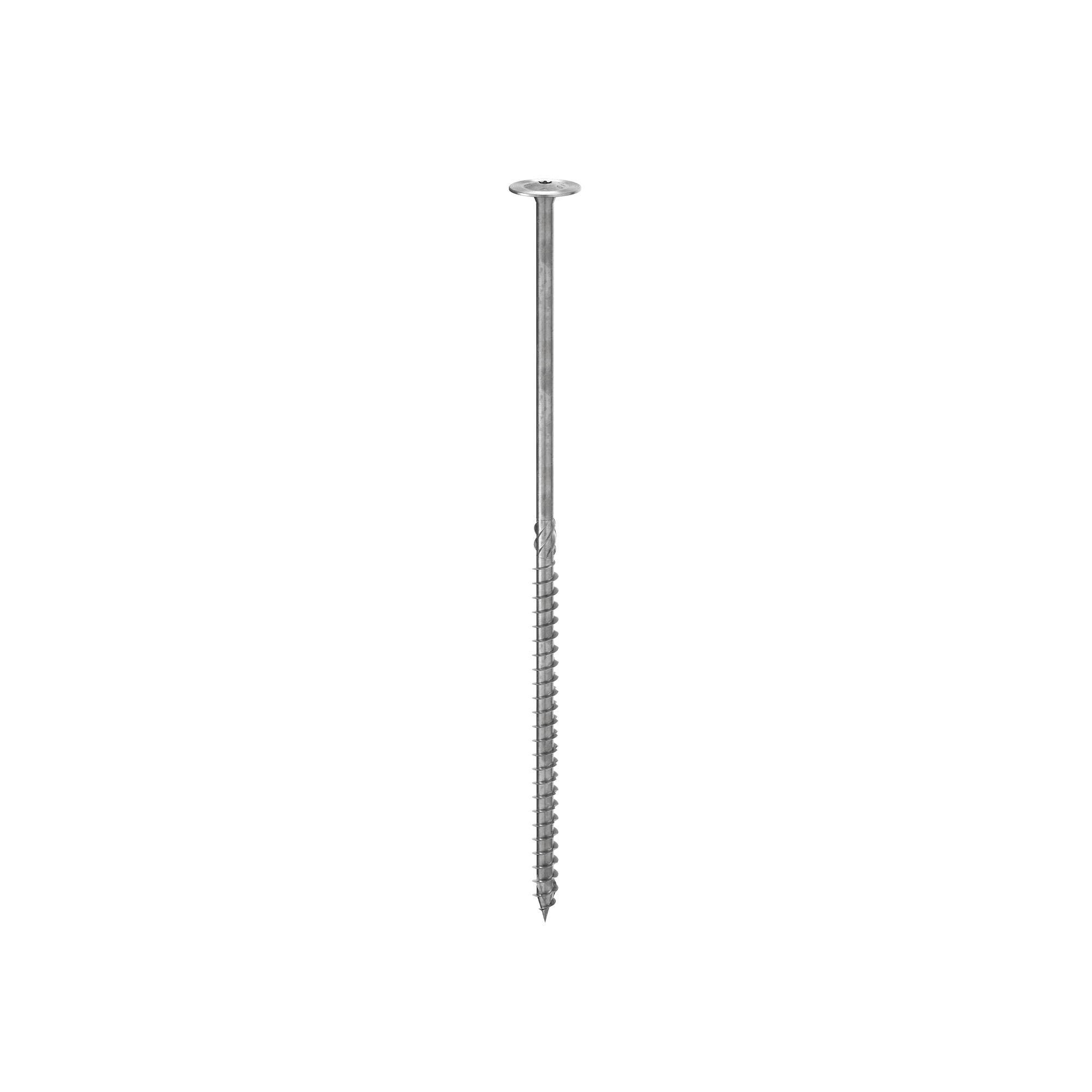

XL FLANGE HEAD SCREW
The oversized head provides excellent head pull-through strength and joint tightening capacity.
The oversized thread of the TBS MAX guarantees excellent withdrawal resistance and closing strength of the joint.

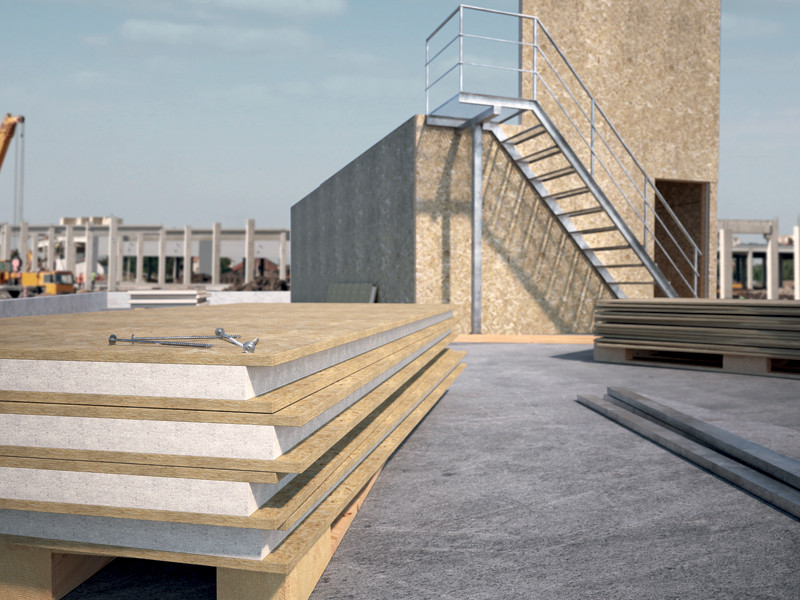

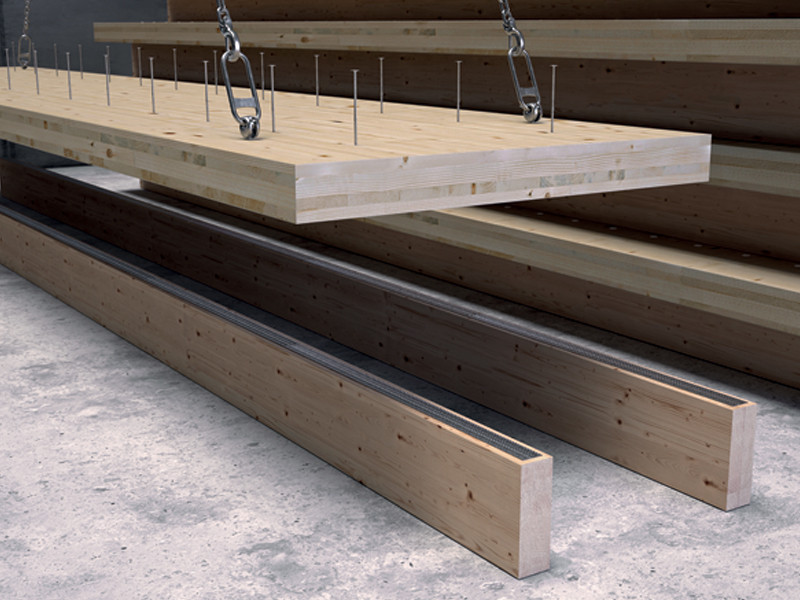

Thanks to its large head and oversized thread, it is the ideal screw in the production of ribbed floors (Rippendecke). Used in conjunction with SHARP METAL, it optimises the number of fasteners by avoiding the use of presses when gluing timber elements together.
Thanks to the 3 THORNS tip, minimum installation distances are reduced. More screws can be used in less space and larger screws in smaller elements. Costs and time for project implementation are reduced.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Korean
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
-
Minimum Distances Guide
-
ICC-ES Evaluation report USA
-
ICC-ES Listing report CANADA
-
ETA Certificate
-
File CAD
-
File BIM.ifc
-
File BIM.rfa
TBS MAX
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
DOP
|
|---|---|---|---|---|---|---|---|---|---|---|
| TBSMAX8120 | - | 8 | 120 | 100 | 0.32 | 4 3/4'' | 4'' | TX40 | 50 | |
| TBSMAX8160 | - | 8 | 160 | 120 | 0.32 | 6 1/4'' | 4 3/4'' | TX40 | 50 | |
| TBSMAX8180 | - | 8 | 180 | 120 | 0.32 | 7 1/8'' | 4 3/4'' | TX40 | 50 | |
| TBSMAX8200 | - | 8 | 200 | 120 | 0.32 | 8'' | 4 3/4'' | TX40 | 50 | |
| TBSMAX8220 | - | 8 | 220 | 120 | 0.32 | 8 5/8'' | 4 3/4'' | TX40 | 50 | |
| TBSMAX8240 | - | 8 | 240 | 120 | 0.32 | 9 1/2'' | 4 3/4'' | TX40 | 50 | |
| TBSMAX8280 | - | 8 | 280 | 120 | 0.32 | 11'' | 4 3/4'' | TX40 | 50 | |
| TBSMAX8320 | - | 8 | 320 | 120 | 0.32 | 12 5/8'' | 4 3/4'' | TX40 | 50 | |
| TBSMAX8360 | - | 8 | 360 | 120 | 0.32 | 14 1/4'' | 4 3/4'' | TX40 | 50 | |
| TBSMAX8400 | - | 8 | 400 | 120 | 0.32 | 15 3/4'' | 4 3/4'' | TX40 | 50 |
