WASHER TO FASTEN INSULATION TO WOOD
THERMOWASHER

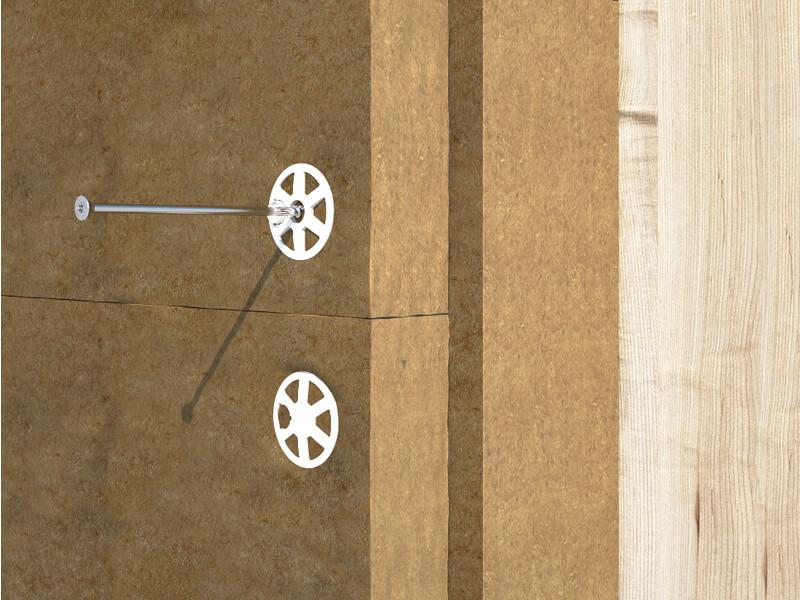

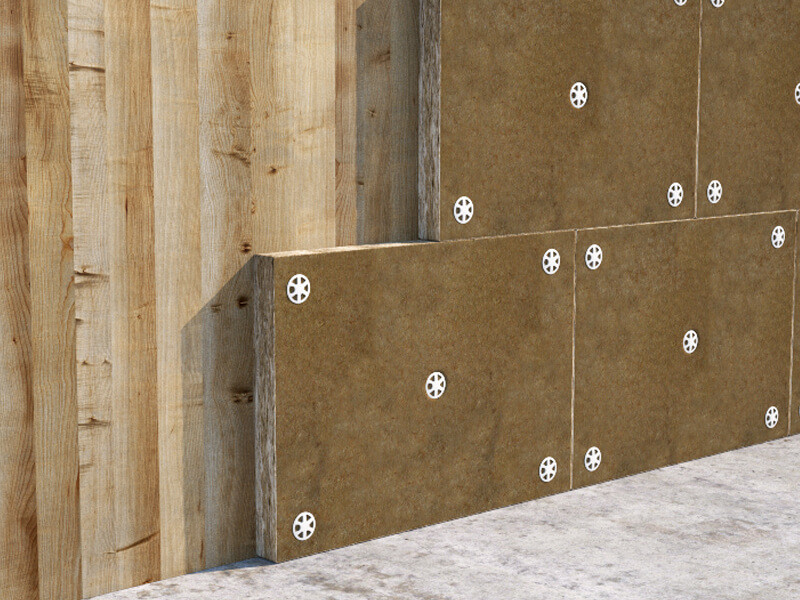

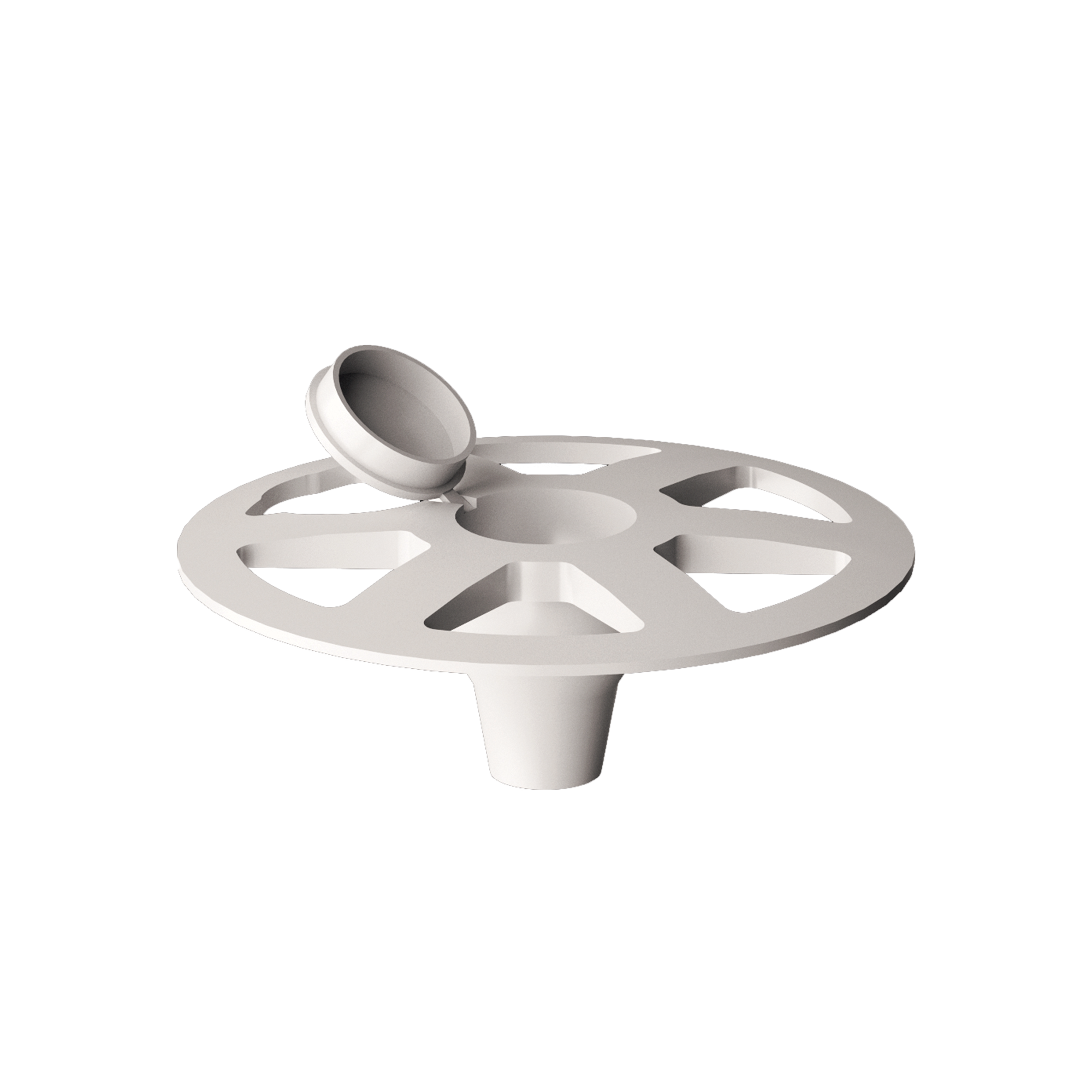

THERMOWASHER is the washer for wood screws with integrated hole cover that avoids thermal bridges.
It features large, hollow spaces for proper plaster adhesion and a system that prevents the screw from pulling out.
With THERMOWASHER, thermal bridges are just a bad memory.
To be used with HBS screws, Ø6 and Ø8**, length depending on thickness of the insulation to be fixed.
Ideal for any type of insulation.
The Ø65 propylene washer is compatible with Ø6 and Ø8 screws; it is suitable for any type of insulation and any type of fixture thickness. In propylene (PP).
Documents
| Technical data sheets | |
|---|---|
| Technical data sheets USA | |
| File CAD |
THERMOWASHER
| CODE | measures
[mm]
|
description | pcs. |
|---|---|---|---|
| THERMO65 | - | Φ screw 6 - 8 mm | 700 |
