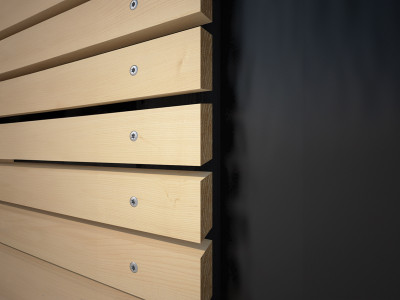

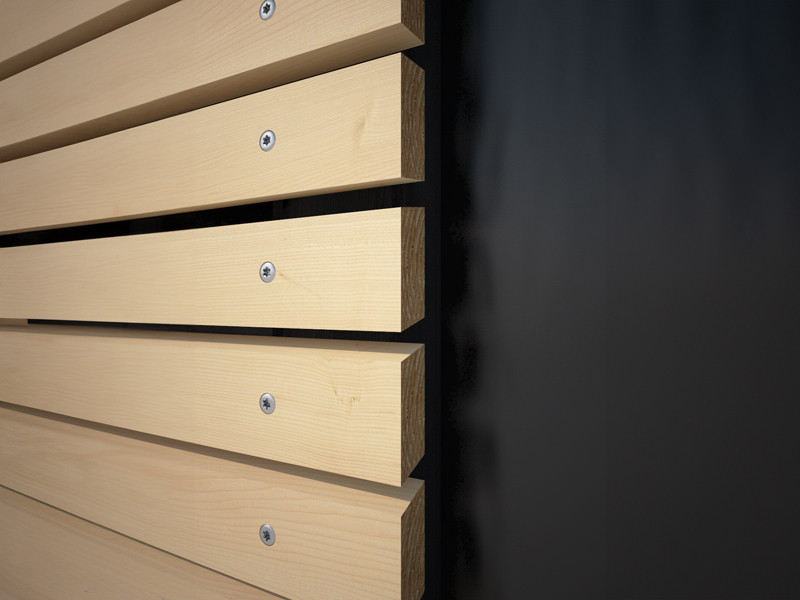

application-convex-head-screw-ews-aisi410-ews-a2

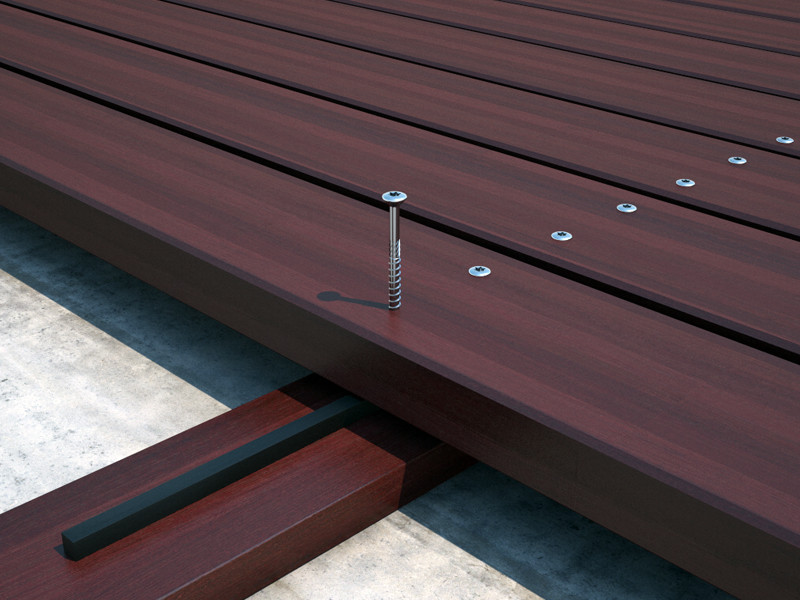

application-convex-head-screw-ews-aisi410-ews-a2

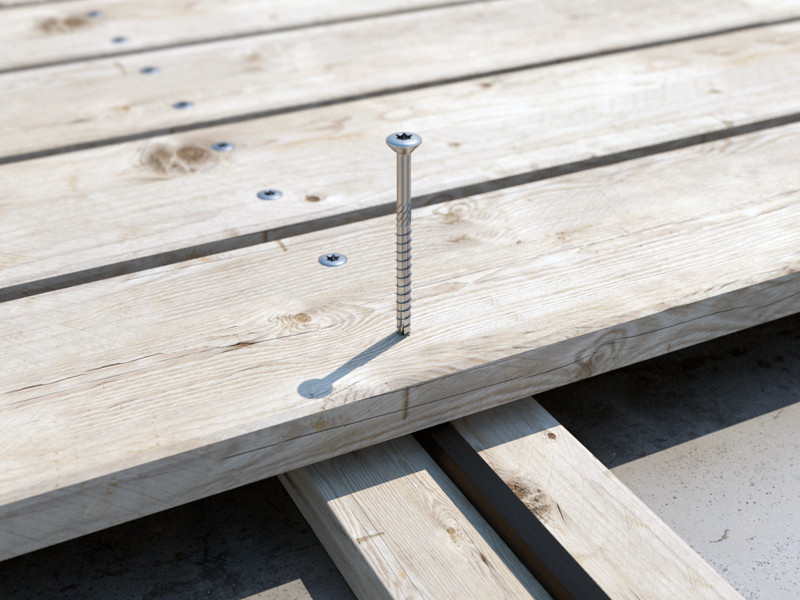

application-convex-head-screw-ews-aisi410-ews-a2

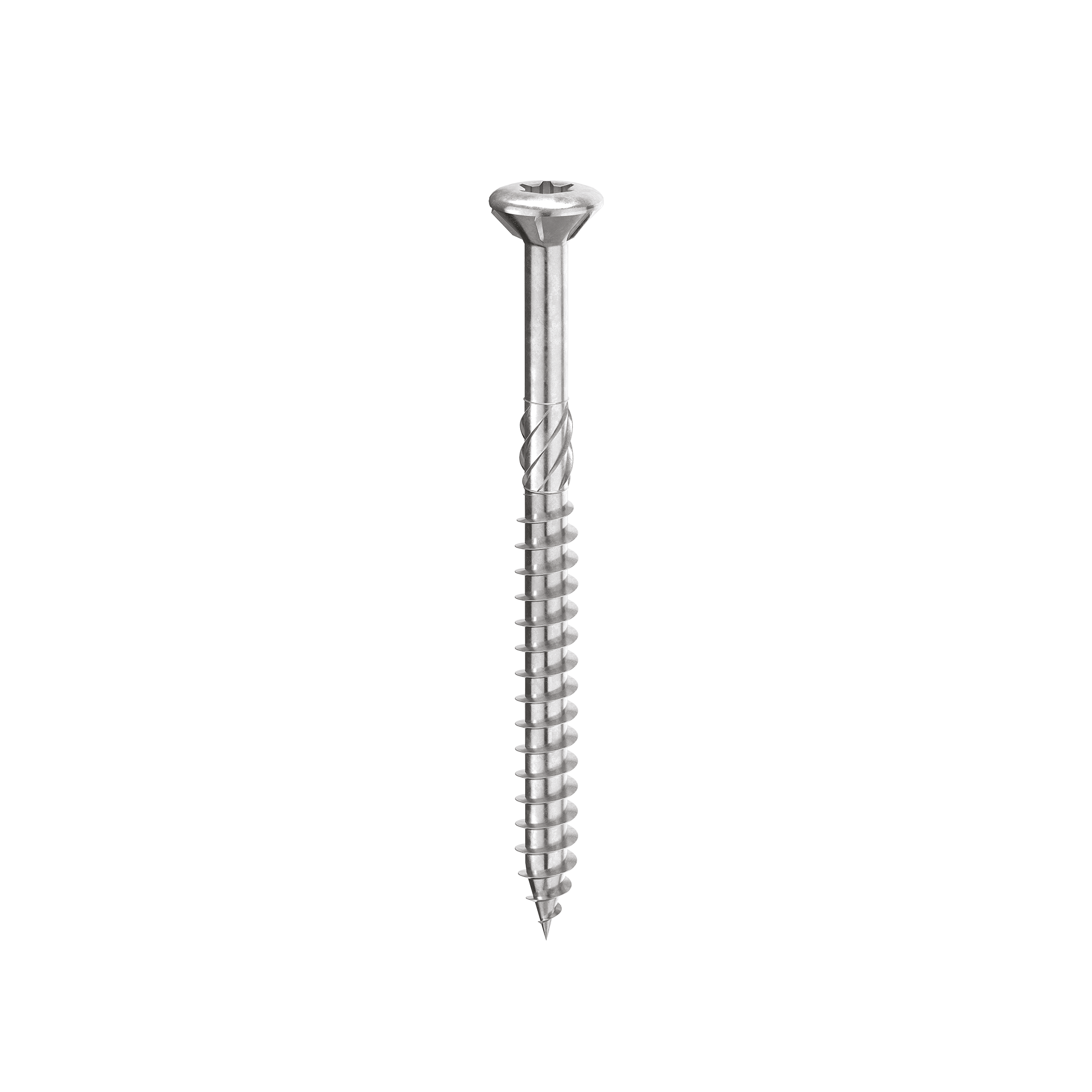

EWS AISI410 | EWS A2

CONVEX HEAD SCREW

Countersunk teardrop shaped head with curved surface for a pleasant look and firm grip with the bit. The increased shank diameter with high torsional strength for a strong, safe screwing even in high density woods.

The martensitic stainless steel version offers the highest mechanical performance. Suitable for outdoor applications and on acid wood, but away from corrosive agents (chlorides, sulphides, etc.).

The austenitic A2 stainless steel version offers higher corrosion resistance. Suitable for outdoor applications up to 1 km from the sea and on most of T4 class acid woods.

Get in touch with sales

Documents
Codes and dimensions
Related products

Documents

Technical data sheets

Choose a Language
File CAD

Choose a Language

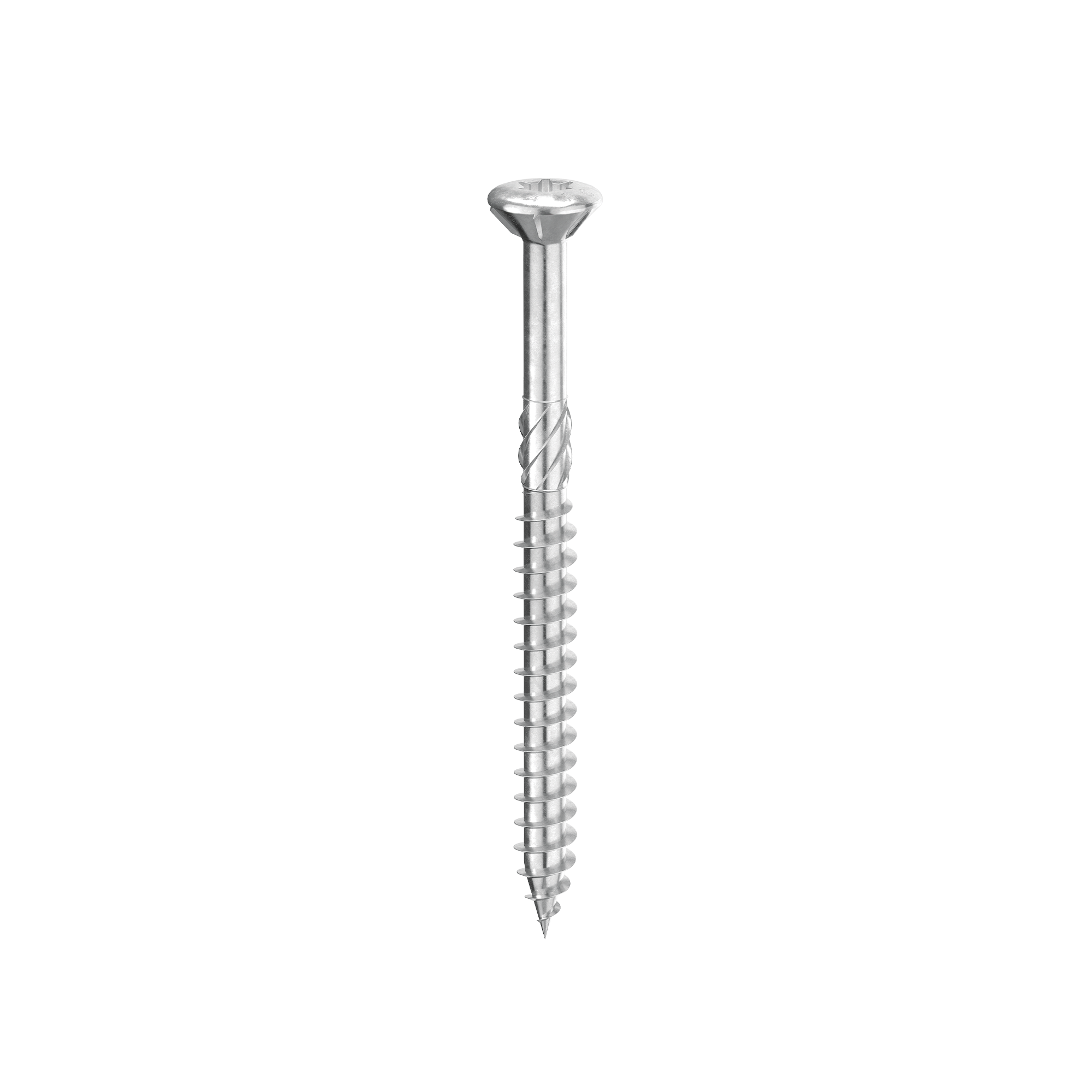

EWS AISI410

CODE	info	d₁ [mm]	L [mm]	b [mm]	d₁ [in]	L [in]	b [in]	TX	pcs.	DOP
EWS550	-	5	50	30	0.2	1 15/16''	1 3/16''	TX25	200
EWS560	-	5	60	36	0.2	2 3/8''	1 7/16''	TX25	200
EWS570	-	5	70	42	0.2	2 3/4''	1 5/8''	TX25	100
EWS580	-	5	80	48	0.2	3 1/8''	1 7/8''	TX25	100

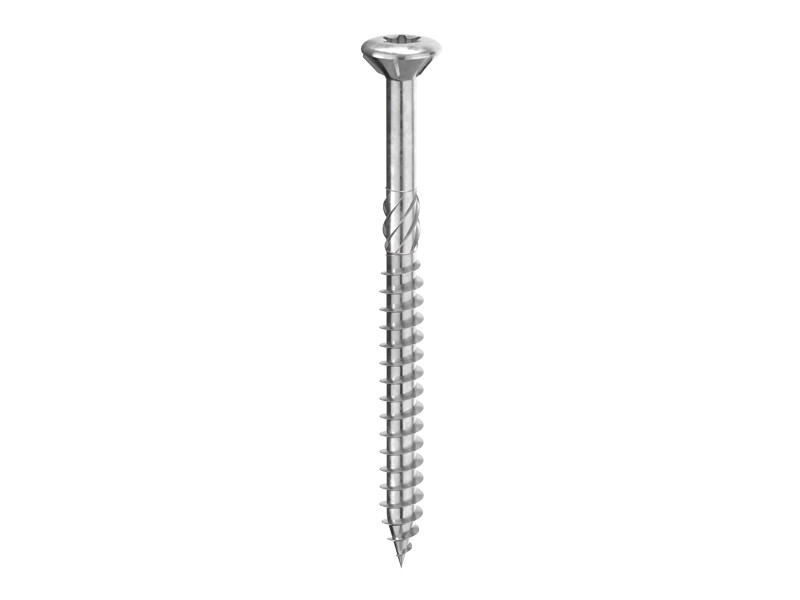

EWS A2 | AISI305

CODE	info	d₁ [mm]	L [mm]	b [mm]	d₁ [in]	L [in]	b [in]	TX	pcs.	DOP
EWSA2550	-	5	50	30	0.2	1 15/16''	1 3/16''	TX25	200
EWSA2560	-	5	60	36	0.2	2 3/8''	1 7/16''	TX25	200
EWSA2570	-	5	70	42	0.2	2 3/4''	1 5/8''	TX25	100

Related products

AUTOMATIC SCREWING DEVICE WITH DEPTH STOP

STAR FOR DISTANCES

SPACER PROFILE

BUTYL ADHESIVE TAPE

GRANULAR RUBBER SUBSTRATE

LEVELING PAD

ANTI-VEGETATION TARP FOR SUBSTRATES

ADJUSTABLE SUPPORT FOR TERRACES

ADJUSTABLE SUPPORT FOR TERRACES

cordless-drill-a18-asb18

MAFELL - CORDLESS DRILL

terrace-clamp-large-model-crab-maxi

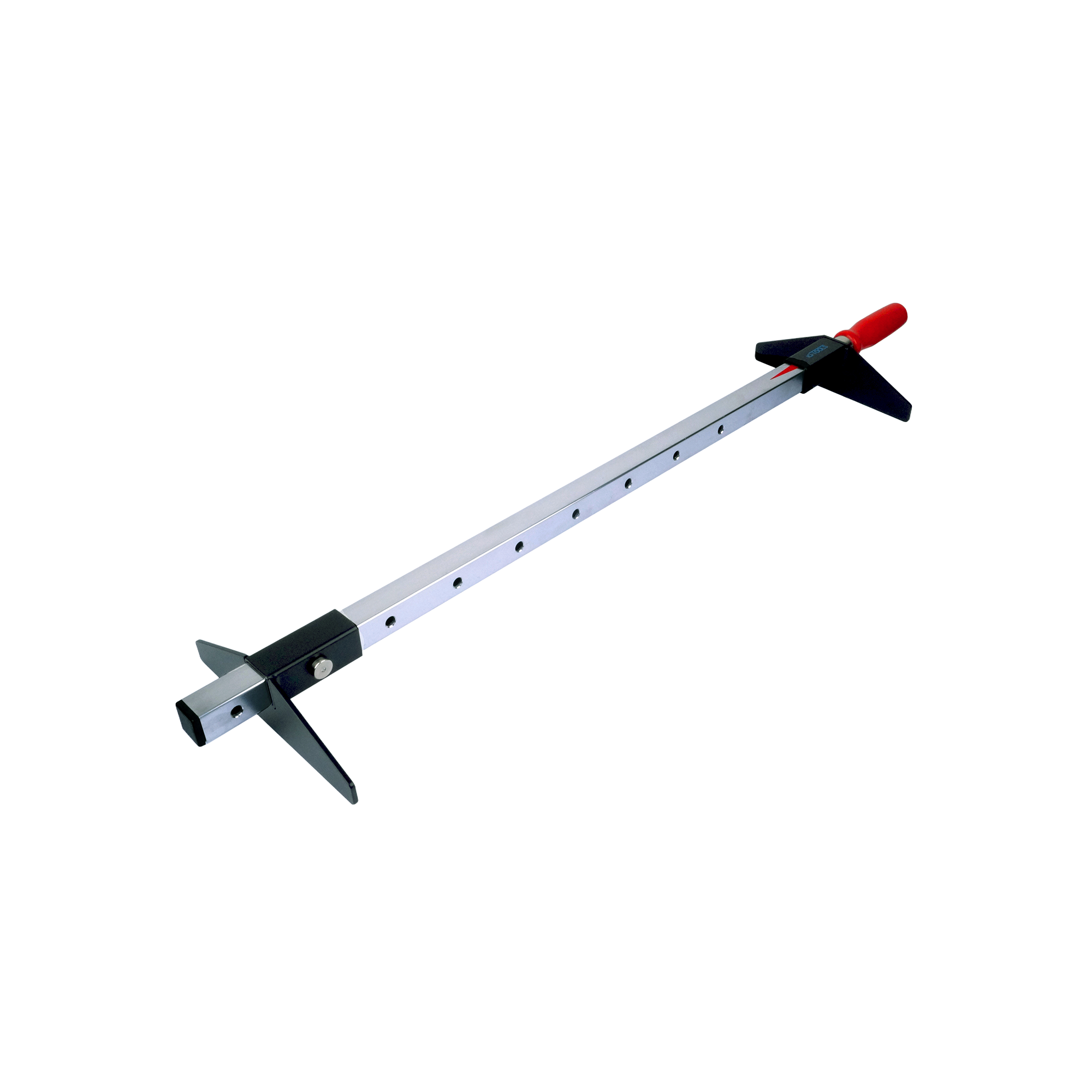

TERRACE CLAMP, LARGE MODEL
