CONE-SHAPED CONCEALED HEAD SCREW
KKT COLOR

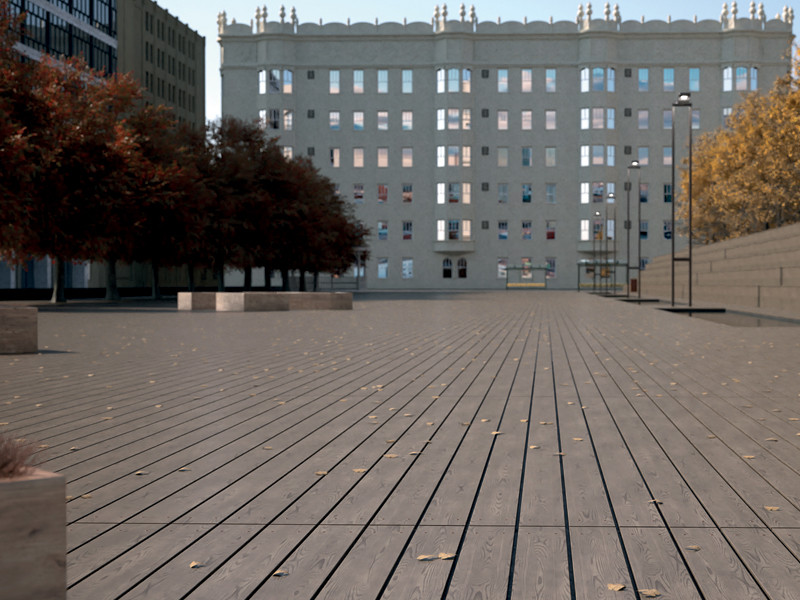

KKT COLOR is the wood screw designed for outdoor use on wooden and WPC boards.
Durability is guaranteed by the anti-corrosion coating and, thanks to the conical concealed head and the various colours available, it blends in on different types of woods.
KKT COLOR wood screws: appealing and durable for your outdoor applications

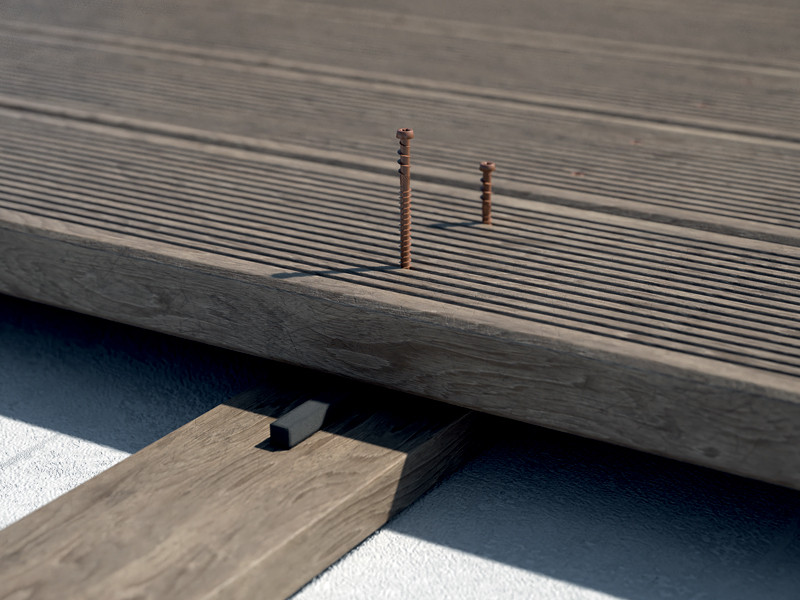

The KKT COLOR wood screw features an inverse (left-hand) under-head thread which guarantees excellent grip.
The small conical head ensures that it is well concealed. The three-lobed thread makes it possible to cut the wood grain during screwing, guaranteeing exceptional wood penetration.

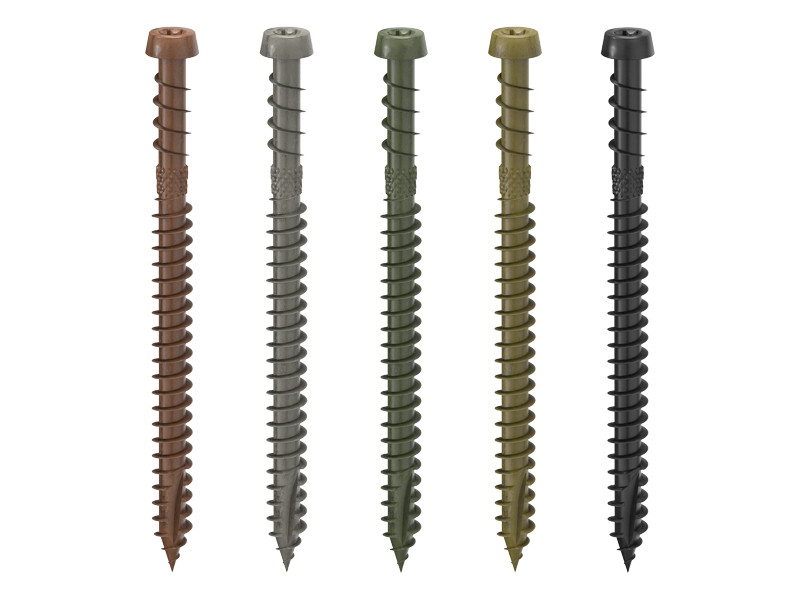

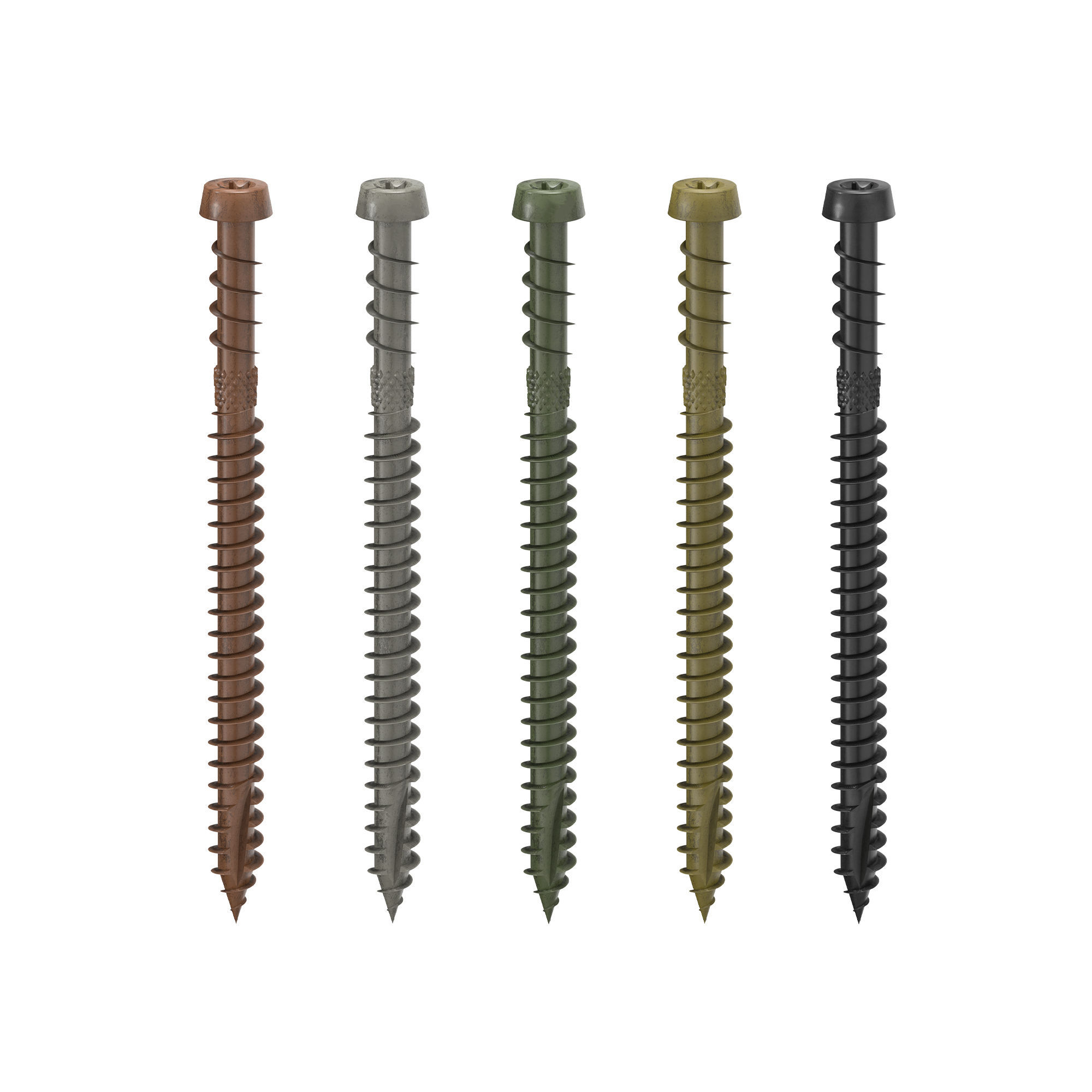

Carbon steel version with coloured, anti-rust coating (brown, grey, green, sand and black). KKT COLOR is suitable for use without pre-drilling on timber boards with a density of up to 780 kg/m3 and with pre-drilling on timber boards with a density of up to 880 kg/m3.

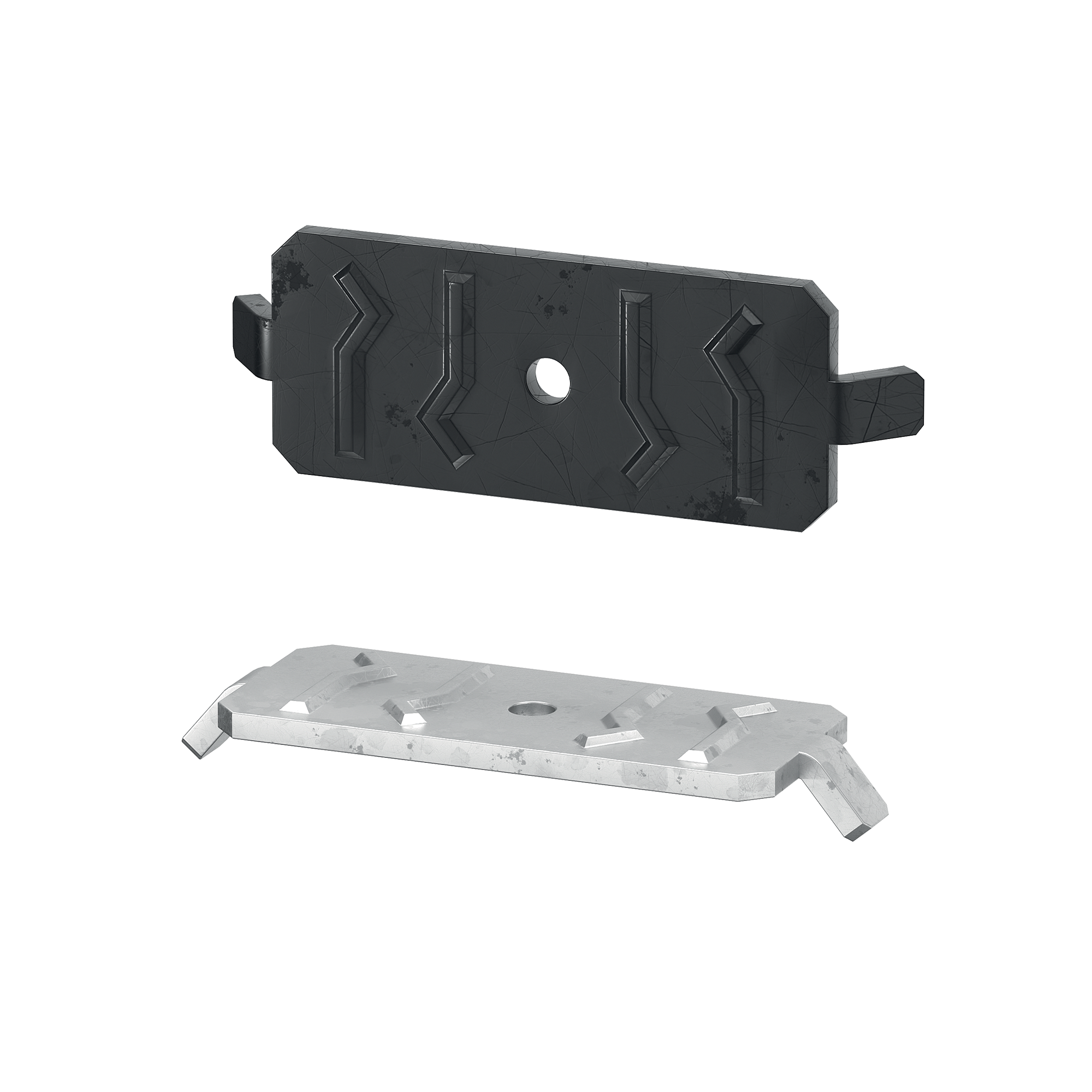

Available also in the KKT N version for fastening Rothoblaas FLAT and TVM standard clips in outdoor environments. Service classes 1, 2 and 3.
Features
FOCUS | complete range of colours |
---|---|
HEAD | conical, countersunk |
DIAMETER | 5,0 | 6,0 mm |
LENGTH | from 40 mm to 120 mm |
Documents
Technical data sheets | |
---|---|
Declaration of performance (DOP) | Download |
File CAD | |
Calculator Spreadsheet_DeckDesigner |
KKT COLOR BROWN
CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
---|---|---|---|---|
KKTM540 | 5 | 43 | TX20 | 200 |
KKTM550 | 5 | 53 | TX20 | 200 |
KKTM560 | 5 | 60 | TX20 | 200 |
KKTM570 | 5 | 70 | TX20 | 100 |
KKTM580 | 5 | 80 | TX20 | 100 |
KKTM660 | 6 | 60 | TX25 | 100 |
KKTM680 | 6 | 80 | TX25 | 100 |
KKTM6100 | 6 | 100 | TX25 | 100 |
KKTM6120 | 6 | 120 | TX25 | 100 |
KKT COLOR GREY
CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
---|---|---|---|---|
KKTG540 | 5 | 43 | TX20 | 200 |
KKTG550 | 5 | 53 | TX20 | 200 |
KKTG560 | 5 | 60 | TX20 | 200 |
KKTG570 | 5 | 70 | TX20 | 100 |
KKTG580 | 5 | 80 | TX20 | 100 |
KKT COLOR GREEN
CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
---|---|---|---|---|
KKTV550 | 5 | 53 | TX20 | 200 |
KKTV560 | 5 | 60 | TX20 | 200 |
KKTV570 | 5 | 70 | TX20 | 100 |
KKT COLOR SAND
CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
---|---|---|---|---|
KKTS550 | 5 | 53 | TX20 | 200 |
KKTS560 | 5 | 60 | TX20 | 200 |
KKTS570 | 5 | 70 | TX20 | 100 |
KKT COLOR BLACK
CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
---|---|---|---|---|
KKTN540 | 5 | 40 | TX20 | 200 |
KKTN550 | 5 | 53 | TX20 | 200 |
KKTN560 | 5 | 60 | TX20 | 200 |
