CYLINDRICAL HEAD SCREW FOR WPC BOARDS

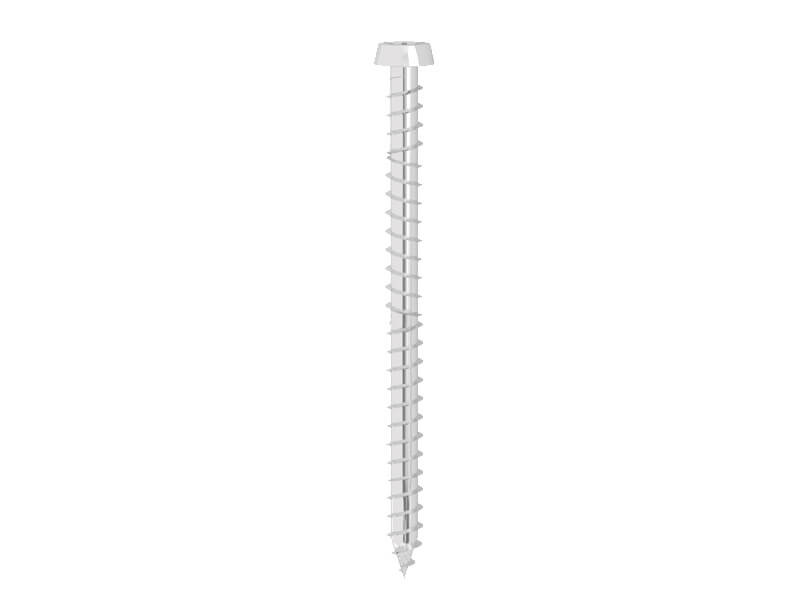

KWP A2 | AISI305

KWP A2 | AISI305 wood screws are designed for fastening, also without pre-drilling, WPC boards to timber or WPC substructures.

The plastic WPC fibres are removed effectively during screwing, guaranteeing excellent finishing.

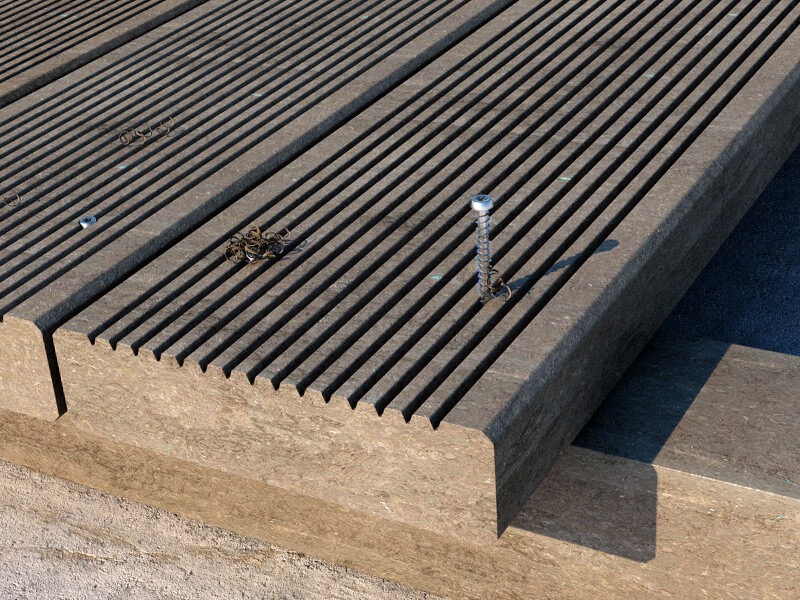

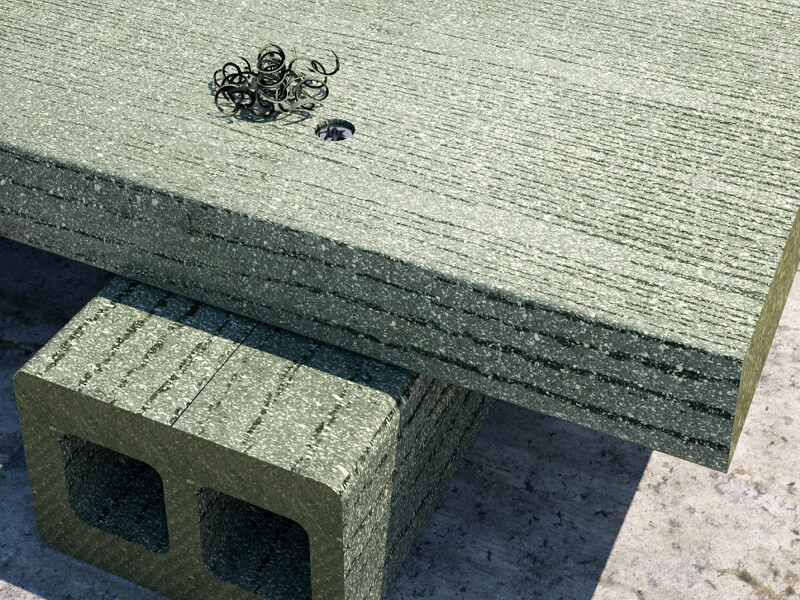

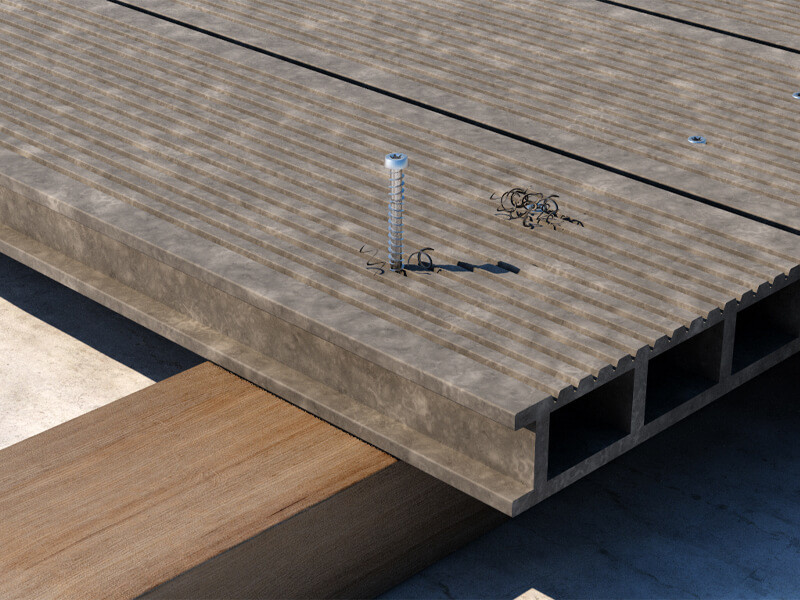

KWP A2 | AISI305, the screw for wood and WPC that ensures effective removal of shavings in the screwing stage.

The KWP A2 | AISI305 **wood screw **has a triple thread: besides the main one at the tip, the combination of the two under-head threads causes extremely effective removal of the WPC fibres. The WPC penetration capacity, even without pre-drilling is exceptional.

The small cylindrical head ensures that it is well concealed in the WPC. KWP A2 | AISI305 can be used outdoors in very aggressive environments.

Without pre-drilling in WPC boards and timber boards with a density of less than 780 kg/m3, and with pre-drilling on boards with a density of less than 880 kg/m3.

In A2 | AISI305 austenitic steel, it is suitable for service classes 1, 2, and 3.

Features

FOCUS removal of shavings from WPC boards
HEAD cylindrical, countersunk
DIAMETER 5.0 mm
LENGTH from 60 mm to 70 mm

Documents

Technical data sheets

KWP A2 | AISI305

CODE d₁
[mm]
L
[mm]
TX pcs.
KWP560 5 60 TX20 200
KWP A2_2D_v1_web
