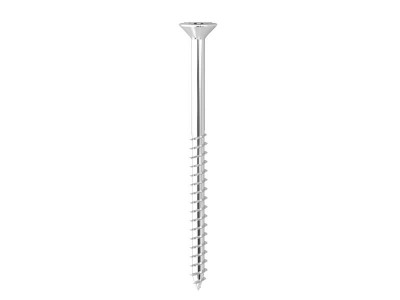

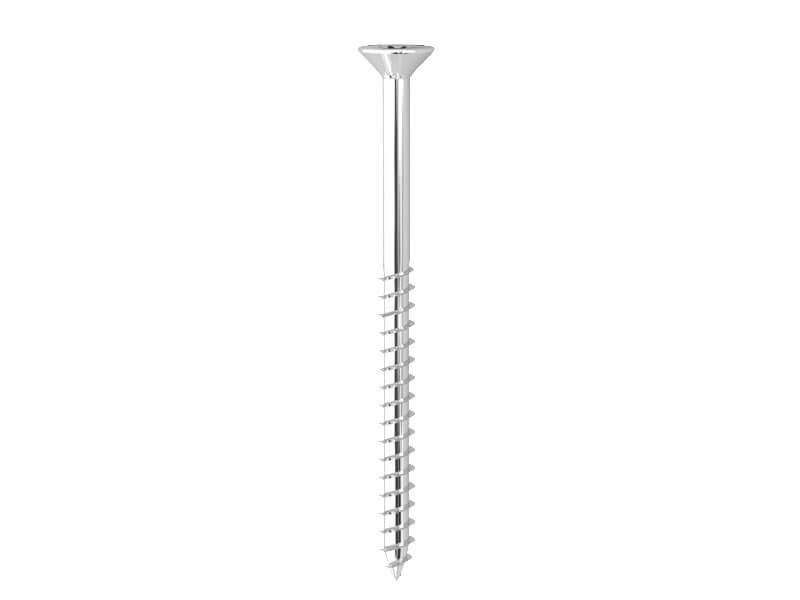

COUNTERSUNK SCREW
SCA A2 | AISI304

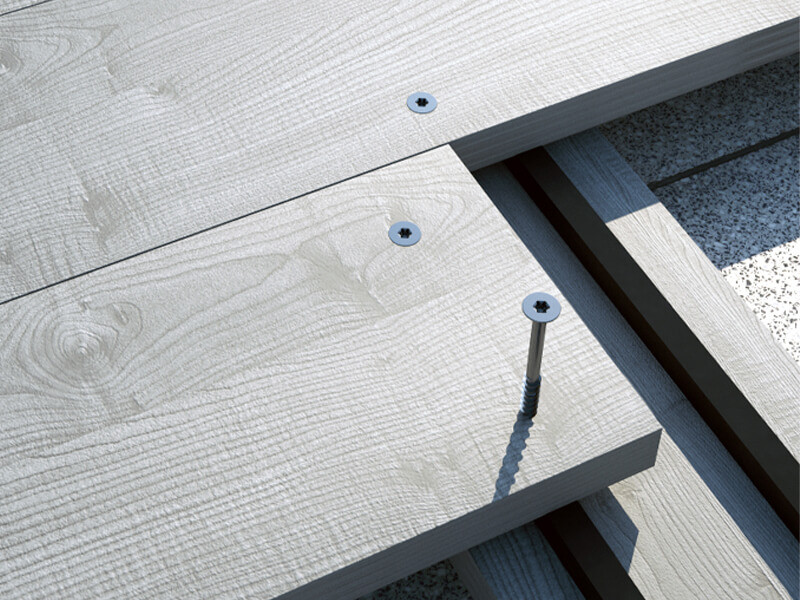

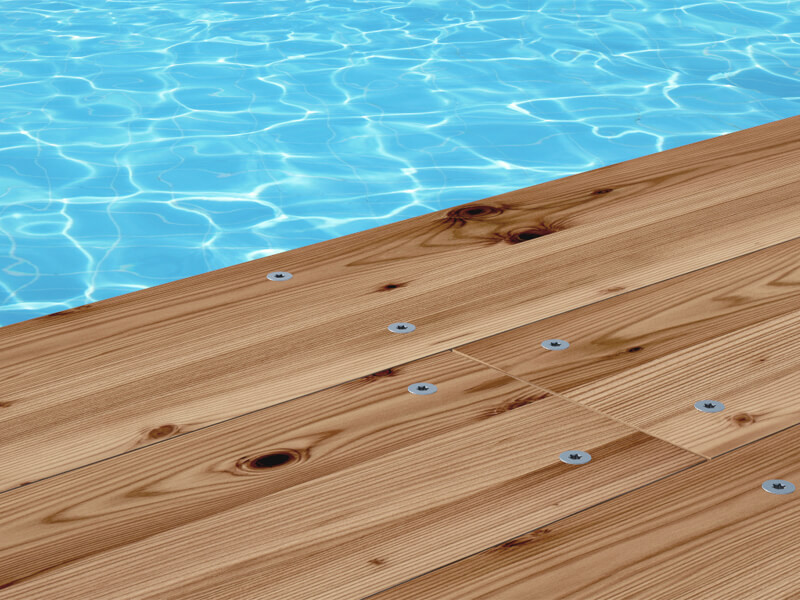

The SCA A2 | AISI304 wood screw is designed for fastening wooden boards and clips for external claddings of façades and decking.
Its simple geometry guarantees an excellent cost-performance ratio.
SCA A2 | AISI304 wood screws, excellent quality-price ratio for your outdoor fastenings.

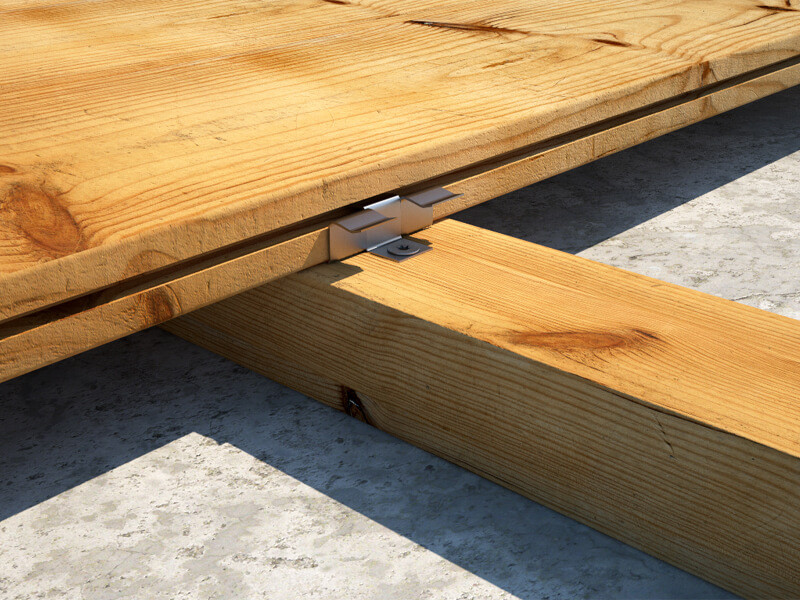

SCA A2 | AISI304 is the ideal wood screw for fastening standard Rothoblaas GAP clips and stainless steel plates, thanks to the smooth, countersunk head.
In A2 | AISI304 austenitic stainless steel, it is suitable for outdoor use in aggressive environments.
Packaging optimised to reduce material wastes in the building site. **SCA A2 | AISI304 **can be used without pre-drilling on timber boards with a density of up to 470 kg/m3 and with pre-drilling on timber boards with a maximum density of 570 kg/m3. Service classes 1, 2 and 3.
Features
FOCUS | use with stainless steel clips |
---|---|
HEAD | countersunk without ribs |
DIAMETER | from 3,5 mm to 5,0 mm |
LENGTH | from 25 mm to 70 mm |
Documents
Technical data sheets
|
---|
SCA A2 | AISI304
CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
---|---|---|---|---|---|---|---|---|---|
SCA3525 | - | 3.5 | 25 | - | 0.14 | 1'' | - | TX10 | 500 |
