COUNTERSUNK SCREW
SCI A4 | AISI316
The SCI A4 | AISI316 wood screw in stainless steel is the fastener that resists corrosion in particularly aggressive environments, such as by the sea.
Ideal for the construction of small and medium-sized wooden structures and decking in outdoor environments.
SCI A4 | AISI316 wood screws, the fastener for marine environments that resists corrosion.

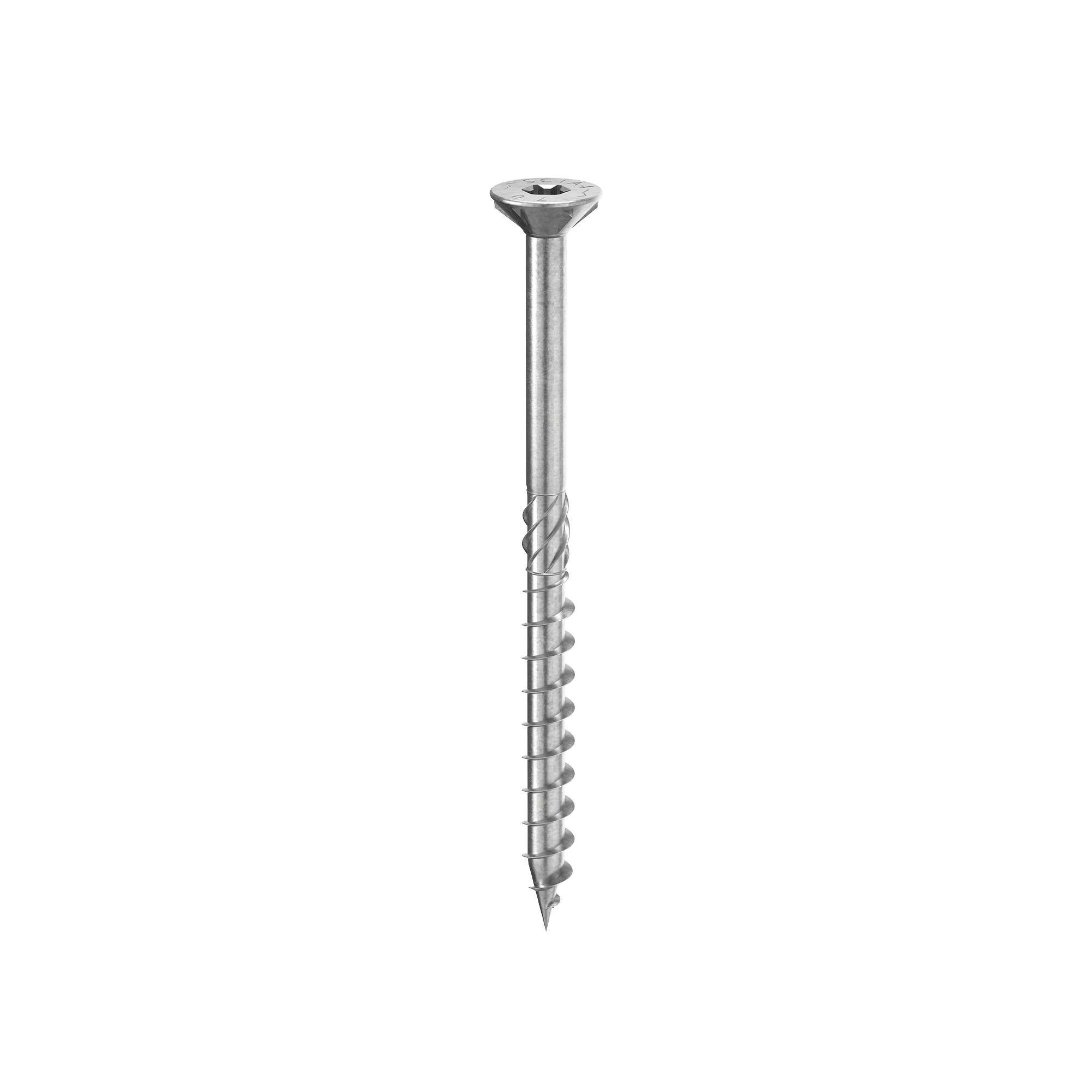

The special geometry of the SCI A4 | AISI316 wood screws features a self-perforating tip with setback notch, a special asymmetric “umbrella” thread, an elongated cutter and sharp under-head ribs.
Geometric details provide the screw with greater torsional strength for more secure screwing. The A4 | AISI316 austenitic stainless steel ensures excellent resistance to corrosion, ideal for applications in seaside environments.
The SCI A4 | AISI316 wood screw is suitable for use without pre-drilling on timber boards with a density of up to 470 kg/m3 and with pre-drilling on timber boards with a maximum density of 620 kg/m3. Service classes 1, 2 and 3
Features
| FOCUS | HBS geometry technology |
|---|---|
| HEAD | countersunk with ribs |
| DIAMETER | 5.0 mm |
| LENGTH | from 50 mm to 100 mm |
Documents
| Technical data sheets | |
|---|---|
| Item specification | |
| File CAD |
SCI A4 | AISI316
| CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
|---|---|---|---|---|
| SCI5050A4 | 5 | 50 | TX25 | 200 |
| SCI5060A4 | 5 | 60 | TX25 | 200 |
| SCI5070A4 | 5 | 70 | TX25 | 100 |
| SCI5080A4 | 5 | 80 | TX25 | 100 |
| SCI5090A4 | 5 | 90 | TX25 | 100 |
| SCI50100A4 | 5 | 100 | TX25 | 100 |
