RTR

STRUCTURAL REINFORCEMENT SYSTEM

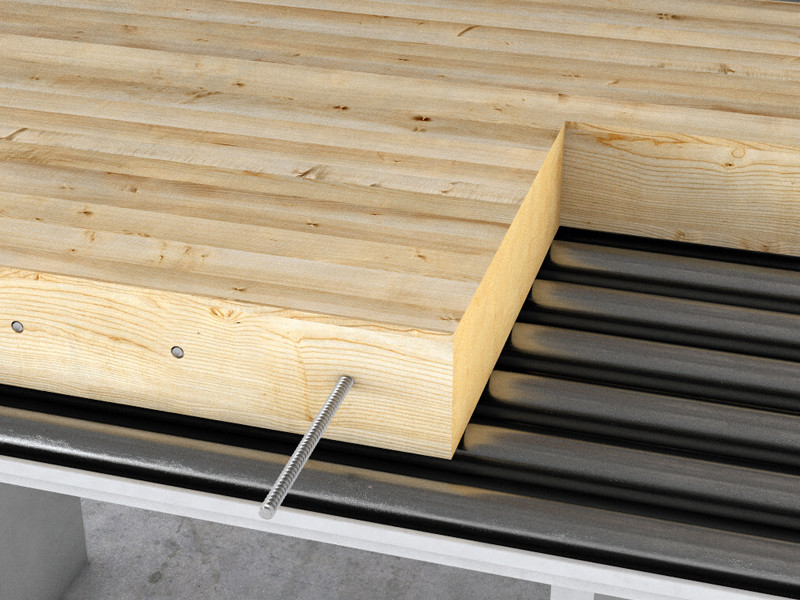

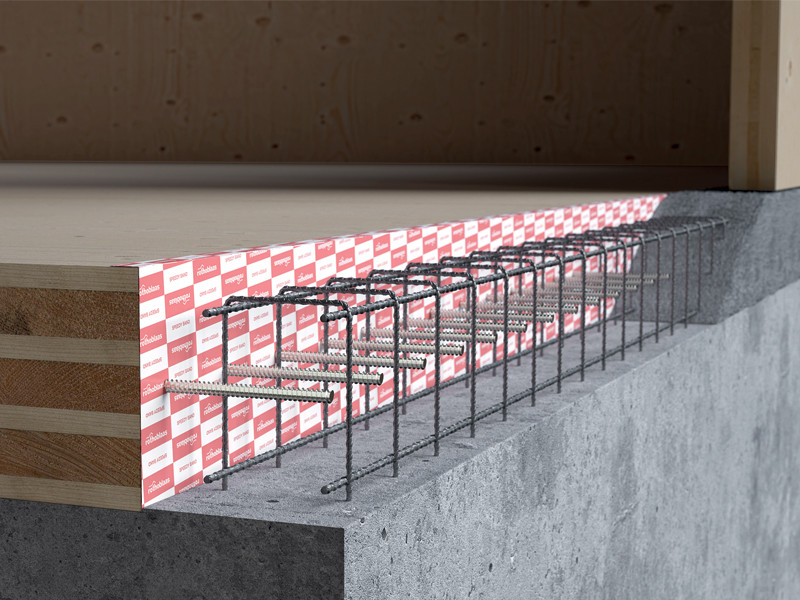

RTR is the structural reinforcement bar with wood thread, CE certified according to ETA 11/0030. The length of the bars allows for fast and secure reinforcements on any size beams.

ETA-11/0030 ETA-22/0806
UKCA 1
t2

Description

For your structural reinforcements, rely on RTR, the CE certified bar with wood thread

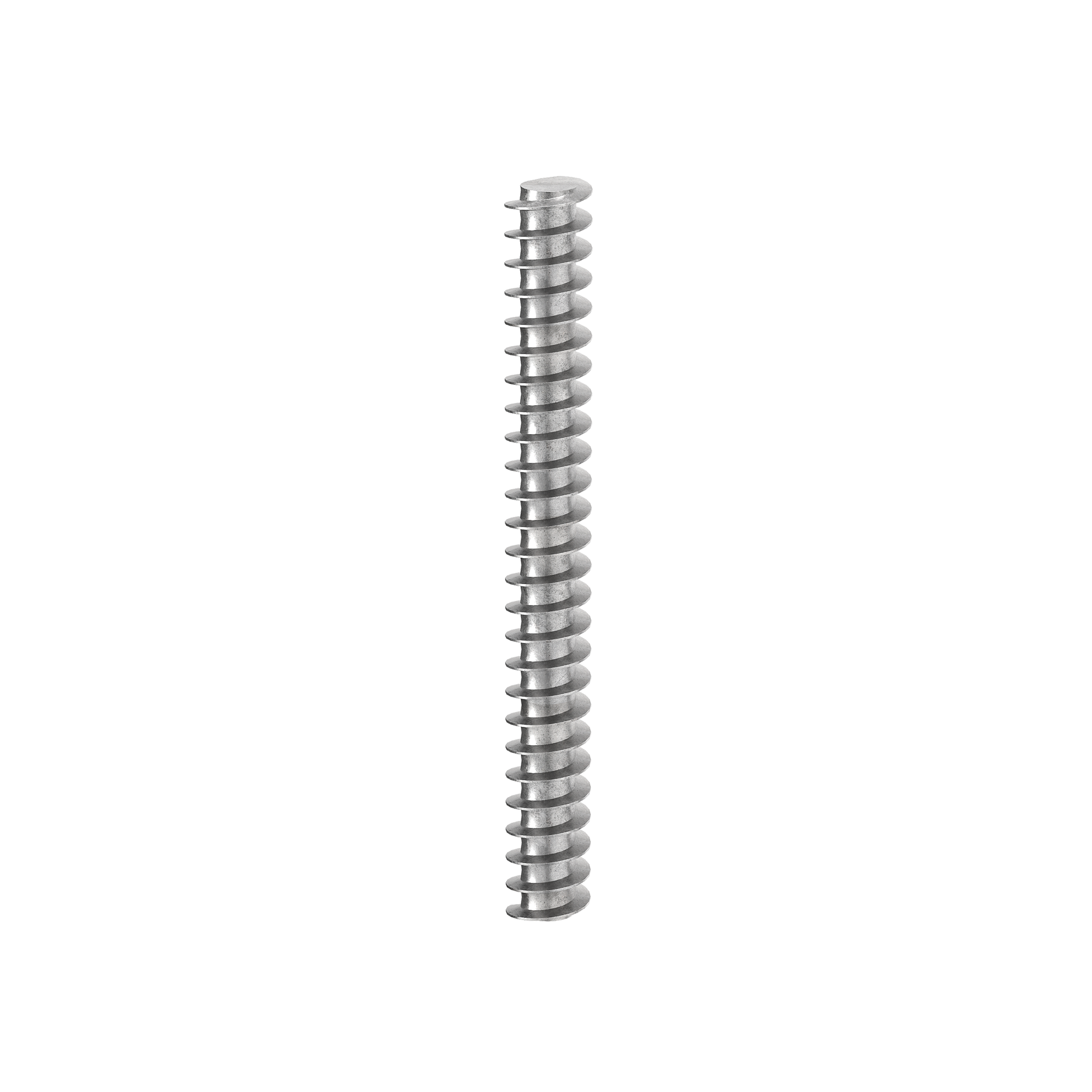

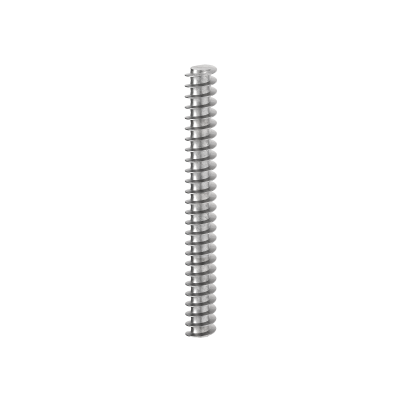

The large RTR reinforcement bar (diameter: 16 mm and 20 mm) with wood thread is a dry system that does not require the use of resin or adhesives. High tensile strength steel (fy,k = 800 N/mm2), ideal for structural reinforcements. Ideal for factory installations.

In carbon steel with bright zinc plated, it is designed for use with wood-based panels, solid timber, glulam, CLT, LVL and high-density woods. Service classes 1 and 2.

Documents

  • Technical data sheets
  • ETA Certificate
  • File CAD

RTR

RTR_2D_v1_web
CODE d₁
[mm]
L
[mm]
d₁
[in]
L
[in]
pcs.
DOP
RTR162200 16 2200 0.63 86 5/8'' 10
RTR202200 20 2200 0.79 86 5/8'' 5

Specifications

Supply and installation of threaded rod for timber, type RTR

Material:

  • Bright zinc plated carbon steel

Geometry:

  • Diameter Ø (mm) =
  • Length L (mm) =

CE marking in accordance with ETA-11/0030
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
