VGZ EVO
Description

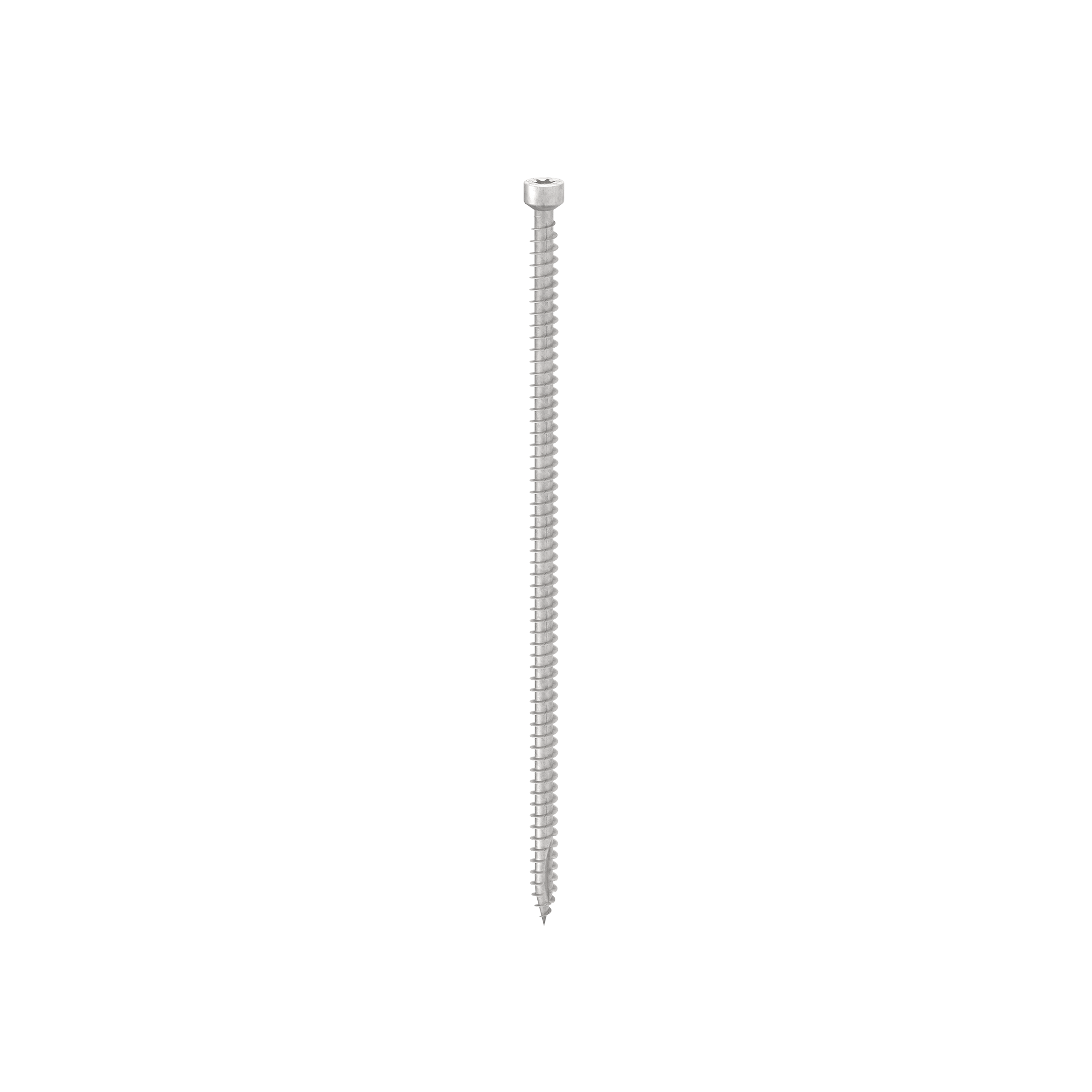

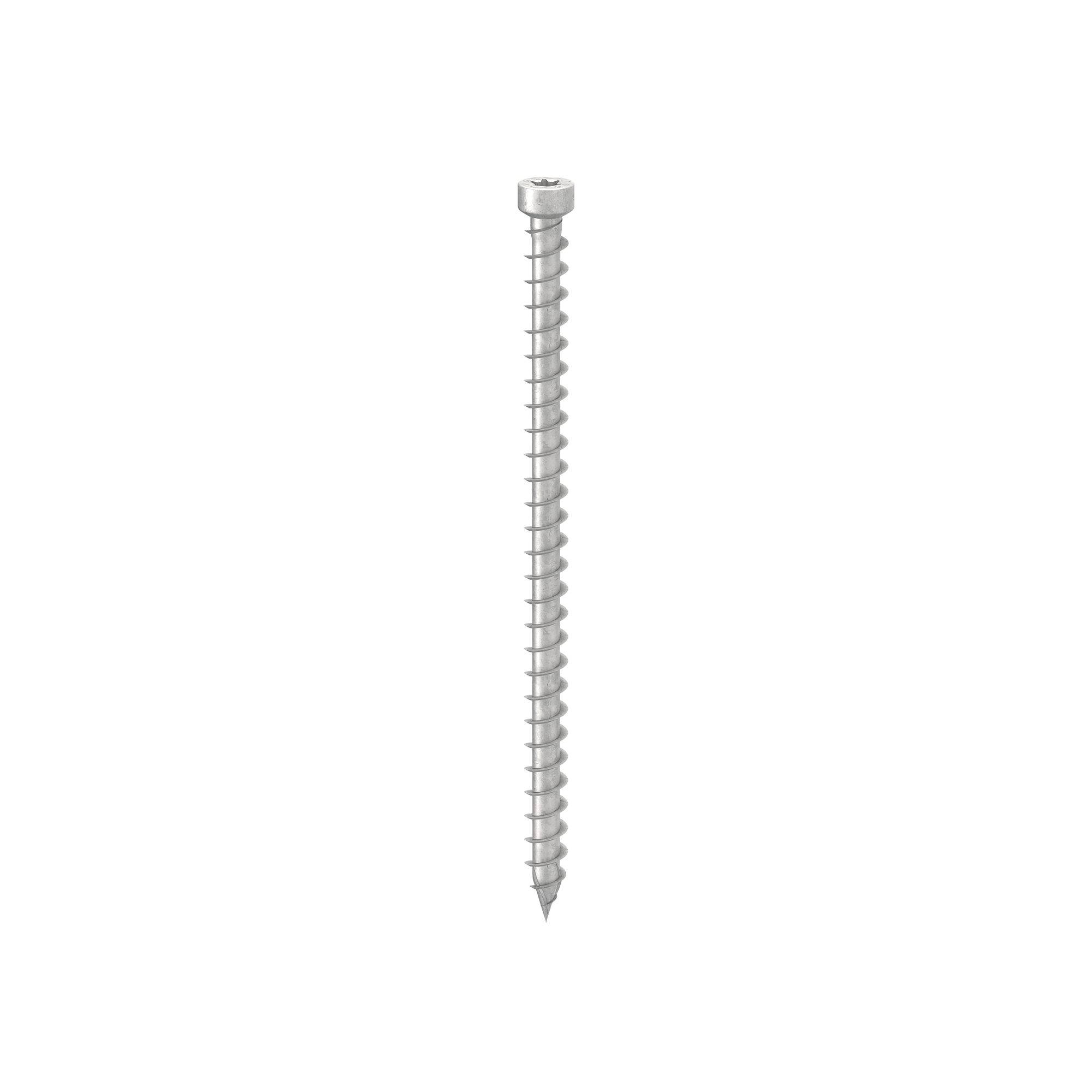

VGZ EVO wood screw, guarantee of quality and durability for structures exposed to atmospheric agents.

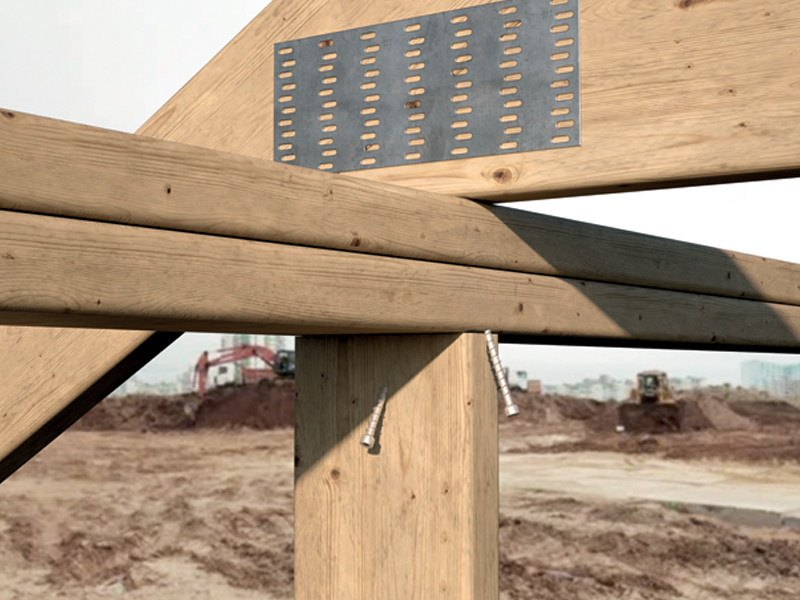

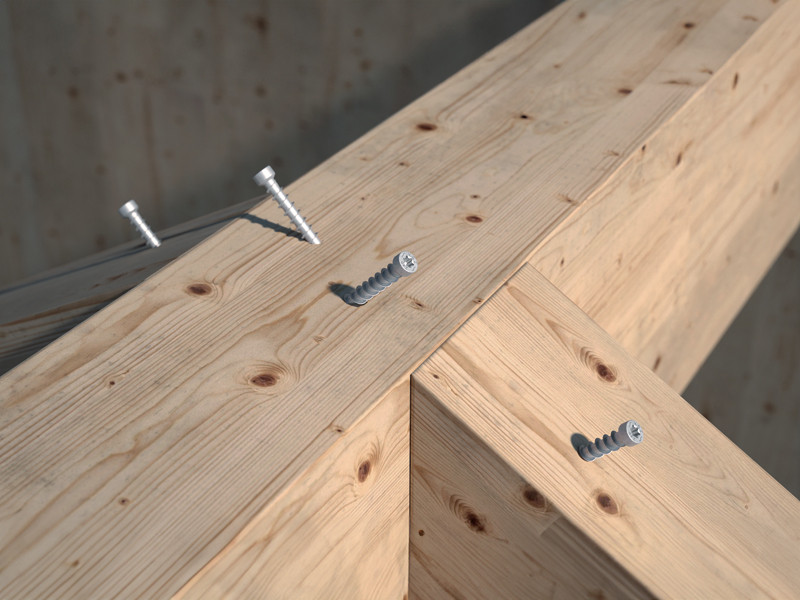

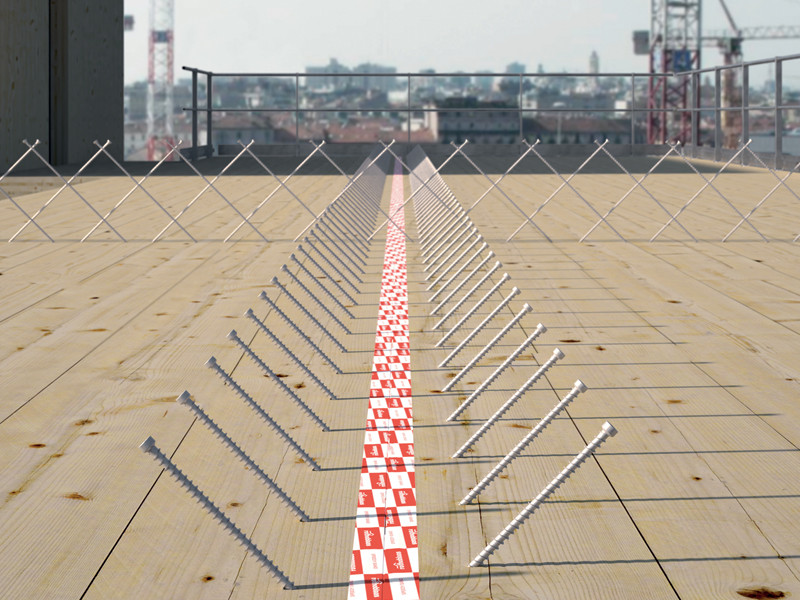

The VGZ EVO screw is approved for structural applications subject to stresses in any direction vs. the grain (α = 0° - 90°). It is the ideal connector for the construction of outdoor structures. The deep thread and highly-resistant steel (fy,k = 1000 N/mm2) guarantee excellent tensile performance.
The values are also tested, certified and calculated for CLT and high density woods such as Microllam® LVL. The minimum distances between one connector and the next are reduced. In carbon steel, the VGZ EVO wood screw features 20 μm multilayer C4 EVO coating with a surface treatment of epoxy resin and aluminium flakes, which showed no rust after 1440 hours of salt spray exposure testing according to ISO 9227.

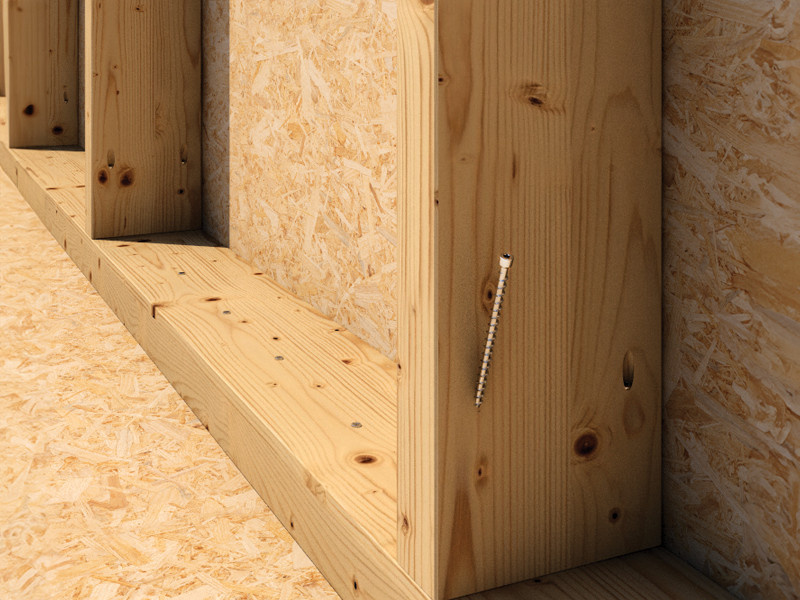

VGZ EVO is the ideal screw for use on wood-based panels, solid timber, glulam, high-density woods. Service classes 1, 2 and 3.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets English Canada CSA-086
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets French Canada CSA-086
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Japanese CBL TS001-21
- Technical data sheets Korean
- Technical data sheets Latvia
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
-
Minimum Distances Guide
-
ICC-ES Evaluation report USA
-
ICC-ES Listing report CANADA
-
ETA Certificate
-
File CAD
-
File BIM.ifc
-
File BIM.rfa
VGZ EVO
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
DOP
|
|---|---|---|---|---|---|---|---|---|---|---|
| VGZEVO580 | - | 5.3 | 80 | 70 | 0.21 | 3 1/8'' | 2 3/4'' | TX25 | 50 | |
| VGZEVO5100 | - | 5.3 | 100 | 90 | 0.21 | 4'' | 3 1/2'' | TX25 | 50 | |
| VGZEVO5120 | - | 5.3 | 120 | 110 | 0.21 | 4 3/4'' | 4 3/8'' | TX25 | 50 | |
| VGZEVO5140 | - | 5.6 | 140 | 130 | 0.23 | 5 1/2'' | 5 1/8'' | TX25 | 50 | |
| VGZEVO5150 | - | 5.6 | 150 | 140 | 0.23 | 6'' | 5 1/2'' | TX25 | 50 | |
| VGZEVO5160 | - | 5.6 | 160 | 150 | 0.23 | 6 1/4'' | 6'' | TX25 | 50 | |
| VGZEVO780 | - | 7 | 80 | 70 | 0.28 | 3 1/8'' | 2 3/4'' | TX30 | 50 | |
| VGZEVO7100 | - | 7 | 100 | 90 | 0.28 | 4'' | 3 1/2'' | TX30 | 50 | |
| VGZEVO7120 | - | 7 | 120 | 110 | 0.28 | 4 3/4'' | 4 3/8'' | TX30 | 50 | |
| VGZEVO7140 | - | 7 | 140 | 130 | 0.28 | 5 1/2'' | 5 1/8'' | TX30 | 50 | |
| VGZEVO7160 | - | 7 | 160 | 150 | 0.28 | 6 1/4'' | 6'' | TX30 | 50 | |
| VGZEVO7180 | - | 7 | 180 | 170 | 0.28 | 7 1/8'' | 6 3/4'' | TX30 | 50 | |
| VGZEVO7200 | - | 7 | 200 | 190 | 0.28 | 8'' | 7 1/2'' | TX30 | 50 | |
| VGZEVO7220 | - | 7 | 220 | 210 | 0.28 | 8 5/8'' | 8 1/4'' | TX30 | 50 | |
| VGZEVO7240 | - | 7 | 240 | 230 | 0.28 | 9 1/2'' | 9 1/16'' | TX30 | 50 | |
| VGZEVO7260 | - | 7 | 260 | 250 | 0.28 | 10 1/4'' | 10'' | TX30 | 50 | |
| VGZEVO7280 | - | 7 | 280 | 270 | 0.28 | 11'' | 10 5/8'' | TX30 | 50 | |
| VGZEVO7300 | - | 7 | 300 | 290 | 0.28 | 11 3/4'' | 11 7/16'' | TX30 | 50 | |
| VGZEVO7340 | - | 7 | 340 | 330 | 0.28 | 13 3/8'' | 13'' | TX30 | 50 | |
| VGZEVO7380 | - | 7 | 380 | 370 | 0.28 | 15'' | 14 9/16'' | TX30 | 50 | |
| VGZEVO9160 | - | 9 | 160 | 150 | 0.36 | 6 1/4'' | 6'' | TX40 | 50 | |
| VGZEVO9180 | - | 9 | 180 | 170 | 0.36 | 7 1/8'' | 6 3/4'' | TX40 | 50 | |
| VGZEVO9200 | - | 9 | 200 | 190 | 0.36 | 8'' | 7 1/2'' | TX40 | 50 | |
| VGZEVO9220 | - | 9 | 220 | 210 | 0.36 | 8 5/8'' | 8 1/4'' | TX40 | 50 | |
| VGZEVO9240 | - | 9 | 240 | 230 | 0.36 | 9 1/2'' | 9 1/16'' | TX40 | 50 | |
| VGZEVO9260 | - | 9 | 260 | 250 | 0.36 | 10 1/4'' | 10'' | TX40 | 50 | |
| VGZEVO9280 | - | 9 | 280 | 270 | 0.36 | 11'' | 10 5/8'' | TX40 | 50 | |
| VGZEVO9300 | - | 9 | 300 | 290 | 0.36 | 11 3/4'' | 11 7/16'' | TX40 | 50 | |
| VGZEVO9320 | - | 9 | 320 | 310 | 0.36 | 12 5/8'' | 12 3/16'' | TX40 | 25 | |
| VGZEVO9340 | - | 9 | 340 | 330 | 0.36 | 13 3/8'' | 13'' | TX40 | 25 | |
| VGZEVO9360 | - | 9 | 360 | 350 | 0.36 | 14 1/4'' | 13 3/4'' | TX40 | 25 | |
| VGZEVO9380 | - | 9 | 380 | 370 | 0.36 | 15'' | 14 9/16'' | TX40 | 25 | |
| VGZEVO9400 | - | 9 | 400 | 390 | 0.36 | 15 3/4'' | 15 3/8'' | TX40 | 25 | |
| VGZEVO9440 | - | 9 | 440 | 430 | 0.36 | 17 1/4'' | 16 15/16'' | TX40 | 25 | |
| VGZEVO9480 | - | 9 | 480 | 470 | 0.36 | 19'' | 18 1/2'' | TX40 | 25 | |
| VGZEVO9520 | - | 9 | 520 | 510 | 0.36 | 20 1/2'' | 20 1/16'' | TX40 | 25 | |
| VGZEVO11250 | - | 11 | 250 | 240 | 0.44 | 10'' | 9 1/2'' | TX50 | 25 | |
| VGZEVO11300 | - | 11 | 300 | 290 | 0.44 | 11 3/4'' | 11 7/16'' | TX50 | 25 | |
| VGZEVO11350 | - | 11 | 350 | 340 | 0.44 | 13 3/4'' | 13 3/8'' | TX50 | 25 | |
| VGZEVO11400 | - | 11 | 400 | 390 | 0.44 | 15 3/4'' | 15 3/8'' | TX50 | 25 | |
| VGZEVO11450 | - | 11 | 450 | 440 | 0.44 | 17 3/4'' | 17 1/4'' | TX50 | 25 | |
| VGZEVO11500 | - | 11 | 500 | 490 | 0.44 | 19 3/4'' | 19 5/16'' | TX50 | 25 | |
| VGZEVO11550 | - | 11 | 550 | 540 | 0.44 | 21 5/8'' | 21 1/4'' | TX50 | 25 | |
| VGZEVO11600 | - | 11 | 600 | 590 | 0.44 | 23 5/8'' | 23 1/4'' | TX50 | 25 |
