FULLY THREADED SCREW FOR HARDWOODS

VGZ HARDWOOD

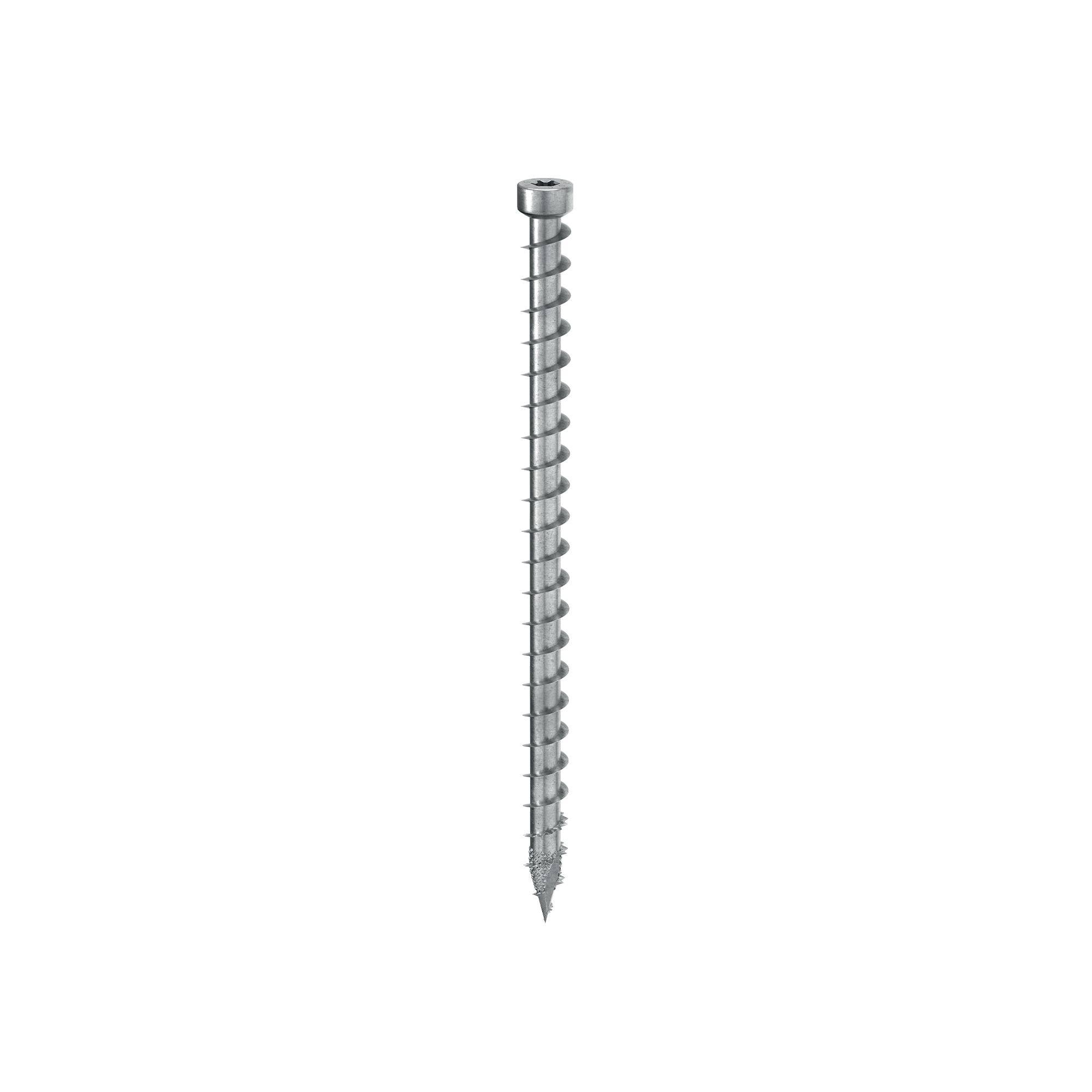

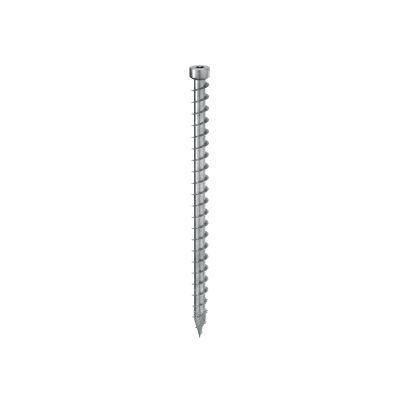

VGZ HARDWOOD is the hardwood screw featuring a special tip with diamond geometry and notched, serrated thread.

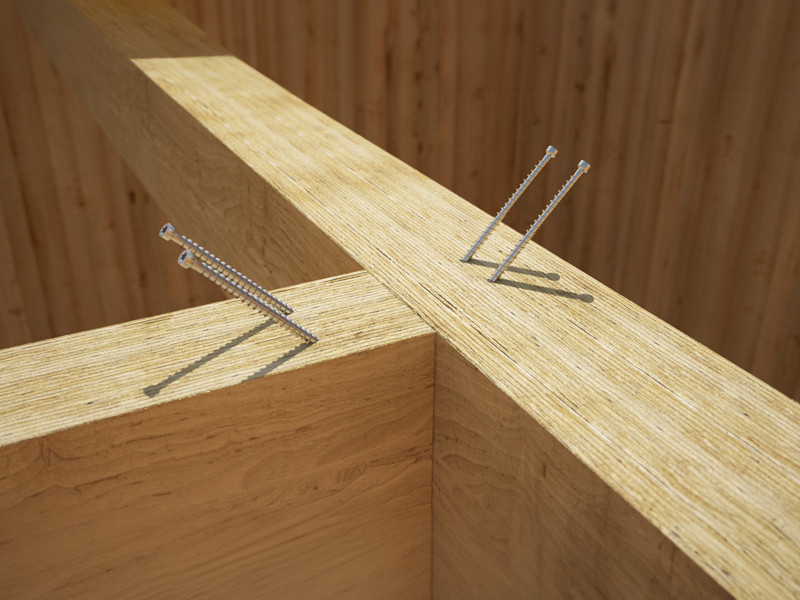

It is certified for use with high-density hard woods without pre-drilling, and it is ideal for concealed joints, timber couplings and structural reinforcements.

VGZ HARDWOOD wood screws: even if the going gets tough, proceed without pre-drilling.

The VGZ HARDWOOD wood screw is ETA 11/0030 certified for use with high-density woods without pre-drilling.

Approved for structural applications subject to stresses in any direction vs. the grain (α = 0° - 90°), it features excellent tensile performance, thanks to a deep thread and a high-strength steel (fy,k = 1000 N/mm2).

VGZ HARDWOOD guarantees fire protection and earthquake suitability. Values are also tested, certified and calculated for high-density woods such as beechwood Microllam® LVL. Certified for use without pre-drilling, for densities of up to 780 kg/m3.

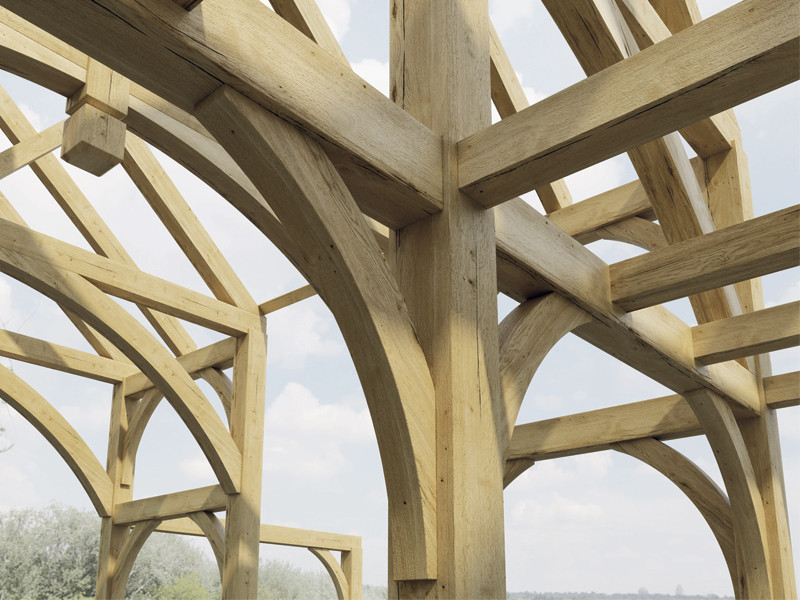

Also tested on structural woods such as beech, cypress, eucalyptus, bamboo.

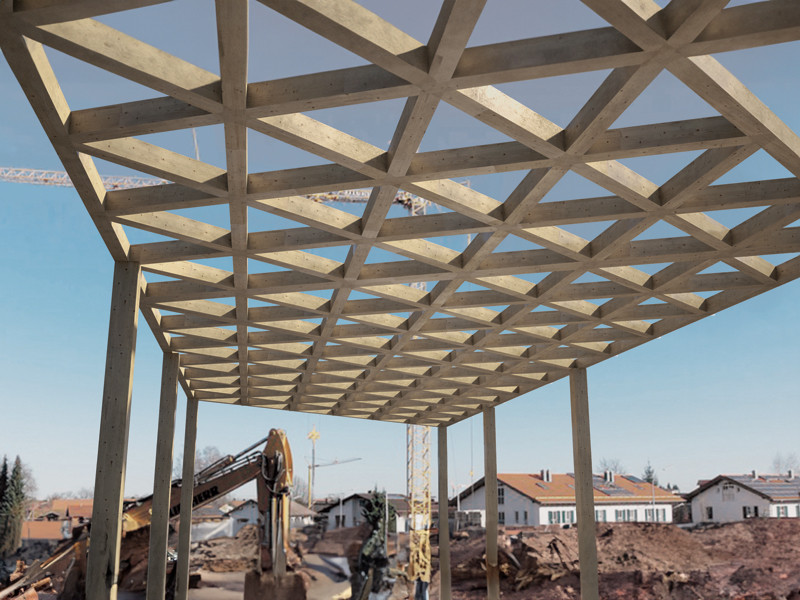

Made of carbon steel with bright zinc plated, it is excellent for use with wood-based panels, solid timber, glulam, CLT, LVL and high-density woods, beechwood, cypress, eucalyptus and bamboo. Service classes 1 and 2.

Features

FOCUS fastener for hardwood
HEAD cylindrical, countersunk
DIAMETER 6,0 | 8,0 mm
LENGTH from 140 mm to 320 mm

Documents

Technical data sheets
Technical data sheets USA 🇺🇸
ETA Certificate
Declaration of performance (DOP) Download
File CAD
File BIM.ifc
File BIM.rfa

VGZ HARDWOOD

CODE info d₁
[mm]
L
[mm]
b
[mm]
d₁
[in]
L
[in]
b
[in]
TX pcs.
VGZH6140 - 6 140 130 0.24 5 1/2'' 5 1/8'' TX30 25
VGZH6180 - 6 180 170 0.24 7 1/8'' 6 3/4'' TX30 25
VGZH6220 - 6 220 210 0.24 8 5/8'' 8 1/4'' TX30 25
VGZH6260 - 6 260 250 0.24 10 1/4'' 10'' TX30 25
VGZH6280 - 6 280 270 0.24 11'' 10 5/8'' TX30 25
VGZH6320 - 6 320 310 0.24 12 5/8'' 12 3/16'' TX30 25
VGZH6420 - 6 420 410 0.24 16 9/16'' 16 1/8'' TX30 25
VGZH8200 - 8 200 190 0.32 8'' 7 1/2'' TX40 25
VGZH8240 - 8 240 230 0.32 9 1/2'' 9 1/16'' TX40 25
VGZH8280 - 8 280 270 0.32 11'' 10 5/8'' TX40 25
VGZH8320 - 8 320 310 0.32 12 5/8'' 12 3/16'' TX40 25
VGZH8360 - 8 360 350 0.32 14 1/4'' 13 3/4'' TX40 25
VGZH8400 - 8 400 390 0.32 15 3/4'' 15 3/8'' TX40 25
VGZH8440 - 8 440 430 0.32 17 1/4'' 16 15/16'' TX40 25
