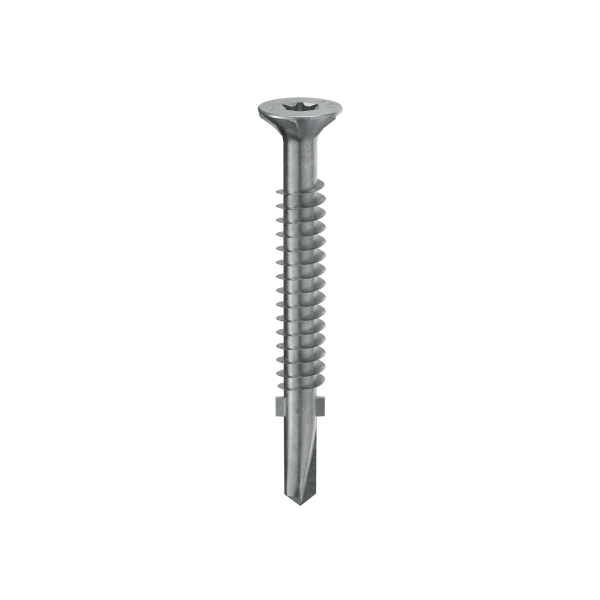

SELF-DRILLING TIMBER-METAL SCREW

SBS

The SBS self-drilling screw is CE marked according to EN 14592. It is the ideal choice for professionals who demand quality, safety and reliable performance in structural timber-to-metal applications.

Special self-perforating tip with bleeder geometry for excellent drilling capacity both in aluminium (thickness: up to 8 mm) and steel (thickness: up to 6 mm).

The fins protect the screw thread during timber pull-through. They guarantee maximum threading efficiency in metal and perfect adhesion between the thickness of the wood and the metal.

Features

FOCUS self-perforating tip with protective fins
HEAD countersunk with under-head ribs
DIAMETER from 4,2 mm to 6,3 mm
LENGTH from 32 mm to 240 mm

Documents

Technical data sheets
Technical data sheets USA
Declaration of performance (DOP) Download
File CAD

SBS

CODE info d₁
[mm]
L
[mm]
b
[mm]
d₁
[in]
L
[in]
b
[in]
TX pcs.
SBS4232 - 4.2 32 18 0.17 1 1/4'' 11/16'' TX20 500
SBS4238 - 4.2 38 19 0.17 1 1/2'' 3/4'' TX20 500
SBS4838 - 4.8 38 23 0.19 1 1/2'' 7/8'' TX25 200
SBS4845 - 4.8 45 25 0.19 1 3/4'' 1'' TX25 200
SBS5545 - 5.5 45 29 0.22 1 3/4'' 1 1/8'' TX30 200
SBS5550 - 5.5 50 29 0.22 1 15/16'' 1 1/8'' TX30 200
SBS6360 - 6.3 60 35 0.25 2 3/8'' 1 3/8'' TX30 100
SBS6370 - 6.3 70 45 0.25 2 3/4'' 1 3/4'' TX30 100
SBS6385 - 6.3 85 55 0.25 3 3/8'' 2 3/16'' TX30 100
SBS63100 - 6.3 100 55 0.25 4'' 2 3/16'' TX30 100
