SBS A2 | AISI304
SELF-DRILLING TIMBER-METAL SCREW

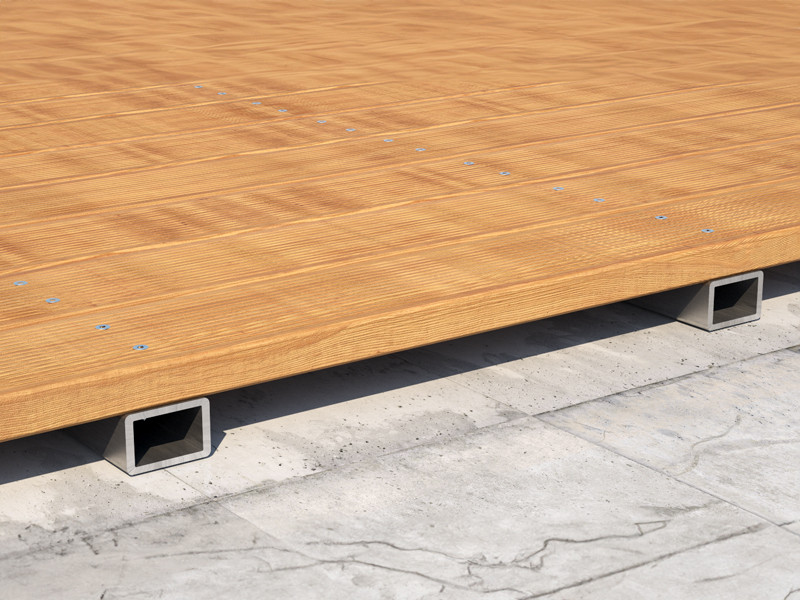

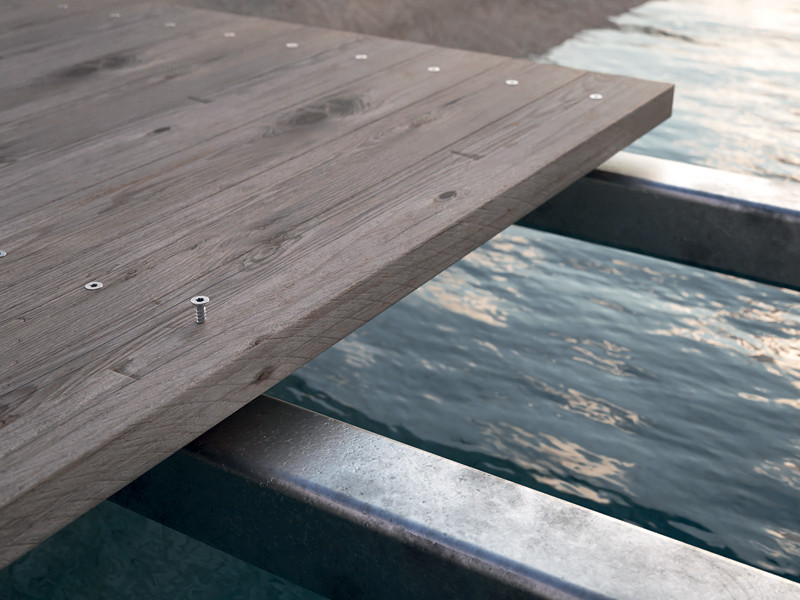

The SBS A2 | AISI304 wood screw is ideal for direct fastening, without pre-drilling, of wooden elements to steel (maximum thickness 6.0 mm) or aluminium (maximum thickness 8,0 mm) substructures in outdoor environments.
Description
SBS A2 | AISI304 wood screws: great metal perforating capacity and excellent corrosion resistance.

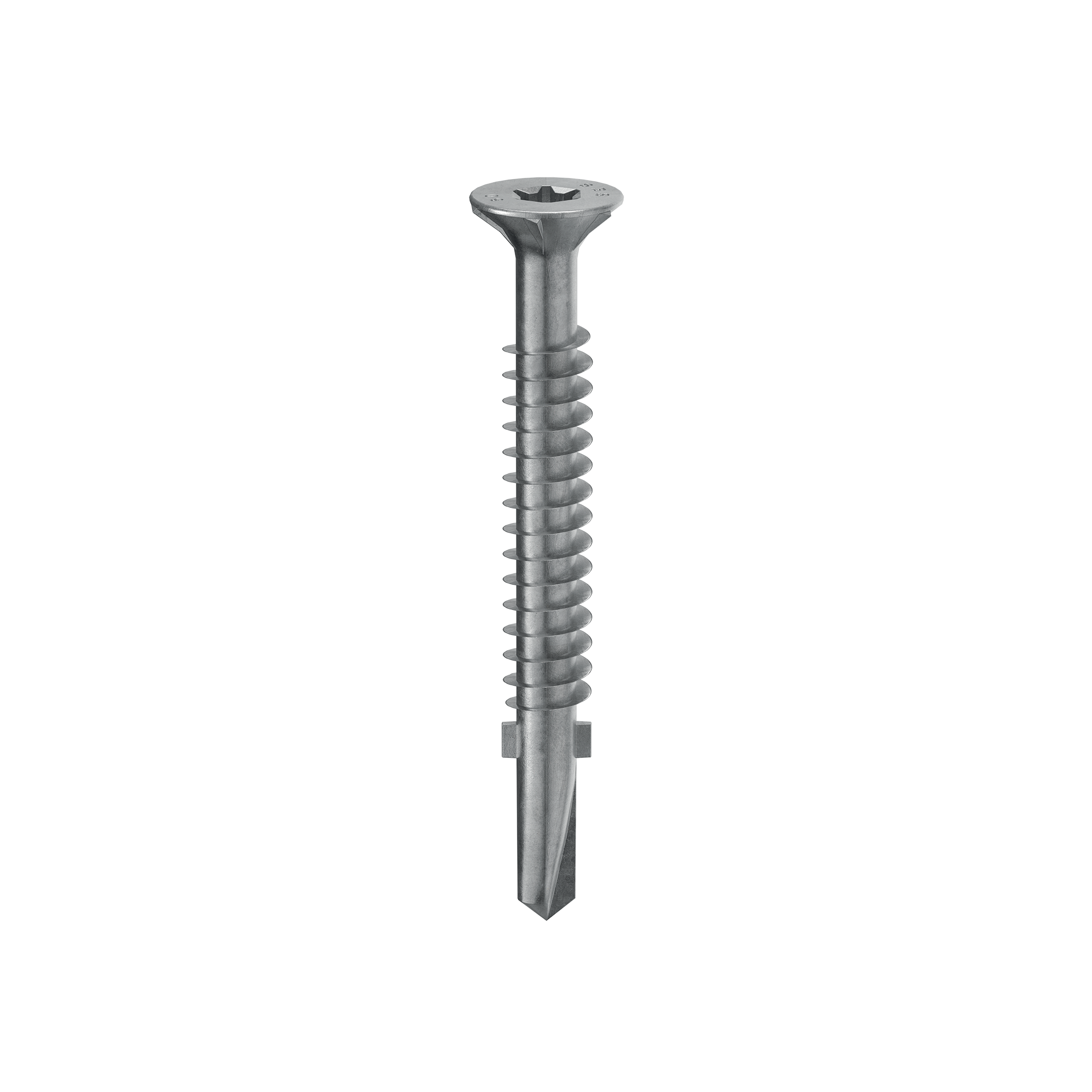

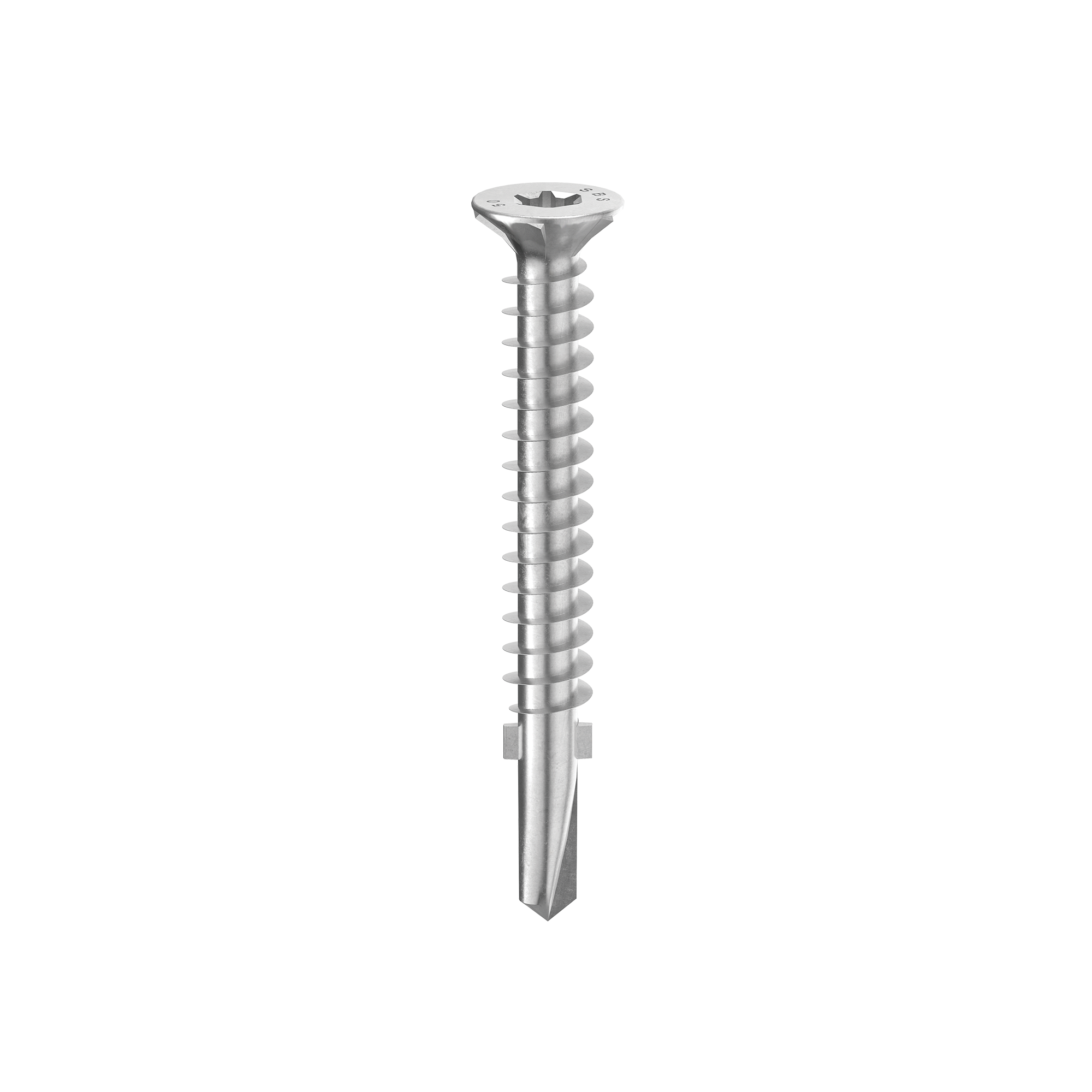

SBS A2 | AISI304 is a bimetal wood screw.
The head and body are made of A2 | AISI304 stainless steel, providing high corrosion resistance. The tip is made of carbon steel, for excellent drilling performance.
The special self-perforating tip with bleeder geometry ensures excellent drilling capacity both in aluminium and in steel, while the fins protect the screw thread during penetration into the wood.
The sharp under-head ribs guarantee a perfect surface finish on the wooden element.

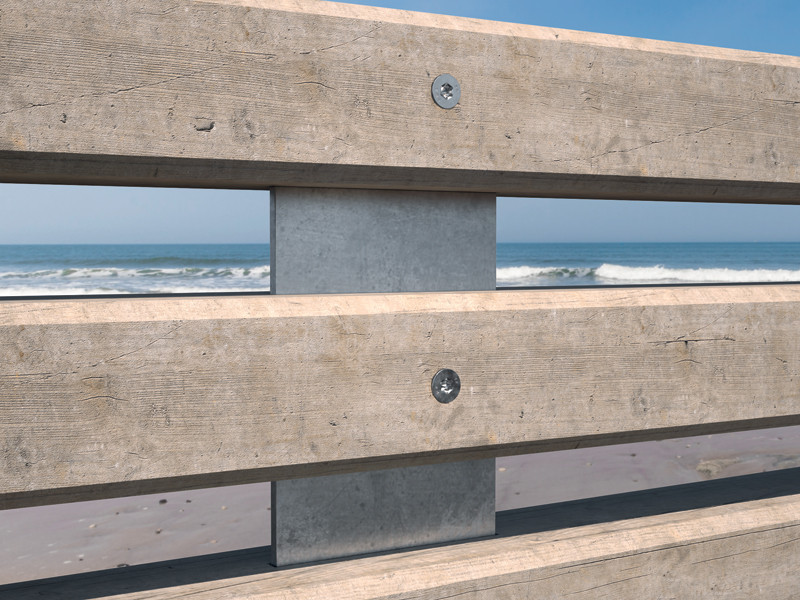

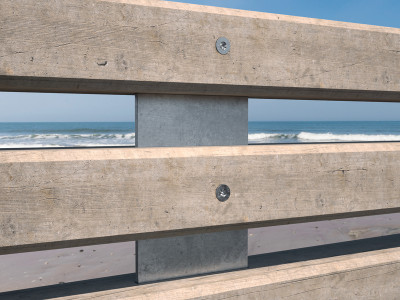

SBS A2 | AISI304 is ideal for outdoor applications, thanks to the A2 | AISI304 stainless steel head and body.
Suitable for service classes 1, 2 and 3.
Documents
-
Technical data sheets
-
File CAD
SBS A2 | AISI304
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| SBSA24845 | - | 4.8 | 45 | 31 | 0.19 | 1 3/4'' | 1 1/4'' | TX25 | 200 |
| SBSA25555 | - | 5.5 | 55 | 39 | 0.22 | 2 3/16'' | 1 9/16'' | TX25 | 200 |
| SBSA26370 | - | 6.3 | 70 | 53 | 0.25 | 2 3/4'' | 2 1/16'' | TX30 | 100 |
| SBSA263120 | - | 6.3 | 120 | 103 | 0.25 | 4 3/4'' | 4 1/16'' | TX30 | 100 |
