VGS PLATE

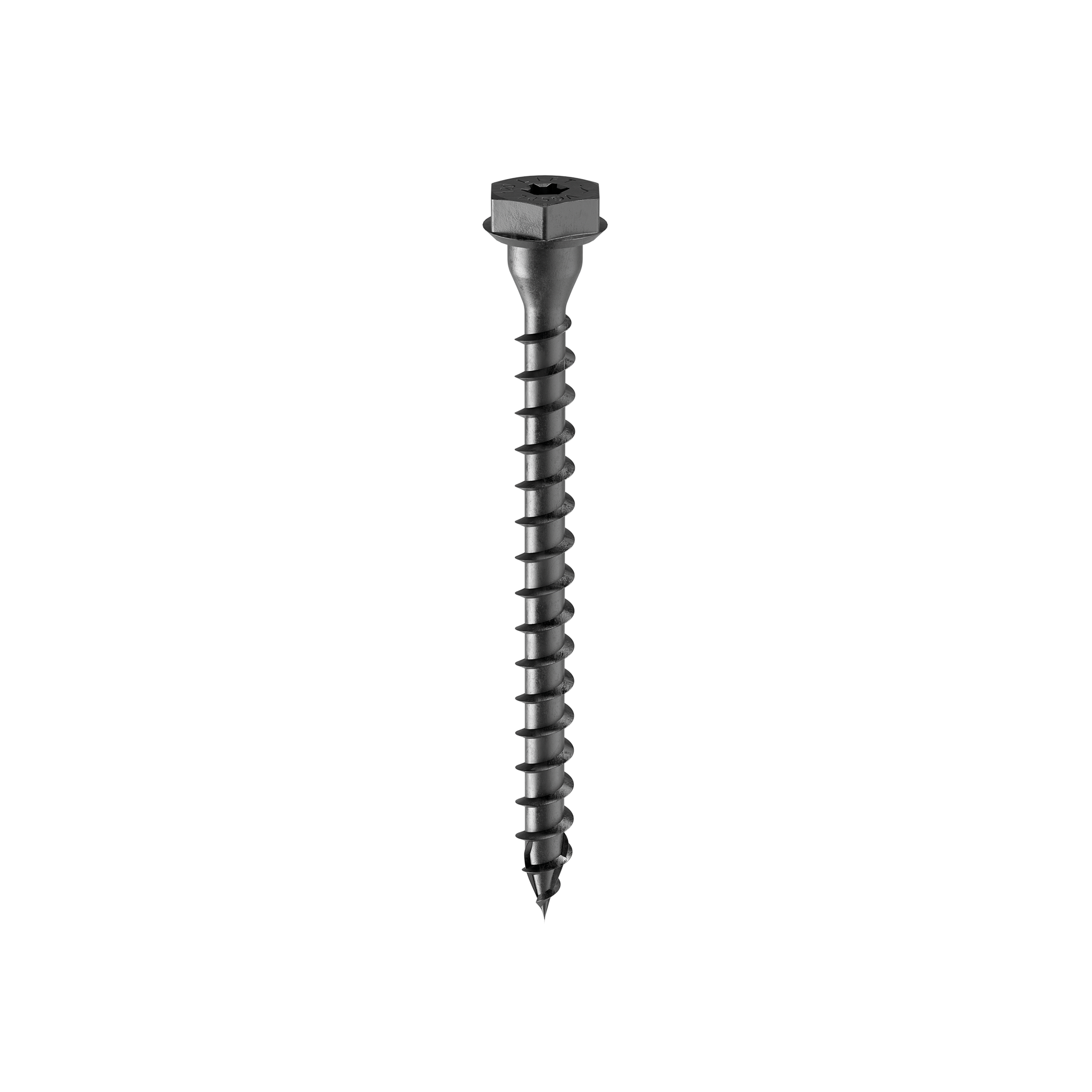

PAN HEAD HEX SCREW FOR LIFTING VGS PLATE

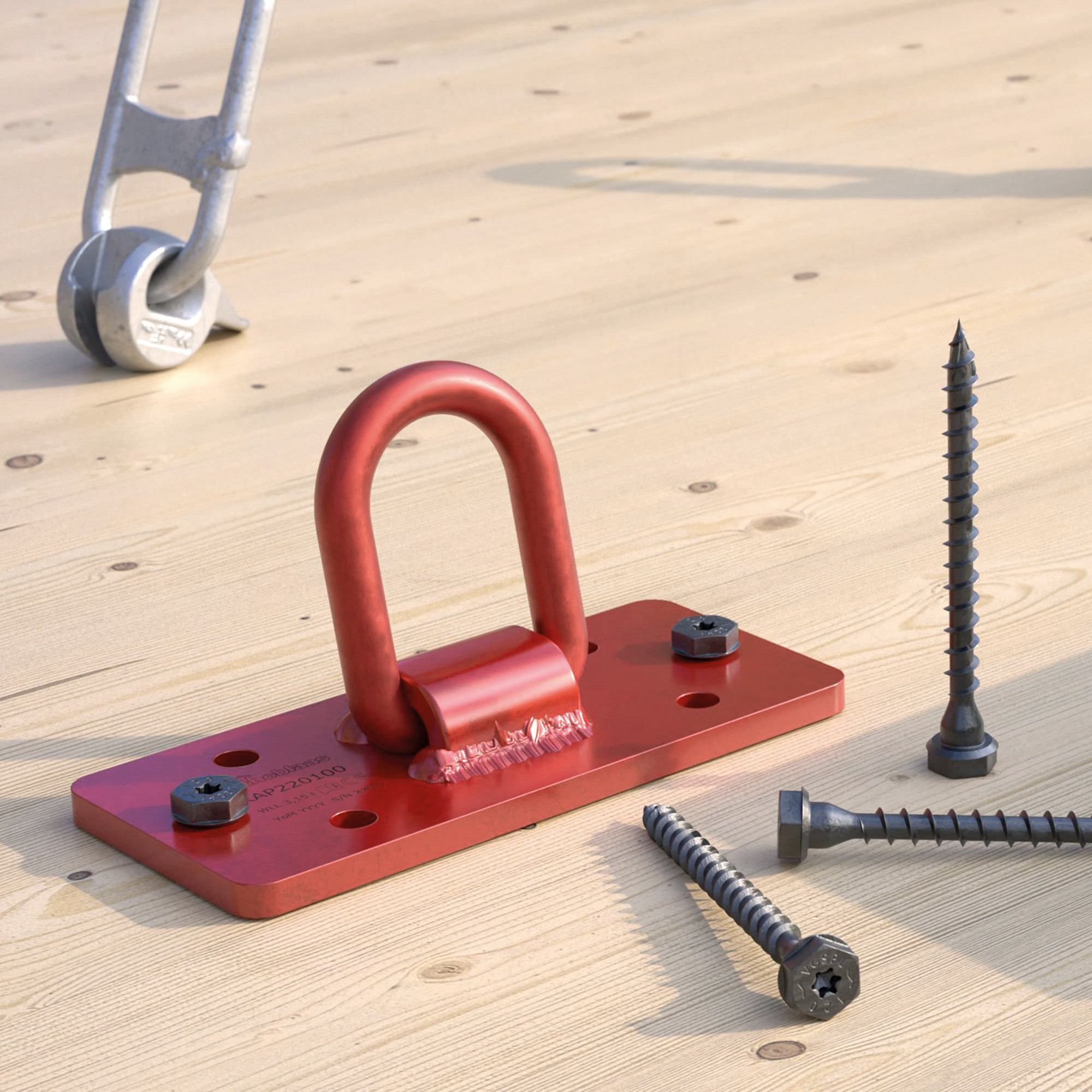

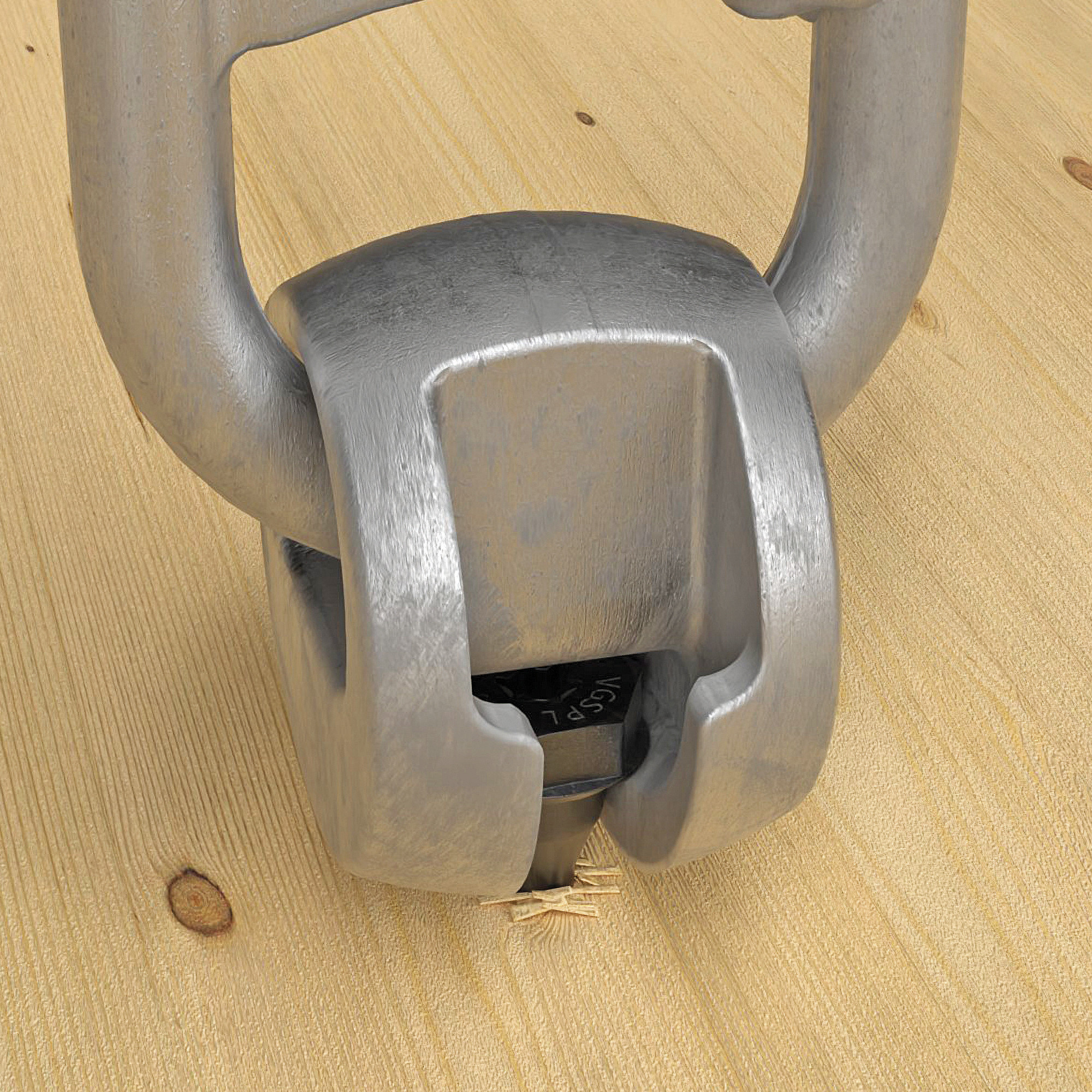

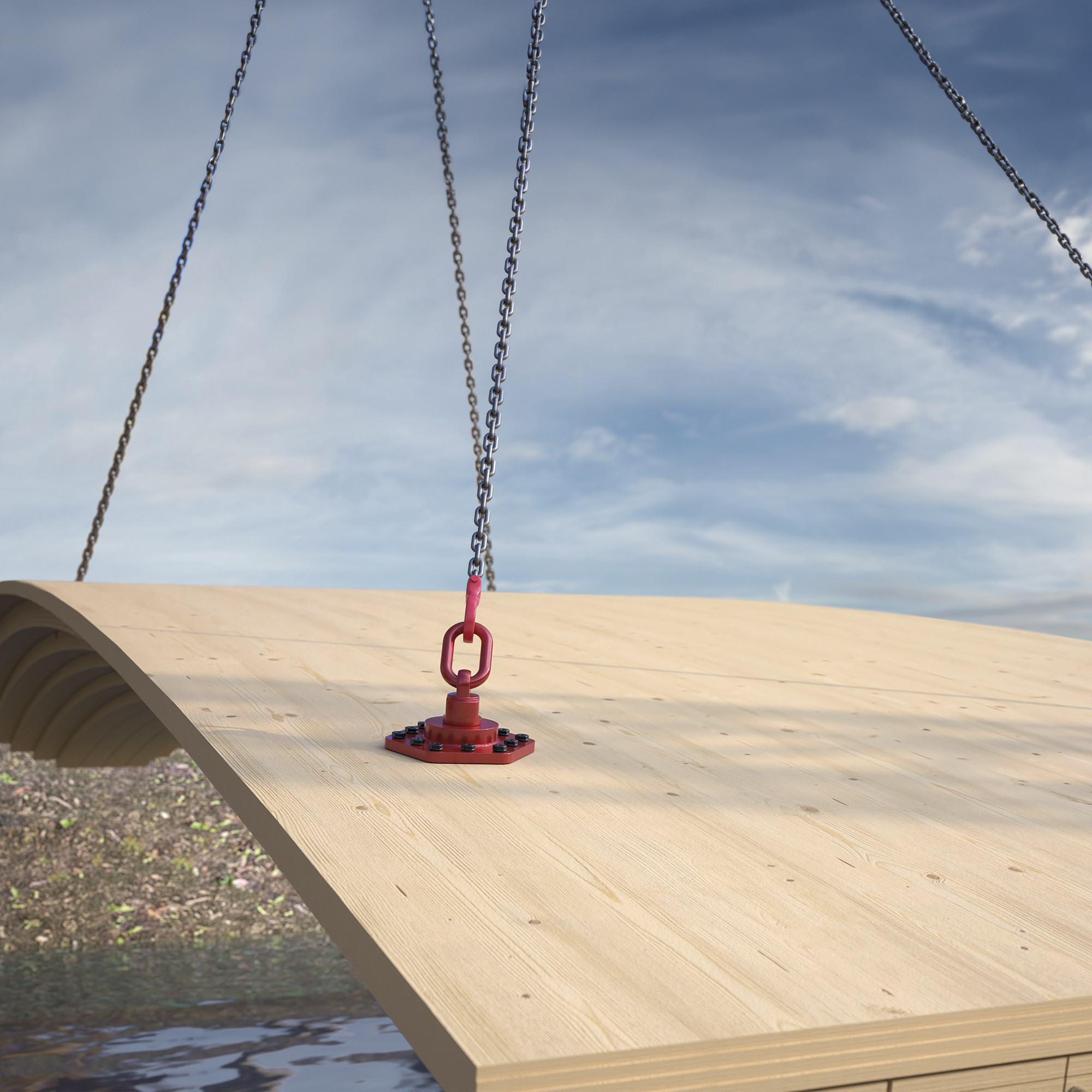

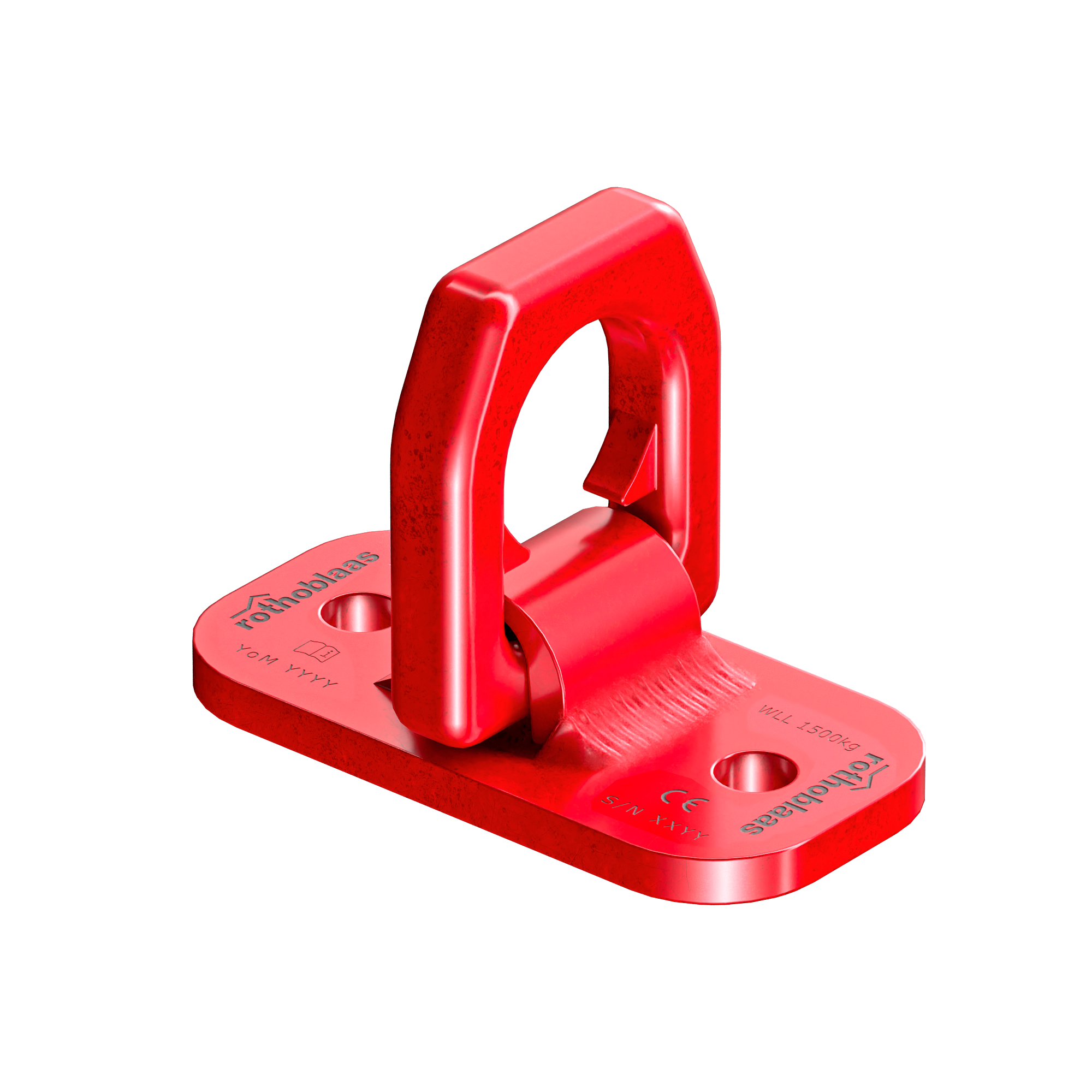

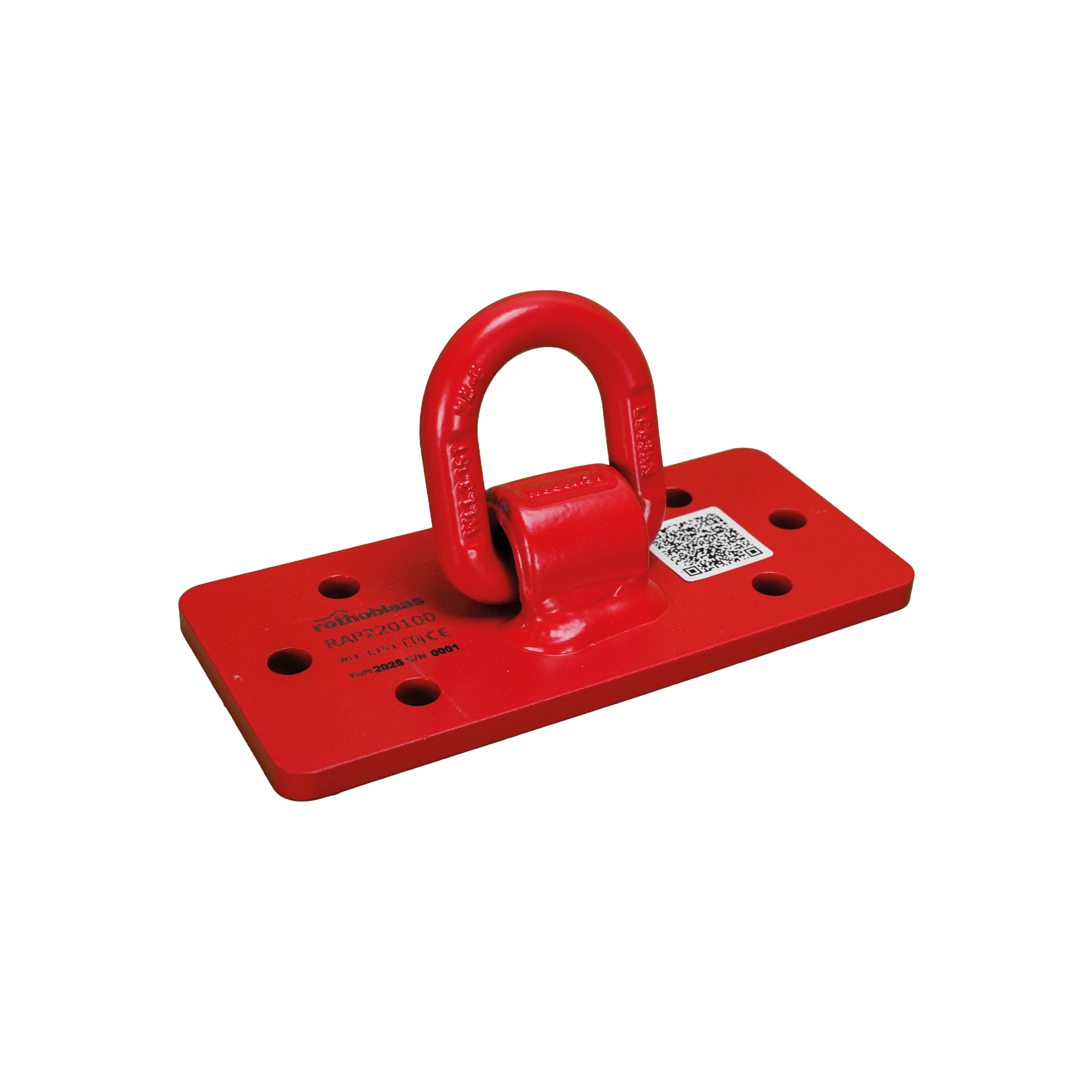

The specially developed head shape guarantees full compatibility with all screw-based transport and lifting systems (WASP, WASPL, RAPTOR, RAPTOR MINI and RAPTOR MAXI).

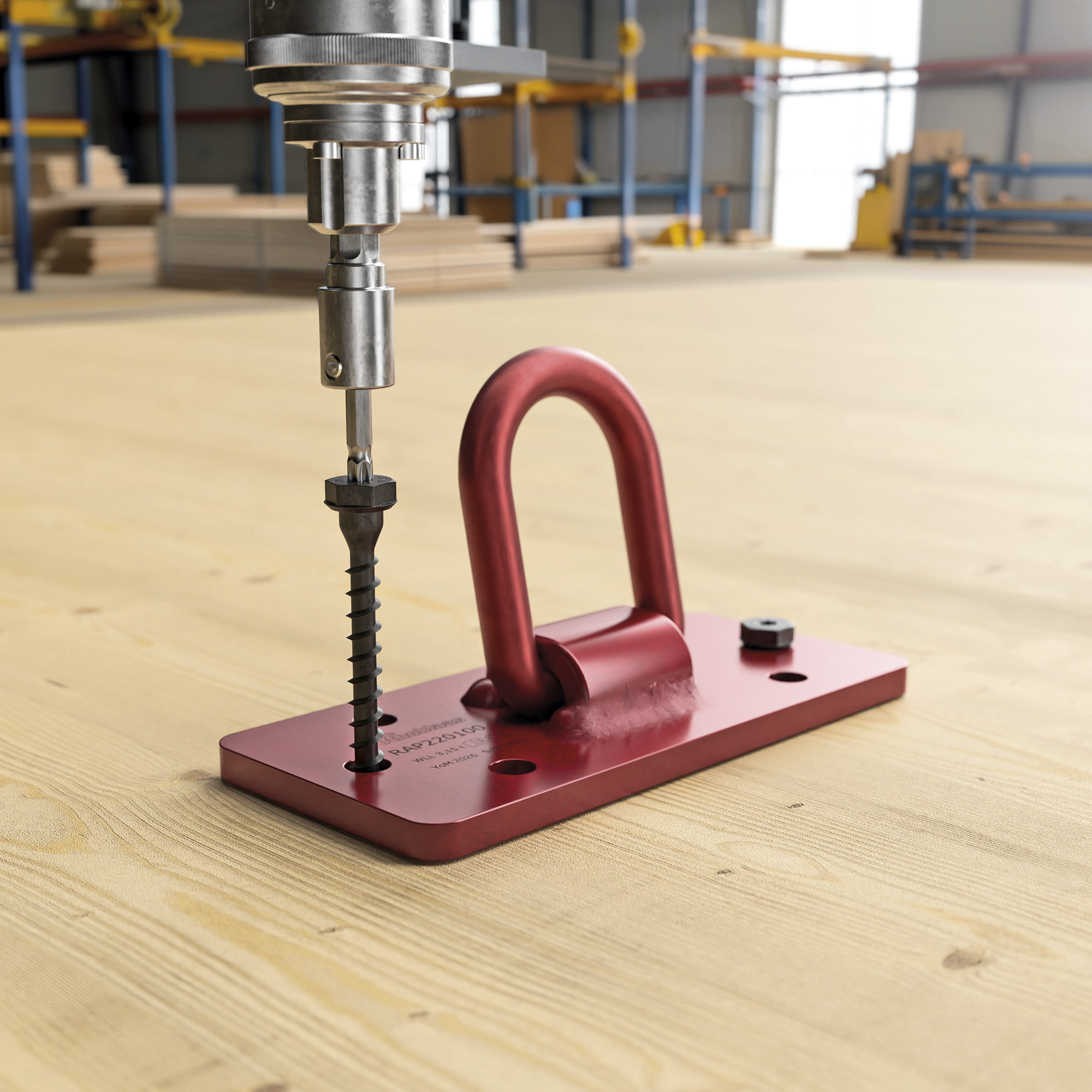

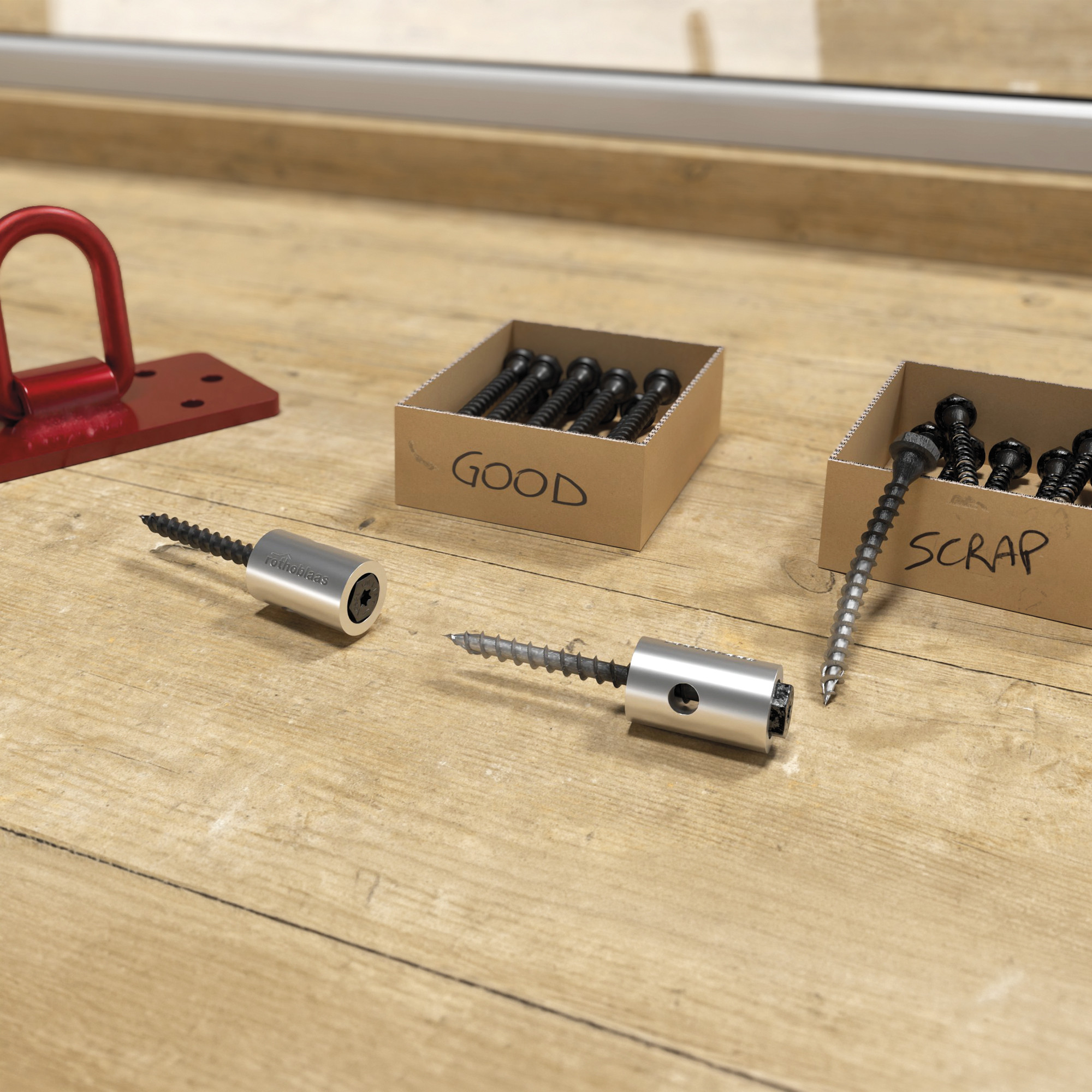

Unlike traditional single-use solutions, this screw is designed for multiple use during transport. The combination of a robust hexagonal head and TORX drive enables screwing and unscrewing without damaging the screw.
Integrated colour coding allows immediate identification of the screw on site and avoids confusion with non-approved standard timber screws.

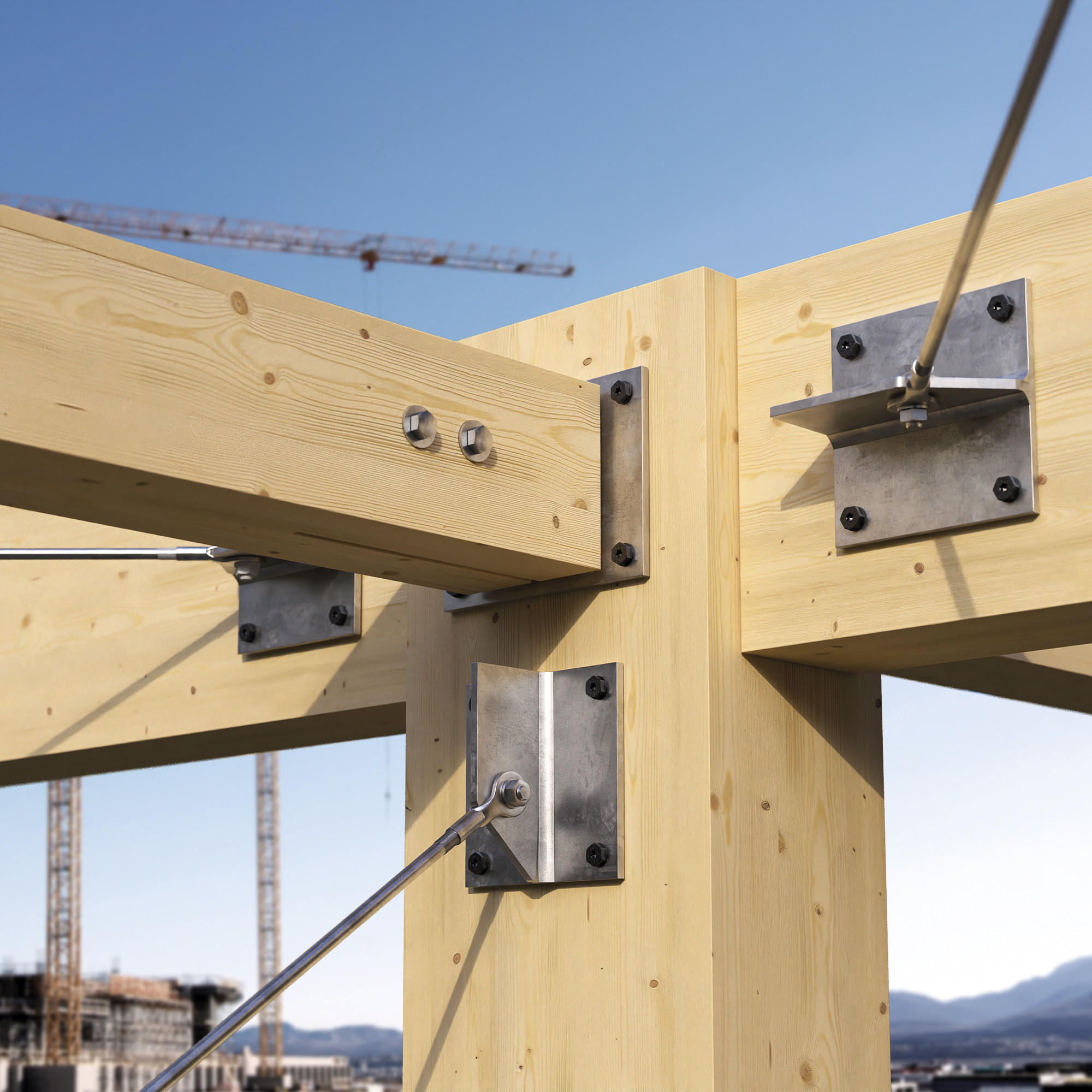

The screw is also certified for permanent metal-to-timber structural connections in buildings. The head is designed for pairing with plates.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
-
File CAD
-
File BIM.ifc
-
File BIM.rfa
-
Instructions and criteria for reuse in lifting systems
-
Installation Instructions
VGS PLATE
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| VGSPL1160 | - | 11 | 60 | 50 | 0.44 | 2 3/8'' | 1 15/16'' | TX50 | 25 |
| VGSPL1180 | - | 11 | 80 | 70 | 0.44 | 3 1/8'' | 2 3/4'' | TX50 | 25 |
| VGSPL11100 | - | 11 | 100 | 90 | 0.44 | 4'' | 3 1/2'' | TX50 | 25 |
| VGSPL11120 | - | 11 | 120 | 110 | 0.44 | 4 3/4'' | 4 3/8'' | TX50 | 25 |
| VGSPL11140 | - | 11 | 140 | 130 | 0.44 | 5 1/2'' | 5 1/8'' | TX50 | 25 |
| VGSPL11160 | - | 11 | 160 | 150 | 0.44 | 6 1/4'' | 6'' | TX50 | 25 |
| VGSPL11180 | - | 11 | 180 | 170 | 0.44 | 7 1/8'' | 6 3/4'' | TX50 | 25 |
| VGSPL11200 | - | 11 | 200 | 190 | 0.44 | 8'' | 7 1/2'' | TX50 | 25 |
| VGSPL11240 | - | 11 | 240 | 230 | 0.44 | 9 1/2'' | 9 1/16'' | TX50 | 25 |
| VGSPL11280 | - | 11 | 280 | 270 | 0.44 | 11'' | 10 5/8'' | TX50 | 25 |
