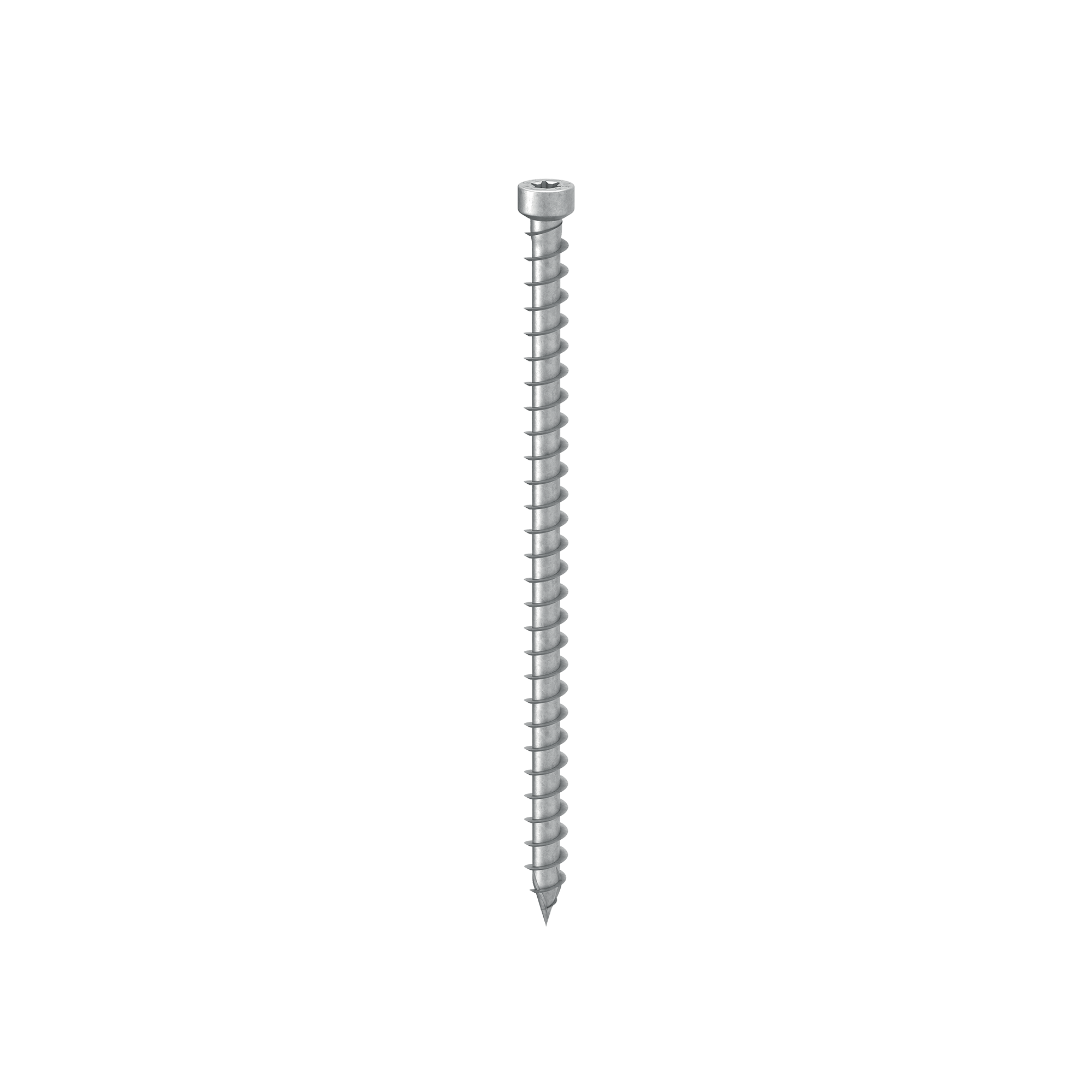

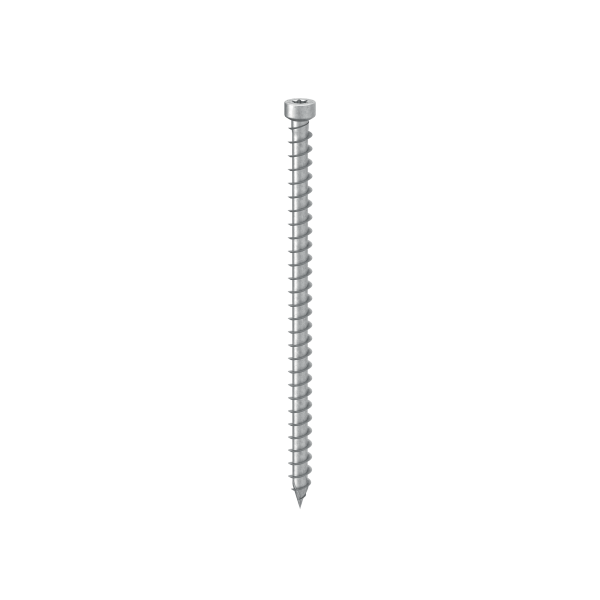

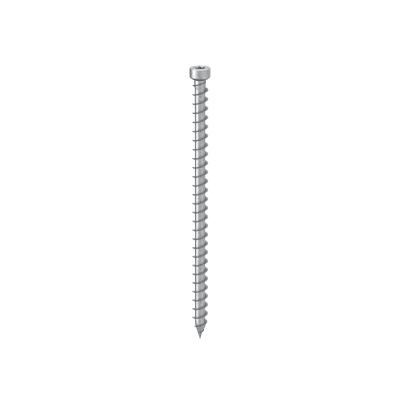

VGZ EVO C5
FULLY THREADED SCREW WITH CYLINDRICAL HEAD
C5 ATMOSPHERIC CORROSIVITY
Multi-layer coating capable of withstanding outdoor environments classified C5 according to ISO 9223. Salt Spray Test (SST) with exposure time greater than 3000 h carried out on screws previously screwed and unscrewed in Douglas fir timber.
3 THORNS TIP
Thanks to the 3 THORNS tip, minimum installation distances are reduced. More screws can be used in less space and larger screws in smaller elements. Costs and time for project implementation are reduced.
MAXIMUM STRENGTH

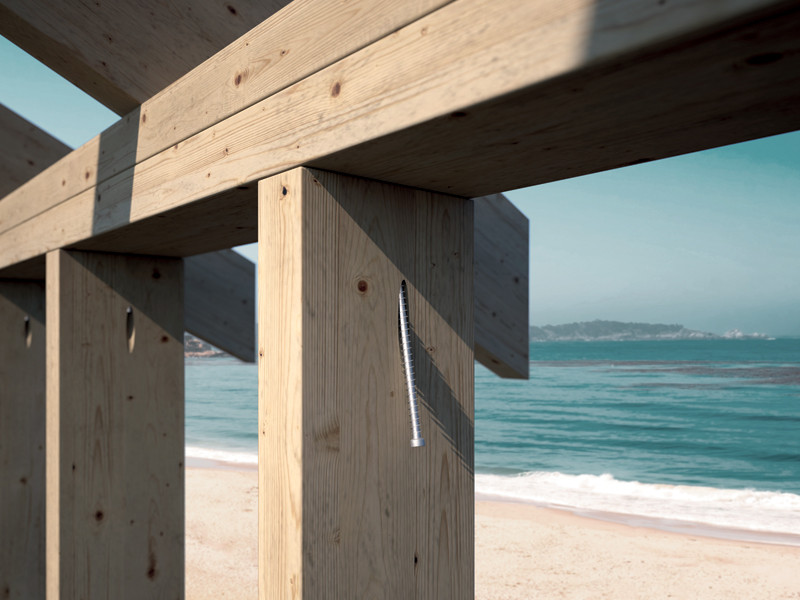

It is the screw of choice if high mechanical performance is required under very adverse atmospheric corrosive conditions. The cylindrical head makes it ideal for concealed joints, timber couplings and structural reinforcements.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Korean
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
VGZ EVO C5
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| VGZEVO7140C5 | - | 7 | 140 | 130 | 0.28 | 5 1/2'' | 5 1/8'' | TX30 | 25 |
| VGZEVO7180C5 | - | 7 | 180 | 170 | 0.28 | 7 1/8'' | 6 3/4'' | TX30 | 25 |
| VGZEVO7220C5 | - | 7 | 220 | 210 | 0.28 | 8 5/8'' | 8 1/4'' | TX30 | 25 |
| VGZEVO7260C5 | - | 7 | 260 | 250 | 0.28 | 10 1/4'' | 10'' | TX30 | 25 |
| VGZEVO7300C5 | - | 7 | 300 | 290 | 0.28 | 11 3/4'' | 11 7/16'' | TX30 | 25 |
| VGZEVO9200C5 | - | 9 | 200 | 190 | 0.36 | 8'' | 7 1/2'' | TX40 | 25 |
| VGZEVO9240C5 | - | 9 | 240 | 230 | 0.36 | 9 1/2'' | 9 1/16'' | TX40 | 25 |
| VGZEVO9280C5 | - | 9 | 280 | 270 | 0.36 | 11'' | 10 5/8'' | TX40 | 25 |
| VGZEVO9320C5 | - | 9 | 320 | 310 | 0.36 | 12 5/8'' | 12 3/16'' | TX40 | 25 |
| VGZEVO9360C5 | - | 9 | 360 | 350 | 0.36 | 14 1/4'' | 13 3/4'' | TX40 | 25 |
