UNIVERSAL DOUBLE-SIDED BUTYL TAPE WITH HIGH ADHESIVENESS
SUPRA BAND

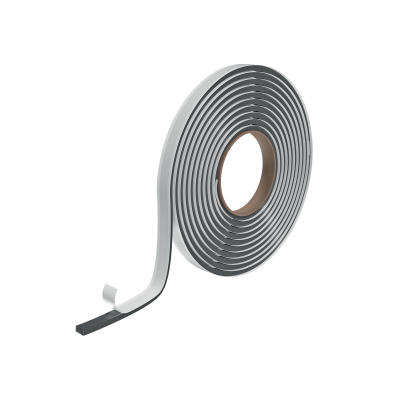

SUPRA BAND is an extremely versatile and high-performance universal butyl sealing tape.
Suitable for sealing timber-to-timber joints, it compensates for the natural movement of the material, guaranteeing optimal tightness.

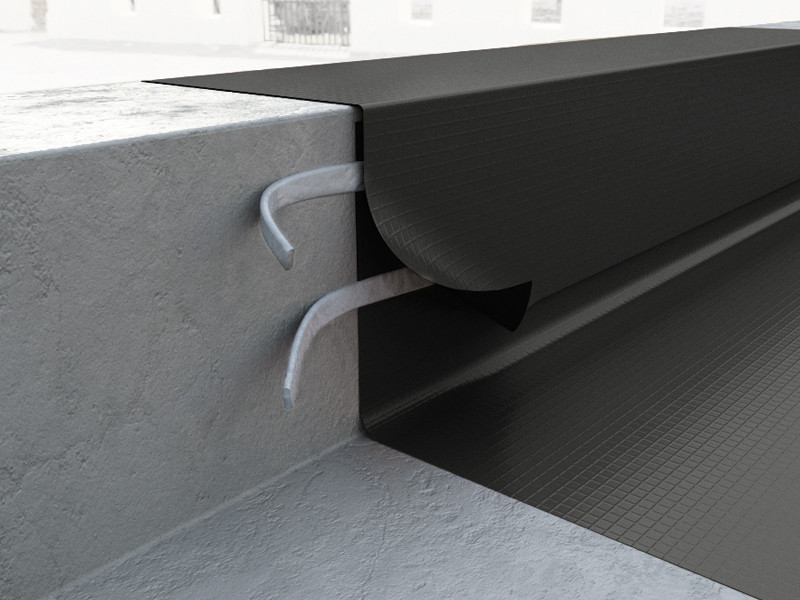

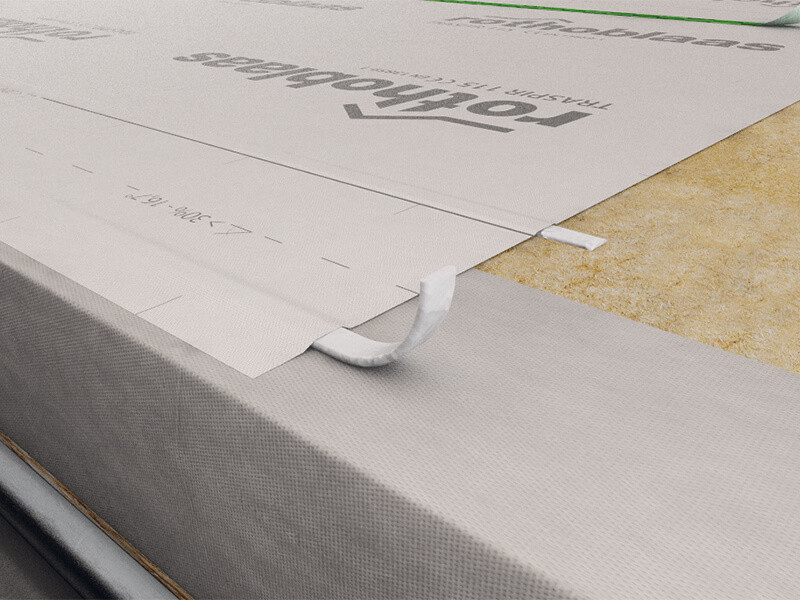

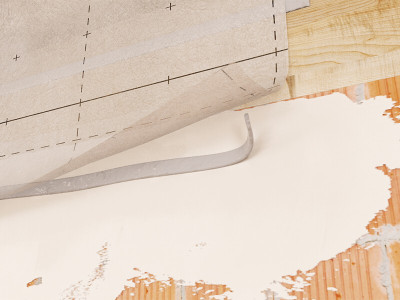

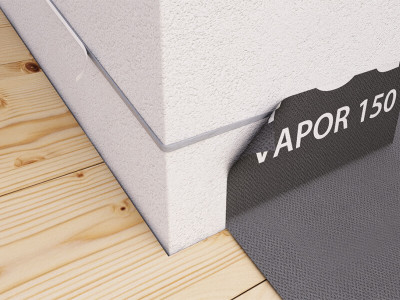

SUPRA BAND is the universal butyl tape for sealing membrane-to-plaster and membrane-to-concrete connections

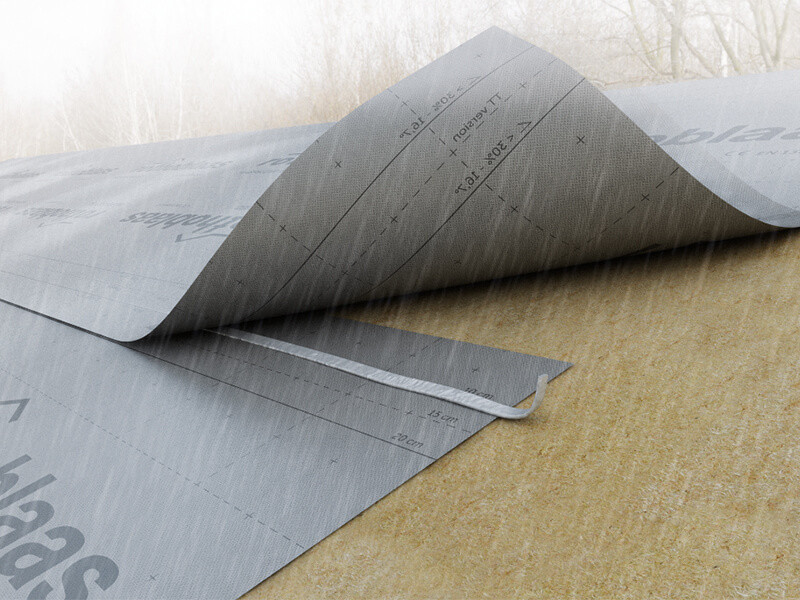

Water and air resistant, SUPRA BAND universal butyl sealing tape ensures adhesion even on wet supports and at low temperatures. Its adhesive power also allows the sealing of damp or porous surfaces without the need to apply additional products, saving time and money.
The modified butyl formulation of the universal double-sided tape provides instant and permanent adhesion to all building materials. In addition, the material is impermeable to water and steam, ensuring a perfect seal.
Documents
Technical data sheets
|
|
|---|---|
Fire test report
|
SUPRA BAND
| CODE | B
[mm]
|
s
[mm]
|
L
[m]
|
B
[in]
|
s
[mil]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| SUPRA6 | 6 | 4 | 6 | 0.2 | 157 | 20 | 7 |
| SUPRA10 | 10 | 4 | 6 | 0.4 | 157 | 20 | 7 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Initial Tack +23/+5 °C | ASTM D2979 | 4 / 13,5 N | 0.9 / 3 lbf |
| Adhesion strength on OSB at 90° after 10 minutes | EN ISO 29862 | 8 N/10mm | 4.6 lbf/in |
| Adhesion strength on OSB at 180° after 10 minutes | EN ISO 29862 | 6 N/10mm | 3.4 lbf/in |
| Adhesion strength (average) on membrane in PP after 24 hours | EN 12316-2 | 16 N/50mm | 1.8 lbf/in |
| Shear adhesion strength of the joint on membrane in PP after 24 hours (1) | EN 12317-2 | 100 N/50mm | 11.4 lbf/in |
| Adhesion on concrete | ASTM D1000 | 13 N/50mm | 1.48 lbf/in |
| Forza di adesione su calcestruzzo a 180° | ASTM D1000 | 44 N/mm | 251.26 lbf/in |
| Vertical sliding | ISO 7390 | absent | - |
| Resistance to temperature | - | -40 / 120 °C | -40 / 248 °F |
| Application temperature (2) | - | -5 / 40 °C | 23 / 104 °F |
| Storage temperature | - | 0 / 50 °C | 32 / 122 °F |
| Solvents | - | no | - |
| French VOC classification | ISO 16000 | A+ | - |
| VOC emissions | EN 16516 | very low | - |
| Exposure to weather | - | 4 weeks | - |
Composition
| RELEASE LINER | silicone coated paper |
|---|---|
| GLUE | grey adhesive butyl compound |
