TRASPIR EVO UV 115
BREATHABLE MONOLITHIC MEMBRANE RESISTANT TO UV RAYS
The TRASPIR EVO UN 115 highly breathable monolithic membrane ensures high watertightness and excellent weather resistance thanks to the special mix. Its flame retardant feature is certified in Euroclass reaction to fire B-s1, d0 according to the standard EN 13501-1. In terms of cost-performance ratio it is an exceptional membrane.
Description

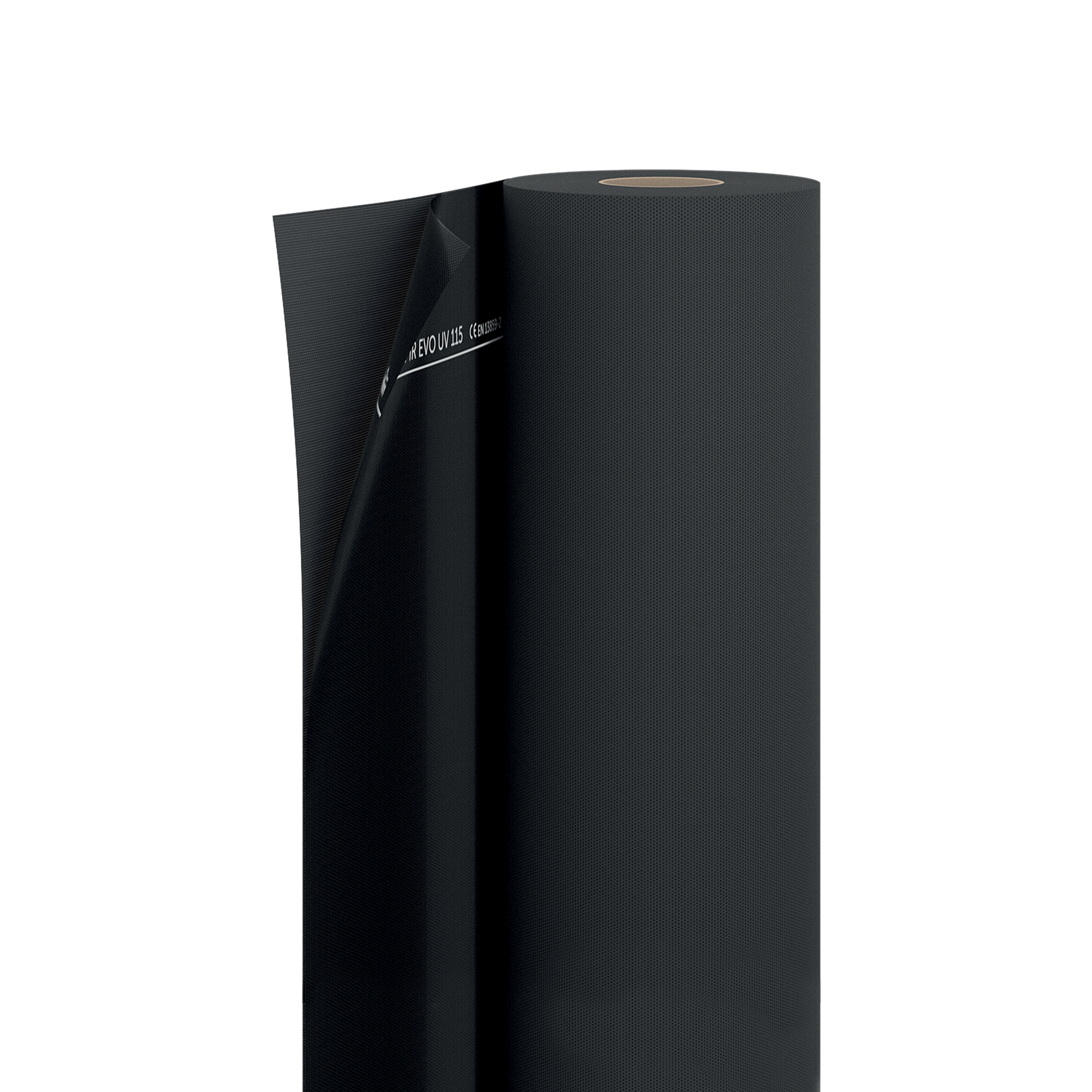

TRASPIR EVO UV 115, the highly breathable monolithic UV-resistant membrane.
The TRASPIR EVO UV 115 monolithic membrane ensures permanent resistance to UV rays with exposure with open joints up to 30 mm wide, and with up to 20% of the surface uncovered.

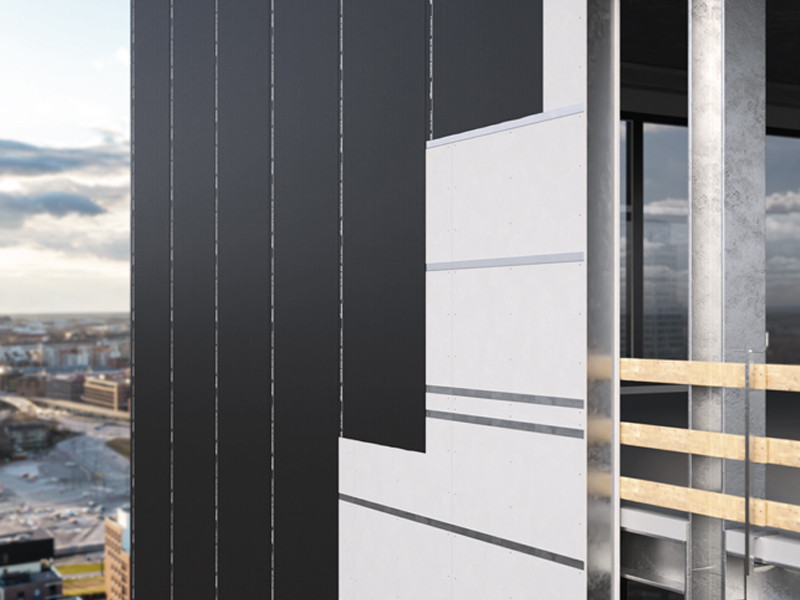

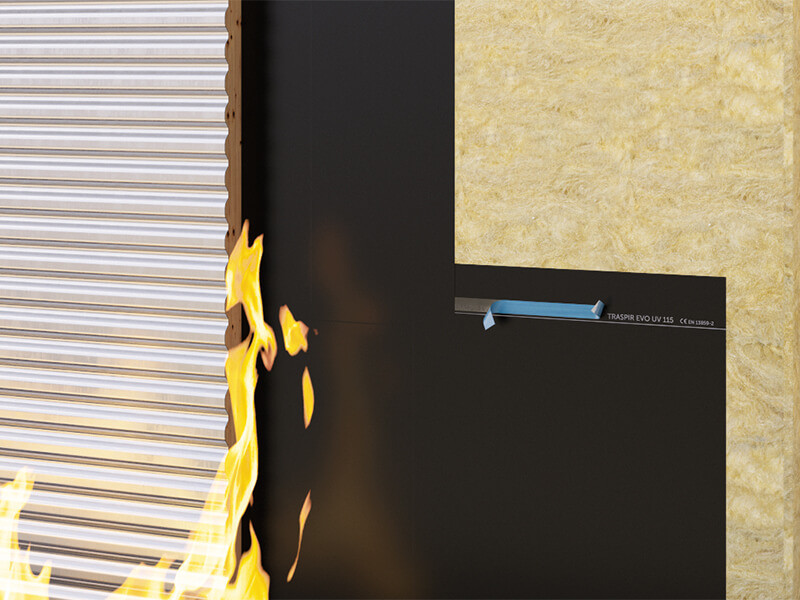

Thanks to the special chemical composition that is flame retardant, TRASPIR EVO UV 115 is suitable for use on applications on facades in direct contact with the ventilation chamber, or in cases in which is visible in internal environments.
It features an innovative technology that allows it to be used even on metal façades with high temperature fluctuations, without compromising its performance. TRASPIR EVO UV 115 membrane is provided with a LCA - Life Cycle Assessment - declaration.
TRASPIR EVO UV 115
| CODE | description | tape | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|---|
| TUV115 | TRASPIR EVO UV 115 | - | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 36 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 115 g/m² | 0.38 oz/ft² |
| Thickness | EN 1849-2 | 0,3 mm | 12 mil |
| Water vapour transmission (Sd) | EN 1931 | 0,08 m | 43.706 US perm |
| Tensile strength MD/CD | EN 12311-1 | 150 / 110 N/50mm | 17 / 13 lbf/in |
| Elongation MD/CD | EN 12311-1 | 90 / 90 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 130 / 170 N | 29 / 38 lbf |
| Watertightness | EN 1928 | class W1 | - |
| Resistance to temperature | - | -40 / 120 °C | -40 / 248 °F |
| Reaction to fire | EN 13501-1 | class B-s1,d0 | - |
| Resistance to penetration of air | EN 12114 | 0 m³/(m²·h·50Pa) | 0 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,3 W/(m·K) | 0.17 BTU/(h·ft·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 380 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 270 | - |
| UV resistance without final coating (1 ) | EN 13859-2 | 5000h (>12 mesi) | - |
| Water column | ISO 811 | > 500 cm | > 197 in |
| Watertightness after artificial ageing | EN 1297 / EN 1928 | class W1 | - |
| After artificial ageing - Tensile strength MD/CD | EN 1297 / EN 12311-1 | > 98 / 72 N/50mm | > 11 / 8 lb/in |
| After artificial ageing - elongation | EN 1297 / EN 12311-1 | > 59 / 59 % | - |
| Flexibility at low temperatures | EN 1109 | -40 °C | -40 °F |
| Surface burning characteristics | ASTM E84 | class 1 or class A | - |
| Flame spread index (FSI) | ASTM E84 | 15 | - |
| Smoke developed index (SDI) | ASTM E84 | 160 | - |
1. The membrane is not intended as a final waterproof layer for roofs.
Composition
| TOP LAYER | non-woven PP fabric |
|---|---|
| BOTTOM LAYER | breathable monolithic PU film |
Specifications
TRASPIR EVO UV 115
Supply and installation of UV-resistant monolithic breathable self-adhesive membrane, Type TRASPIR EVO UV 115.
Composition
From top layer to bottom layer:
highly UV-stable PP non-woven fabric;
breathable monolithic PU film.
Properties
Mass per unit area [g/m²]: 115
Thickness [mm]: 0,3
Water vapour transmission (Sd)[m]: 0,08
Tensile strength MD/CD [N/50 mm]: 150/110
Elongation MD/CD [%]: 90/90
Resistance to nail tearing MD/CD [N]: 130/170
Watertightness: class W1 (EN 1928)
Reaction to fire: class B-s1, d0 (EN 13501-1)
Resistance to temperature [C°]: -40/120
Resistance without final coating: 5000h (>12 months)
VOC [%]: 0
Standards and certifications
CE marked in accordance with EN 13859-2
LCA
ASTM E84 Class 1 - Class A
AUS 4200.1 Class 4
Description
The application surface must be dry, free of dust and grease. Surface elements must be removed so that the membrane is not damaged during application.
The membrane features innovative technology allowing it to be used even on metal façades subject to high temperature fluctuations, without compromising its performance.
Recommended use: The membrane is intended exclusively for wall applications.
Direct UV protection is guaranteed. Installation is therefore permitted on both the internal and external sides of the building envelope.
Installation: Unroll the membrane and seal using tape such as: MULTI BAND UV, DOUBLE BAND, FACADE BAND or FRONT BAND UV 210.
Installation in compliance with the B-s1, d0 value: Unroll the membrane and seal using tape such as: MULTI BAND UV or type FRONT BAND UV 210.
Ensure that the overlap between the membranes is at least 15 cm to achieve an optimal seal.
To ensure correct and professional installation, the use of a nail sealing point is required.
Further details regarding installation can be found in the specific instructions provided by the supplier.
