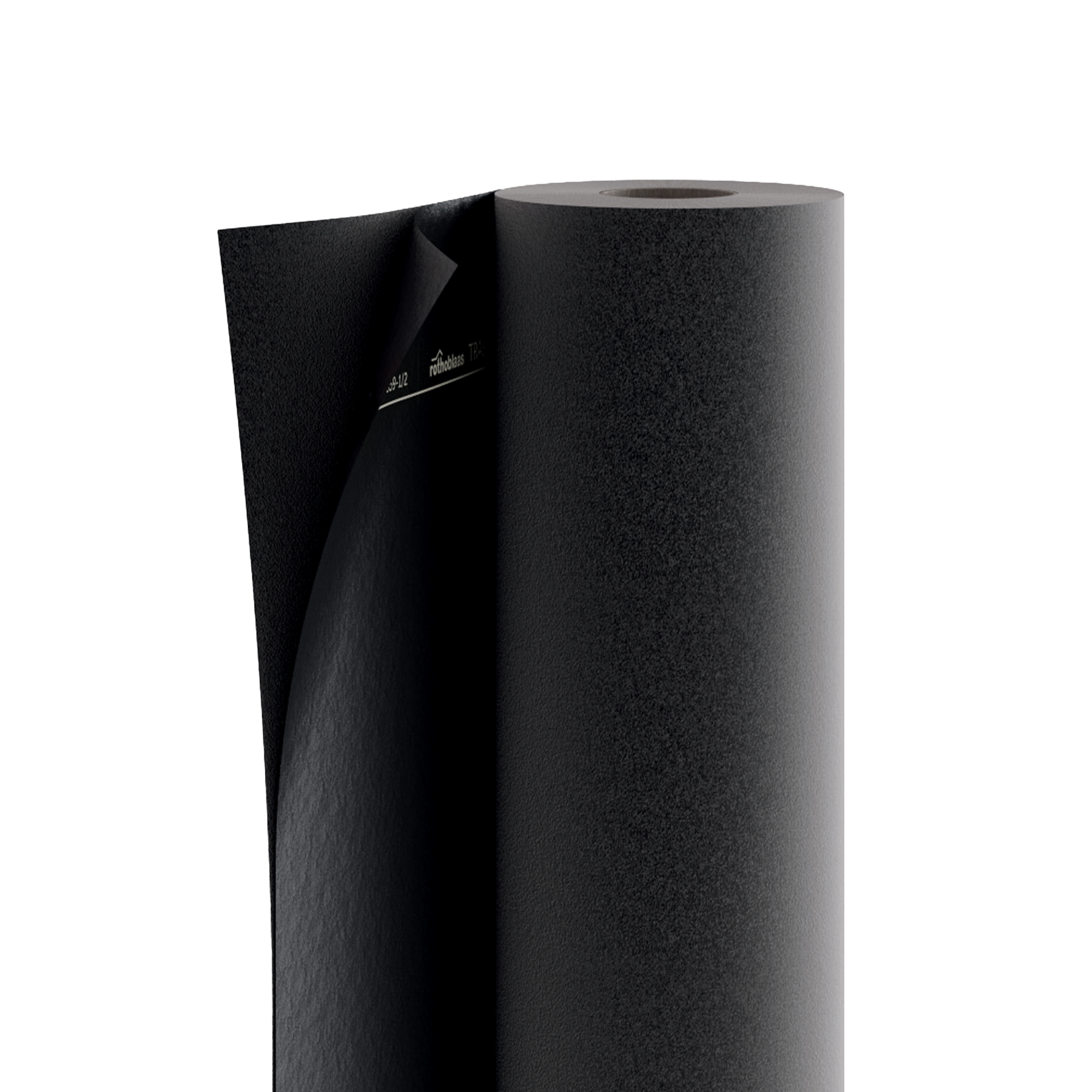

TRASPIR FELT EVO UV 210

MONOLITHIC BREATHABLE MEMBRANE RESISTANT TO UV RAYS

TRASPIR FELT EVO UV 210 is the monolithic breathable membrane with exceptional UV resistance. It is the ideal solution for creating discontinuous coating of ventilated façades with grouting up to 30 mm wide.

EN 13859-1/2
national-classifications AT Önorm B4119 UD Typ I
national-classifications CH SIA 232 UD (g)
national-classifications DE ZVDH USB-A UDB-A
national-classifications FR DTU 31.2 E1 Sd1 TR2 E600 J0 C3
national-classifications IT UNI 11470 A/R2
national-classifications AUS AS/NZS 4200.1 Class 4
national-classifications USA IRC vp
B-s1,d2

Description

TRASPIR FELT EVO UV 210: waterproofing and UV stability in one solution.

It consists of a monolithic breathable PU layer on a polyester reinforcement and is designed for application on the external side of walls.

Documents

  • Technical data sheets
  • Recommendations for installation

TRASPIR FELT EVO UV 210

CODE description tape H
[m]
L
[m]
A
[m²]
H
[ft]
L
[ft]
A
[sft]
pcs./pallet
DOP
TUV210 TRASPIR FELT EVO UV 210 - 1.5 50 75 4' 11'' 164 807 28
TUV21030 TRASPIR FELT EVO UV 210 3m - 3 50 150 9' 10 1/8'' 164 1615 16

Technical Data

EN 13859-1/2
national-classifications AT Önorm B4119 UD Typ I
national-classifications CH SIA 232 UD (g)
national-classifications DE ZVDH USB-A UDB-A
national-classifications FR DTU 31.2 E1 Sd1 TR2 E600 J0 C3
national-classifications IT UNI 11470 A/R2
national-classifications AUS AS/NZS 4200.1 Class 4
national-classifications USA IRC vp
B-s1,d2
Property Standard Tested Values USC Conversion
Mass per unit area EN 1849-2 210 g/m² 0.69 oz/ft²
Thickness EN 1849-2 1 mm 39 mil
Water vapour transmission (Sd) EN 1931 0,1 m 34.965 US perm
Tensile strength MD/CD EN 12311-1 380 / 420 N/50mm 43 / 48 lbf/in
Elongation MD/CD EN 12311-1 40 / 55 % -
Resistance to nail tearing MD/CD EN 12310-1 220 / 210 N 49 / 47 lbf
Watertightness EN 1928 class W1 -
Resistance to temperature - -40 / 120 °C -40 / 248 °F
Reaction to fire EN 13501-1 class B-s1,d2 -
Resistance to penetration of air EN 12114 < 0,02 m³/(m²·h·50Pa) < 0.001 cfm/ft² at 50Pa
Thermal conductivity (λ) - 0,2 W/(m·K) 0.12 BTU/(h·ft·°F)
Specific heat - 1300 J/(kg·K) -
Density - ca. 210 kg/m³ -
Water vapour resistance factor (μ) - ca. 100 -
UV resistance without final coating EN 13859-2 5000h (>12 mesi) -
UV stability with joints up to 30 mm wide exposing no more than 30% of the surface (1 ) EN 13859-2 permanent -
Water column ISO 811 > 300 cm > 118 in
Watertightness after artificial ageing EN 1297 / EN 1928 class W1 -
After artificial ageing - Tensile strength MD/CD EN 1297 / EN 12311-1 340 / 380 N/50mm 39 / 43 lb/in
After artificial ageing - elongation EN 1297 / EN 12311-1 35 / 50 % -
Flexibility at low temperatures EN 1109 -30 °C -22 °F
VOC - not relevant -
1. The membrane is not intended as a final waterproof layer for roofs.

Composition

TOP LAYER breathable monolithic PU film
REINFORCING LAYER PL fabric

Specifications

TRASPIR FELT EVO UV 210

Supply and installation of UV-resistant monolithic breathable membrane, Type TRASPIR FELT EVO UV 210.

Composition

From top layer to bottom layer:

breathable monolithic PU film;

PL fabric

Properties

Mass per unit area [g/m²]: 210
Thickness [mm]: 1
Water vapour transmission (Sd)[m]: 0,1
Tensile strength MD/CD [N/50 mm]: 380/420
Elongation MD/CD [%]: 40/55
Resistance to nail tearing MD/CD [N]: 220/210
Watertightness: class W1 (EN 1928)
Reaction to fire: class B-s1, d2 (EN 13501-1)
Resistance to temperature [C°]: -40/120
UV resistance without final coating: 5000h (>12 months)
VOC [%]: not applicable

Standards and certifications

CE marked in accordance with EN 13859-1/2
AUS 4200.1 Class 4

Description

The application surface must be dry, free of dust and grease. Surface elements must be removed so that the membrane is not damaged during application.

Recommended use: direct UV protection is guaranteed. Installation is therefore permitted on both the internal and external sides of the building envelope.

Installation: Unroll the membrane and seal using tape such as: DOUBLE BAND, FACADE BAND or FRONT BAND UV.

Installation in compliance with the B-s1, d2 value: Unroll the membrane and seal using tape such as: MULTI BAND UV or type FRONT BAND UV 210.

Ensure that the overlap between the membranes is at least 15 cm to achieve an optimal seal.

To ensure correct and professional installation, the use of a nail sealing point is required.

Further details regarding installation can be found in the specific instructions provided by the supplier.
