H-RAIL ON WALL
Working at heights requires a secure anchorage, but this can be visually impacting or impose excessive limitations on use. The H-RAIL rail system is safe and versatile with minimal visual impact. It allows to create rigid horizontal, curved or straight anchor lines, using few fasteners thanks to the system components. H-RAIL is suitable for working at height, both in retention and suspension.
Description

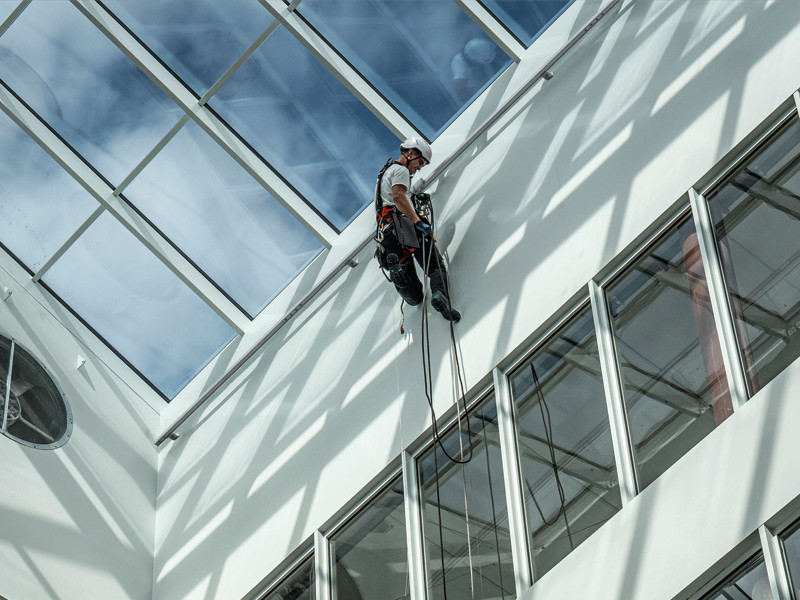

Working at height with H-RAIL ON WALL
H-RAIL is designed to be used by means of a specific sliding device, equipped with four wheels, which allows work at height, even when suspended.
H-RAIL can be installed on different structures ( timber, concrete and steel) to suit every installation requirement. Unlike the other models, H-RAIL ON WALL is installed on the wall, H-RAIL ON FLOOR on the roof and H-RAIL OVERHEAD below the supporting structure.
Assembly requires a limited number of fastening points with support spacing up to 6 m.
Safety by definition of work at height
What is meant by working at height? The risk of falling from a height of more than 2 metres defines work at height, which always requires a safe anchorage. For certain types of maintenance, however, such as façade maintenance, especially in the case of large buildings, there is a tendency to adopt very bulky safety solutions, such as BMUs, also known as baskets. For their installation, space is required to accommodate a machine with a large mechanical arm, the weight and bulk of which must already be considered in the building design. H-RAIL, on the other hand, thanks to its simplicity and lightness, can always be retrofitted, offering superior performance.
The H-RAIL ON WALL anchoring system from Rothoblaas represents the last word in safety for work at height and maintenance on roofs and façades. Designed with the objective of providing maximum protection for operators, this innovative lifeline system offers a reliable and durable solution for any type of structure. Its installation, made directly on the wall, is extremely simple and does not require complex masonry work, guaranteeing exceptional assembly efficiency. The ergonomic and compact design of the system blends harmoniously with the surrounding architecture without compromising the aesthetics of the location.
Made from the highest quality and most durable materials, it provides long-lasting protection, offering peace of mind and safety to both operators and users of the facilities involved. H-RAIL's versatility and reliability make it the ideal choice for a wide range of applications, from industrial maintenance to work on residential buildings, helping to raise safety standards and protect the lives of those working at height.
Documents
-
Technical data sheets
-
Declaration of conformity
- Declaration of conformity Bulgarian
- Declaration of conformity Croatian
- Declaration of conformity Czech
- Declaration of conformity Danish
- Declaration of conformity Dutch
- Declaration of conformity English
- Declaration of conformity Estonian
- Declaration of conformity Finnish
- Declaration of conformity French
- Declaration of conformity German
- Declaration of conformity Greek
- Declaration of conformity Hungarian
- Declaration of conformity Italian
- Declaration of conformity Latvia
- Declaration of conformity Lithuanian
- Declaration of conformity Polish
- Declaration of conformity Portuguese
- Declaration of conformity Romanian
- Declaration of conformity Slovak
- Declaration of conformity Slovene
- Declaration of conformity Spanish
- Declaration of conformity Swedish
-
Safety regulations, instructions for installation and use
- Safety regulations, instructions for installation and use Arabian
- Safety regulations, instructions for installation and use Chinese
- Safety regulations, instructions for installation and use Croatian
- Safety regulations, instructions for installation and use Czech
- Safety regulations, instructions for installation and use Danish
- Safety regulations, instructions for installation and use Dutch
- Safety regulations, instructions for installation and use English
- Safety regulations, instructions for installation and use Estonian
- Safety regulations, instructions for installation and use Finnish
- Safety regulations, instructions for installation and use French
- Safety regulations, instructions for installation and use German
- Safety regulations, instructions for installation and use Greek
- Safety regulations, instructions for installation and use Icelandic
- Safety regulations, instructions for installation and use Italian
- Safety regulations, instructions for installation and use Japanese
- Safety regulations, instructions for installation and use Latvia
- Safety regulations, instructions for installation and use Lithuanian
- Safety regulations, instructions for installation and use Norwegian
- Safety regulations, instructions for installation and use Polish
- Safety regulations, instructions for installation and use Portuguese
- Safety regulations, instructions for installation and use Romanian
- Safety regulations, instructions for installation and use Russian
- Safety regulations, instructions for installation and use Slovak
- Safety regulations, instructions for installation and use Slovene
- Safety regulations, instructions for installation and use Spanish
- Safety regulations, instructions for installation and use Swedish
- Safety regulations, instructions for installation and use Turkish
-
File BIM.ifc
-
File BIM.rfa
-
Declaration of Installation and inspection
- Declaration of Installation and inspection Arabian
- Declaration of Installation and inspection Chinese
- Declaration of Installation and inspection Croatian
- Declaration of Installation and inspection Czech
- Declaration of Installation and inspection Danish
- Declaration of Installation and inspection Dutch
- Declaration of Installation and inspection English
- Declaration of Installation and inspection Estonian
- Declaration of Installation and inspection Finnish
- Declaration of Installation and inspection French
- Declaration of Installation and inspection German
- Declaration of Installation and inspection Greek
- Declaration of Installation and inspection Hungarian
- Declaration of Installation and inspection Icelandic
- Declaration of Installation and inspection Italian
- Declaration of Installation and inspection Japanese
- Declaration of Installation and inspection Latvia
- Declaration of Installation and inspection Lithuanian
- Declaration of Installation and inspection Norwegian
- Declaration of Installation and inspection Polish
- Declaration of Installation and inspection Portuguese
- Declaration of Installation and inspection Romanian
- Declaration of Installation and inspection Russian
- Declaration of Installation and inspection Slovak
- Declaration of Installation and inspection Slovene
- Declaration of Installation and inspection Spanish
- Declaration of Installation and inspection Swedish
- Declaration of Installation and inspection Turkish
-
Installation manual
RAIL
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| RAIL3000 | 3m aluminium rail | EN AW 6063 (T6) | 49 | 41 | 3000 | 1 |
| RAILVC90 | 90° curved rail | EN AW 6063 (T6) | 506 | 49 | 506 | 1 |
| RAILVC135 | 135° curved rail | EN AW 6063 (T6) | 260 | 49 | 558 | 1 |
SUPPORT
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| RAILBRAT | rail bracket | AISI 304 stainless steel grade 1.4301 | 60 | 74 | 60 | 1 |
| RAILBRATA4 | rail bracket | AISI 316 stainless steel grade 1.4401 | 60 | 74 | 60 | 1 |
| RAILBRAT90 | rail bracket | AISI 304 stainless steel grade 1.4301 | 60 | 74 | 60 | 1 |
| RAILBRAT90A4 | rail bracket | AISI 316 stainless steel grade 1.4401 | 60 | 74 | 60 | 1 |
| RAILBRAT12 | rail bracket | AISI 304 stainless steel grade 1.4301 | 60 | 63 | 60 | 1 |
| RAILBRAT12A4 | rail bracket | - | 60 | 63 | 60 | 1 |
| RAILBRAT16 | rail bracket | AISI 304 stainless steel grade 1.4301 | 60 | 63 | 60 | 1 |
| RAILBRAT16A4 | rail bracket | AISI 316 stainless steel grade 1.4401 | 60 | 63 | 60 | 1 |
| RAILBRATW | rail bracket | AISI 304 stainless steel grade 1.4301 | 103 | 63 | 60 | 1 |
| RAILBRATWA4 | rail bracket | AISI 316 stainless steel grade 1.4401 | 103 | 63 | 60 | 1 |
| RAILBRAS | rail bracket | AISI 304 stainless steel grade 1.4301 | 60 | 22 | 60 | 1 |
| RAILBRASA4 | rail bracket | AISI 316 stainless steel grade 1.4401 | 60 | 22 | 60 | 1 |
| RAILBRAW | rail bracket | AISI 304 stainless steel grade 1.4301 | 120 | 22 | 60 | 1 |
| RAILBRAWA4 | rail bracket | AISI 316 stainless steel grade 1.4401 | 120 | 22 | 60 | 1 |
TERMINAL ELEMENT
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| RAILEND | rail terminal element | AISI 304 stainless steel grade 1.4301 | 84.5 | 48.6 | 55 | 1 |
| RAILENDA4 | rail terminal element | AISI 316 stainless steel grade 1.4401 | - | 48.6 | 55 | 1 |
| RAILENDOPEN | rail terminal element | AISI 304 stainless steel grade 1.4301 | 49 | 49 | 60 | 1 |
| RAILENDOPENA4 | rail terminal element | AISI 316 stainless steel grade 1.4401 | - | 49 | 60 | 1 |
SLIDING DEVICE
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| RAILSLIDE | sliding device | AISI 304 stainless steel grade 1.4301 | 50 | 51 | 70 | 1 |
| RAILSLIDEA4 | sliding device | AISI 316 stainless steel grade 1.4401 | 50 | 51 | 70 | 1 |
| RAILSLIDEOH | sliding device | AISI 304 stainless steel grade 1.4301 | 72 | 72 | 95 | 1 |
| RAILSLIDEOHA4 | sliding device | AISI 316 stainless steel grade 1.4401 | 72 | 72 | 95 | 1 |
JOINT
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| RAILJUN | rail junction element | EN AW 6082 | 28.7 | 32.7 | 340 | 1 |
TOOL
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| RAILJUNTOOL | rail tool | EN AW 6082 - 1.1191 (C45E) aluminium | 92 | 116 | 132 | 1 |
| RAILPLATE | rail id plate | - | - | 40 | 140 | 1 |
FASTENING
| CODE | description | material | pcs. |
|---|---|---|---|
| RAILOCKSCREW | lock screw | A2-70 | 250 |
| RAILSCREW | DIN 7991 A2-70 | A2-70 | 50 |
| RAILSCREWA4 | DIN 7991 A4-70 | A4-70 | 50 |
TARGAHORxy
| CODE | description | pcs. |
|---|---|---|
| TARGAHORIT | Label plate for PATROL and H-RAIL systems IT | 1 |
| TARGAHORDE | Label plate for PATROL and H-RAIL systems DE | 1 |
| TARGAHOREN | Label plate for PATROL and H-RAIL systems EN | 1 |
| TARGAHORES | Label plate for PATROL and H-RAIL systems ES | 1 |
| TARGAHORFR | Label plate for PATROL and H-RAIL systems FR | 1 |
| TARGAHORPT | Label plate for PATROL and H-RAIL systems PT | 1 |
| TARGAHORRU | Label plate for PATROL and H-RAIL systems RU | 1 |
| TARGAHORCS | Label plate for PATROL and H-RAIL systems CS | 1 |
| TARGAHORDA | Label plate for PATROL and H-RAIL systems DA | 1 |
| TARGAHOREL | Label plate for PATROL and H-RAIL systems EL | 1 |
| TARGAHORET | Label plate for PATROL and H-RAIL systems ET | 1 |
| TARGAHORFI | Label plate for PATROL and H-RAIL systems FI | 1 |
| TARGAHORHR | Label plate for PATROL and H-RAIL systems HR | 1 |
| TARGAHORHU | Label plate for PATROL and H-RAIL systems HU | 1 |
| TARGAHORIS | Label plate for PATROL and H-RAIL systems IS | 1 |
| TARGAHORJA | Label plate for PATROL and H-RAIL systems JA | 1 |
| TARGAHORLT | Label plate for PATROL and H-RAIL systems LT | 1 |
| TARGAHORLV | Label plate for PATROL and H-RAIL systems LV | 1 |
| TARGAHORNL | Label plate for PATROL and H-RAIL systems NL | 1 |
| TARGAHORNO | Label plate for PATROL and H-RAIL systems NO | 1 |
| TARGAHORPL | Label plate for PATROL and H-RAIL systems PL | 1 |
| TARGAHORRO | Label plate for PATROL and H-RAIL systems RO | 1 |
| TARGAHORSK | Label plate for PATROL and H-RAIL systems SK | 1 |
| TARGAHORSL | Label plate for PATROL and H-RAIL systems SL | 1 |
| TARGAHORSV | Label plate for PATROL and H-RAIL systems SV | 1 |
| TARGAHORTR | Label plate for PATROL and H-RAIL systems TR | 1 |
| TARGAHORZH | Label plate for PATROL and H-RAIL systems ZH | 1 |
| TARGAHORAR | Label plate for PATROL and H-RAIL systems AR | 1 |
